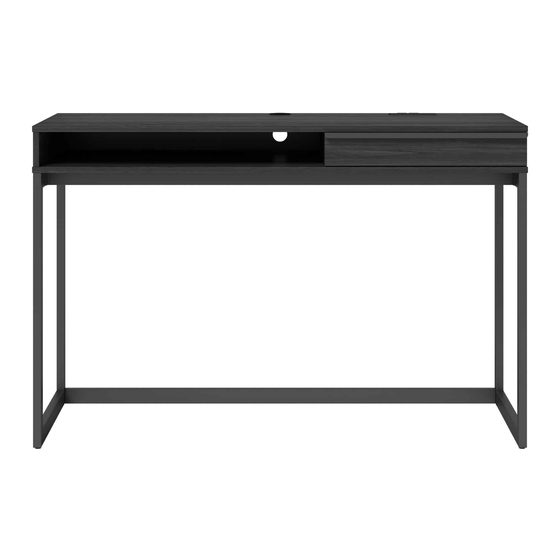

Latimer 48" Desk with Powerstrip
ADULT ASSEMBLY REQUIRED DUE TO THE PRESENCE OF SMALL PARTS, SHARP
POINTS, SHARP EDGES AS RECEIVED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Thomasville™ is a trademark of HHG IPCo, LLC. ©HHG IPCo, LLC. thomasville.com
Model # SPLS-LA48D-TV
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
www.whalenfurniture.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2021-02-24
1-866-942-5362
Rev. 0001-A
LOT NUMBER:
DATE PURCHASED: /
/
Advertisement
Related Manuals for Thomasville SPLS-LA48D-TV
Summary of Contents for Thomasville SPLS-LA48D-TV
- Page 1 Or visit our web site 24 hours a day, 7 days a week for product assistance at www.whalenfurniture.com Or e-mail your request to parts@whalenfurniture.com THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Date 2021-02-24 Rev. 0001-A Thomasville™ is a trademark of HHG IPCo, LLC. ©HHG IPCo, LLC. thomasville.com...
-
Page 2: Special Note
M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Latimer 48" Desk with Powerstrip MODEL # SPLS-LA48D-TV MAXIMUM LOAD 90.7 kg / 200 lb. MAXIMUM LOAD 10 kg / 4.54 lb. - Page 3 FURNITURE TIPPING RESTRAINT YOUNG CHILDREN MAY BE INJURED BY TIPPING FURNITURE AND YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE WALL, TO PREVENT ACCIDENTS AND/OR INJURIES. THIS HARDWARE MUST PROPERLY INSTALLED (FOLLOW DIRECTIONS IN ORDER ON THIS INSTRUCTIONS), TO PROVIDE PROTECTION AGAINST THE UNEXPECTED TIPPING OF FURNITURE DUE TO IMPROPER USE.
- Page 4 FURNITURE POWER DISTRIBUTION CENTER IMPORTANT SAFETY INSTRUCTIONS Carefully read all instructions installing and operating fixture IF YOU HAVE ANY QUESTIONS REGARDING THE PROPER INSTALLATION CONSULT A QUALIFIED ELECTRICIAN. TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS, PLEASE FOLLOW THE NEXT: ...
-
Page 5: Specifications
Furniture Power Distribution Unit User Guide Please read this user guide before installing and using your power distribution Center. INTRODUCTION This device complies with Part 15 of the FCC Rules. The integrated power and USB center offer 480 Mbps Operation is subject to the following two conditions: (1) high transmission rate and can connect up to three This device may not cause harmful interference, and (2) devices, such as a digital camera, MP3 player, cell... - Page 6 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Desk Top (Qty. 1) B- Left Side Frame (Qty. 1) C- Right Side Frame (Qty. 1) D- Upper Front Stretcher (Qty.
- Page 7 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. (1) 1/4” x 16 mm Bolt (2) Lock Washer (3) Flat Washer (Qty. 22+1 extra) (Qty. 20+1 extra) (Qty.
- Page 8 Assembly Instructions NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. 1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch.
- Page 9 Assembly Instructions 4. Fit the Bottom Back Stretcher (F) onto the U-shaped bracket on the bottom of the Right Side Frame (C) as shown, using two 16 mm Bolts (1) and two Washers (2 and 3). Fasten it into place. D/E/F 5.
- Page 10 Assembly Instructions 6. Place the Desk Top (A) upside down on a level and scratch-free surface. 7. Align and attach the previous assembly unit to the Desk Top (A) with ten 16 mm Bolts (1), ten Lock Washers (2) and ten Flat Washers (3). Route Shorten 8.
- Page 11 Assembly Instructions 10. Feed the wire of Power Center (H) through the cutout of the Desk Top (A) and push into the cutout from top of Desk Top, secure it in place with two 12 mm Screws (4). Make sure the wire is not pinched. 11.
- Page 12 Assembly Instructions Wooden stud Wall Short screw Wall Floor leveler Metal bracket Metal bracket Nylon strap Long screw Tools required (not provided): Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit. 13. Position the unit at the desired location against a wall. If necessary, adjust the Floor Levelers at the bottom of the Side Frames (B and C) to level the unit.
-
Page 13: Quality Guarantee
Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Gently rub the surface with a soft dry cloth, soft damp cloth, or soft damp cloth with neutral detergent, and then dry it well. ...
