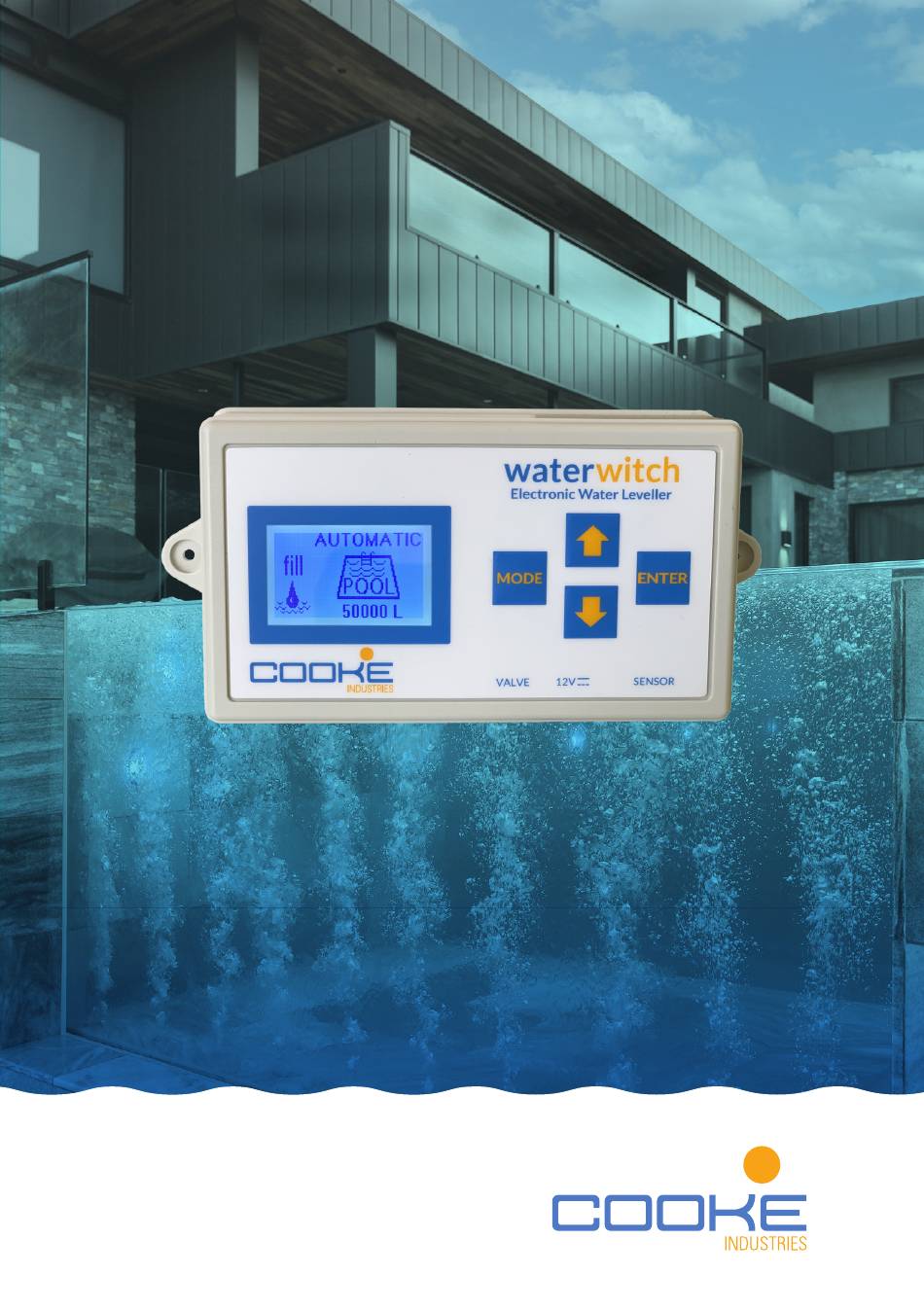

- Page 1 WATER WITCH SMART SENSE PRODUCT SUPPORT GUIDE waterwitch Electronic Water Leveller...
- Page 2 The Water Witch has been Australia’s most trusted auto leveller for more than 25 years and we’re excited to bring this new model to you. The Water Witch Smart Sense continues our promise of great reliability and now includes a host of added benefits.
-
Page 3: Table Of Contents
Product Support Guide INDEX Compliance notices Page 02 Product applications and warnings Page 03 Product components and part numbers Page 04 Control box installation Page 05 Sensor installation Page 06 Solenoid valve installation Page 08 Alternative installation options Page 10 Pump out from tank or trough Page 12 Start-up process... -
Page 4: Compliance Notices
waterwitch Electronic Water Leveller COMPLIANCE NOTICES SOLENOID VALVE BACKFLOW PREVENTION VALVE Certificate of Conformity Certificate of Conformity Australian Certification Services Pty Ltd grants to the WaterMark Approved User: Australian Certification Services Pty Ltd grants to the WaterMark Approved User: Nymet Australia Pty Ltd Nymet Australia Pty Ltd Trading as Nymet Australia Pty Ltd Trading as Nymet Australia Pty Ltd... -
Page 5: Product Applications And Warnings
Product Support Guide PRODUCT APPLICATIONS AND WARNINGS The Water Witch is used in many different applications and projects to maintain a minimum or maximum water level. Some of the most popular applications include: • Swimming pools and spas • Balance tanks •... -
Page 6: Product Components And Part Numbers
waterwitch Electronic Water Leveller PRODUCT COMPONENTS AND PART NUMBERS The reliability and durability of the Water Witch is founded on its simplicity – there are just three main components and the unit will work well if all components are functioning correctly and site conditions are suitable. CONTROL BOX WS345 Water Witch Control Box SENSOR... -
Page 7: Control Box Installation

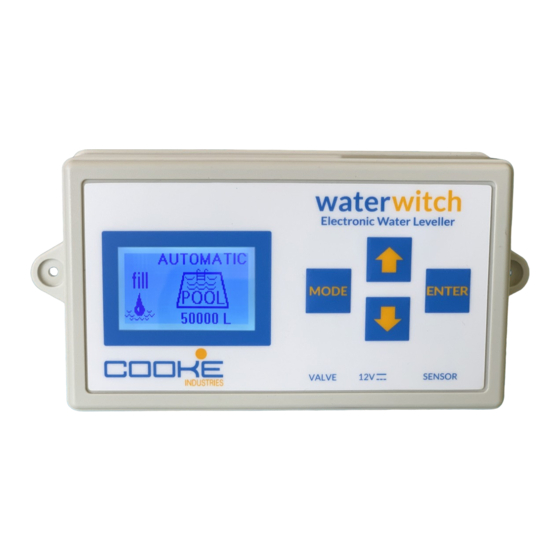

Product Support Guide CONTROL BOX INSTALLATION The Control Box is the brain of the operation, continuously receiving signals from the Sensor to confirm whether the body of water is at the required level or if water needs to be added to the project. INSTALLATION PROCESS AND CONSIDERATIONS: •... -
Page 8: Sensor Installation
waterwitch Electronic Water Leveller SENSOR INSTALLATION The Sensor sits in a balance line, tank or trough to monitor the water level. A ball float inside the Sensor lowers as the water level drops, in turn connecting a light beam between two LED lights in the top of the Sensor. - Page 9 Product Support Guide INSTALLATION PROCESS AND CONSIDERATIONS: • The sensor requires a 50mm class 9 or class 12 PVC pipe to be installed as a balance line from the project’s wall to the pump and filter area. ALWAYS USE 50MM PIPE FOR THE SENSOR HOUSING TO ENABLE ADEQUATE FLOW AROUND THE SENSOR AND FUTURE SERVICABILITY.
-
Page 10: Solenoid Valve Installation
waterwitch Electronic Water Leveller SOLENOID VALVE INSTALLATION The Solenoid is regulated by the Control Box. When the water level is low the Control Box sends a 24V AC current to open the Solenoid so water flows in to the project. The Solenoid will close when the water level is restored to the correct level. - Page 11 Product Support Guide Control 20mm OPTION 2 supply line Water source Solenoid installed into Solenoid & Tap or filtration return line backflow Two-way valve valve 40mm or 50mm POOL • A TAP OR TWO-WAY VALVE MUST BE • If approved in your local area, the fill PLACED BEFORE THE SOLENOID TO line can be plumbed into the filtration ENABLE THE WATER SOURCE TO BE...
-
Page 12: Alternative Installation Options
waterwitch Electronic Water Leveller ALTERNATIVE INSTALLATION OPTIONS BALANCE TANK Control The Water Witch is the most effective auto leveller for Cable gland to adjust sensor height balance tank installations. DO NOT GLUE 50mm END CAP Maintaining a minimum water level in the balance 50mm PVC pipe Inflow to house sensor... - Page 13 Product Support Guide INFINITY EDGE TROUGH An infinity edge provides pool projects with additional design flexibility and creativity. However, such designs pose additional challenges to ensure the pool operates effectively and equipment is protected. There are two crucial design factors to consider in relation to the required water level within an infinity edge trough: •...
-
Page 14: Pump Out From Tank Or Trough
Electronic Water Leveller PUMP OUT FROM TANK OR TROUGH The Water Witch Smart Sense can be installed to pump water out of a tank, trough or any other water body. Instead of activating the fill function when the water level is low, programming and an alternative installation enables the Water Witch to activate a pump when the water level increases to a set height. -
Page 15: Start-Up Process
Product Support Guide START-UP PROCESS t’s now time to start your Water Witch. Complete the following process to test your unit and confirm all components are operating correctly: SET SENSOR LEVEL • Fill the pool or water body to the required When the water level is at water level the fill line the SCAN icon... - Page 16 waterwitch Electronic Water Leveller Tank Type Suitable Applications Minimum Volume Maximum Volume (Litres) (Litres) Pool Domestic or small commercial pools 10,000 L 500,000 L Pump Out Used to pump water out of a tank or trough Comm Commercial pools and large projects 100,000 L 5,000,000 L Other...
-
Page 17: Operating Modes
Support Guide OPERATING MODES The Water Witch Smart Sense includes six operating modes to ensure there is an option to suit your particular pool, spa or water project. The following process is used to set the correct TANK TYPE and TANK VOLUME. -
Page 18: Runtime Log
waterwitch Electronic Water Leveller RUNTIME LOG The Runtime Log provides a mean average and daily summary of the unit’s runtime for the previous 14 days. VIEW RUNTIME LOG ENTER • Hold for three seconds to open the Runtime Log. • The first figure you will see is the average daily runtime for the past 14 days. ↑... -
Page 19: Troubleshooting Process
Product Support Guide TROUBLESHOOTING PROCESS The Water Witch is an accurate and reliable electronic auto leveller which should provide you with many years of consistent performance. If your Water Witch is not operating correctly upon installation or you suspect a fault after years of reliable service, you will need to consider the problem being experienced and refer to the fault table below: Fault No. - Page 20 BOOST The output voltage is unable to open the solenoid valve – check the valve output type within the Parameters settings and change if required. Contact Cooke Industries if the issue persists. OUTPUT A short circuit is detected at the solenoid valve connection –...
-
Page 21: Parameters
Product Support Guide PARAMETERS There are a number of parameters which can be adjusted to improve the operation of the unit in relation to onsite conditions, connected hardware or display settings. ADJUST UNIT PARAMETERS ↑ ENTER • Hold for three seconds to open Parameters •... -
Page 22: Maintenance & Specifications
waterwitch Electronic Water Leveller MAINTENANCE AND SPECIFICATIONS Most Water Witches operate reliably for at least 5-10 years under normal operating conditions. The following maintenance schedule should be adopted to optimise the unit’s serviceable life: • Monthly – Observe and inspect all components to ensure the unit is operating correctly. Particular care should be taken during the first month after installation to ensure the system is operating correctly. -
Page 23: Warranty Notice
Support Guide WARRANTY NOTICE Cooke Industries will provide a new or repaired part or component at its discretion in place of any part or component, which is found upon inspection, to be defective in material or workmanship during the warranty period. - Page 24 Electronic Water Leveller Cooke Industries P: 1300 652 076 E: info@cookeindustries.com.au cookeindustries.com.au...
