Cooke waterwitch Quick Start Manual

waterwitch
Electronic Water Leveller

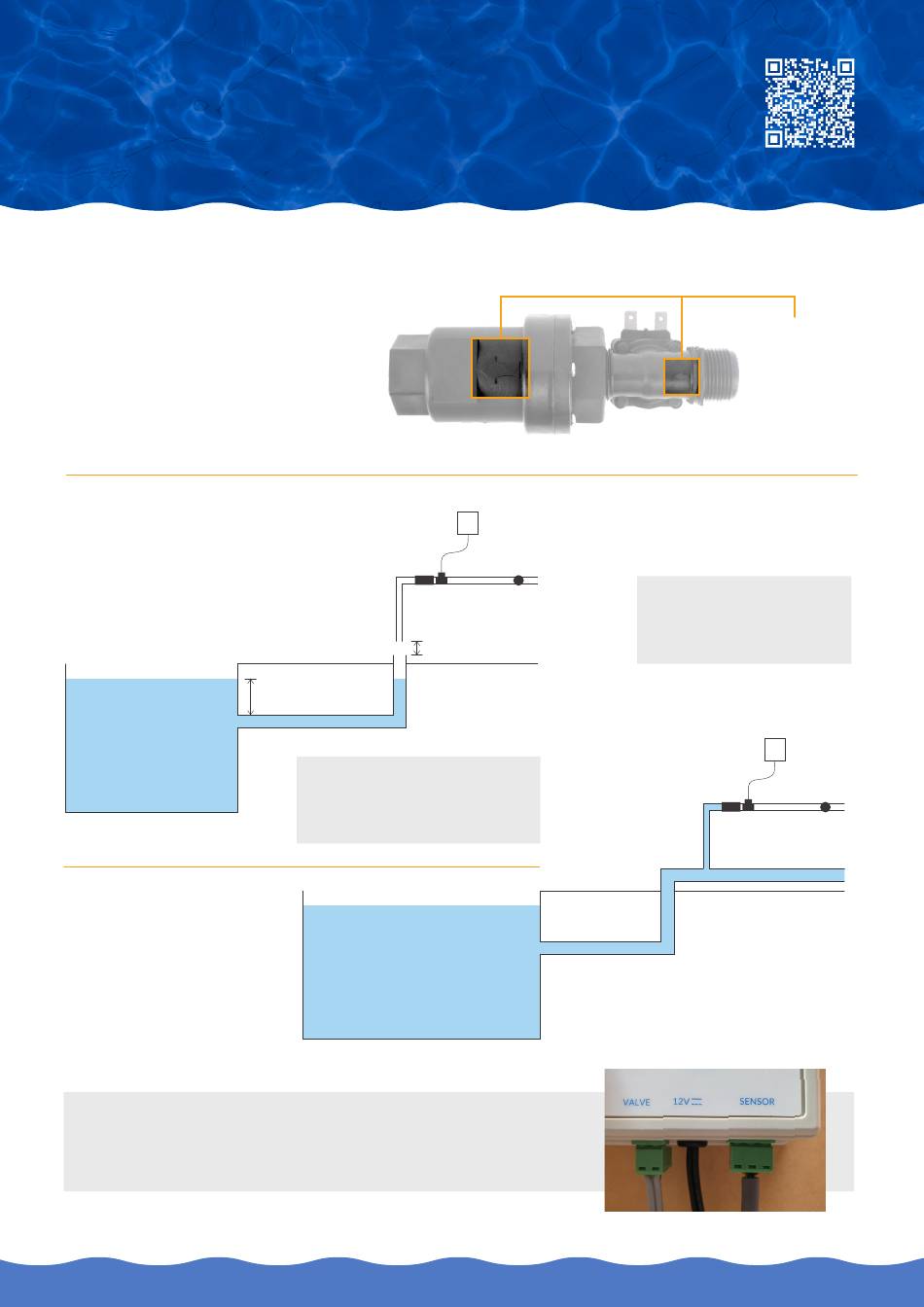

INSTALLATION
• Install Solenoid and Backflow
Prevention Valve into water
supply/fill line, ensuring arrows are
pointing in the direction of the
water flow. Connect Solenoid Cable
to the Solenoid and Control Box.
OPTION 1
Solenoid installed
into balance line
POOL
OPTION 2
Solenoid installed into
filtration return line
NOTE
Sensor and Solenoid plugs must be inserted into the Water Witch
Control Box with the fastening screws facing away from you.
WW - v2.0 - Feb 2024
20mm
Solenoid &
backflow
(¾in)
prevention
supply
valve
line
20mm (¾in) air gap
Fill line to be 300mm Pipe to extend 300mm (1ft)
(1ft) below water level above water level
50mm (2in) balance line
NOTE
20mm (¾in) air gap may not be required where
a Backflow Prevention Valve is installed.
Check with your local Water Authority for
specific requirements.
POOL
Quick Start
GUIDE
Control
Box
Water source
Tap or
two-way
valve
Ensure the Solenoid
Valve and Backflow
Prevention Valve
directional flow
arrows are pointed
in the same direction
as the water flow.
NOTE
The Solenoid and Backflow Prevention
Valves must be installed in a separate
balance line to the sensor, OR be
plumbed into the filtration return line.
Control
20mm
Box
(¾in)
supply
line
Water source
Solenoid & Tap or
two-way
backflow
prevention valve
valve
40mm (1½in) or 50mm (2in)
filtration return line
