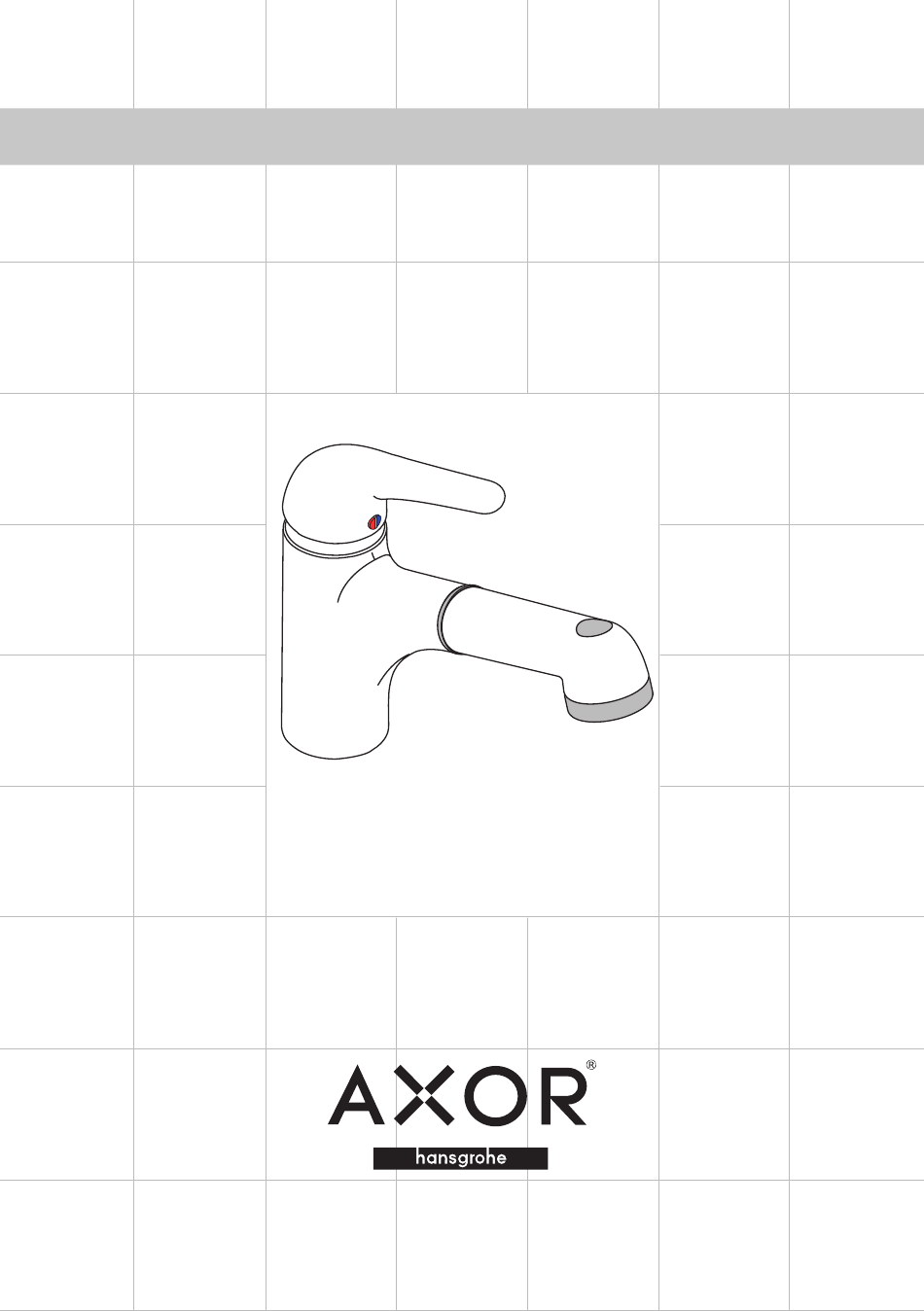

- Page 1 Installation Instructions / Warranty Axor Steel 35807801...
- Page 2 Technical Information / Données techniques / Datos tecnicos Recommended water Pression d’eau recommandée Presión recomendada en servicio 15 - 75 psi pressure Max. water pressure Pression d’eau maximum Presión en servicio max. 145 psi Recommended hot Température recommandée d'eau Temperatura recomendada del 120�...
-
Page 3: Installation Considerations
Installation Considerations • For best results, Hansgrohe recommends that • Protection against backflow is provided by this unit be installed by a licensed, profes- two check valves in the handspray. sional plumber. • Keep this booklet and the receipt (or other •... - Page 4 English Installation Place the faucet and sealing ring on the mounting surface. Install the plastic washer, friction washer, metal washer, and mounting nut. If the mounting surface is greater than 1⅜", or if there is insufficient space, omit the plastic washer. Check the orientation of the faucet.
- Page 5 Français Español Installation Instalación Placez l'anneau d'étanchéite et le robinet sur la Coloque el oro de sellado y el grifo sobre la superfi- surface de montage. cie de montaje. Installez la rondelle de plastique, la rondelle en fibre, Instale la arandela plástica, la arandela de fibra, la la rondelle de friction, et l'écrou de montage.
- Page 6 English Connect the handspray hose to the connection hose. Install the hose weight. Test the handspray hose. If it does not retract smoothly, reposition the weight. Connect the hot and cold supply hoses to the stops. Use two wrenches. Do not allow the supply hoses to twist.
- Page 7 Français Español Raccordez le tuyau de la douchette au tuyau Conecte la manguera de rociador de mano a la d'arrivée de la douchette. manguera de suministro. Installez le contrepoids sur le tuyau. La instalación correcta del contrapeso de la manguera asegura que elrociador de mano se Tirez sur la douchette.
- Page 8 English User Instructions The water comes on in the stream mode. Press the diverter button turn divert to the spray mode. The diverter will reset to the stream mode when the water is turned off. If the flow of water decreases over time, remove and clean the hose filter.
- Page 9 Français Español Instructions à l’intention de Instrucciones para el usuario l’utilisateur Presione y mantenga oprimido el distribuidor para activar el modo de rociado. Pour activer le mode jet de la version douchette rétractable du robinet, appuyez sur l’inverseur. Cierre el paso de agua para volver al modo de corriente.
- Page 10 Replacement Parts / Pièces détachées / Repuestos 35891800 97650800 94186000 94194000 92730000 95140000 95008000 97350000 97735000 95340000 96316001 98601000 13914000 97523000 35893801 95049000 95506000 98551000...
- Page 11 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of For best results: •...
- Page 12 Recommandations pour le nettoyage des produits Hansgrohe Les robinetteries modernes de lavabo, de cuisine et de douche utilisent des matériaux très différents pour répondre aux besoins du marché en termes de conception et de fonctionnalité. Certaines règles de base doivent être respectées lors du nettoyage de ces produits afin d’éviter de les endommager ou d’avoir à...
- Page 13 Recomendación de limpieza para los productos de Hansgrohe Hoy en día, las griferías de baño y de cocina así como duchas modernas se componen de materiales muy distintos para satisfacer las exigen- cias del mercado respecto al diseño y la funcionalidad. Para evitar daños reclamaciones hay que tener en cuenta ciertos aspectos tanto en el uso como en su limpieza posterior.
-
Page 14: Limited Consumer Warranty
Limited Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products that are purchased by a consumer in the United States or Canada after March 1, 1996, and installed in either in the United States or in Canada. WHO IS COVERED BY THE WARRANTY This warranty extends to the original purchaser only. -
Page 15: Exclusions And Limitations
When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid. EXCLUSIONS AND LIMITATIONS REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO CREATE FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT. - Page 16 Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004 Tel. 770-360-9880 • Fax 770-360-9887 www.hansgrohe-usa.com...
