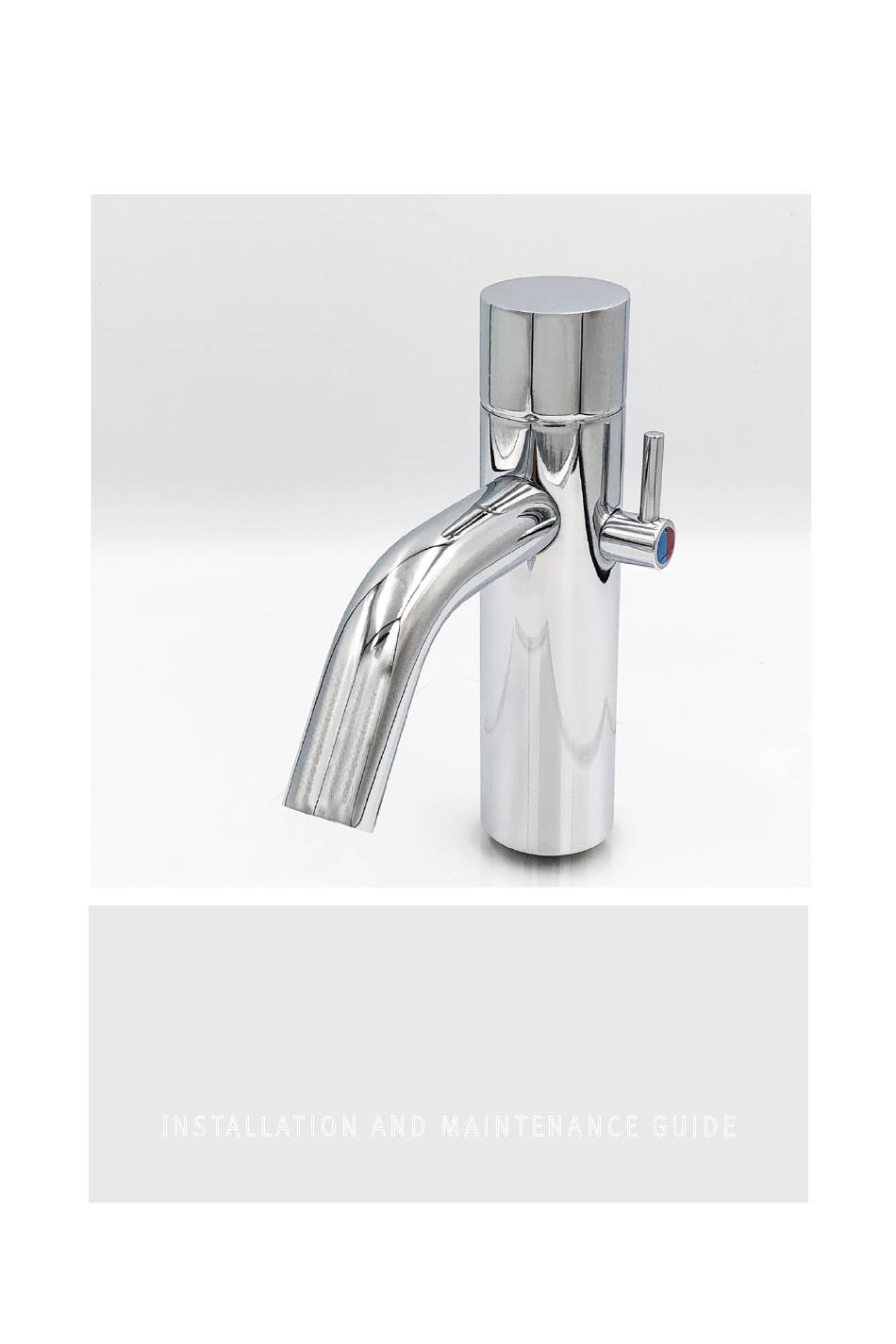

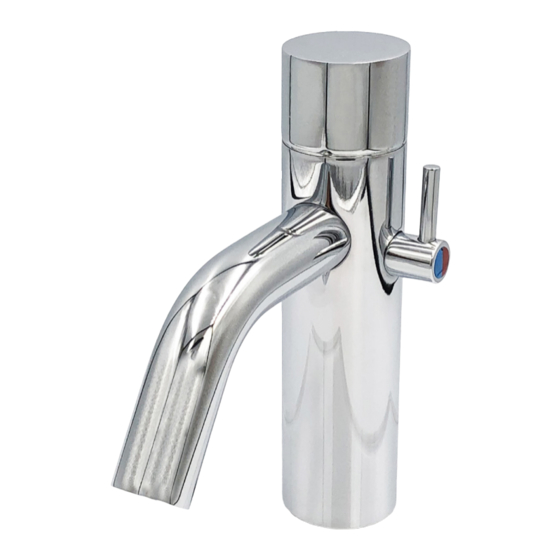

- Page 1 EXTREME 1000 LF ELECTRONIC LAVATORY FAUCET I n s t a l l a t I o n a n d m a I n t e n a n c e g u I d e...
-
Page 2: Technical Data
TECHNICAL DATA INDEX TECHNICAL DATA PACK CONTENTS PRE-INSTALLATION INFO INSTALLATION SETTINGS ADJUSTMENT BATTERY REPLACEMENT MAINTENANCE LIMITED WARRANTY TROUBLESHOOTING 237102 Extreme 1000LFB 237003 Extreme 1000LFE Power supply 6 x 1.5V AA Battery or 9V transformer 0.5-8.0 bar (7-116 PSI) Recommended water With water pressure of more than 8 bars, use a pressure reducing pressure valve for reduction. -
Page 3: Pack Contents
PACk CoNTENTs PrE-INsTALLATIoN INFo Familiarize yourself with the part names and confirm that the parts are included. CHeCk ContentS Separate all parts from the packaging and check each part with the “Pack contents” section. Pay attention to the different models variations. Make sure all parts are accounted for before discarding any packaging material. -
Page 4: Installation
INsTALLATIoN INsTALLATIoN sTEP 3 – CoNNECTINg THE WATEr suPPLy sTEP 1 – PrEPArATIoN For mouNTINg THE FAuCET Shut off the water supply. Connect the red flexible pipe to the hot water supply and the blue flexible 2 inletS VeRSion pipe to the cold water supply. O-Ring 2 inletS VeRSion Remove the hexagonal nut, the disk... -
Page 5: Settings Adjustment
sETTINgs ADjusTmENT sETTINgs ADjusTmENT SeCuRitY tiMe: The Security time, prevents continuous running of water due to reflections or vandalism. By default, if the sensor is covered for more than 90 seconds the water flow will shut automatically. To resume regular operation any obstruction must be removed. -
Page 6: Maintenance
mAINTENANCE BATTEry rEPLACEmET filteR Cleaning inStRuCtionS When the battery weakens, the LED indicator light will blink at a constant rate. The battery must be replaced within two weeks. This faucet is provided with stainless steel filterpreventing foreign particles to enter the lines. -
Page 7: Troubleshooting
LImITED WArANTy TrouBLEsHooTINg The manufacturer warrants that its electronic products will be free of defects in ProBLEm INDICATor CAusE soLuTIoN material and workmanship during normal use for two years from the date the product No water 1. Sensor flashes is purchased. coming out continuously of the faucet:... - Page 8 11.19 01500487 -A...
