Installation

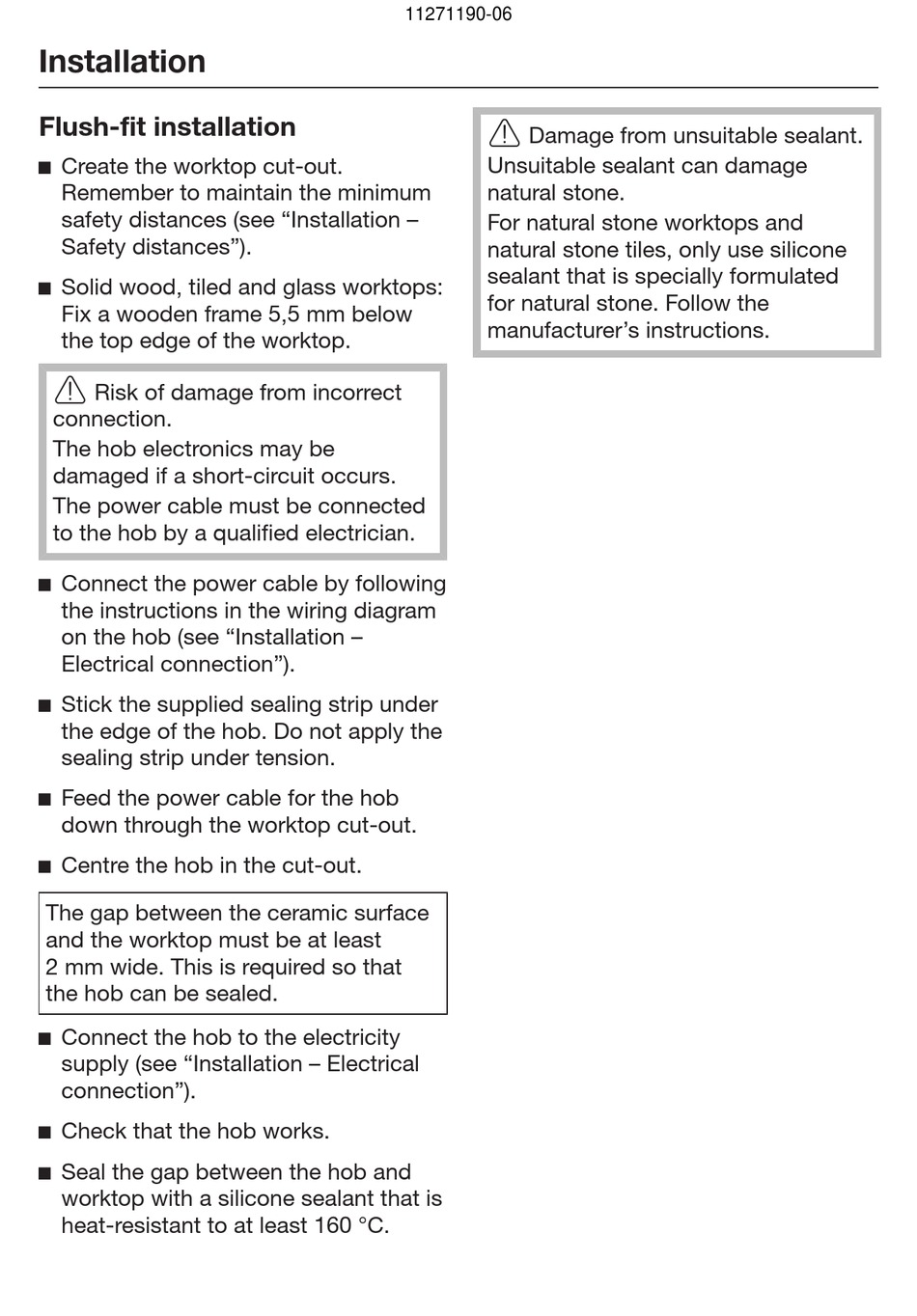

Flush-fit installation

 Create the worktop cut-out.
Remember to maintain the minimum
safety distances (see "Installation –
Safety distances").
 Solid wood, tiled and glass worktops:
Fix a wooden frame 5,5 mm below
the top edge of the worktop.

Risk of damage from incorrect
connection.
The hob electronics may be
damaged if a short-circuit occurs.
The power cable must be connected
to the hob by a qualified electrician.
 Connect the power cable by following
the instructions in the wiring diagram
on the hob (see "Installation –
Electrical connection").
 Stick the supplied sealing strip under
the edge of the hob. Do not apply the
sealing strip under tension.
 Feed the power cable for the hob
down through the worktop cut-out.
 Centre the hob in the cut-out.
The gap between the ceramic surface
and the worktop must be at least
2 mm wide. This is required so that
the hob can be sealed.
 Connect the hob to the electricity
supply (see "Installation – Electrical
connection").
 Check that the hob works.
 Seal the gap between the hob and
worktop with a silicone sealant that is
heat-resistant to at least 160 °C.
11271190-06

Damage from unsuitable sealant.
Unsuitable sealant can damage
natural stone.
For natural stone worktops and
natural stone tiles, only use silicone
sealant that is specially formulated
for natural stone. Follow the
manufacturer's instructions.
