Deluxe Receiver Kit; Setup/Use - MSA EVOLUTION Instruction Manual

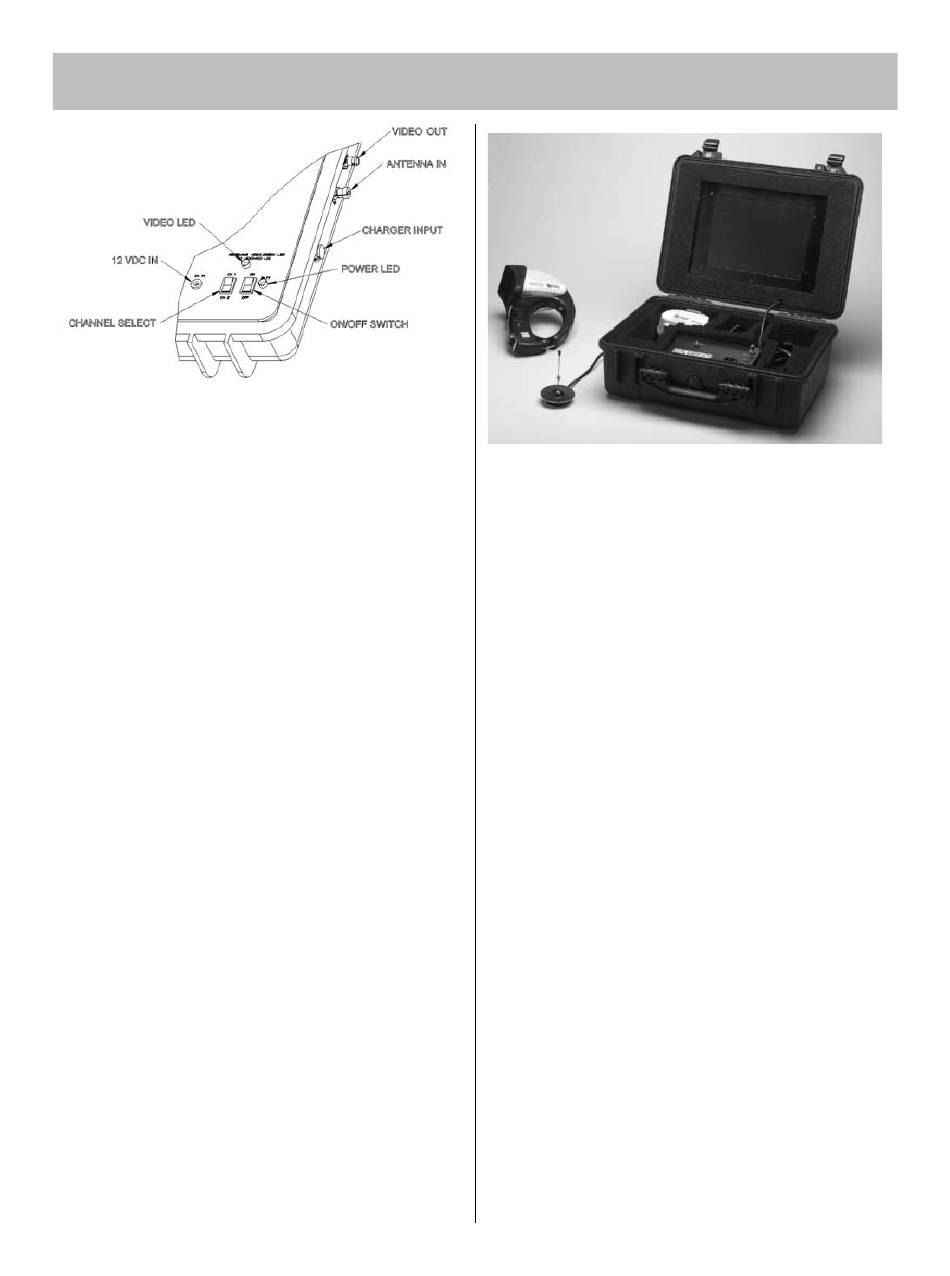

Figure 2.

SETUP/USE

The Deluxe Receiver Kit consists of a receiver
module and 15.4-inch LCD mounted in a hard-
sided carrying case. The kit also contains an
antenna, coaxial video cable, charger, attenuator,
and cables. The following guidelines describe its
basic setup and use.
• Connect the antenna to the Receiver Kit.
Locate the antenna as close as possible to
the transmitting TIC. For best reception,
position the antenna with the tip pointed
upward. Avoid as many obstructions between
the antenna and the TIC as possible.
• A turn-ON procedure is provided for optimal
performance. Turn the receiver kit "ON"
• Turn ON any of the Evolution 3000, 4000 or
5000 series transmitters mentioned previously.
• Confirm the receiver signal indicator light is
green. If the LED is not green, confirm the
receiver and transmitter are on the correct
channels.
• If OFF, turn on the LCD Screen by pushing
the power button located on the lower left of
the LCD Screen. Confirm the LCD Display
buttons light up blue. After a short delay (few
seconds), the image appears on the screen.
• The Deluxe Receiver Kit can be powered
from three possible sources.
• The internal sealed lead-acid battery
• An external 120 VAC source. The
supplied charger can simultaneously
charge the battery and power the
Receiver Kit

DELUXE RECEIVER KIT

Figure 3.
• Vehicle power. External or Vehicular
power operation is accomplished by
connecting a vehicular power cord to the
unit and setting the front panel power
switch to the "OFF/DC" position. The unit
runs automatically from a 12 volt
vehicular power supply.
• Channel selection is accomplished using the
two-position rocker switch on the front panel.
• To verify correct receiver unit operation, turn
ON an Evolution TIC and its transmitter.
Verify the same image appears on the TIC
and the LCD of the receiver unit.
• When the unit is turned ON, a green LED
should be lit on the base of the receiver unit,
and the LCD should be ON and showing
static until a transmitter is turned ON.
• To change the channel of the Receiver, toggle
the switch between "1" and "2".
• To verify correct receiver unit operation, turn
ON an Evolution TIC and its transmitter.
Verify that the same image appears on the
TIC and the LCD of the receiver unit.
Prior to deploying the TIC, it is important to verify
that the transmitter contained in the Evolution TIC
and the receiver units are synchronized to the
same transmitting frequency. Also, verify that the
Evolution TIC has fully charged batteries. Low
battery power can result in transmission power
loss, and degrade the resulting image seen with
the Receiver Kit.
3
