" WARNINGS

1. The user must be trained and thoroughly
familiar with the proper operation and
limitations of the thermal imaging and
video transmission systems prior to use.
Use in controlled live-burn exercises is
suggested before using the equipment in
actual emergency situations.
2. The Wireless Video System and thermal
imaging system are not rated as
"Intrinsically Safe." Do not use these
systems in environments or atmospheres
where static or sparks may cause an
explosion.
3. Do not remove the receiving unit cover or
casing as the system operates on high
voltage. Only authorized personnel may
service the unit.
4. Do not alter or modify this device
Failure to follow the above warnings can result
in serious personal injury or death.

" CAUTION

This equipment has been tested and
found to comply with the limits for a
Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable pro-
tection against harmful interference
when the equipment is operated in a
commercial environment. This equip-
ment generates, uses, and can radiate
radio frequency energy and, if not
installed and used in accordance with
the instruction manual, may cause
harmful interference to radio communi-
cations. Operation of this equipment in
a residential area is likely to cause
harmful interference, in which case,
the user will be required to correct the
interference at their own expense.
This Class A digital apparatus
complies with Canadian ICES-003.
Cet appareil numérique de la classe A
est conforme à la norme NMB-003
du Canada.
Do not drop the Remote Wireless
Video System components, otherwise,
damage to the system could occur.

INTRODUCTION

BACKGROUND AND OVERVIEW

MSA's Remote Wireless Video Receiver Kit is the
complement to the transmitter unit for Evolution
Thermal Imaging Cameras (TICs). It provides the
capture, conditioning, and display of the
transmitted video image to the user.
The Receiver System is available in two
configurations:
• the Deluxe Receiver Kit (P/N 10119319)
which consists of a receiver module and a
15.4 inch LCD mounted in a hard-sided
carrying case
or
• the Mini Receiver Kit (P/N 10048134)
which is packaged in a soft-sided
carrying case.

" WARNING

This is a Class A product. In a domes-
tic environment, this product may
cause radio interference, in which case,
the user may be required to take
adequate measures.

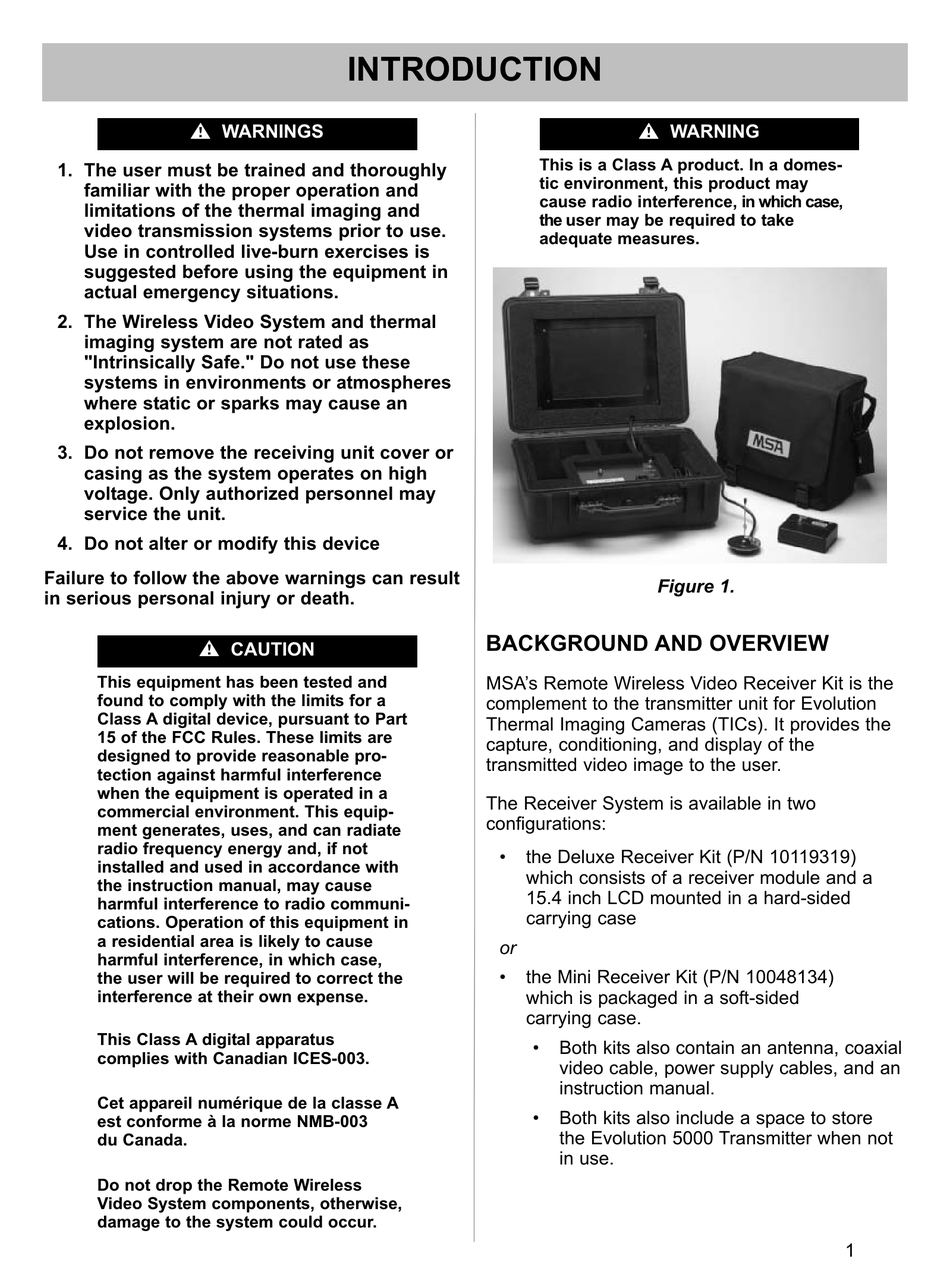

Figure 1.
• Both kits also contain an antenna, coaxial
video cable, power supply cables, and an
instruction manual.
• Both kits also include a space to store
the Evolution 5000 Transmitter when not
in use.
1
