Using a Behringer FCB1010 MIDI Foot Controller
Contents
Overview ................................................................................................................................................ 2
Behringer FCB1010 MIDI Foot Controller ............................................................................................ 3
FCB1010 Manager ................................................................................................................................. 4
Korg Pa2X - Remote control of the Style Elements ...................................................................... 10
Load SysEx Data into the FCB1010 Manager ................................................................................. 12
Check Global Configuration ............................................................................................................ 15
Send SysEx Data to the FCB1010 device ........................................................................................ 16
Set the FCB1010 in MIDI MERGE MODE ........................................................................................ 18
Korg Pa2X PRO Setup .......................................................................................................................... 19
Mode = STYLE PLAY ......................................................................................................................... 19
Set the Split Point on the Pa2X ....................................................................................................... 22
Open the STYLE MENU ................................................................................................................... 26
GLOBAL SETTINGS ........................................................................................................................... 31
GLOBAL MIDI settings ..................................................................................................................... 32
Roland RD-700GX Setup ..................................................................................................................... 36
Connect the FCB1010 and the RD-700GX to the Pa2X ..................................................................... 38
Korg Pa2X Pro
Using a Behringer FCB1010 with a Korg Pa2X
1

Advertisement

Table of Contents
loading

Related Manuals for Behringer FCB1010

Summary of Contents for Behringer FCB1010

  • Page 1: Table Of Contents

    Set the Split Point on the Pa2X ....................... 22 Open the STYLE MENU ........................26 GLOBAL SETTINGS ........................... 31 GLOBAL MIDI settings ........................32 Roland RD-700GX Setup ........................36 Connect the FCB1010 and the RD-700GX to the Pa2X ..............38 Using a Behringer FCB1010 with a Korg Pa2X...

  • Page 2: Overview

    This document explains how to use a Behringer FCB1010 MIDI Foot Controller with the Korg Pa2X PRO 76-Key Arranger Keyboard. You can control the essential Style Elements on the Pa2X remotely by using the FCB1010 device. Additionally, you can connect a weighted 88-key Stage Piano like the Roland RD-700GX utilizing the MIDI Merge function of the FCB1010 device.

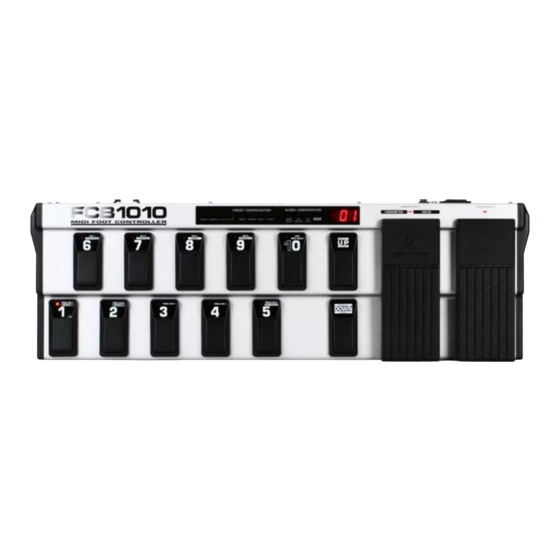

  • Page 3: Behringer Fcb1010 Midi Foot Controller

    There are two free Editors for this device:  FCB1010 Manager  FCB1010 PC Editor The FCB1010 PC Editor lets you detect the EPROM version of your device without opening the back plate. http://www.mtnsys.com/?path=faq-fcb/PCEditorBeta.htm%3f The latest firmware as of 5/13/2017 is 2.5.1E You will be using the FCB1010 Manager for this tutorial.

  • Page 4: Fcb1010 Manager

    FCB1010 Manager Download the FCB1010 Manager from: https://mountainutilities.eu/fcb1010 Run fcbman-2.2.1-install.exe Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 5 Install Folder = C:\Program Files\Mountain Utilities\FCB1010 Manager\ Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 6 Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 7 Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 8 Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 9 View | MIDI | Input Messages Using a Behringer FCB1010 with a Korg Pa2X...

  • Page 10: Korg Pa2X - Remote Control Of The Style Elements

    Korg Pa2X – Remote control of the Style Elements Download the Korg Pa2X Owner’s Manual. https://www.korg.com/us/support/download/manual/1/186/2212/ Open Page 280 Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 11 Note: Korg uses a numbering scheme based on 0-127. However, the FCB1010 uses a numbering scheme based on 1-128. This means you must increment the Korg values by 1 Here is the translation table: Program Change Function Program Change (Based on 1-128)

  • Page 12: Load Sysex Data Into The Fcb1010 Manager

    Open the SysEx file = FCB1010+Pa2X.syx Bank 0 and Bank 1 contain the most useful presets. Expression Pedal A is set to Modulation (CC# = 1) Expression Pedal B is set to Expression (CC# = 11) Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 13 Open the FCB1010 Emulator Bank 0 Bank 1 This has the 4 One Touch Voice Settings Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 14 Banks 4, 5 and 6 contains the complete list of remote functions recognized by the Pa2X. Using a Behringer FCB1010 with a Korg Pa2X...

  • Page 15: Check Global Configuration

    PC 1 must be set to MIDI Channel 16 MIDI Channel 16 = Control Channel on Pa2X EXP A and EXP B must be set to MIDI Channel 1 MIDI Channel 1 = Global Channel on Pa2X Using a Behringer FCB1010 with a Korg Pa2X...

  • Page 16: Send Sysex Data To The Fcb1010 Device

    Send SysEx Data to the FCB1010 device Send this SysEx data to the FCB1010 Turn on the POWER on the FCB1010 unit while pressing the DOWN button. The FCB1010 will power up in DIRECT SELECT MODE. You can see the Green LED.
  • Page 17 Press and hold the DOWN button until the LED counts down to 00. Your SysEx data is now saved in the device. Using a Behringer FCB1010 with a Korg Pa2X...

  • Page 18: Set The Fcb1010 In Midi Merge Mode

    Set the FCB1010 in MIDI MERGE MODE You want the MIDI OUT from the Roland RD-700GX to feed the MIDI IN of the FCB1010. You want the merged output from the FCB1010 to feed the Korg Pa2X Pro. Open the GLOBAL CONFIGURATION – CONFIG page: Make sure the LEDs on Pedal 8 and 9 are ON.

  • Page 19: Korg Pa2X Pro Setup

    Korg Pa2X PRO Setup You must make the following settings on the Korg Pa2X to make it work with the Behringer FCB1010 MIDI Foot Controller. Mode = STYLE PLAY Press the STYLE PLAY button. The Pa2X is now in STYLE PLAY MODE.
  • Page 20 Press the MEMORY button Press the SYNCHRO START button Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 21 Press the SPLIT button Set CHORD SCANNING = LOWER Using a Behringer FCB1010 with a Korg Pa2X...

  • Page 22: Set The Split Point On The Pa2X

    Set the Split Point on the Pa2X Open the SPLIT TAB Set SPLIT POINT = G3 LOCK the Split Point Set Chord Recognition = Fingered 3 LOCK the Chord Recognition Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 23 Open the STS Tab These are your 4 Single Touch Settings for your specific Style Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 24 Open the Pad Tab These are your 4 Pad Settings for the specific Style. Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 25 Open the VOLUME TAB You can control the relative levels of each part. Using a Behringer FCB1010 with a Korg Pa2X...

  • Page 26: Open The Style Menu

    Open the STYLE MENU With the MODE set to STYLE PLAY, press the MENU button Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 27 Open STYLE CONTROLS Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 28 Fill 1 = VARIATION DECREASE Fill 2 = VARIATION INCREASE Fill 3 = VARIATION INCREASE Lock the Fill Settings This will allow you to change the Variations by using the Fill buttons. Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 29 Open STYLE PLAY PREFERENCES Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 30 MIDI SETUP = 01 DEFAULT Using a Behringer FCB1010 with a Korg Pa2X...

  • Page 31: Global Settings

    GLOBAL SETTINGS Press the GLOBAL Button Using a Behringer FCB1010 with a Korg Pa2X...

  • Page 32: Global Midi Settings

    GLOBAL MIDI settings Press MIDI Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 33 Open the General Controls Tab Current MIDI Setup = 01 Default Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 34 Open the MIDI IN CONTROL Tab Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 35 This will control the Style Elements. Set MIDI Channel 01 = GLOBAL Note: The Expression Pedals A and B on the FCB1010 device will communicate via GLOBAL CHANNEL 01. Your Roland RD-700GX 88-key controller will also communicate with the Korg Pa2X via this GLOBAL CHANNEL.

  • Page 36: Roland Rd-700Gx Setup

    You can layer 2 voices on the Lower Keyboard. Make sure the 2 Red Buttons and the 2 Green Buttons are turned on. You can adjust the relative volumes of the 4 voices using the sliders. Using a Behringer FCB1010 with a Korg Pa2X...
  • Page 37 Lower 2 Voice = GX Warm String Save this SETUP: FUNCTION | SETUP WRITE, Setup = 001 To recall SETUP = 001 One Touch | SETUP Turn the Dial Select SETUP = 001 EXIT Using a Behringer FCB1010 with a Korg Pa2X...

  • Page 38: Connect The Fcb1010 And The Rd-700Gx To The Pa2X

    Turn on the Pa2X last. If you turn on the RD-700GX before turning on the FCB1010 unit, you will see a flashing LED. The 10 Presets on Bank 1 is all you really need to remotely control the Korg Pa2X.
