Summary of Contents for Foster S4000 NFO 4209

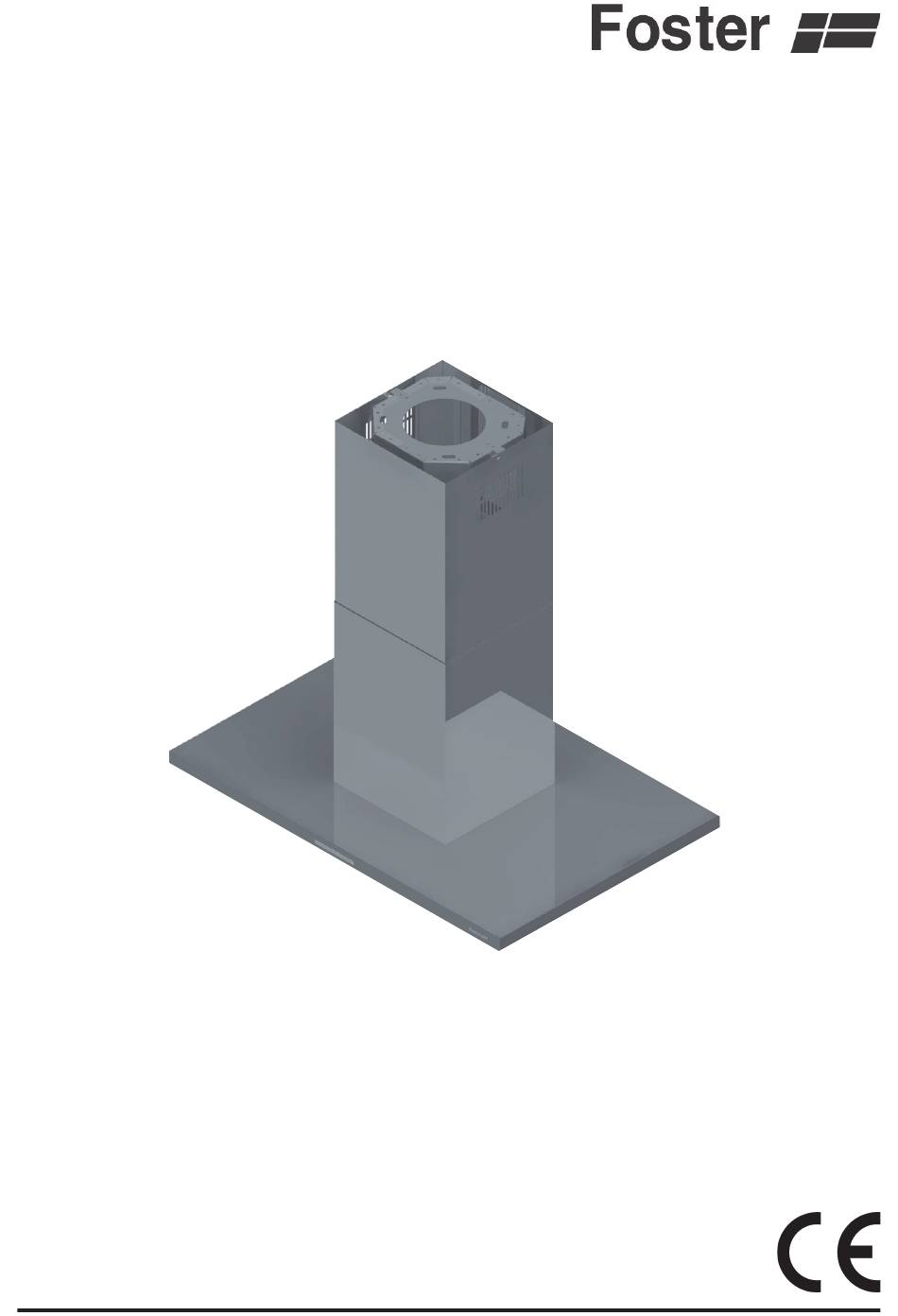

- Page 1 S4000 90 NFO 4209 Island Hood Island Hood 120 NFO 4212...
-
Page 2: Outline Dimensions
INSTRUCTIONS FOR INSTALLATION, MAINTENANCE AND USE OF THE S. 4000 ISLAND HOOD GENERAL INFORMATION: before installing and using the hood, read carefully all instructions contained in the present handbook. We suggest that you always keep the handbook and the warranty certiicate within easy reach. USE: the hood at issue is a SUCTION hood. -
Page 3: Operation
FIXING INSTRUCTIONS S.4000 ISLAND HOOD OPERATION 1 1a Remove the two screws Z which ix the top pipe to the structure. 1b Let the top pipe slide downwards. 1c Remove the screws V which ix the sliding structure to the ixed one. OPERATION 2 2a Check the necessary height from ceiling to bottom cable of the hood leaving 650/700 mm... - Page 4 OPERATION 3 3a Reach the needed measure from bottom cable of the hood to top part of the sliding structure by pulling it upwards. 3b Fix the structure with screws V using 2 of them for each side (8 screws in total). ATTENTION! - There are 3 holes per side, DO NOT USE THE CENTRAL HOLE.
- Page 5 OPERATION 5 5a Take the hood towards the ceiling, insert the top structure into the threaded bars and ix it with washers and nuts Y (2 nuts per bar). ATTENTION! Fix with double nuts in order to avoid the loose- ning due to vibrations.
-
Page 6: Electrical Connections
3 mm, The earth wire must not be interrupted by the switch. Foster decline any responsibility for any in- conveniences deriving from the non-obser- vance of the aforesaid instructions of the use of materials which are not in compliance with the existing regulations. -
Page 7: Maintenance
MAINTENANCE: Please switch-off the electrical power, or discon- nect the appliance before carrying out any mainte- nance operation. 1) Cleaning of the stainless steel parts: in order to avoid scratches in the steel surfaces, please don’t use abrasive powders or brushes. Use li- quid detergents speciically made for stainless steel items. -
Page 8: Technical Features
Cooking surface lighting n. 18 LED X 1 W n. 12 LED X 1 W Anti-grease lters Perimetric suction elements Working speed Operation inox spazzolato Foster inox spazzolato Foster Finishing Air outlet diameter Voltage Frequency 362 W Max absorbed Power... - Page 9 via M.S. Ottone, 18/20 - Brescello (RE) ASSISTENZA TECNICA Tel. 0522/684450 - FAX 686019 MAIL service@fosterspa.com MAGAZZINO RICAMBI Tel. / FAX 0522/684300 MAIL assistenza@fosterspa.com...
