AFi ReFrame single-sided SS101 Assembly Instructions

assembly instructions

SS101 - single-sided ReFrame®

Insert corner brackets into the channels of the top and bottom lengths of frame (screws may need to be loosened to

allow brackets to slide into position)

NOTE: To ensure a precise line-up of the frame proﬁles, do not tighten any of the screws until you have reached step 6

Slide top and side length together

www.aﬁbranding.com.au

1300 652 514

33 Lakewood Blvd, Carrum Downs, Vic, 3201

Lay out the ReFrame®

components on a ﬂat

surface and ensure you have

everything required before

you start the assembly.

CHECKLIST

Repeat on the opposite corner so that 3 lengths are

connected

Corner Brackets

ReFrame® Lengths

Allen Key

Table of Contents

Do you have a question about the ReFrame single-sided SS101 and is the answer not in the manual?

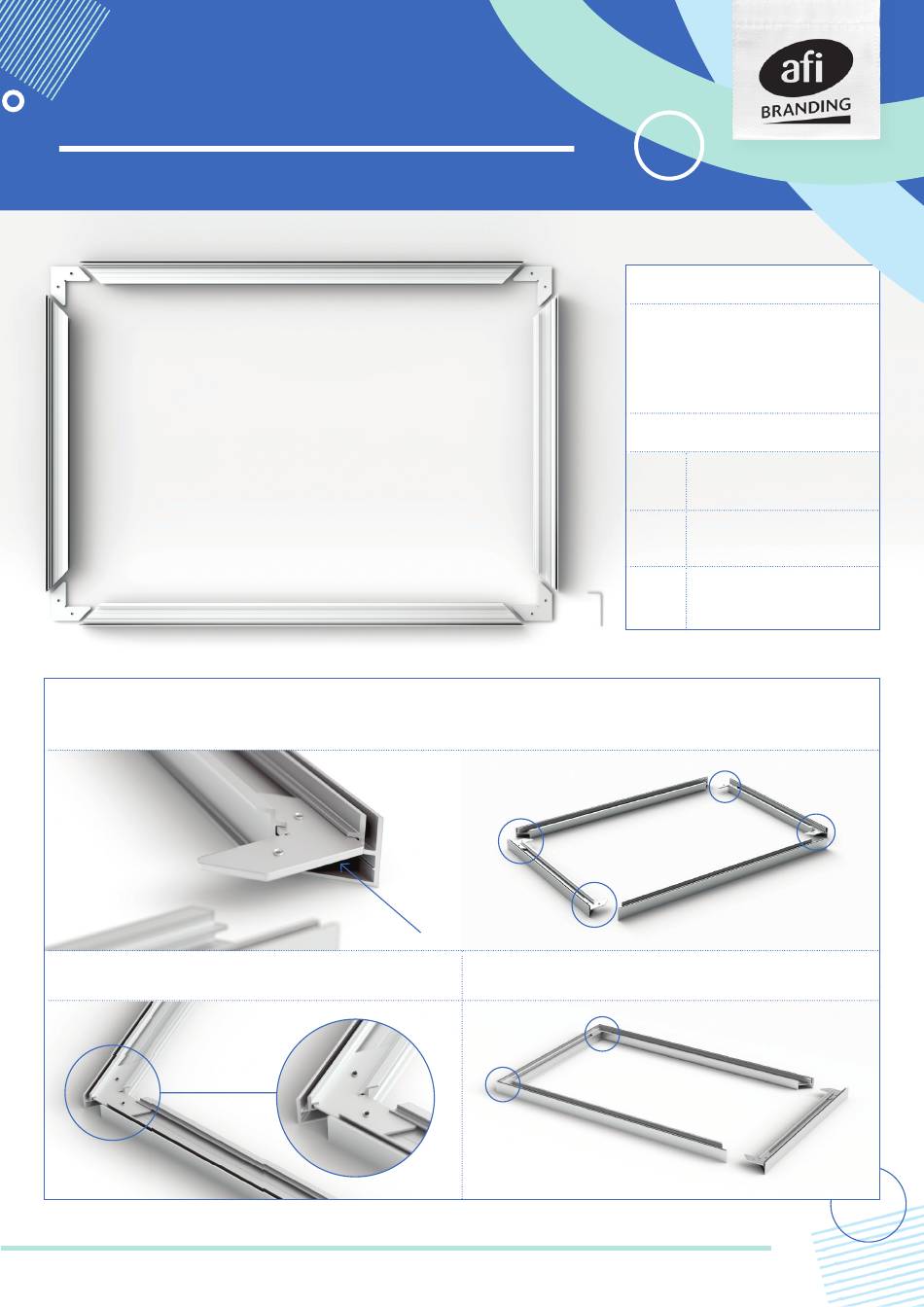

Page 1 assembly instructions SS101 - single-sided ReFrame® Lay out the ReFrame® components on a ﬂat surface and ensure you have everything required before you start the assembly. CHECKLIST Corner Brackets ReFrame® Lengths Allen Key Insert corner brackets into the channels of the top and bottom lengths of frame (screws may need to be loosened to allow brackets to slide into position) NOTE: To ensure a precise line-up of the frame proﬁles, do not tighten any of the screws until you have reached step 6 Slide top and side length together...
