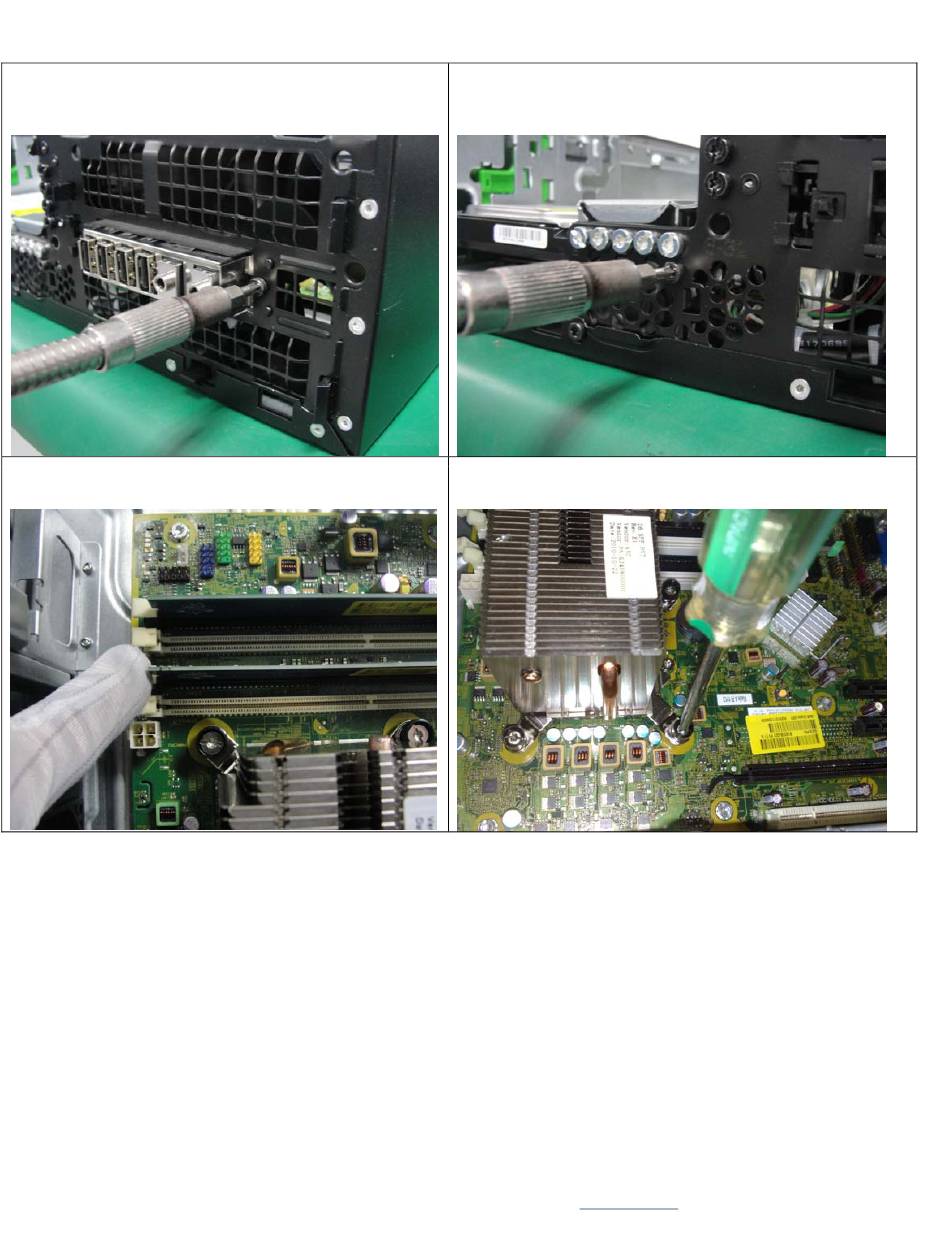

Figure 21 Remove the front I/O screw, and then remove
the front I/O assembly
Figure 23 Remove any memory modules
EL-MF877-00
Template Revision B
PSG instructions for this template are available at
Figure 22 Remove the speaker screws, and then remove
the speaker
Figure 24 Loosen the screws and remove the heat sink
EL-MF877-01
Page 8
