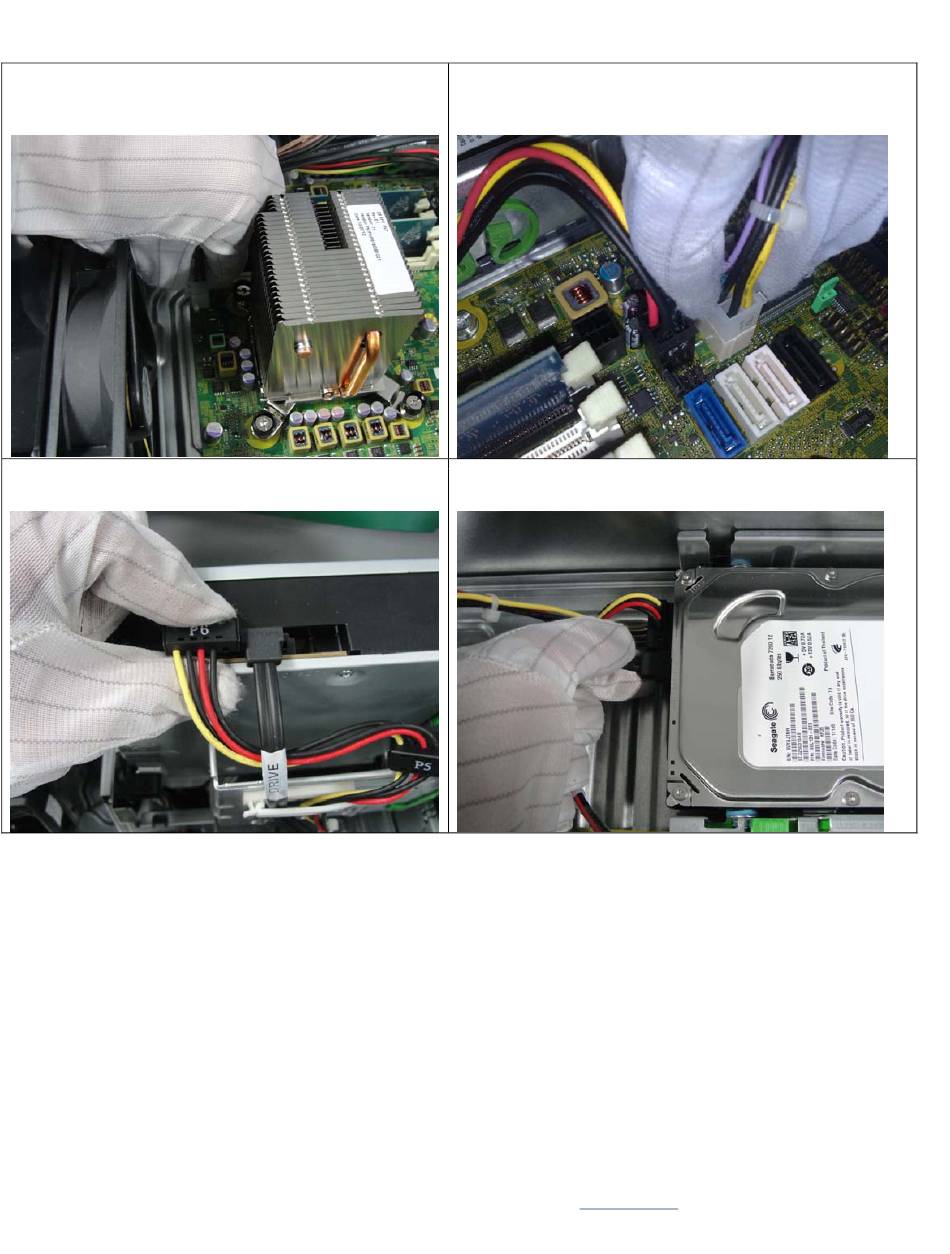

Figure 5 Disconnect the CPU power cable from the
system board
Figure 7 Disconnect the SATA cable from optical drive
EL-MF877-00
Template Revision B
PSG instructions for this template are available at
Figure 6 Disconnect other power supply cables from the
system board
Figure 8 Disconnect the SATA cable from hard drive
EL-MF877-01
Page 4
