Microlife MT 1671 Manual

Термометр медицинский электронный MT 1671
IB MT 1611 EN-RU 2319

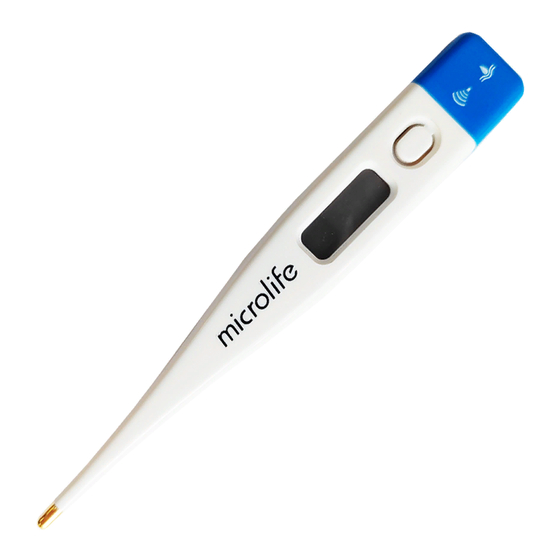

Description of this Thermometer

ON/OFF button
1
Display
2
Battery compartment cover
3
Measuring sensor
4
Digital medical thermometer MT 1671 is intended to use for oral, axillar
or rectal measuring of human temperature.
Field of application: in medical institutions and at home for individual use.

Important Safety Instructions

• Follow instructions for use. This document provides important
product operation and safety information regarding this device.
Please read this document thoroughly before using the device and
keep for future reference.
• The instrument may be used only for measuring body temperature!
• The minimum measurement time until the beep is heard must be main-
tained without exception!
• Ensure that children do not use the instrument unsupervised; some
parts are small enough to be swallowed.
• Do not use this device close to strong electromagnetic fields such as
mobile telephones or radio installations. Keep a minimum distance of
3.3 m from such devices when using this device.
• Protect the instrument from impact and dropping!
• Avoid ambient temperatures above 60 °C. NEVER boil the instrument!
• Use only the commercial disinfectants listed in the section «Cleaning
and Disinfecting» to clean the instrument. The instrument must be
intact when immersed in liquid disinfectant.
• The manufacturer recommends verifying the accuracy by an authorized
laboratory every 2 years.
WARNING: The measurement result given by this device is
not a diagnosis! Do not rely on the measurement result only.

Explanation of Symbols

Batteries and electronic devices must be disposed of in
accordance with the locally applicable regulations, not with
domestic waste.
Read the instructions carefully before using this device.
Type BF applied part
Conformity mark
Type approval of measuring device
SN N
Serial number
Reference number
Manufacturer
Operating temperature restriction
10 - 40 °C
Operating
Storage temperature restriction
-25 - +60 °C
Storage
CE Marking of Conformity
Contraindications
None known

Turning on the Thermometer

To turn on the thermometer, press the ON/OFF button 1; a short beep
signals «thermometer ON». A display test is performed. All segments
should be displayed.
Then at an ambient temperature of less than 32 °C, an «L» and a
flashing «°C» appear at the display field 2. The thermometer is now
ready for use.

Function Test

Correct functioning of the thermometer is tested automatically each
time it is turned on. If a malfunction is detected (measurement inaccu-
racy), this is indicated by «ERR» on the display, and a measurement
becomes impossible. In this case, the thermometer must be replaced.

Using the Thermometer

Choose the preferred measuring method. When taking a measurement,
the current temperature is continuously displayed and the «°C» symbol
flashes. If the beep is heard 10 times and the «°C» is no longer flashing,
this means that the measured increase in temperature is less than
0.1 °C in 16 seconds and that the thermometer can now be read.
To prolong the battery life, turn off the thermometer by briefly pressing
the ON/OFF button 1. Otherwise the thermometer will automatically
turn off after about 10 minutes.

Storage of Measured Values

If the ON/OFF button 1 is pressed for more than 3 seconds when
turning on the thermometer, the automatically stored maximum temper-
ature during the last measurement will be displayed. At the same time,
a «M» for memory will appear on the display. About 2 seconds after the
button is released, the temperature value disappears and the thermom-
eter is ready for measurement.

Measuring methods / Normal body temperature

 In the mouth (oral) / 35.5 - 37.5 °C
Position the thermometer in one of the two pockets under the
tongue, to the left or right of the root of the tongue. The measuring
sensor 4 must be in good contact with the tissue. Close your mouth
and breathe evenly through the nose to prevent the measurement
from being influenced by inhaled/ exhaled air.
Approx. measuring time: 1 minute!
 In the anus (rectal) / 36.6 - 38.0 °C
This is the most reliable measuring method, and is especially suit-
able for infants and small children. Carefully insert the measuring
sensor 4 of the thermometer 2 to 3 cm into the anal aperture.
Approx. measuring time: 1 minute!
EN
 In the armpit (axillary) / 34.7 - 37.3 °C
To receive more reliable results we recommend measuring temper-
ature orally or rectally. A minimum measurement time of 3-5 minutes
is recommended.

Cleaning and Disinfecting

Name: Isopropyl alcohol 70 %; immerse: max. 24 hours.

Battery Replacement

When the «» symbol (upside-down triangle) appears at the display
field, the battery is flat and needs replacing. To replace the battery
remove the battery compartment cover 3 from the thermometer. Insert
the new battery with the + at the top. Make sure you have a battery of
the same type to hand. Batteries can be purchased at any electrical
store.

Disposal

For disposal of products, please contact the specialized organizations
authorized to conduct disposals in accordance with the legislation of the
Russian Federation.

Technical Specifications

Type:
Measurement range:
Measurement accuracy: ± 0.1 °C between 34 °C and 42 °C
Operating conditions:
Storage conditions:
Battery:
Battery lifetime:
IP Class:
Reference to
standards:
Expected service life:
This device complies with the requirements of the Medical Device
Directive 93/42/EEC.
Technical alterations reserved.
Guarantee
We grant you a 2 year guarantee after the date of purchase. Any
damage caused by improper handling shall not be covered by the guar-
antee. The battery and packaging are also excluded from the guar-
antee. All other damage claims excluded. A guarantee claim must be
submitted with the purchase receipt. Please pack your defective instru-
ment well and send with sufficient postage to the Microlife distributor.
Standards compliance:
Declaration of conformity
Attention!
Production date in the format: WWYYXXXXX
The first two digits are the week of production.the third and fourth digit
is the year of production. The last five digits are the production series.
Confirmation of primary checking – You can find the electronic version
of the certificate on the website www.miptest.ru according to the
name, model and serial number of the device. The original certificate is
at MIP-Test. The verification time period is 2 years.
Maximum thermometer
32.0 °C to 43.9 °C
Temp. < 32.0 °C: display «L» for low (too low)
Temp. > 43.9 °C: display «H» for high (too high)
10 - 40 °C; 15-95 % relative maximum humidity
-25 - +60 °C; 15-95 % relative maximum humidity
1.5/1.55 V; LR41
approx. 5400 measurements (using a new battery)
IP67
EN 12470-3, clinical thermometers;
ASTM E1112; IEC 60601-1; IEC 60601-1-2 (EMC);
IEC 60601-1-11
5 years or 10000 measurements
