Summary of Contents for Yaesu FTA-850L

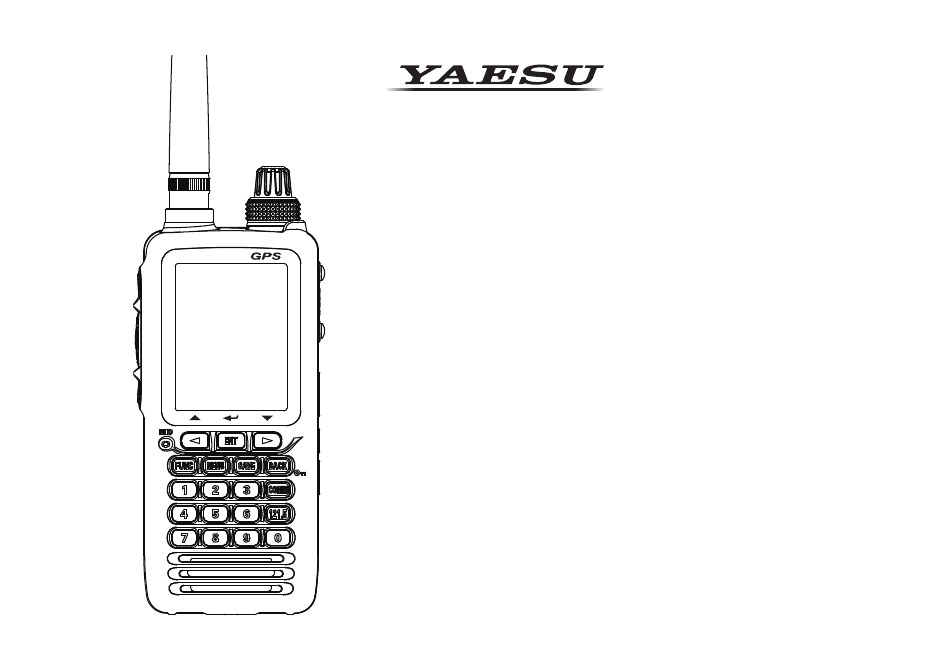

- Page 1 FCC ID: K6650033X30 IC: 511B-50033X30 AIR BAND TRANSCEIVER FTA-850L Operating Manual...
-
Page 2: Table Of Contents
FCC ID: K6650033X30 IC: 511B-50033X30 CONTENTS Important Notice! ............. 1 Advanced Operation ..........27 Bluetooth ® Operation ............27 Introduction .............. 2 ® Pairing the Bluetooth Headset ..........27 Safety Precautions ..........3 Connecting to a registered (paired) Bluetooth ® headset ..29 Accessories and Options ........ -
Page 3: Important Notice
IMPORTANT NOTICE! FCC RF Exposure Compliance Requirements for Occupational Use Only: The FTA-850L have been tested and comply with the Federal Communications Commission (FCC) RF exposure limits for Occupational Use/Controlled Exposure Environment. In addition, both radios comply with the following Standards and Guidelines: ... -
Page 4: Introduction
VOR and ILS navigation features on the “NAV” band (108 to 117.975 MHz). The FTA-850L boast a 2.4” (49 x 37 mm) 240 x 320 full-dot, full-color TFT LCD displaying a plenty of informa- tion in a row. The FTA-850L include NOAA weather band monitoring and 200 memory channels. The channel configurations can be easily reprogrammed in minutes using the optional PC Programming Software and your PC, and additionally provide positioning and navigation features realized by the internal GPS unit. -
Page 5: Safety Precautions
IC: 511B-50033X30 SAFETY PRECAUTIONS Yaesu is not liable for any failures or problems caused by the use or misuse Do not touch any material leaking from the battery pack with bare of this product by the purchaser or any third party. Also, Yaesu is not liable hands. - Page 6 Pulling the power cord can dam-age it and cause a fire or electronic A fire, leak, heating, explosion, or ignition can result. shock. Do not use any battery charger which is not specified by Yaesu. Do not use the earphones or head-phones at an extremely high A fire or failure can result.
-
Page 7: Accessories And Options
Operating Manual ries are supplied as standard per local requirements, while others may be unavailable in some regions. Consult your YAESU Dealer for details regarding these and any newly-available options. Connection of any non-YAESU-approved accessory, should it cause damage, may void the Limited War- ranty on this apparatus. -
Page 8: Controls & Connectors
FCC ID: K6650033X30 IC: 511B-50033X30 CONTROLS & CONNECTORS Antenna Jack This BNC connector accepts the supplied flex- ⑥ ible antenna, or an external antenna designed to provide 50 Ω impedance on the Aircraft Com- ① munication Band. POWER Switch Press and hold this button to turn the radio on and off. - Page 9 FCC ID: K6650033X30 IC: 511B-50033X30 VOLUME (Inner) Knob MENU Key Turn this (inner) control clockwise to increase the Press this key to display the MENU screen. volume. Press and hold this key to display the SETUP Mode screen. DIAL Selector (Outer) Knob BACK Key This (outer) 20-position detented rotary switch tunes the operating frequency or selects the...
-
Page 10: Right Side
SDD-12 ⑫ Cigarette Lighter DC/DC Converter here. 1) Do not allow the FTA-850L to get wet while the rubber cover is removed. 2) Do not connect any accessory unap- proved by YAESU to supply DC power. -
Page 11: Lcd Display ( Com Band )
FCC ID: K6650033X30 IC: 511B-50033X30 LCD DISPLAY ( COM BAND ) This field displays the icons indicating various statuses of the transceiver, such as “GPS on”, “Data Logger on”, “Timer “BUSY” icon appears during on”, “Bluetooth on”, “Battery level”. audio reception, or “TX” during transmission. -
Page 12: Vor Cdi Screen
FCC ID: K6650033X30 IC: 511B-50033X30 LCD DISPLAY ( NAV BAND ) VOR CDI Screen ILS CDI Screen 108.500 Compass rose Compass rose Course (runway) indicator ... -
Page 13: Waypoint Navigation Screen
FCC ID: K6650033X30 IC: 511B-50033X30 LCD DISPLAY Waypoint Navigation Screen GPS Compass Screen Compass rose Tag name of the next waypoint Course indicator Compass rose ... -
Page 14: Gps Information Screen
FCC ID: K6650033X30 IC: 511B-50033X30 GPS Information Screen GPS Status Screen Latitude and longitude values GPS receiver operation status COG (course over ground) value Radar scope for captured GPS satellites ... -
Page 15: Before You Begin
FCC ID: K6650033X30 IC: 511B-50033X30 BEFORE YOU BEGIN Battery Installation and Removal Do not attempt to open any of the re- chargeable Lithium-ion packs, as per- To install the battery, insert the battery pack SBR- sonal injury or damage to the Lithium-ion pack 39LI into the battery compartment on the back of could occur if a cell or cells become acciden- the transceiver, press the end of the battery pack... -
Page 16: Battery Charging
FCC ID: K6650033X30 IC: 511B-50033X30 Battery Charging You may insert the cable plug of the SAD-25 into the EXT DC jack located on the right side It is necessary to charge the Lithium-ion battery fully of the transceiver directly. In this case, the before its first use. -
Page 17: Alkaline Battery Tray Installation
Low Battery Indication The supplied SBT-12 Battery Tray allows operation of As your battery discharges during use, the voltage the FTA-850L using six “AA” size alkaline battery cells. will gradually become lower. When the battery volt- age reaches 6.0 Volts, the “...
