MAGIC MUSHROOM
& MINI BEAR
Air Hockey Tables Owners Manual
Assembly operation and care instructions.
Version 1.1.08

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAGIC MUSHROOM & MINI BEAR and is the answer not in the manual?

Questions and answers

Related Manuals for Barron Games MAGIC MUSHROOM & MINI BEAR

Summary of Contents for Barron Games MAGIC MUSHROOM & MINI BEAR

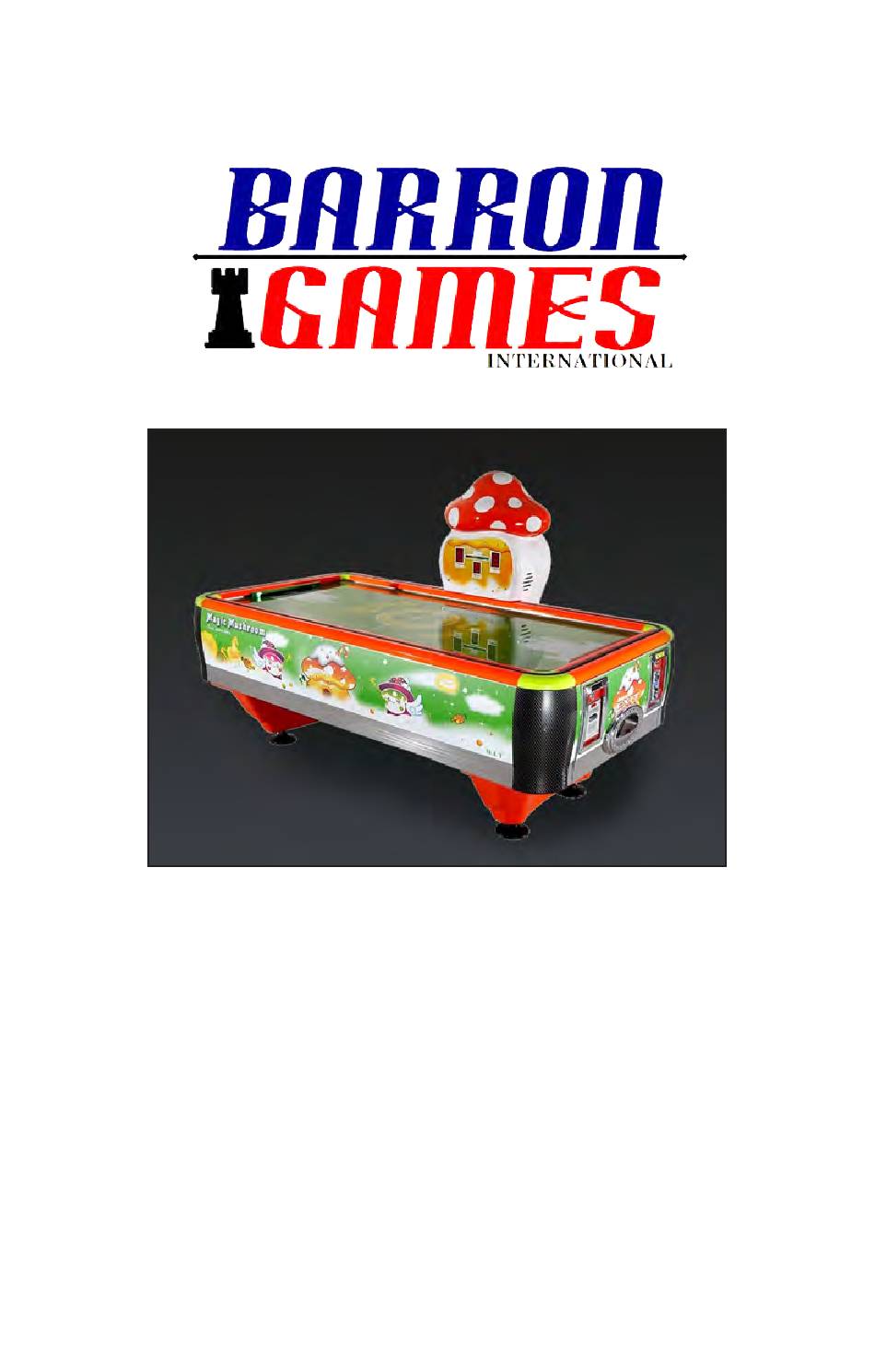

  • Page 1 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 MAGIC MUSHROOM & MINI BEAR Air Hockey Tables Owners Manual Assembly operation and care instructions. Version 1.1.08...
  • Page 2 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Index Weights and Dimensions Table Assembly Side Score Board Assembly PCB Layout and Specification Operator Program Adjustment Care and Maintenence Troubleshooting...
  • Page 3 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Weight Dimensions Side Score Board 22lbs Length 73” Table 200lbs Width 38” Legs 14lbs Height 47” Total Weight 236lbs...
  • Page 4 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Attach the legs to the table with the medium screws provided with washers. The blower has already been attached. Remove the keys taped to the bottom of the table.
  • Page 5 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Use 4 people to flow the table to the standing position.
  • Page 6 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 The Magic Mushroom table has the ticket dispenser and the coin acceptor all in one locking mechanism. Open the door and remove the kit with the pucks and mallets, and polish spray for play.
  • Page 7 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Lockable Cash Box...
  • Page 8 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 The side scoreboard cabinet contains the PCB board and volume adjustment. Side scoreboard may look different based upon the model.
  • Page 9 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Connect the corresponding pins from the side head board to the table. Connecting to the matching color and shape of pin.
  • Page 10 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Puck Return Door Connect the plates on the side of the table to the scoreboard. Use the wing nuts provided to screw in the side score board.
  • Page 11 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Make sure all screws are tight and secure. Adjust the table to the desired height. Use a level to ensure fair play and a balanced table. Plug in the table to a 110Volt system.
  • Page 12 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 CON 35: A1, Signal In/Out Controller CON 36: B1, Signal In/Out Controller CON 38: A2, Puck Strike Detector CON 39: B2, Puck Strike Detector CON31: Neon Lamp Speed Control CON 310: Turbine Engine CON 311:...
  • Page 13 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 3. Coin Mechanism 2. Start Button 4. Ticket Unit 1. Sensor 5. Hitting Sound for rails 6. Programmable Settings SW11 7. Programmable Settings SW12...
  • Page 14 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 CON 38 Orange/Brown 1. +5V A2. Puck Strike Detector White 2. Strike Detect (Send, Receive) Black/Blue 3. Ground CON 39 Orange/Black/Brown 1. +12V B2. Puck Strike Detector White 2.
  • Page 15 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 CON 35 1. +5V White 2. Puck In Detect A1. Goal Sensor Black 3. Ground Brown 4. Start A1. Start Black/White 5. Ground Orange/Black 6. 12V Counter Blue 7.
  • Page 16 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 SW11 - Upper Dipswitch Unit Operator Programmable Settings Air Hockey Dip Switch Adjustment O = OFF: Switch is Down I = ON: Switch is Up Function Switch Number Upper Unit SW11 1 2 3 4 5 6 7 8...
  • Page 17 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 SW12 - Lower Dipswitch Unit Operator Programmable Settings Air Hockey Dip Switch Adjustment O = OFF: Switch is Down I = ON: Switch is Up Function Switch Number Lower Unit SW12 1 2 3 4 5 6 7 8...

  • Page 18: Care And Maintenance

    • DO NOT APPLY AMONIA BASED PRODUCTS such as window/glass cleaner. • Polish Sray/Wax is provided inside the mallet kit. Contact Barron Games for more if needed. • Polish Spray/Wax table monthly to ensure best playfield. • Wax the table surface periodically to ensure smooth...

  • Page 19: Troubleshooting

    Replace or sand puck. 3) Wire connector to release solenoid has become unplugged/ damaged/stuck/broken. 4) Release solenoid needs to be replaced. Contact Barron Games for spare parts. V. Push Start Sound If you hear “PUSH START”, the following need to be checked and corrected.
