Barron Games BG-X007 Instruction Manual

Quadair multiplayer hockey table
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

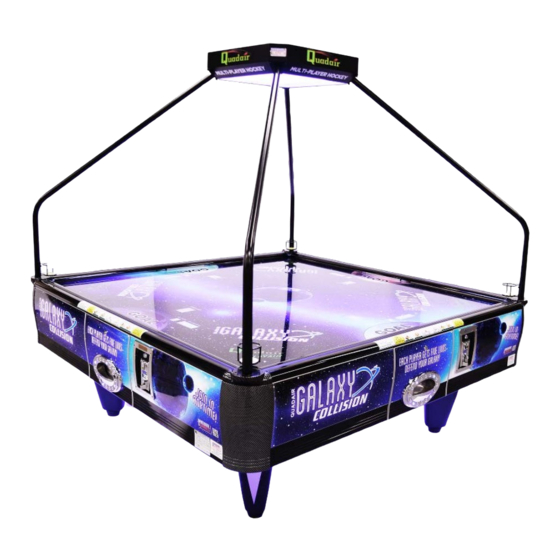

*Optional Topper with
LED Lights & Mallet Holders
SKU#: BG-X007
U.S. Patent No. 8,025,293 (issued Sept. 27, 2011)
QuadAir
Multiplayer Hockey Table
Instruction Manual
Assembly, Operation, and Care Instructions
Serial #:
Distributed By:
Sales Person:
Technical Service #: +1-716-866-0054
v. 081516

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-X007 and is the answer not in the manual?

Questions and answers

Related Manuals for Barron Games BG-X007

Summary of Contents for Barron Games BG-X007

  • Page 1 *Optional Topper with LED Lights & Mallet Holders SKU#: BG-X007 U.S. Patent No. 8,025,293 (issued Sept. 27, 2011) QuadAir Multiplayer Hockey Table Instruction Manual Assembly, Operation, and Care Instructions Serial #: Distributed By: Sales Person: Technical Service #: +1-716-866-0054 v. 081516...
  • Page 2 QuadAir Multiplayer Hockey Table Instruction Manual Inspect Immediately after Transporting the Product After receiving the shipment, inspect the product thoroughly to ensure that it has been shipped with care. Before turning the power on, please check the following: • Check the cabinet for damage or shifting that may have occurred during shipping.

  • Page 3: Safety Instructions

    QuadAir Multiplayer Hockey Table Instruction Manual Safety Instructions This equipment may contain hazardous voltage which can cause electrical shock. Only • qualified personnel* should work inside the equipment. *Note: Keep reading for a list of qualified personnel. • To maintain personal safety and the safe operation of this product, read the entire manual before using it.
  • Page 4 QuadAir Multiplayer Hockey Table Instruction Manual Definition of Site Maintenance Personnel or Other Qualified Individuals WARNING Servicing and maintenance work of the contents herein stated should be performed by the SERVICEMAN stipulated as per IEC Standard. Those who do not have technical expertise and knowledge other than the SERVICEMAN are not allowed to perform the work herein stated.
  • Page 5 If any label is peeled off, apply it again immediately. Please contact Barron Games Technical Support at 1+716-866-0054 or email service@barrongames.com if you are in need of new stickers or parts.

  • Page 6: Installation And Maintenance Safety

    QuadAir Multiplayer Hockey Table Instruction Manual NSTALLATION AND AINTENANCE AFETY This product is an indoor game machine. Do not install it outside. Even indoors, avoid installing it in the places mentioned below to avoid causing a fire, electric shock, machine malfunction, or even death. Do not install or maintain this product in/on/within/near: •...

  • Page 7: Assembly Notes

    QuadAir Multiplayer Hockey Table Instruction Manual ASSEMBLY NOTES 1. Read this Instruction Manual carefully before assembling or playing. 2. Ensure that there is sufficient space to place and shift the product prior to assembly 3. SIX strong adults are recommended to assemble the product. 4.
  • Page 8 QuadAir Multiplayer Hockey Table Instruction Manual Assembly – Step A (Prepare the Table) 1. Use scissors or a knife to cut through the packing tape. 2. Open the cardboard box to Use caution not to cut too deeply or you may damage ensure the wooden side is facing the unit.
  • Page 9 QuadAir Multiplayer Hockey Table Instruction Manual Assembly – Step A (Prepare the Table) 4. After taking out the keys, open the center door panel, and remove all parts from inside the machine’s body. Inside Accessory Boxes: 20 Pucks, 4 Mallets, 1 Table Polish &...
  • Page 10 QuadAir Multiplayer Hockey Table Instruction Manual Locate Rail Safety Stickers These 4 strips of stickers should be affixed to all four ends of the table (behind each goal) to help mitigate injury potential to users and spectators. Warning labels should be attached by the goal on each side of the unit.
  • Page 11 QuadAir Multiplayer Hockey Table Instruction Manual Assembly – Step D (Program the PC Board) LEDA: Running LED lights around table NC40: Rail Strike Detector NC2: Display panel connection outlet NC41: Rail Strike Detector NC313: Direct Current (DC) Input outlet NC42: Rail Strike Detector NC35: A1 Output Control point NC43: Strike Detector NC36: B1 Output Control point...
  • Page 12 QuadAir Multiplayer Hockey Table Instruction Manual DIP Switch Settings I = UP & O = DOWN DIP SWITCH 1 (Default Position is Down) COINS CREDITS DIP SWITCH 2 LIVES NO LIMIT TIME (MIN) service@barrongames.com For assistance call: 1+(716) 866-0054...

  • Page 13: Parts List

    QuadAir Multiplayer Hockey Table Instruction Manual Parts List *See Key on Next Page service@barrongames.com For assistance call: 1+(716) 866-0054...
  • Page 14 QuadAir Multiplayer Hockey Table Instruction Manual Parts List Ref # Part # Description 3202004 Air Hockey Key #2868 3213082 Solenoid Brackets 3601007 Power Cord (U.S. Style) 3604056 QuadAir Coin Mech w/LED Indicator 3605091 Goal Solenoid DC 12V 3605117 Power Supply NES-100-12-+12V 3605118 Power Supply NES-100-5+5V 3607050...
  • Page 15 QuadAir Multiplayer Hockey Table Instruction Manual Installing the LED Topper (Optional) 1. Carefully remove the topper from the packaging. 2. Locate the power cord coming from the Topper Light Assembly. Feed the power cord through one of the Metal Support Arms (the power cord should come out of the end with the round bracket on it). 3.
  • Page 16 QuadAir Multiplayer Hockey Table Instruction Manual After Installing the Game 1. Check the voltage regularly to avoid a short circuit or potential fire. Do not overload the circuit. 2. Keep the power cord out of areas with busy foot traffic to ensure the safety of users and the machine.

  • Page 17: Care And Maintenance

    QuadAir Multiplayer Hockey Table Instruction Manual Care and Maintenance 1. Use a soft cloth and product-specific polishing spray to clean the unit. We recommend using a microfiber cloth. THE PLAYFIELD SHOULD BE CLEANED WITH PRE-APPROVED HOCKEY TABLE POLISH ONLY. Air holes on the playfield may become clogged if a household cleaner is used.

  • Page 18: Troubleshooting

    QuadAir Multiplayer Hockey Table Instruction Manual Troubleshooting Having trouble assembling your new table? Call our experts in the Parts and Service Department (1+716-866-0054) or email Service@BarronGames.com and we will be happy to assist you! Glossary of Common Errors • 5V and 12V Power Supplies: The 5V and 12V power supplies regulate and disperse power to the PC boards, LEDs, and other electronics.

  • Page 19: Error Lights

    QuadAir Multiplayer Hockey Table Instruction Manual Error Lights Check the Instruction Manual against the PC Board error codes to begin. For the digital models, the LED screens above each goal will show an errors code when the table is out of order. When there is an error, press the Troubleshooting Button.

  • Page 20: Lives/Credits/Timer Dip Switch Settings (By Side)

    QuadAir Multiplayer Hockey Table Instruction Manual Lives/Credits/Timer DIP Switch Settings (by side) for Dot and Digital Scoring To determine if your game is Dot Scoring or Digital Scoring, refer to the photos below. service@barrongames.com For assistance call: 1+(716) 866-0054...

  • Page 21: Coin Mechanism Wiring Diagram

    QuadAir Multiplayer Hockey Table Instruction Manual Coin Mechanism Wiring Diagram service@barrongames.com For assistance call: 1+(716) 866-0054...
  • Page 22 Barron Games International 84 Aero Drive, Suite 5 Buffalo, NY 14225 Phone: 1+716-866-0054 Fax: 1+716-630-0055 www.BarronGames.com U.S. Patent No. 8,025,293 (issued Sept. 27, 2011) For Parts and Service Information, please contact us: phone: 1+716-866-0054 email: Service@BarronGames.com...
