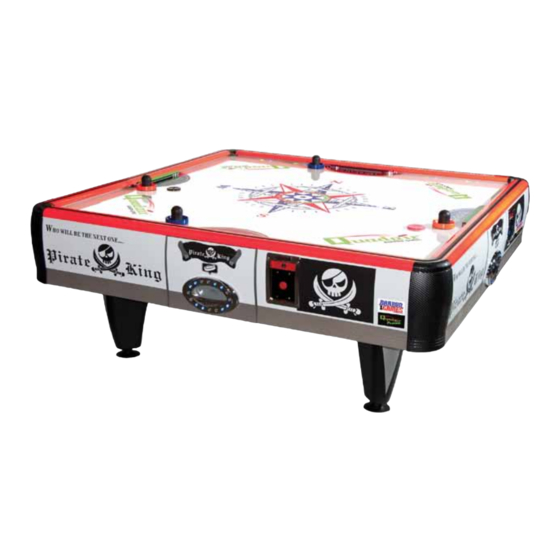

- Page 1 Version 12.1.11 Quadair Air Hockey Table Owners Manual Assembly operation and care instuctions. Serial # Distributed By Sales Person Technical Service # QUADAIR PATENTED WORLDWIDE...
- Page 2 Forward First, we would like to thank you very much for purchasing the Quad Air from Barron Games International. This product is a multi-player game for an entertainment centerpiece and a family game. For your own safety, please read through the this...
-
Page 3: Assembly Procedures
Assembly Procedures 1. Use scissors or utility knife to cut* through the packing tape. *Do not cut too deep or you’ll damage unit. This wooden side is the bottom surface of Quadair. 2. Open the paper box to ensure the wooden side is facing upwards and playfield is facing down to the floor. - Page 4 Use the screw driver to unscrew the 4 screws on the panel with sticker PARTS on it. Once panel is opened, please take out the parts as indicated below. For Legs 16 Roundhead screw M8x25 16 Flat washer M8x16 For machine 3 serial number 2868 Quadair keys...
- Page 5 After taking out the key, open the center door panel, and take out all the parts from inside the machine body. (Do not remove air blower) Power cord holder. 4 Quad Air Plastic Legs 2 Accessory boxes 4 Adjustable Leg Levelers (Accessories inside the box are illustrated below) 20 Pucks...
- Page 6 Take out the 4 Quadair plastic legs and screw the adjustable leg levelers onto the base of the legs. Then place the leg* to the bottom surface of the table, ensure alignment and then attach with big flathead screw M5x35 and washer M8x16. *Make sure grey surface is facing out.
- Page 7 Safety Instructions for use and play. Risk of Electric Shock Hazardous voltage which can cause electrical shock exists inside the equipment. Only qualified personnel should work inside the equipment. Playing Warnings Do not hit the puck with the mallet when the puck is not leveled and flat.
- Page 8 BEWARE OF ATTENTION ELECTRIC SHOCK...
- Page 9 ATTENTION This game features flashing lights which may not be suitable for photosensitive epilepsy...
- Page 10 Manual for the software of machine First, ensure the power is off. Open the panel with a key, hold the panel's handle and pull it out until half of the power panel is exposed. Handle on the panel Open the panel with a key Descriptions of internal hardware Power supply Sound board...
- Page 11 Function Descriptions of all hardware Note: Avoid electric shock. Do not touch open terminals or exposed wires. Please turn off the game to perform repairs. BEWARE OF ELECTRIC SHOCK Power Sets Provide power to all internal components, such as the motherboard, voice board, coin mechanism, motor...
-
Page 12: Dip Switch Adjustment
Descriptions of light signals and DIP SW Error Lights Light A Goal Sensor signal Light B Start button Light signal Light C Insert Coin mechanism Light signal Light D Ticket Light signal Light E Rail Noise Strike Light signal Right side of table Rail adjustment for sensitivity A B C D E Left side of table... - Page 13 Description of Motherboard Controls DIP SW1 Game DIP SW2 Transform SD card Slot Volume Test NO-NC button adjustment knob LEDA: Running LED lights around table NC2 : Display panel connection outlet NC313 : Direct Current (DC) Input outlet NC35 : A1 Output Control point NC36 : B1 Output Control point NC311 : Electro-magnet switch for goal gates (solenoid) Nc3 : Rail Strike Detector...
- Page 14 50/51...
- Page 16 Ref # Part # Description 3202001 Long lock Assembly #2868 3202004 Key #2868 3213082 Solenoid Bracket 3399107 Volume Control Knob 3601007 Power Cord 3601246 LED Interior Connector 31CM 3604056 Coin Mech HI-071CS 3605091 Solenoid DC12 Power Supply NES-100-12-+12V 3605076 Power Supply NES-100-5+5V 3605012 3607050 Air Blower 110V 3611010 Speaker...
- Page 17 3Ref # Part # Description 3207511 Aluminum PC Board Cradle 550mm 3207514 Side Impact Rail (1962mm) 3212021 Leg Bottom 3212075 Door Chain 410mm 3213349 Puck Terminal 3213365 Power Switch Box 3213486 Air Tray W/o intake 3213487 Air tray W/ Intake 3213492 Puck Chute 3213501...
- Page 18 Ref # Part # Description 616030041 Goal Green 3704009 Play Field Spray Polish 616030001 Deluxe Mallet Orange 616030002 Deluxe Mallet Blue 3399112 Barron Pucks...
- Page 19 How to fix the goal gate. Moving Solenoid Solenoid Capture Goal Gate If the gate is clicking, it is because the solenoid is not catching in the Solenoid Capture hole. During shipment and instillation the solenoid can bend inward toward gate. This results in the solenoid not catching in the capture hole.
- Page 20 For Parts and Technical Service please contact BARRON GAMES. BARRON GAMES 84 Aero Drive Suite 4 Buffalo, NY 14225 United States Phone: 1.716.866.0054 Fax: 1.716.630.0054 www.barrongames.com...
