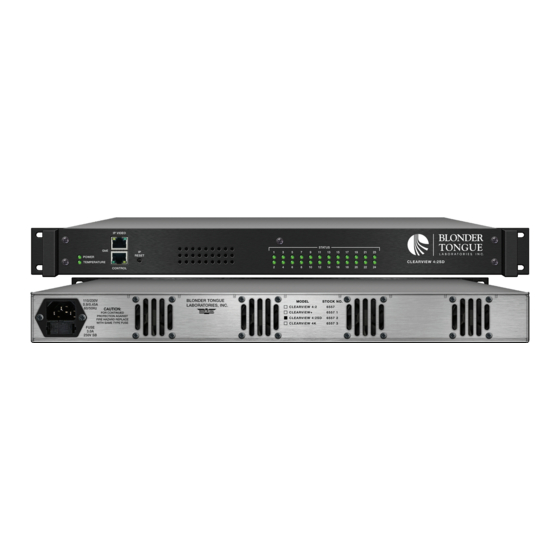

H.264 to MPEG-2 SD Transcoder
for up to 24xSPTS Channels
Stock #
6557 2
© Blonder Tongue Labs, Inc.
All Rights Reserved. Specifications subject to change without notice. All trademarks are property of their respective owners.
Model Name
Description
Clearview 4:2 SD
H.264 to SD (480i) MPEG-2 Transcoder
ISO 9001:2015 Certified
Clearview 4:2 SD
P/N: 651245400A | Rev: 070921
Quick Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blonder tongue Clearview 4:2 SD
Summary of Contents for Blonder tongue Clearview 4:2 SD
- Page 1 6557 2 Clearview 4:2 SD H.264 to SD (480i) MPEG-2 Transcoder P/N: 651245400A | Rev: 070921 © Blonder Tongue Labs, Inc. ISO 9001:2015 Certified All Rights Reserved. Specifications subject to change without notice. All trademarks are property of their respective owners.
- Page 2 User Manual for more information. Step 1: Setup and Install of the Unit The Clearview 4:2 SD is designed to be installed in a standard 19-inch (483 mm) rack (EIA 310-D, IEC 60297, and DIN 41494 SC48D). To install, secure the unit's front panel to the rack by inserting four (4) machine screws, with cup washers, through the four (4) mounting holes in the front panel.
- Page 3 Clearview 4:2 SD Quick Guide Step 2: Connecting to a PC/Laptop ETHERNET ACCESS: Local or remote communication with the unit is only possible through a GUI-based menu via web browser (Chrome or Firefox is recommended). Before you can communicate with the unit, you must configure your computer's IP address to be in the same subnet as the units default IP address.
- Page 4 An Ethernet Cable should be connected between your PC and the “Control” port on the unit. Open a Web browser (Chrome or Firefox recommended) and type http://172.16.70.1 in to your web browser to view and configure your Clearview 4:2 SD. Enter the username “Admin” and “pass” as the password and click [LOG IN]. Step 4: Basic Configuration System Status Once you are logged into the unit, you will be presented with the “System Status”...
- Page 5 Clearview 4:2 SD Quick Guide Step 4: Basic Configuration (continued) This section provides status messages, temperatures, and fan RPM for the Host system as well as each transcoder used. The page also features a recent logged message box beneath the main status area which shows the 10 most recent entries within the Event Log.
- Page 6 6 Clearview 4:2 SD Quick Guide Step 5: Transcoder Configuration Transcoders: Settings The final information to setup within the unit is located in the “Transcoders:” > “Settings” tab. Transcoders: Settings Page - Example On this page, the user is able to set up the Video and Audio Pipeline settings, located on the right side.
- Page 7 (XC1 - XC12) IP addresses assigned to avoid collisions with XC IP addresses on other Clearview 4:2 SD units. In other words, all XC IP addresses on a network *must* be unique across all Clearview 4:2 SD units.
- Page 8 A Return Material Authorization (RMA) Number is required on all products returned to Blonder Tongue, regardless if the product is being returned for repair or credit. Before returning product, please contact the Blonder Tongue Service Department at 1-800-523-6049, Ext. 4256 or visit our website: www.blondertongue.com...
