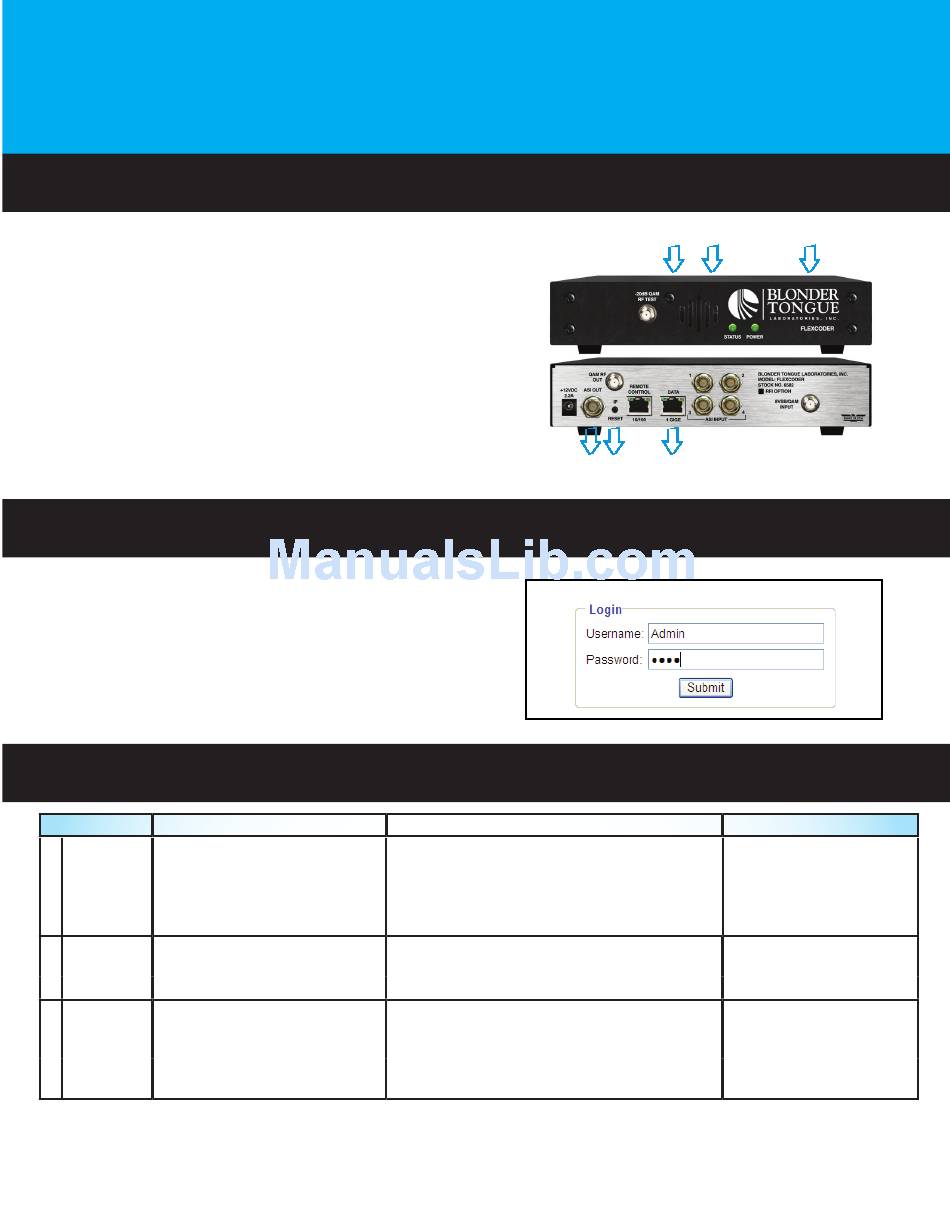

FlexCoder Quick Guide
Description
The FlexCoder is a versatile solution that combines edge
QAM, off-air transcoding, and IP grooming technology
into one integrated package. The unit can convert ASI to
IP video streams as well as Mux, and Demux ASI and IP
streams. An RF input option is available for transcoding
8VSB (digital off-air) to clear QAM, ASI or IP signals. By
providing a wide-range of functionality in a compact
solution, the FlexCoder brings remarkable cost savings.
The FlexCoder is an ideal solution for video labs and
campus environments when you need to provide a custom
channel line-up for in-house distribution.

Step 1: Login

• Assign 172.16.70.2 as the static IP address for your
computer.
• Enter 172.16.70.1 into your Browser to access the
FlexCoder.
• Logon with Username: "Admin" and the password:
"pass".

Step 2: Determine Mode of Operation

Mode Input
1 PASS-THRU (RJ45) GigE Full Duplex
(16 prog./3 audio each max)
(BNC) 4xASI
2 DEMUX (RJ45) GigE Full Duplex
(16 prog./3 audio each max)
(BNC) 4xASI
3 MUX (RJ45) GigE Full Duplex
•32xSPTS (3 audio each max); or
•4xMPTS (16 prog./3 audio each max)
(BNC) 4xASI
Sum of input data and output data must not exceed 1 Gbps.
(1)
MPTS and QAM output TS quantity cannot exceed four (4).
(2)
Once defined, a TS may be selected for presentation on either QAM or IP , or both.
(3)
www.blondertongue.com
Functions and Notes
; 4xMPTS •May select up to four (4) input sources to present four
(1)
(4) transport streams (TS) over QAM and/or IP.
•Limited PSIP Manipulation, e.g. Re-PID Capability
•May direct any one (1) of the TS to the ASI output
(5th Output)
(1) ; 4xMPTS •Defines 32xSPTS max
•Full PSIP Manipulation and Program Filtering Capability
•A total of 32 TS inputs can be multiplexed over a total
(1)
of four (4) TS in any combination on QAM and IP.
•Full PSIP Manipulation and Program Filtering Capability
•May direct any of the output TS to the ASI output
(5th Output)
IP Streams
4xASI
(32xSPTS/4xMPTS)
1xASI 4xQAM IP Streams
Adjacent
(32xSPTS/4xMPTS)
(1xRF)
Output TS Select
(2,3)
(2,3)
1xASI (214 Mbps)
32xSPTS; 40 Mbps max each
(2,3)
(2,3)
1xASI
Document# 651238700A / Item#6582
1x8VSB/QAM
(RFI Option)
4xQAM (16 prog. each max)
4xMPTS (16 prog. each max)
4xMPTS
4xQAM
