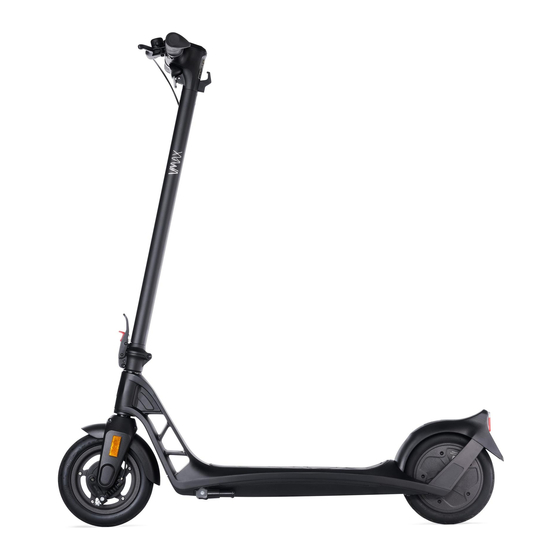

VMAX VX1 User Manual
Hide thumbs Also See for VX1:

Advertisement

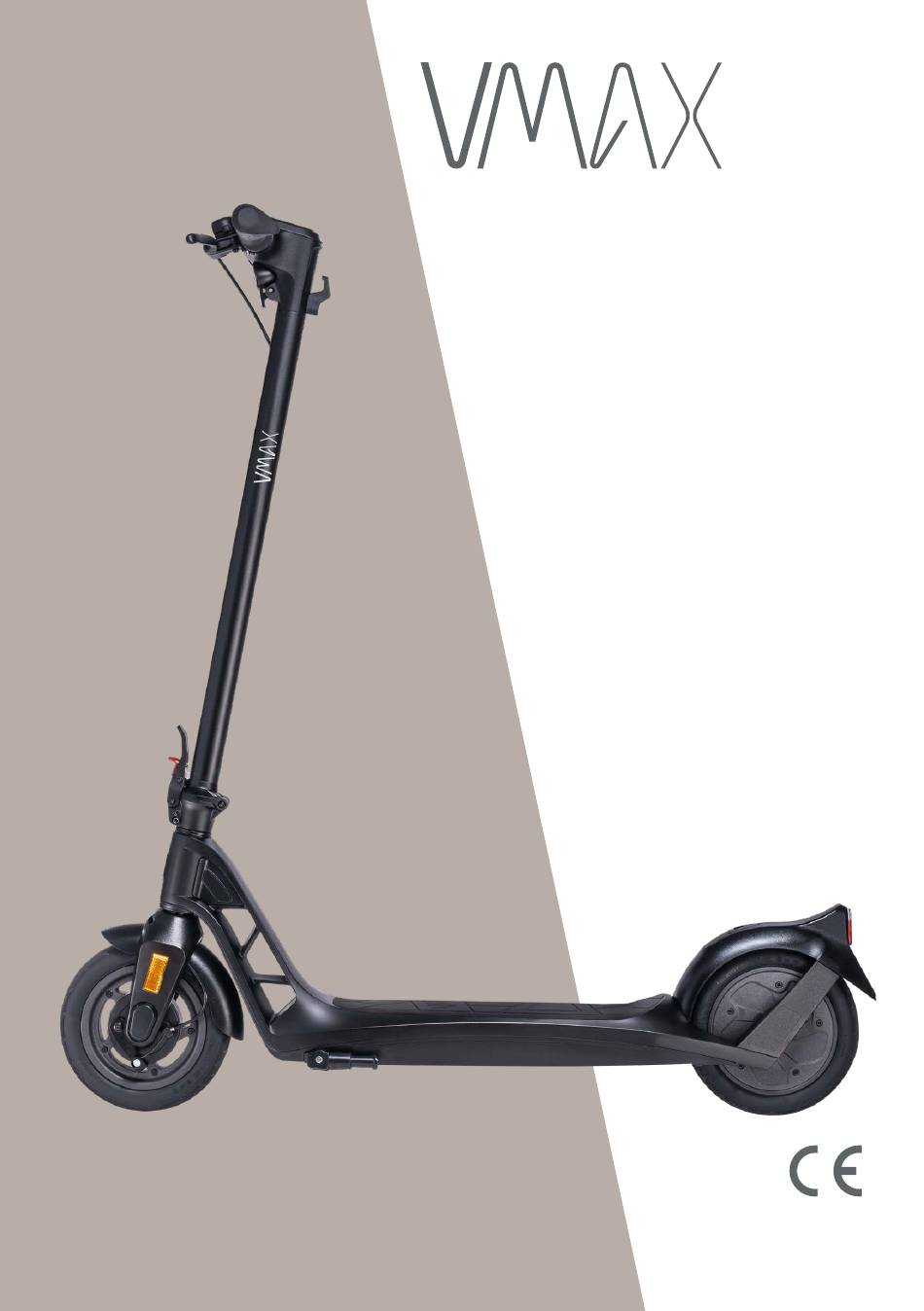

USER MANUAL
VMAX VX1
Art. No. 110.52598
With road permission
Age 14+

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX1 and is the answer not in the manual?

Questions and answers

Summary of Contents for VMAX VX1

  • Page 1 USER MANUAL VMAX VX1 Art. No. 110.52598 With road permission Age 14+...
  • Page 2 Mail: service@vmaxglobal.net Website: www.vmax-escooter.ch The brand VMAX VMAX was founded in 2015 and is a Swiss brand with various mobility solutions. The company‘s vision „your mobility solution“ is underpin- ned with diverse product groups in the field of mobility. VMAX wants to develop the best e-scooter, pedelec or hoverboard for each the best e-scooter, the best pedelec or the best hoverbo- ard.
  • Page 3: Table Of Contents

    Road approval Switzerland/Germany Disclaimer Symbols used Safety instructions 8–9 Safety instructions lithium ion battery Charging process Maintenance and care Storage Parts description Assembly Display Display functions Adjustments Before the first ride Technical data Legal notice Warranty Service VX1 User manual...
  • Page 4: Introduction

    Dear Customer We congratulate you on the purchase of your new VMAX e-scooter and welcome you to the VMAX family. To ensure that you have a good knowledge of the device and can experience the greatest possible driving pleasure with the highest level of safety, it is important that you read this user manual carefully before using it for the first time and keep it for any questions that may arise later.
  • Page 5: Road Approval Switzerland/Germany

    Special registration-related instructions Germany: • From 14 years without driver‘s license • Operating permit scooter (ABE) • Compulsory insurance (sticker must be attached) For other road approvals, please refer to the regulations in force in your country. VX1 User manual...
  • Page 6: Disclaimer

    To the extent permitted by law, the obligation to pay damages, on whatever legal grounds, shall be limited to the invoice value of our products directly affected by the event. This shall not apply insofar as we are liable according to mandatory statutory provisions or gross negligence. VX1 User manual...
  • Page 7: Symbols Used

    On the packaging CE mark (Conformity Europe) this product is constructed in conformity with designated european standards. The battery must not be disposed of with household waste. Cells in the battery contain lithium. Follow instructions! VX1 User manual...
  • Page 8: Safety Instructions

    • Never ride on stairs, escalators, ramps, over curbs longer than 2 cm, or in skate parks. • Do not drive if you feel unwell or tired and stop driving if you feel tired or unwell during the journey. VX1 User manual...
  • Page 9 • The maximum weight for use must be observed (see technical data, page 20). • Never drive under the influence of alcohol, medication or drugs. • Always place both feet on the footboard while riding. VX1 User manual...
  • Page 10: Safety Instructions Lithium Ion Battery

    • If your li-ion battery catches fire, never extinguish it with water! Use sand or a CO2 fire extinguisher as an extinguishing agent. • Do not make any modifications to your li-ion battery. Never modify, repair or disassemble the li-ion battery. VX1 User manual...
  • Page 11: Charging Process

    • During the charging process, the LED control lamp on the charger lights up red. • Once the li-ion battery of the e-scooter is charged, the LED indicator light on the charger will turn green and you can remove the charger. VX1 User manual...
  • Page 12: Maintenance And Care

    • Your e-scooter has solid rubber tires, which do not need to be inflated. PLEASE NOTE: • Therefore, use a damp rag for maintenance and avoid contact of water with electronic components in any case. • Dry the device completely, before each start-up or loading. VX1 User manual...
  • Page 13: Storage

    • Never store the e-scooter for a long period of time in high heat (e.g. in the car in summer). • There is no warranty claim for damage to the li-ion battery due to improper storage or insufficient charging during storage or non-use (deep discharge). VX1 User manual...
  • Page 14: Parts Description

    8. Safety lock 9. Folding lever 10. Front fender 11. Front wheel 12. Drum brake 13. Stand 14. Footboard 15. Fixing piece 16. Rear light 17. Rear reflector 18. Side reflectors 19. Rear wheel (Motor) 20. Charging port VX1 User manual...
  • Page 15: Assembly

    Folding To fold the e-scooter back together, lift the red safety catch and pull the folding lever. The handle- bar can now be moved backwards/downwards. Now engage the hook in the fixing piece for the hook. VX1 User manual...
  • Page 16: Display

    DISPLAY 1. Speed 2. Km/h (this is the adjusted display) 3. Km (Display for ODO and Trip) 4. Gear 5. Light 6. Error display 7. Trip / ODO 8. Battery display 9. Menu button 10. On / off button VX1 User manual...
  • Page 17: Display Functions

    Press the menu button (9) again for 4 seconds to get to the trip display. ODO = total kilometers driven / Trip = kilometers driven per trip Press the on / off button (10) again for 4 seconds to switch the device off. If the e-scooter is not used, the device switches off automatically after 5 minutes. Light Press the on / off button (10) once briefly to switch the light either on or off. VX1 User manual...
  • Page 18: Adjustments

    „play“ or that it does not engage or close correctly, you can ad- just these screws. This requires good tuning, as the mechanism should have no „play“, but should open smoothly by lifting the safety latch. VX1 User manual...
  • Page 19: Before The First Ride

    • To switch off the e-scooter, press and hold the on/off button for 4 seconds. ATTENTION! For safety reasons, the scooter will not start until you push off lightly with your foot from the ground as described previously. VX1 User manual...
  • Page 20: Technical Data

    36V / 7500mAh Engine Power: 300W Range: max. 25 km Max. speed: approx. 20 km/h Max. load: 100 kg Net weight: 16.5 kg Protection class: IP54 Operating temperature: -10 - 50°C Charger: AC 100-240V 50-60Hz / DC+ 54V/2A Charging time: approx. 3 hours 45 minutes Color: black VX1 User manual...
  • Page 21: Legal Notice

    LEGAL NOTICE All descriptions and instructions for the functions or details were checked at the time of production. Individual details may vary slightly. The manufacturer reserves the right to change design and functionality without prior notice. VX1 User manual...
  • Page 22: Warranty

    • Damage, due to a modification, accident or mishandling. • Damage, due to influences such as fire or water. • Damage caused by repairs carried out by the customer. Repairs and overhauls may only be carried out by skilled personnel! VX1 User manual...
  • Page 23: Service

    4. WEEE registration number Under the registration number DE38124973 we are registered with the Stiftung Elektro-Altgeräte Register, Benno-Strauss-Str. 1, 90763 Fürth, as a manufacturer of electrical and / or electronic equipment. VX1 User manual...
  • Page 24 VMAX Global AG Industrieweg 32 CH-4852 Rothrist Mail: service@vmaxglobal.net Phone: +41 79 586 90 98 Hammer International GmbH Hagenring 57 DE-72119 Ammerbuch-Altingen Mail: marius@hammer-international.de Phone: 07032-9185103...
