USER MANUAL

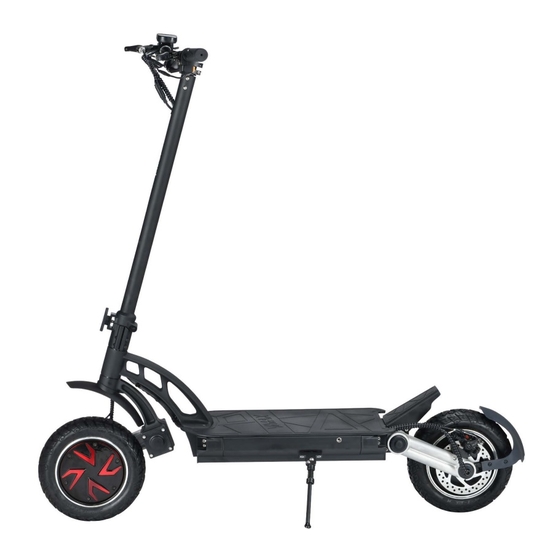

VMAX R55
Art. No. 110.91182
Without road permission
Age 14+

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R55 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VMAX R55

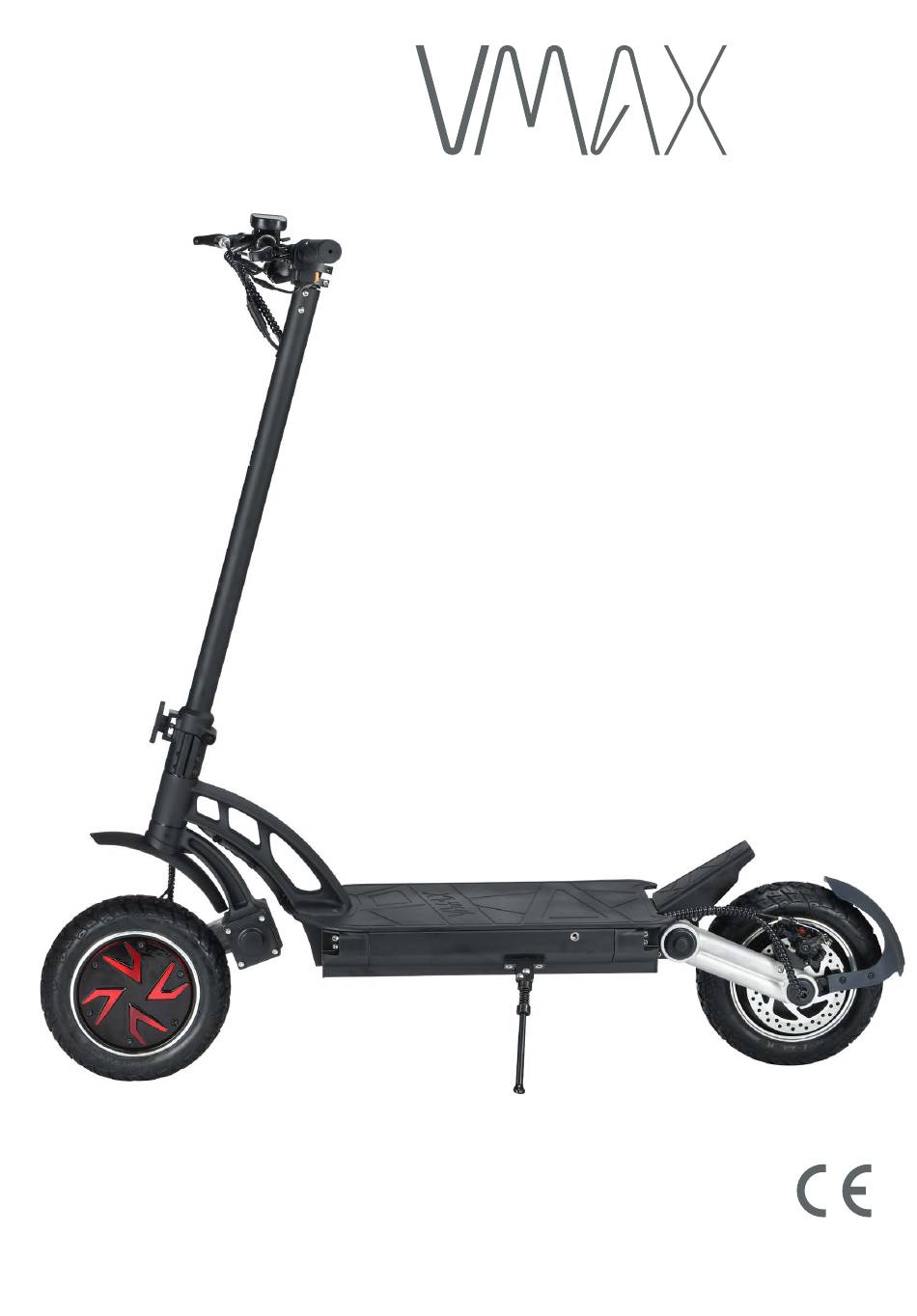

  • Page 1 USER MANUAL VMAX R55 Art. No. 110.91182 Without road permission Age 14+...
  • Page 2 Mail: service@vmaxglobal.net Website: www.vmax-escooter.ch The brand VMAX VMAX was founded in 2015 and is a Swiss brand with various mobility solutions. The company‘s vision „your mobility solution“ is underpin- ned with diverse product groups in the field of mobility. VMAX wants to develop the best e-scooter, pedelec or hoverboard for each the best e-scooter, the best pedelec or the best hoverbo- ard.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Disclaimer Symbols used Safety instructions Safety instructions lithium ion battery Charging process Maintenance and care Storage Parts description Assembly 14-15 Display Display and switch functions Before the first ride Technical Data Legal notice Warranty Service R55 User manual...
  • Page 4: Introduction

    Dear Customer We congratulate you on the purchase of your new VMAX e-scooter and welcome you to the VMAX family. To ensure that you have a good knowledge of the device and can experience the greatest possible driving pleasure with the highest level of safety, it is important that you read this user manual carefully before using it for the first time and keep it for any questions that may arise later.
  • Page 5: Disclaimer

    Since it is not possible for us to control the handling of the e-scoo- ter, the compliance with operating instructions, as well as the charging / discharging and the maintenance of the battery, VMAX Global AG cannot assume any liability for losses, damages or costs. Any claim for damages that may arise from, or in any way be related to, the operation, failure or malfunction is denied.
  • Page 6: Symbols Used

    On the packaging CE mark (Conformity Europe) this product is constructed in conformity with designated european standards. The battery must not be disposed of with household waste. Cells in the battery contain lithium. Follow instructions! R55 User manual...
  • Page 7: Safety Instructions

    • Never ride on stairs, escalators, ramps, over curbs longer than 2 cm, or in skate parks. • Do not drive if you feel unwell or tired and stop driving if you feel tired or unwell during the journey. R55 User manual...
  • Page 8 • The maximum weight for use must be observed (see technical data, page 19). • Never drive under the influence of alcohol, medication or drugs. • Always place both feet on the footboard while riding. R55 User manual...
  • Page 9: Safety Instructions Lithium Ion Battery

    • If your li-ion battery catches fire, never extinguish it with water! Use sand or a CO2 fire extinguisher as an extinguishing agent. • Do not make any modifications to your li-ion battery. Never modify, repair or disassemble the li-ion battery. R55 User manual...
  • Page 10: Charging Process

    • During the charging process, the LED control lamp on the charger lights up red. • Once the li-ion battery of the e-scooter is charged, the LED indicator light on the charger will turn green and you can remove the charger. R55 User manual...
  • Page 11: Maintenance And Care

    PLEASE NOTE: • Therefore, use a damp rag for maintenance and avoid contact of water with electronic components in any case. • Dry the device completely, before each start-up or loading. R55 User manual...
  • Page 12: Storage

    • Never store the e-scooter for a long period of time in high heat (e.g. in the car in summer). • There is no warranty claim for damage to the li-ion battery due to improper storage or insufficient charging during storage or non-use (deep discharge). R55 User manual...
  • Page 13: Parts Description

    8. Front wheel (motor) 9. Rear wheel (motor) 10. Front fender 11. Rear fender 12. Front swingarm 13. Rear swingarm 14. Disc brake front 18. Stand 15. Disc brake rear 19. Rear light 16. Footboard 20. Charging port 17.Foot support R55 User manual...
  • Page 14: Assembly

    Allen wrench, remove the top of the mount so you can place the handle- bar head in the mount. Make sure that the handlebar head is centered in the mount and tilt the handlebar head so that the display is positioned horizontally (see image at step 3 ). R55 User manual...
  • Page 15 Now fasten the rear fender to the rear part of the swingarm using the two screws supplied. Folding To fold the e-scooter, loosen the front screw at the bottom of the handlebar and fold the handlebar down. R55 User manual...
  • Page 16: Display

    11. Total travel time 3. Brake 12. Acceleration 4. Odometer 13. Simple max. speed (total distance over time) 14. MPH 5. Distance 15. None-zero-start 6. Voltage 16. Km/h 7. Cruise control 17. Miles 8. Assistent 18. Km 9. Accelerator R55 User manual...
  • Page 17: Display And Switch Functions

    ATTENTION: The battery level is indicated by 4 bars. Each bar represents about 25% of the charge. If the display shows only one bar, we recommend to fully charge the scooter immediately and not to continue the ride. R55 User manual...
  • Page 18: Before The First Ride

    • To switch off the e-scooter, press and hold the on/off button for 4 seconds. ATTENTION! For safety reasons, the scooter will not start until you push off lightly with your foot from the ground as described previously. R55 User manual...
  • Page 19: Technical Data

    TECHNICAL DATA Product description: VMAX R55 Usain Rolled Art. No.: 110.91182 Battery: 48 V / 17‘500 mAh Engine Power: 2x 1050 W (2100 W) Range: max. 60 km Max. speed: approx. 55 km/h Max. load: 150 kg Net weight: 29.3 kg...
  • Page 20: Legal Notice

    LEGAL NOTICE All descriptions and instructions for the functions or details were checked at the time of production. Individual details may vary slightly. The manufacturer reserves the right to change design and functionality without prior notice. R55 User manual...
  • Page 21: Warranty

    • Damage, due to a modification, accident or mishandling. • Damage, due to influences such as fire or water. • Damage caused by repairs carried out by the customer. Repairs and overhauls may only be carried out by skilled personnel! R55 User manual...
  • Page 22: Service

    3. Data protection We would like to point out to all end users of waste electrical and electronic equipment that they are themselves responsible for dele- ting persona l data on the waste equipment to be disposed of. R55 User manual...
  • Page 23 R55 User manual...
  • Page 24 VMAX Global AG Industrieweg 32 CH-4852 Rothrist Mail: service@vmaxglobal.net Phone: +41 79 586 90 98...
