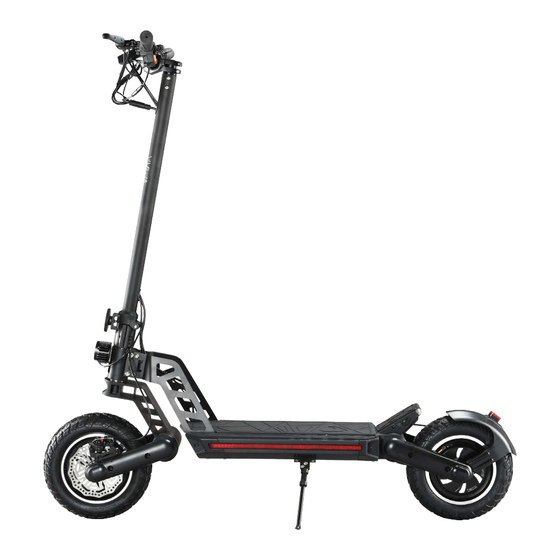

- Page 1 USER MANUAL VMAX R40 Art. No. 110.52291 Without road permission Age 14+...
- Page 2 Mail: service@vmaxglobal.net Website: www.vmax-escooter.ch The brand VMAX VMAX was founded in 2015 and is a Swiss brand with various mobility solutions. The company‘s vision „your mobility solution“ is underpin- ned with diverse product groups in the field of mobility. VMAX wants to develop for every customer, the best e-scooter, the best pedelec or the best hoverboard, according to its customer needs.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Disclaimer Symbols used Safety instructions Safety instructions lithium ion battery Charging process Maintenance and care Storage Parts description Assembly 14-15 Display Display function Before the first ride Technical data Legal notice Warranty Service R40 User manual... -
Page 4: Introduction
Dear Customer We congratulate you on the purchase of your new VMAX e-scooter and welcome you to the VMAX family. To ensure that you have a good knowledge of the device and can experience the greatest possible driving pleasure with the highest level of safety, it is important that you read this user manual carefully before using it for the first time and keep it for any questions that may arise later. -
Page 5: Disclaimer
Since it is not possible for us to control the handling of the e-scoo- ter, the compliance with operating instructions, as well as the charging / discharging and the maintenance of the battery, VMAX Global AG cannot assume any liability for losses, damages or costs. Any claim for damages that may arise from, or in any way be related to, the operation, failure or malfunction is denied. -
Page 6: Symbols Used
On the packaging CE mark (Conformity Europe) this product is constructed in conformity with designated european standards. The battery must not be disposed of with household waste. Cells in the battery contain lithium. Follow instructions! R40 User manual... -
Page 7: Safety Instructions
• Never ride on stairs, escalators, ramps, over curbs longer than 2 cm, or in skate parks. • Do not drive if you feel unwell or tired and stop driving if you feel tired or unwell during the journey. R40 User manual... - Page 8 • The maximum weight for use must be observed (see technical data, page 19). • Never drive under the influence of alcohol, medication or drugs. • Always place both feet on the footboard while riding. R40 User manual...
-
Page 9: Safety Instructions Lithium Ion Battery
• If your li-ion battery catches fire, never extinguish it with water! Use sand or a CO2 fire extinguisher as an extinguishing agent. • Do not make any modifications to your li-ion battery. Never modify, repair or disassemble the li-ion battery. R40 User manual... -
Page 10: Charging Process
• During the charging process, the LED control lamp on the charger lights up red. • Once the li-ion battery of the e-scooter is charged, the LED indicator light on the charger will turn green and you can remove the charger. R40 User manual... -
Page 11: Maintenance And Care
PLEASE NOTE: • Therefore, use a damp rag for maintenance and avoid contact of water with electronic components in any case. • Dry the device completely, before each start-up or loading. R40 User manual... -
Page 12: Storage
• Never store the e-scooter for a long period of time in high heat (e.g. in the car in summer). • There is no warranty claim for damage to the li-ion battery due to improper storage or insufficient charging during storage or non-use (deep discharge). R40 User manual... -
Page 13: Parts Description
10. Front light 11. Brake light 12. Side LED 13. Rear fender 14. Front swingarm 15. Rear shock absorber 19. Foot support 16. Disc brake front 20. Stand 17. Disc brake rear 21. Charging port 18. Footboard R40 User manual... -
Page 14: Assembly
Step 3 Now align the handlebar cen- tered in the direction of travel and tighten the 2 screws on the handlebar to fix the handlebar head mount. R40 User manual... - Page 15 Folding To fold the e-scooter, loosen the front screw at the bottom of the handle- bar and fold the handlebar down. R40 User manual...
-
Page 16: Display
7. Average speed 2. 2. Gear (STD) 8. Max. speed 3. 3. Gear (TURBO) 9. Km / h 4. Gear 10. Speed display 5. Trip / Odo 11. Battery display 6. Error Code Down Key Set Key ON / OFF Key Up Key R40 User manual... -
Page 17: Display Function
Set key = the set key takes you to the basic settings, please do not change them! These are intended exclusively for the service personnel of the service center R40 User manual... -
Page 18: Before The First Ride
• To switch off the e-scooter, press and hold the on/off button for 4 seconds. ATTENTION! For safety reasons, the scooter will not start until you push off lightly with your foot from the ground as described previously. R40 User manual... -
Page 19: Technical Data
TECHNICAL DATA Product description: VMAX R40 Raserati Art. No.: 110.52291 Battery: 48 V / 12‘500 mAh Engine Power: 1000 W Range: max. 45 km Max. speed: approx. 40 km/h Max. load: 130 kg Net weight: 24 kg Protection class: IP54 Operating temperature: -10 - 50°C... -
Page 20: Legal Notice
LEGAL NOTICE All descriptions and instructions for the functions or details were checked at the time of production. Individual details may vary slightly. The manufacturer reserves the right to change design and functionality without prior notice. R40 User manual... -
Page 21: Warranty
• Damage, due to a modification, accident or mishandling. • Damage, due to influences such as fire or water. • Damage caused by repairs carried out by the customer. Repairs and overhauls may only be carried out by skilled personnel! R40 User manual... -
Page 22: Service
3. Data protection We would like to point out to all end users of waste electrical and electronic equipment that they are themselves responsible for dele- ting personal data on the waste equipment to be disposed of. R40 User manual... - Page 23 R40 User manual...
- Page 24 VMAX Global AG Industrieweg 32 CH-4852 Rothrist Mail: service@vmaxglobal.net Phone: +41 79 586 90 98...
