- Page 1 ConteraIP ® Outdoor Dome EX Installation Manual AV5456PMIR-S +1.818.937.0700 www.arecontvision.com avsales@arecontvision.com...
-
Page 2: Table Of Contents
ConteraIP Bullet EX ® Megapixel Camera Table of Contents About Our Warranty ............................4 Global (3 Year) Limited Warranty......................4 Camera Overview ............................5 Package Contents ............................6 Installation ..............................7 Pendant mount ............................8 Wall mount ............................9 Pole mount ............................9 Corner mount ............................ - Page 3 ConteraIP Bullet EX ® Megapixel Camera Alarm I/O Functions ............................ 26 Audio Kit AV-1AK Installation Instructions ....................27 Reset to Factory Default ..........................28 Camera Discovery, Setup, and Configuration..................... 29 Camera Discovery ..........................29 Web Interface Navigation ........................30 Image ..............................32 Video &...
-
Page 4: About Our Warranty
About Our Warranty Global (3 Year) Limited Warranty ARECONT VISION COSTAR warrants to Purchaser a “Limited Warranty” that (a) each Product shall be free from material defects in material and workmanship for a period of thirty-six (36) months from the date of shipment, the “Warranty Period”;... -
Page 5: Camera Overview

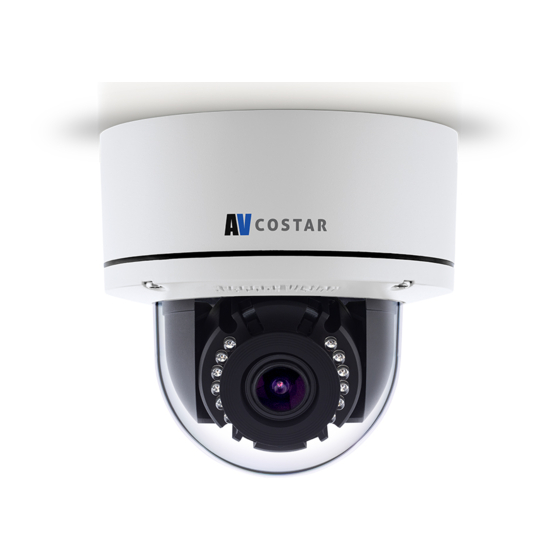

ConteraIP Bullet EX ® Megapixel Camera Camera Overview The ConteraIP Outdoor Dome EX megapixel camera features 5-megapixel (MP) resolution for optimum ® performance. The ConteraIP ® Outdoor Dome combines a day/night mechanical IR cut filter with an integrated motorized remote focus and zoom precision iris (P-iris) lens for excellent, optimal image quality. -
Page 6: Package Contents
ConteraIP Bullet EX ® Megapixel Camera Package Contents • AV5456PMIR-S Description AV5456PMIR IP camera Mounting Template Accessory Pack ConteraIP ® Bullet EX | Installation Manual... -
Page 7: Installation
ConteraIP Bullet EX ® Megapixel Camera Installation 1. Determine a secure location to mount the camera. 2. Use the supplied security L-key, to loosen the four (4) screws securing the dome cover. 3. Remove the dome cover and protective foam. Do not remove screws from the dome cover. The ConteraIP Outdoor Dome EX camera has been designed to provide installers with flexible ®... -
Page 8: Pendant Mount
ConteraIP Bullet EX ® Megapixel Camera Ensure you have the proper compatible mounting parts prior to starting your installation: Pendant mount Reference # Pendant Mount Components Required Pendant mount (AV-PMJB) with integrated junction box ConteraIP ® Outdoor Dome EX camera MD-CAP-W mounting cap ConteraIP ®... -
Page 9: Wall Mount
ConteraIP Bullet EX ® Megapixel Camera Wall mount Reference # Wall Mount Components Required Wall mount (AV-WMJB-W) with integrated junction box ConteraIP ® Outdoor Dome EX camera MD-CAP-W mounting cap Pole mount Reference # Pole Mount Components Required Wall mount (AV-WMJB-W) with integrated junction box MD-CAP-W mounting cap ConteraIP Outdoor Dome EX camera... -
Page 10: Corner Mount
ConteraIP Bullet EX ® Megapixel Camera Corner mount Reference # Corner Mount Components Required Wall mount (AV-WMJB-W) with integrated junction box MD-CAP-W mounting cap ConteraIP ® Outdoor Dome EX camera AV-CRMA corner mount adapter ConteraIP ® Bullet EX | Installation Manual... -
Page 11: Surface Mount
ConteraIP Bullet EX ® Megapixel Camera Surface Mount The ConteraIP ® Outdoor Dome EX camera can be directly attached onto hard ceilings or walls including wood, plastic, metal and concrete. 1. Use the template, anchors, and screws provided to prepare the mounting provisions for the camera installation. - Page 12 ConteraIP Bullet EX ® Megapixel Camera 7. Align the hole on the camera with the hole on mounting plate, and install the grommet on camera housing. NOTE: If using the side connection of the NPT port, you need to install the supplied grommet without a through hole on the camera housing, and remove the cap covering the side entrance, otherwise;...
-
Page 13: Wall Mount
ConteraIP Bullet EX ® Megapixel Camera Wall Mount For a proper wall mount installation, the AV-WMJB-W wall mount and MD-CAP-W wall mount cap are required (sold separately). A wall mount should only be attached onto hard ceilings including wood, plastic, metal, and concrete. 1. - Page 14 ConteraIP Bullet EX ® Megapixel Camera NOTE: When mounting the camera outdoors or in a wet environment, use of supplied grommet is recommended. Ensure the grommet is properly seated flush with the camera housing. 7. Align the hole on the camera with the hole on mounting plate, and install the grommet on camera housing.
-
Page 15: Pendant Mount
ConteraIP Bullet EX ® Megapixel Camera Pendant Mount For a proper pendant mount installation, the AV-PMJB pendant mount and MD-CAP-W mounting cap are required (sold separately). A pendant mount should only be attached onto hard ceilings including wood, plastic, metal, and concrete. 1. - Page 16 ConteraIP Bullet EX ® Megapixel Camera 5. Attach the mounting plate to the MD-CAP-W with the supplied screws. 6. Prepare the network cable with the supplied grommet and insertion tool. NOTE: When mounting the camera outdoors or in a wet environment, use of supplied grommet is recommended.
- Page 17 ConteraIP Bullet EX ® Megapixel Camera 7. Align the hole on the camera with the hole on mounting plate, and install the grommet on camera housing. 8. Fasten securely four captive screws. 9. Attach the Dome Cover to the ConteraIP ®...
-
Page 18: Pole Mount
ConteraIP Bullet EX ® Megapixel Camera Pole Mount For a pole mount installation, the AV-WMJB-W wall mount, AV-PMA pole mount, and MD-CAP-W mount cap are required (sold separately). A pole mount should only be attached onto hard ceilings including wood, plastic, metal, and concrete. 1. - Page 19 ConteraIP Bullet EX ® Megapixel Camera Reference # Description Steel straps with compression screws AV-WMJB-W wall mount MD-CAP-W mount cap Conduit pipe AV-PMA pole mount adapter Apply Teflon water seal tape to the thread of ¾” NPT pipe to avoid water leakage 7.
-
Page 20: Corner Mount
ConteraIP Bullet EX ® Megapixel Camera Corner Mount For a corner mount installation, the AV-WMJB-W wall mount, AV-CRMA corner mount, and MD-CAP-W mount cap are required (sold separately). A corner mount should only be attached onto hard corner surfaces including wood, plastic, metal, and concrete. 1. - Page 21 ConteraIP Bullet EX ® Megapixel Camera Reference # Description Attach corner mount adapter to exterior 90 corner wall AV-WMJB wall mount MD-CAP-W mount cap Conduit pipe AV-CRMA corner mount adapter Apply Teflon water seal tape to the thread of ¾” NPT pipe to avoid water leakage 7.
-
Page 22: Electrical Box Adapter
ConteraIP Bullet EX ® Megapixel Camera Electrical Box Adapter The mounting plate is used to attach the camera to a common single, double or square electrical box. 1. Using the supplied machine screws, match the mounting holes on the electrical box adapter with the threaded holes on the electrical box. -
Page 23: Adjusting The Pan, Tilt And Focus
ConteraIP Bullet EX ® Megapixel Camera Adjusting the Pan, Tilt and Focus 1. Remove the dome cover by loosening the captive fasteners with the supplied security L-key screwdriver 2. Power on the camera to adjust the pan, tilt and focus. 3. - Page 24 ConteraIP Bullet EX ® Megapixel Camera 6. Install the shroud back on the camera gimbal ConteraIP ® Bullet EX | Installation Manual...
-
Page 25: Camera Power Up
ConteraIP Bullet EX ® Megapixel Camera Camera Power Up 1. Connect the camera to a PoE port on 100Mbps network PoE switch using an Ethernet cable. 2. If the camera is powered by an outside power supply, connect the power wires from the external power supply (12~48VDC or 24VAC) to the power connector. -
Page 26: Alarm I/O Functions
ConteraIP Bullet EX ® Megapixel Camera Alarm I/O Functions Connect the Alarm In (DI) connector to the alarm input sensor, and connect Alarm Out (DO) connector to the alarm output signal. To avoid any damaged, please follow the specification of the part as below: Alarm In (Wet Contact) Alarm Out (Wet Contact) V sense... -
Page 27: Audio Kit Av-1Ak Installation Instructions
ConteraIP Bullet EX ® Megapixel Camera Audio Kit AV-1AK Installation Instructions (Accessory Sold Separately) 1. Run the audio cable connection jack cables through the hole on the bottom of the camera and connect them to the connectors on the circuit board. 2. -
Page 28: Reset To Factory Default
ConteraIP Bullet EX ® Megapixel Camera Reset to Factory Default 1. Press and hold the reset button for 2 to 5 seconds and release the reset button. The camera has been reset to the factory default except the network settings. 2. -
Page 29: Camera Discovery, Setup, And Configuration
ConteraIP Bullet EX ® Megapixel Camera Camera Discovery, Setup, and Configuration For camera discovery and setup, the AV IP Utility is recommended. The software can be found on the CD included with your camera or at: http://www.arecontvision.com/softwares.php The AV IP Utility has the ability to provide multiple discovery options, including broadcast and multicast, check the status of a camera, change camera settings, import and export camera settings via a .csv file, and update firmware and/or hardware from virtually anywhere with a network connection. -
Page 30: Web Interface Navigation
ConteraIP Bullet EX ® Megapixel Camera Web Interface Navigation The entire menu is located on the top of the web interface. following camera settings are available on the top of the menu in the web interface, and the user will be directed to the page when they click the tab. - Page 31 ConteraIP Bullet EX ® Megapixel Camera FTP Upload Handler SMTP (Simple Mail Transfer Protocol) Notification Network Storage • System Options Firmware Upgrade Reboot & Restore Settings Date/Time • Administration Administrator settings Viewer Management • About Support • ConteraIP ® Bullet EX | Installation Manual...
-
Page 32: Image
ConteraIP Bullet EX ® Megapixel Camera Image Menu Feature Description Brightness Controls the overall brightness of the camera image and works in conjunction with the exposure controls to maintain the image brightness. Sharpness Controls sharpness and edge definition of the image. - Page 33 ConteraIP Bullet EX ® Megapixel Camera Menu Feature Description Auto Auto detects bright backlight, glare or high contrast lighting and automatically selects the WDR level. Note: WDR enabled will decrease the FPS of 5MP camera. Manually adjusts the intensity of backlight compensation.
- Page 34 ConteraIP Bullet EX ® Megapixel Camera • Moonlight Mode: Limits exposure time from 20ms Moonlight Mode • Custom to 500ms. This mode produces the best image Exposure Mode quality under very low light conditions with the least amount of image noise. The trade-off is in favor of low noise at the expense of high motion blur.
- Page 35 ConteraIP Bullet EX ® Megapixel Camera Defog Level Compensates for fog or clouds in the scene. Camera Name Specifies a name for the camera. The maximum length is 32 characters. Background Configures the background color of the text overlay. The options are Translucent (light grey) or •...
-
Page 36: Video & Audio
ConteraIP Bullet EX ® Megapixel Camera Video & Audio Menu Feature Description Show Video Type: Disable Video: Disables live video on the screen. • Disable Video MJPEG over HTTP: This radio button is the default • MJPEG over browser display option. No plug in is required as HTTP most browsers can decode MJPEG images. - Page 37 ConteraIP Bullet EX ® Megapixel Camera Controls the image size and image cropping features. Resolution: Left, Top, Right, and Bottom numeric fields set • Left custom image size cropping and crop area • coordinates in pixels. Supported values are 0 to •...
- Page 38 ConteraIP Bullet EX ® Megapixel Camera Frame rate adjustment for the camera video stream. Note: For 5MP models, FPS will be up to 50% of specified FPS if WDR is enabled. Frames Per Seconds Note: For 5MP models, if both main and sub stream set to full resolution, the maximum FPS of the main stream is up to 15 FPS.
-
Page 39: Focus
ConteraIP Bullet EX ® Megapixel Camera Focus Menu Feature Description Manual Zoom/ Focus: Numbers indicate the level of zoom/focus to adjust the field-of-view. • • • • • • Enable Auto Focus Zoom Camera will Auto Focus after changing zoom lens group position. -
Page 40: Network
ConteraIP Bullet EX ® Megapixel Camera Network IP Assignment: DHCP: If checked, the camera will attempt to obtain its IP address from the DHCP server available on • DHCP the network. • IP Address IP Address: Sets the current IP address of the •... - Page 41 ConteraIP Bullet EX ® Megapixel Camera Video QoS Sets DSCP value for video traffic. Management DSCP Sets DSCP value for non-video traffic. Enable UPnP Enables Universal Plug and Play function. Port Configures the port number for stream 1 to stream 3.
- Page 42 ConteraIP Bullet EX ® Megapixel Camera Video Port Audio IP Configures the multicast address and the port number to stream audio. Audio Port Meta IP Configures the multicast address and the port number to the HTML meta. Meta Port Path Configures the URL address of the video stream.
- Page 43 ConteraIP Bullet EX ® Megapixel Camera Community String Specifies the name of the communityfor access to SNMP information. Trap Configuration: Specifies the destination IP address to send SNMP trap messages. • Address • Community String SNMP v3 Enables SNMP version 3 support. SNMP User Specifies the user name of the SNMP v3.
- Page 44 ConteraIP Bullet EX ® Megapixel Camera Install New Certificate CA Certificate Client Certificate Locate and click Upload. Click Install New Certificate to upload the • CA Certificate Certificate. • Client Certificate Enable Enables FTP access to the camera. Note: This function is only available when a SD card is installed.
-
Page 45: Privacy Mask
ConteraIP Bullet EX ® Megapixel Camera Privacy Mask Menu Feature Description Enable Privacy Mask Creates a privacy mask on the image so the selected areas will not be visible. ConteraIP ® Bullet EX | Installation Manual... -
Page 46: Event
ConteraIP Bullet EX ® Megapixel Camera Event Menu Feature Description Enable Turns on and off on-camera motion detection Extend Enables the extended motion detection and motion detection zones increase from default 64 to 1024 for enhanced motion detection sensitivity. Zone Size Adjusts the size of motion detection zones. - Page 47 ConteraIP Bullet EX ® Megapixel Camera the schedule settings on the selected time. A light blue color on the time block indicates that the alarm schedule is enabled, while a light grey color indicates that the alarm schedule is disabled. Alternatively, you can manually enter numbers to configure the hours and minutes from start to end for all weekdays.
- Page 48 ConteraIP Bullet EX ® Megapixel Camera Selects a desired trigger source. The options are Trigger Alarm Detection, Trigger Motion Detection, and Trigger Video Analytics. SMTP Server Host Address: Specifies the host name or IP address of the SMTP server. • Host Address Port: Specifies the port number of the SMTP •...
- Page 49 ConteraIP Bullet EX ® Megapixel Camera Recipient Setup Network Storage Status: Displays the current status of the connection with the network storage • Network server. (not mounted or ok) Storage Status • Network Network Address: Specifies the IP address of the Address network storage server.
- Page 50 ConteraIP Bullet EX ® Megapixel Camera • Overwrite Status: Displays whether the SD card is installed or when storage not. (not mounted or ok) full Overwrite when storage full: Enables overwriting • Record Type the SD card if the storage is full. Recoding Type: Specifies the desired action to record a stream.
-
Page 51: Video Analytics
ConteraIP Bullet EX ® Megapixel Camera Video Analytics “This camera is not used for heavy traffic (vehicles) or roads/intersections. “ Menu Feature Description Enable Analytics Enables and selects a desired Analytic function. The options are Line Crossing, Loitering, Camera Tamper, Intrusion Detection, Person/Vehicle Counting*, Object Left/Removed*. - Page 52 ConteraIP Bullet EX ® Megapixel Camera most situations since objects can be hidden from view. Specify the desired trade-off between true Sensitivity detections and false alarms to minimize the effects from the background motions. • For night/low contrast scenes the sensitivity should be increased to 90-95.
- Page 53 ConteraIP Bullet EX ® Megapixel Camera Minimum Loitering Time 1. Left click and drag to draw a virtual area. (Sec) 2. Right click and drag to erase a virtual area. Specify the amount of time an object must be in the area to trigger the event.
- Page 54 ConteraIP Bullet EX ® Megapixel Camera • 1. Left click and drag to draw a virtual area. Type Enable Object Left 2. Right click and drag to erase a virtual area. 3. Selects Enable Object Left or/and Enable • Type Enable Object Removed.
- Page 55 ConteraIP Bullet EX ® Megapixel Camera Current License Version Current License Version shows the license level: Standard or Advanced. Update License Enter a license key then click Apply. Note: If you would like to upgrade to Advanced License, please contact Technical Assistance Center (TAC).
-
Page 56: System Options
ConteraIP Bullet EX ® Megapixel Camera System Options Menu Feature Description Firmware Upgrade Browse Click to choose the firmware upgrade file, and then click Upgrade. Download Log Records all the status information of the camera in list format. Downloads the log file to the computer as a text file. -
Page 57: Administration
ConteraIP Bullet EX ® Megapixel Camera Administration Menu Feature Description Access Control Passwords can be up to 16 letters, digits and symbols, excluding following symbols for passwords without encoding # % & ' " < > / [ ] { } _ ( ) = . + , Administrator Username: The username of Administrator is admin and cannot be changed. -
Page 58: About
ConteraIP Bullet EX ® Megapixel Camera About Menu Feature Description About Displays the information of the camera: • Model Name • Firmware • Serial Number • MAC Address Support Menu Feature Description Support Hyperlinks with further information are listed for the user. - Page 59 © 2019 Arecont Vision Costar All rights reserved. No part of this publication may be reproduced by any means without written permission from Arecont Vision Costar. The information in this publication is believed to be accurate in all respects. However, Arecont Vision Costar cannot assume responsibility for any consequences resulting from the use thereof.
