User Manual
Description:

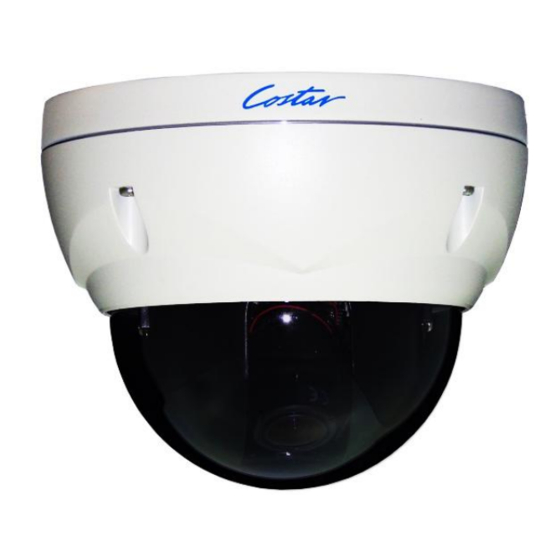

The CDIH226VIRF dome camera provides
high quality video with (1080p) 2.0 mega
pixel
resolution.
The
capability allows you to optically zoom and
fine-focus the camera over the network,
eliminating the need to use two installers to
hand-focus
the
weatherproof rating makes this bullet camera
suitable for outdoor applications such as gas
stations, retail parking lots and many others.
Costar Video's IP cameras are compatible
with the iNEX user interface platform. The
iNEX user interface incorporates features
such
as
simplified
advanced camera mapping and logical
camera grouping making it easier to monitor
and access each of your cameras. The iNEX
user interface also has the ability to integrate
both analog and IP camera technology on
the same platform allowing you to have a
diverse surveillance system. Costar Video's
IP cameras are OnVIF supported. The
industry standard OnVIF protocol makes it
easy to integrate Costar branded IP cameras
with OnVIF compatible recorders.
101 Wrangler, Suite 201 • Coppell, Texas 75019 • Phone: 469-635-6800 • Fax: 469-635-6822 • Toll Free: 1-888-694-STAR (7827)
Remote
Focus
camera.
The
IP66
user
management,
www.costarvideo.com
Quick Installation Guide
Features:
•
2 mega pixel resolution (1080p)
•
3-9 mm auto iris and vari-focal lens
•
1/2.7" CMOS Progressive Scan image sensor
•
Remote focus capability and zoom control
•
True day/night with IR cut filter
•
OnVIF supported; iNEX compatible
•
Two-way audio communication
•
Black Light Compensation (BLC)
•
2 Dimensional Noise Reduction (2DNR)
•
SD memory card supported
•
Multiple compression (H.264, MJPEG, MPEG-4)
•
Motion detection
•
Dual IP streaming
•
Event buffering
•
Password protection, IP filtering
•
Weatherproof IP66 rated
•
Power over Ethernet (PoE), DC12V or AC24V
CDIH226VIRF
Advertisement
Table of Contents
Related Manuals for Costar CDIH226VIRF
Summary of Contents for Costar CDIH226VIRF
-
Page 1: Quick Installation Guide
Power over Ethernet (PoE), DC12V or AC24V industry standard OnVIF protocol makes it easy to integrate Costar branded IP cameras with OnVIF compatible recorders. 101 Wrangler, Suite 201 • Coppell, Texas 75019 • Phone: 469-635-6800 • Fax: 469-635-6822 • Toll Free: 1-888-694-STAR (7827) -
Page 2: Installation Steps
Quick Installation Guide 1. Description The Network Camera supports the network service for a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the Network Camera at once or a single user can monitor various network cameras at the same time. -
Page 3: Installation
Quick Installation Guide • Contents in the installation CD 1. The Network Camera User’s Manual 2. The SmartManager User’s Manual 3. The NCTitanium User’s Manual 4. The SmartManager Installation software 5. The NCTitanium Installation software Note: Check your package to make sure that you received the complete system, including all components shown above. - Page 4 Quick Installation Guide Micro SD memory slot on the Board Card Slot for Micro SD memory: Socket “J15” • Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub.
-
Page 5: Heater Kit Installation(Optional)
Quick Installation Guide 1. Connect the OSD Controller to the Service Monitor port of the network camera. 2. Connect Service Monitor and the Video Output port of the OSD Controller. 3. Press the SET button to access main Menu. 4. Change Camera ID, and IP Address. You can change the Name or Title and IP address of the camera. -
Page 6: Network Connection And Ip Assignment
Quick Installation Guide 2.2 Network Connection and IP assignment The Network Camera supports the operation through the network. When a camera is first connected to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the “Smart Manager”... -
Page 7: Operation
Quick Installation Guide 3. Operation The Network Camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. 3.1 Access from a browser Start a browser (Internet Explorer). Enter the IP address or host name of the Network Camera in the Location/Address field of your browser. -
Page 8: Setting The Admin Password Over A Secure Connection
Quick Installation Guide 3.3 Setting the admin password over a secure connection To gain access to the product, the password for the default administrator user must be set. This is done in the “Admin Password” dialog, which is displayed when the network is accessed camera for the setup at the first time. - Page 9 Quick Installation Guide The Pause button pause the video stream being played. The Snapshot button takes a snapshot of the current image. The location where the image is saved can be specified. The digital zoom activates a zoom-in or zoom-out function for video image on the live screen.
-
Page 10: Network Camera Setup
Quick Installation Guide • Adjusting Zoom: Click “–“ button to zoom out and click “+” button to zoom in. The focus is moved slightly after adjusting zoom; adjust the focus again, as necessary. • Adjusting Focus: Click “–“ button for far focus and click “+” button to near focus. Note: Click the button in the live screen to set the focus to the optimum position. - Page 11 Quick Installation Guide • Using the Reset Button Follow the instructions below to reset the Network Camera to the factory default settings using the Reset button. Power off the Network Camera by disconnecting the power adapter. Open the top cover of camera. Press and hold the Reset button (SW1) on the board with your finger while reconnecting the power.
- Page 12 Quick Installation Guide...
- Page 13 Quick Installation Guide Full-HD VP DOME NETWORK CAMERA Printed in Korea...
