- Page 1 BATH.EDBYELLEN.COM...
- Page 2 ED is Ellen DeGeneres’ iconic style, values and personality shared through collections of beautifully designed, high-quality products for home, pets and people. All ED merchandise design and materials are approved by Ellen, ensuring it maintains her standards and upholds her promise to make each item feel...

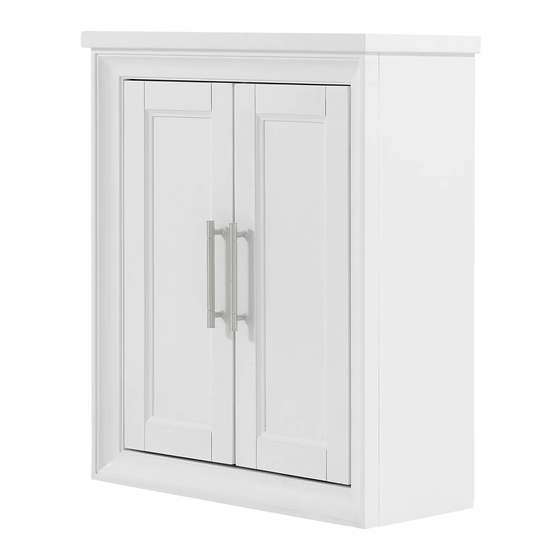

- Page 3 ITEM # 3629290; 3629291 24-IN WALL CABINET MODEL # 1580WC-24-201; 1580WC-24-242 MODEL NUMBER DESCRIPTION 1580WC-24-201 24" White Finish Wall Cabinet 1580WC-24-242 24" Light Gray Finish Wall Cabinet ATTACH YOUR RECEIPT HERE Serial Number__________________ Purchase Date__________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Package Contents...........................5 Hardware Contents..........................5 Safety Instructions...........................5 Preparation ............................6 Assembly or Installation Instructions .....................6 Care and Maintenance ........................9 Warranty ............................9 Replacement Parts List ........................ 10... -
Page 5: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Cabinet Wall Bracket Shelf Left Door (preassembled to cabinet (A)) Right Door (preassembled to cabinet (A)) HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Touch Up Pen Door Handle (2 Options) Shelf Pin Qty. 1 Brushed Nickel (Qty. 2) Qty. -
Page 6: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 20 minutes. Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, power drill with drill bit. - Page 7 INSTALLATION INSTRUCTIONS 3. With the help of another adult, carefully lower the cabinet (A) down onto the wall bracket (B). Be sure the cabinet (A) is secure to the wall before letting go. 4. Screw shelf pins (CC) hand tight into the threaded holes of cabinet (A).
- Page 8 INSTALLATION INSTRUCTIONS 5. If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws. To adjust door left or right, turn screws (b) on both hinges, in and out. To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
-
Page 9: Care And Maintenance
CARE AND MAINTENANCE • Dust the wall cabinet regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the wall cabinet with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 10: Replacement Parts List
REPLACEMENT PARTS LIST FOR 1580WC-24-201 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # Wall Bracket WC-WALL BRACKET-201 Shelf 1580WC-24-201-SHELF Left Door 1580WC-24-201 DOOR SET Right Door... - Page 11 REPLACEMENT PARTS LIST FOR 1580WC-24-242 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # Wall Bracket WC-WALL BRACKET-242 Shelf 1580WC-24-242-SHELF Left Door 1580WC-24-242 DOOR SET Right Door Touch-up Pen OF-0120R Door Handle-brushed nickel...
- Page 12 WWW.EDBYELLEN.COM...
