Summary of Contents for ED 1656VA-48-241-900-SR
- Page 1 BATH.EDBYELLEN.COM...
- Page 2 ED is Ellen DeGeneres’ iconic style, values and personality shared through collections of beautifully designed, high-quality products for home, pets and people. All ED merchandise design and materials are approved by Ellen, ensuring it maintains her standards and upholds her promise to make each item feel...

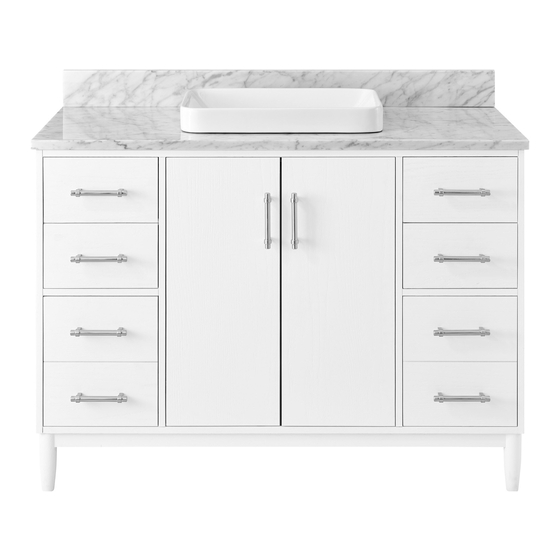

- Page 3 (Undermount Sink) MODEL NUMBER DESCRIPTION 1656VA-48-241-900-SR ED 48-IN GREENWELL WHITE OAK VANITY W/ SEMI-RECESSED CARRARA MARBLE TOP 1656VA-48-241-900-UM ED 48-IN GREENWELL WHITE OAK VANITY W/ CARRARA MARBLE TOP 1656VA-48-241-907-SR ED 48-IN GREENWELL WHITE OAK VANITY W/ SEMI-RECESSED ENGINEERED WHITE TOP...
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR OPTION 1 (Semi-Recessed Sink) Package Contents...........................5 Hardware Contents..........................5 Safety Instructions...........................5 Preparation ............................6 Assembly or Installation Instructions .....................6 Care and Maintenance .........................13 Warranty ............................13 Replacement Parts List .......................14 TABLE OF CONTENTS FOR OPTION 2 (Undermount Sink) Package Contents.........................16 Hardware Contents........................16 Safety Instructions.........................16 Preparation ..........................17... -
Page 5: Package Contents
PACKAGE CONTENTS (Semi-Recessed Sink) PART DESCRIPTION QUANTITY CARTON Vanity Box 2 of 3 Box 1 of 3 Backsplash Sink Box 3 of 3 Left Door (preassembled to Vanity(A)) Right Door (preassembled to Vanity(A)) Floor Plumbing Cutout Lid Shelf Box 2 of 3 Upper Drawer (preassembled to Vanity(A)) -
Page 6: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit, measuring tape, level INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) - Page 7 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 3. Take out the top (B) and backsplash (C) according to the steps indicated by the drawings on the right, and place them face up onto a scratch free surface such as a Foam sheet foam sheet that came in the packaging. Remove the top foam sheet Remove the backsplash and place it on a scratch free surface...
- Page 8 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 5. Put the sink template (O) on the top (B). The hole in the cardboard needs to be aligned with the hole in the stone top. Make sure the sink template and stone top are flush along the back edge. 6.
- Page 9 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 7. With the help of another adult, Gently lower the sink onto the stone top using even pressure to set the sink properly. Make sure the sink over-flow hole is at the front of wood cabinet. If some silicone caulk has over-flowed please clean it up at that time with water.
- Page 10 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 9. The back of the vanity is open for accessibility for drain(s) and water line(s) hookup. If your plumbing comes out of the back wall, insert the floor plumbing cutout lid (G), as shown in Illustration 9. This will close the hole and increase your storage space.
- Page 11 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 11. If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws. To adjust door left or right, turn screws (b) on both hinges, in and out. To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
- Page 12 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 13. As shown in the diagram, fully extend the drawer and locate the plastic levers on the metal glide tracks. Push the left-side and right-side levers at the same time to disengage the drawer from the drawer glides. Gently lift the drawer up to remove it from vanity (A).
-
Page 13: Care And Maintenance
CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 14: Replacement Parts List
REPLACEMENT PARTS LIST FOR 1656VA-48-241-SR (Semi-Recessed Sink) For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # Complete Set 48" Carrara Marble Top 3500VT-48-900 Complete Set 48" Pure White Top 3500VT-48-907 48"... - Page 15 REPLACEMENT PARTS LIST FOR 1656VA-48-247-SR (Semi-Recessed Sink) For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # Complete Set 48" Carrara Marble Top 3500VT-48-900 Complete Set 48" Pure White Top 3500VT-48-907 48"...
-
Page 16: Package Contents
PACKAGE CONTENTS (Undermount Sink) PART DESCRIPTION QUANTITY CARTON Vanity Box 2 of 3 Box 1 of 3 Backsplash Sink Box 3 of 3 Left Door (preassembled to Vanity(A)) Right Door (preassembled to Vanity(A)) Floor Plumbing Cutout Lid Shelf Box 2 of 3 Upper Drawer (preassembled to Vanity(A)) -
Page 17: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit, measuring tape, level INSTALLATION INSTRUCTIONS (Undermount Sink) - Page 18 INSTALLATION INSTRUCTIONS (Undermount Sink) 3. Take out the top (B) and backsplash (C) according to the steps indicated by the drawings on the right, and place them face down onto a scratch free surface such as a Foam sheet foam sheet that came in the packaging. Remove the top foam sheet Remove the backsplash and place it on a scratch free surface...
- Page 19 INSTALLATION INSTRUCTIONS (Undermount Sink) 5. Screw bolts (GG) into the threaded holes of stone top (B). Hardware Used Bolt 6. Lower the sink brackets (HH) over the bolts (GG) and allow to rest on the sink lip. Adjust location of bracket to firmly grasp sink lip. Lower lock washers (JJ) over bolts (GG) and secure with nuts (II).
- Page 20 INSTALLATION INSTRUCTIONS (Undermount Sink) Helpful tip: it may be easier to install your choice of faucet (not included) before securing the vanity top (B) to vanity base (A). 7. To install the Top (B) to the vanity (A). Apply silicone caulk to the top edge of the wood cabinet.
- Page 21 INSTALLATION INSTRUCTIONS (Undermount Sink) 9. The back of the vanity is open for accessibility for drain(s) and water line(s) hookup. If your plumbing comes out of the back wall, insert the floor plumbing cutout lid (G), as shown in Illustration 9. This will close the hole and increase your storage space.
- Page 22 INSTALLATION INSTRUCTIONS (Undermount Sink) 11. If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws. To adjust door left or right, turn screws (b) on both hinges, in and out. To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
- Page 23 INSTALLATION INSTRUCTIONS (Undermount Sink) 13. As shown in the diagram, fully extend the drawer and locate the plastic levers on the metal glide tracks. Push the left-side and right-side levers at the same time to disengage the drawer from the drawer glides. Gently lift the drawer up to remove it from vanity (A).
-
Page 24: Care And Maintenance
CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 25: Replacement Parts List
REPLACEMENT PARTS LIST FOR 1656VA-48-241-UM (Undermount Sink) For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # Complete Set 48" Carrara Marble Top 2500VT-48-900 Complete Set 48" Pure White Top 2500VT-48-907 48"... - Page 26 REPLACEMENT PARTS LIST FOR 1656VA-48-247-UM (Undermount Sink) For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # Complete Set 48" Carrara Marble Top 2500VT-48-900 Complete Set 48" Pure White Top 2500VT-48-907 48"...
- Page 27 WWW.EDBYELLEN.COM...
