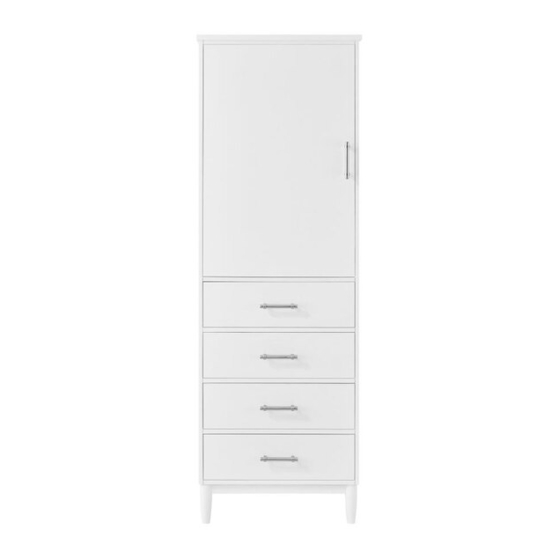

- Page 3 ITEM # 3650529; 3650530 24-IN FLOOR CABINET MODEL # 1656FC-24-241; 1656FC-24-247 MODEL NUMBER DESCRIPTION 1656FC-24-241 24" White Oak Finish Floor Cabinet 1656FC-24-247 24" Cashmere Oak Finish Floor Cabinet ATTACH YOUR RECEIPT HERE Serial Number__________________ Purchase Date__________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Package Contents...........................5 Hardware Contents..........................5 Safety Instructions...........................5 Preparation ............................6 Assembly or Installation Instructions .....................6 Care and Maintenance .........................11 Warranty ............................11 Replacement Parts List ........................ 12... -
Page 5: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Cabinet Wall Mounting Spacer Bar (preassembled to Cabinet (A)) Shelf Door (preassembled to Cabinet (A)) Drawer (preassembled to Cabinet (A)) Drawer Divider HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Touch Up Pen Handle (2 Options) Shelf Pin Qty. -
Page 6: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 30 minutes. Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, power drill with drill bit. - Page 7 INSTALLATION INSTRUCTIONS 3. Clean area where the cabinet (A) will be permanently located prior to beginning installation, ensuring the cabinet (A) will not interfere with any plumbing or electrical lines once mounted. Locate wall studs and mark locations. With the help of another adult, place completed cabinet assembly in its final location.
- Page 8 INSTALLATION INSTRUCTIONS 5. If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws. To adjust door left or right, turn screws (b) on both hinges, in and out. To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
- Page 9 INSTALLATION INSTRUCTIONS 7. As shown in the diagram, fully extend the drawer and locate the plastic levers on the metal glide tracks. Push the left-side and right-side levers at the same time to disengage the drawer from the drawer glides. Gently lift the drawer up to remove it from cabinet (A).
- Page 10 INSTALLATION INSTRUCTIONS 9. As shown in Illustration 9, the cabinet door (D) is reversible, and can be hinged on the left side or the right side. To switch, simply unscrew the 4 screws on the base of the hinges, flip the door to the other side of the cabinet, and reattach the hinges to the pre-drilled holes on the side panel.
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE • Dust the floor cabinet regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the floor cabinet with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 12: Replacement Parts List
REPLACEMENT PARTS LIST FOR 1656FC-24-241 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # Wall Mounting Spacer Bar FC-WALL MOUNTING BAR-241 Shelf 1656FC-24-241-SHELF Door 1656FC-24-241-DOOR Drawer Divider... - Page 13 REPLACEMENT PARTS LIST FOR 1656FC-24-247 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # Wall Mounting Spacer Bar FC-WALL MOUNTING BAR-247 Shelf 1656FC-24-247-SHELF Door 1656FC-24-247-DOOR Drawer Divider 1656FC-24-247-DIVIDER 1656FC-24-247- Drawer Front...
