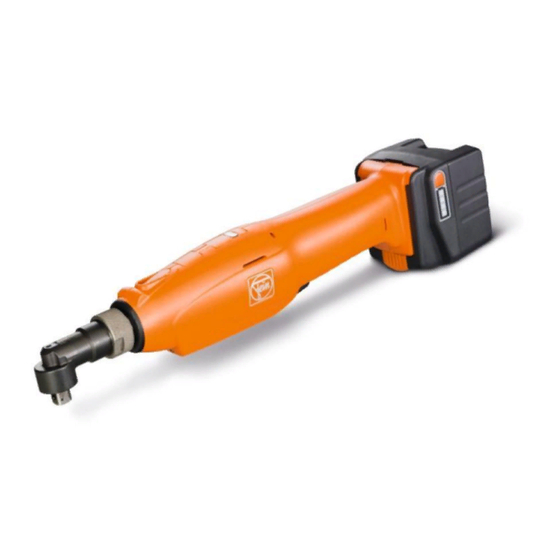

Fein ASW 14-6 Repair Instructions
  1. Manuals
  2. Brands
  3. Fein Manuals
  4. Power Screwdriver
  5. ASW14-6
  6. Repair instructions

Fein ASW 14-6 Repair Instructions

Hide thumbs Also See for ASW 14-6:
Table of Contents

Advertisement

Quick Links

ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC
Repair instructions
All rights reserved by FEIN, especially in case of industrial rights registration.
C-SC_CSSM
VERSION 1.0
13-07-18
1/42
FEIN retains all rights of disposal, such as copying and circulation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASW 14-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fein ASW 14-6

Summary of Contents for Fein ASW 14-6

  • Page 1 ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC Repair instructions All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 1/42 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 2: Table Of Contents

    5. Lubricants and auxiliary substances required 6. Disassembly 7. Assembly 8. Troubleshooting 9. Connection diagram All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 2/42 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 3: Models Described

    7 112 50 00 95 0 ASW 14-10-PC 7 112 51 00 95 0 ASW 14-14-PC 7 112 52 00 95 0 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 3/42 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 4: Technical Data

    The complete technical data can be found in the operating instructions for the model. Test data Up-to-date test data for all models can be found on the FEIN Extranet (Customer Service → Repair Guides). Lubricants The lubricants and container sizes available from FEIN can be found on the FEIN Extranet (Customer Service →...

  • Page 5: Notes / Requirements

    The German Equipment and Product Safety Act applies for correct use. Outside Germany, the regulations applicable in the relevant country must be observed! All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...

  • Page 6: Tools Required

    - Open-ended spanner 26 mm - Flat-nose pliers - Feeler gauge NOTE You can only order special tools with an order number from FEIN. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 6/42 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 7: Lubricants And Auxiliary Substances Required

    Lubricants Grease 3 21 600 14 23 0 0.6 g Tool holder; switch ring; cam ring All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 7/42 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 8: Disassembly

    2. Remove the angled head (2) and the clutch part (3). - Open-ended spanner 26 mm - Slotted screwdriver 3. Lever the coded sleeve (4) down. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 8/42 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 9 Removing the housing Tools: 1. Loosen the eight screws (1). 2. Remove the upper section of the housing (2). -Torx T10 screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 9/42 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 10 When the slide switch is removed, the spring (4) may jump out slightly. 3. Remove the slide switch (3). 4. Remove the spring (4). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 10/42 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 11 ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC 6. Disassembly Removing the clutch 1. Remove the clutch (1). 2. Remove the straight pins (2) from the flange. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 11/42...
  • Page 12 2. Remove the circlip (2). NOTE You need modified circlip pliers to dismantle the circlip. The upper side of the pliers must be ground flat. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 12/42 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 13 1. Remove the flange (1) and take the disc(s) (2) out of the flange. 2. Remove the circlip (3).  Use a new circlip for assembly each time. 3. Pull off the ball bearing (4). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 13/42 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 14 ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC 6. Disassembly Removing the clutch 1. Remove the discs (1). 2. Remove the circlip (2). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 14/42 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 15 1. Release all the tension on the spring (1). 2. Unscrew the adjusting ring (2) (left-handed thread). -Torque wrench 3. Remove the ring (3) and the spring (4). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 15/42 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 16 2. Shake the nine balls (3) out of the hole in the outer clutch ring (4). 3. Remove the two clutch rings (5 and 6). NOTE Degreasing the clutch ring before disassembly makes it easier to remove the balls. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 16/42 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 17 Tools: 1. Remove the two switch pushbuttons (1). 2. Remove the leaf spring (2). - Flat-nose pliers 3. Remove the pressure piece (3). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 17/42...
  • Page 18 2. Take out the electronics circuit board (2). 3. Carefully pull the ribbon cable (3) from the electronics circuit board. 4. Remove the pressure piece (4) from the ribbon cable. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 19 If the electronic strip is defective, the replacement strip must be kinked slightly at the same place. The kink (3) is located between the two notches on the electronic strip. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 20 3. Pull the gearbox (3) from the flange. NOTE Do not pull the gearbox jerkily as otherwise the gear-wheels may fall out of the gearbox housing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 21 Removing the motor/gearbox unit Tools: 1. If the gearbox comes apart, reassemble as shown in the photo. 2. Unscrew the flange (1). - Torx 10 screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 21/42...

  • Page 22: Assembly

    4. Insert the nine balls (4) [D=5 mm] into the recesses on the switch ring. 5. Slide the switch ring (2) on to the cam ring. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 23 Fitting the clutch 1. Slide the spiral spring (1) and the ring (2) on to the tool holder. 2. Screw down the adjusting ring (3) (left-handed thread). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 24 3. Slide the circlip (3), the two discs (4) and the grooved ball bearing (5) on to the tool holder. 4. Insert the circlip (6). 5. Slide the flange (7) on to the grooved ball bearing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 25 NOTE - Circlip pliers (ground) You need modified circlip pliers to fit the circlip. The upper side of the pliers must be ground flat. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 25/42 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 26 The kink (1) is located between the two notches on the electronic strip. 1. Clip the LED (2) with the electronic strip into the holder. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 27 3. Carefully connect the ribbon cable (3) to the electronics circuit board. NOTE The notches on the pressure piece must be at the top and on the operating side. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 28  Tighten the screws to 1.1 Nm. - Loctite 270 3. If the gearbox falls out, reassemble it in the correct order as shown in the photo. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 29  The three prongs on the circlip must lie snugly inside the teeth. 2. Join the gearbox (3) to the motor (2). 3. Join the bush (4) to the gearbox. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 30 Fitting electronics 1. Insert the ribbon cable (1) in the guides (2). 2. Insert the electronics circuit board (3) in the lower section of the housing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 31 1. Insert the motor/gearbox unit (1) in the lower section of the housing. NOTE Ensure that no cables become trapped. The rounded side of the bush (2) must be on the operating side. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 32 Routing the cables 1. Carefully insert the ribbon cable (1) in the plug (2) on the motor circuit board. 2. Route the cables (3) as shown. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 33  The switch pushbutton and the pressure piece must be flush at the top (2). NOTE The round depression in the switch pushbutton must be on the operating side. 2. Insert the switch pushbutton (3) in the housing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 33/42 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 34 The notches on the leaf spring are on the side and the curvature of the spring must face the operating side. 2. Insert the switch pushbutton (2) in the housing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 35 For the rest of the assembly process, keep the slide switch continually pressed down to prevent the slide switch and spring from jumping out again. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 36 5. Put the straight pin (5) into the hole in the flange. 6. Arrange the folded electronic strip (6) as shown. 7. Insert the holder (7) with the LED in the housing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 37 ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC 7. Assembly Fitting the motor/gearbox unit NOTE Ensure that the cable is correctly kinked and installed in the correct position. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 37/42...
  • Page 38  The installation dimension can be adjusted with the addition or removal of discs in front of and behind the ball bearing (see Removing the clutch / Fitting the clutch). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 39 Fitting the housing cover Tools: 1. Screw down the top section of the housing (1). 2. Fit the coded sleeve (2). -Torx 10 screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 39/42...
  • Page 40 2. Insert the clutch part (2). - Open-ended spanner 26 mm 3. Screw the angled head on as far as the stop. 4. Perform function check. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 40/42 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 41: Troubleshooting

    ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC 8. Troubleshooting See separate file on Extranet or retail partner portal. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 41/42 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 42: Connection Diagram

    ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC 9. Connection diagram All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 13-07-18 42/42 FEIN retains all rights of disposal, such as copying and circulation.
