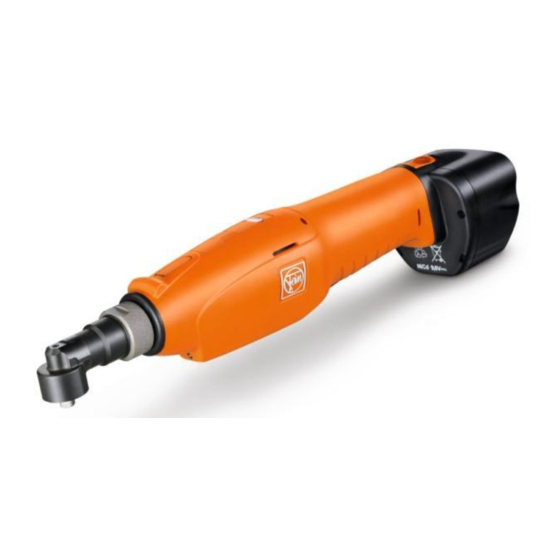

Fein ASW 10-6 Repair Instructions

Hide thumbs Also See for ASW 10-6:

Advertisement

Quick Links

Download this manual
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation.
Repair instructions
ASW 10-6, 10-10, 14-14
C-SC_CSSM
2012.07
1/40

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASW 10-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fein ASW 10-6

Summary of Contents for Fein ASW 10-6

  • Page 1 Repair instructions ASW 10-6, 10-10, 14-14 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 1/40 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 2: Table Of Contents

    Technical data Provisions Tools required Lubricants and auxiliary substances required Disassembly Assembly Connection diagram All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 2/40 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 3: Models Described

    ASW 10-6-2ST 711241 ASW 10-10 711242 ASW 10-10-2ST 711243 ASW 10-10-250 711244 ASW 14-14 711245 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 3/40 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 4: Technical Data

    Up-to-date test data for all models can be found on the FEIN Extranet. Lubricants Lubricants and container sizes available from FEIN can be found on the FEIN Extranet. Lists of spare parts Lists of spare parts and exploded views are available online at www.fein.com All rights reserved by FEIN, especially in case of industrial rights registration.

  • Page 5: Provisions

    The German Equipment and Product Safety Act applies for correct use. Outside Germany, the regulations applicable in the relevant country must be observed! All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 5/40 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 6: Tools Required

    Cable hooks Circlip pliers Circlip pliers (ground) Open-ended spanner 26 mm Flat-nose pliers Feeler gauge All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 6/40 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 7: Lubricants And Auxiliary Substances Required

    5. Lubricants and auxiliary substances required Lubricants Grease 0 40 123 01000 3.5 g All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 7/40 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 8: Disassembly

    3. Prise off the coloured ring. Tools: -Open-ended spanner 26 mm - Slotted screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 8/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 9 6. Disassembly 1. Loosen screws and take off upper housing section. Tool: -Torx 15 screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 9/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 10 Tools: 3. Remove the slide switch. -Slotted screwdriver 4. Remove the spring. -Flat-nose pliers All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 10/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 11 Repair instructions 6. Disassembly 1. Remove the clutch. 2. Detach the straight pins from the flange. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 11/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 12 The upper side of the pliers must be ground flat. Tools: - Torque wrench (supplied) -Circlip pliers (ground) All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 12/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 13 Always use a new circlip for reassembly. 3. Remove the ball bearings. 4. Remove discs. 5. Remove circlip. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 13/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 14 2. Unscrew the adjusting ring (left-handed thread). 3. Remove the ring and the spring. Tool: -Torque wrench All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 14/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 15 2. Shake the small balls (9) out of the hole in the outer clutch ring. 3. Remove both clutch rings. NOTE Degreasing the clutch before disassembly makes it easier to remove the balls. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 15/40...
  • Page 16 1. Remove both switch pushbuttons. 2. Remove the leaf spring. 3. Remove the rocker switch. Tool: -Flat-nose pliers All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 16/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 17 2. Remove the electronics circuit board. 3. Carefully pull the ribbon cable from the electronics circuit board. 4. Detach the connecting bridge from the ribbon cable. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 17/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 18 If the electronic strip is defective, the replacement strip must be kinked slightly at the same Tool: place. The kink is located between the two notches on the electronic strip. -Flat-nose pliers All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 18/40...
  • Page 19 1. Remove the motor/gearbox unit from the lower section of housing. 2. Remove the bush from the gearbox. 3. Pull the the gearbox from the flange. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 19/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 20 1. Remove the disc from the gearbox. 2. Unscrew the flange. Tool: -Torx 10 screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 20/40 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 21: Assembly

    3. Insert the large balls (9) into the recesses in the switch ring. -Grease 4. Push switch ring onto the cam ring. 04012301000 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 21/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 22 Repair instructions 7. Assembly 1. Push the spiral spring and ring onto the tool holder. 2. Screw the adjusting ring on tight (left-handed thread). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 22/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 23 2. Push the circlip, the discs and the ball bearing onto the tool holder. 3. Secure a new circlip in the groove of the tool holder. Tool: -Torque wrench All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 23/40...
  • Page 24 2. Push the circlip, the discs and the ball bearing onto the tool holder. 3. Secure a new circlip in the groove of the tool holder. 4. Push the flange onto the clutch. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 24/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 25 The upper side of the pliers must be ground flat. Tool: -Circlip pliers (ground) All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 25/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 26 1. Clip the LED with the electronic strip into the holder. Tool: 2. Holding the electronic strip by the reinforcement, insert it into the plug. -Flat-nose pliers (without ridges) All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 26/40...
  • Page 27 2. Push the connecting bridge onto the ribbon cable. NOTE The notches on the contact piece must be at the top and on the operating side. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 27/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 28 Repair instructions 7. Assembly 1. Screw the flange to the motor. Tool: -Torx 10 screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 28/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 29 3. Grease the bush lightly. 4. Place the bush on the gearbox. Tool: -Grease 0 40 123 01000 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 29/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 30 Repair instructions 7. Assembly 1. Insert the ribbon cable in the guides and place the electronics board in the lower section of housing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 30/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 31 1. Place the motor/gearbox unit in the lower section of the housing. NOTE Do not trap the cable. The rounded side of the bush must be on the operating side. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 31/40...
  • Page 32 1. Carefully insert the ribbon cable in the plug on the motor circuit board 2. Arrange the cable as shown in the illustration. Tool: -Cable hooks All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 32/40...
  • Page 33 Tool: 2. Insert the small switch pushbutton in the housing. -Flat-nose pliers All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 33/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 34 Tool: 2. Insert the large switch pushbutton in the housing. -Flat-nose pliers All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 34/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 35 You must hold the slide switch down permanently as you continue with the assembly, otherwise it - Small slotted screwdriver and the spring will come out again. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 35/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 36 4. Put the straight pin into the hole in the flange. 5. Arrange the folded electronic strip as shown in the illustration. 6. Insert the holder with the LED in the housing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 36/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 37 Tool: The installation dimension can be adjusted with the addition or removal of discs in front of and -Feeler gauge behind the ball bearing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 37/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 38 1. Screw on the upper section of the housing. 2. Replace the coding ring. Tool: -Torx 15 screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 38/40 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 39 3. Screw the angled head on as far as the stop. 4. Perform function check. Tool: -Open-ended spanner 26 mm All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 39/40 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 40: Connection Diagram

    Repair instructions 8. Connection diagram All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.07 40/40 FEIN retains all rights of disposal, such as copying and circulation.
