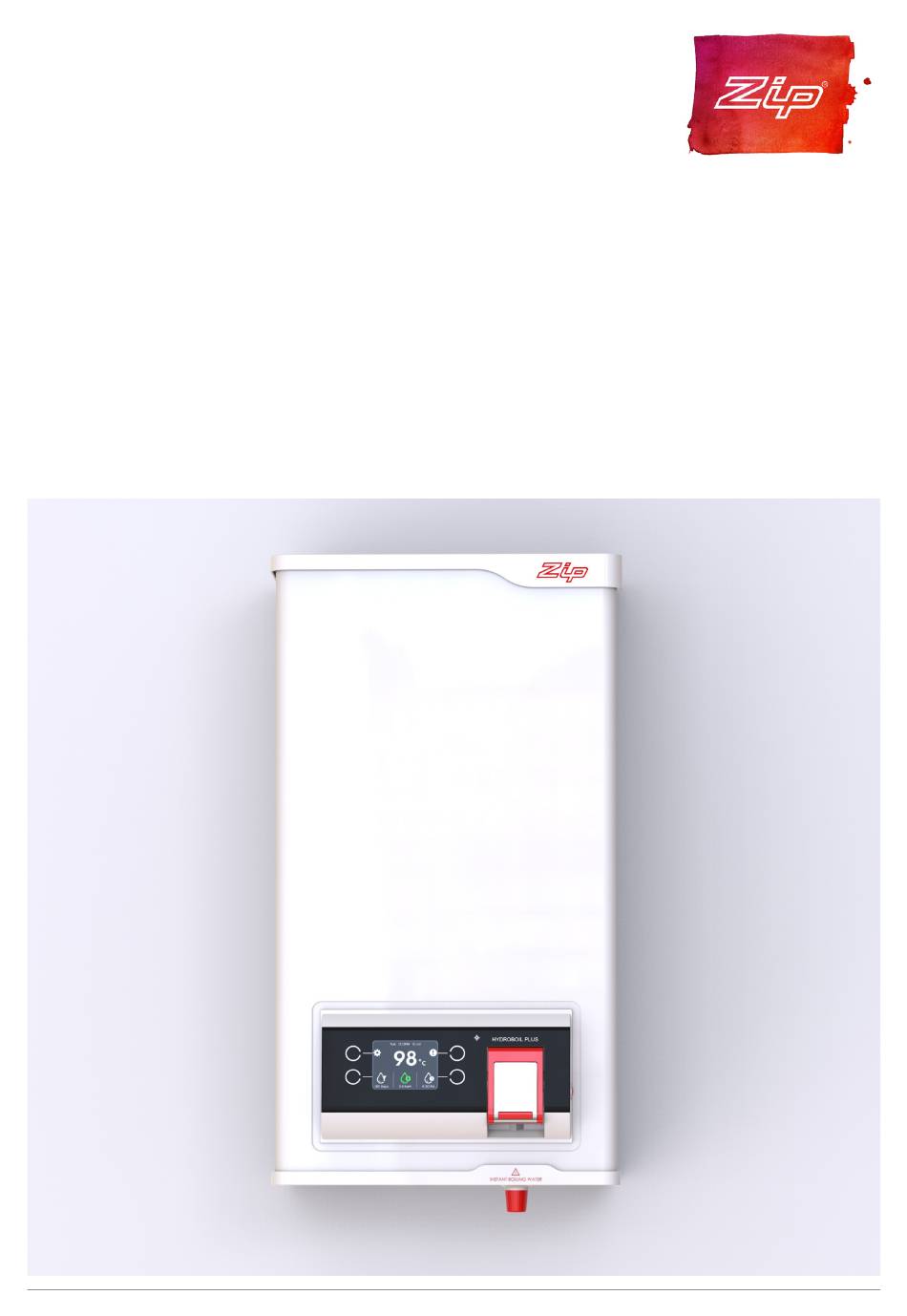

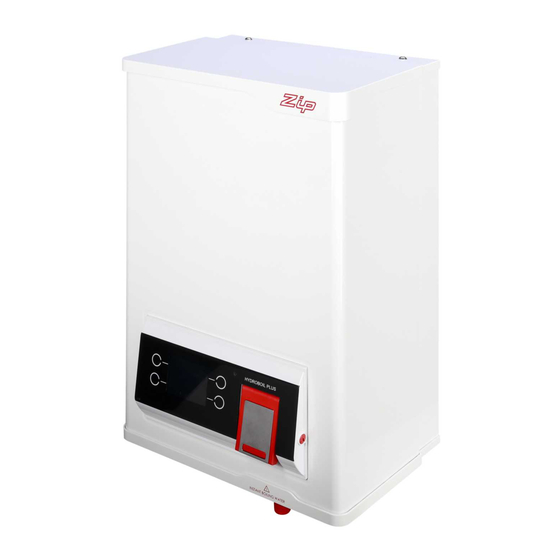

- Page 1 Installation instructions Zip Autoboil & Hydroboil Plus On wall boiling water. Models: Hydroboil Plus: 3L, 5L, 7.5L Autoboil: 3L, 5L, 7.5L, 15L, 25L, 40L (Available in Australia) 807066 v1.00 03.21 HBP AB Install Instructions...
- Page 2 807066 v1.00 03.21 HBP AB Install Instructions...
-
Page 3: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS ........... 4 WARNINGS & PRECAUTIONS ............5 TECHNICAL SPECIFICATION ............6 Step 1 – Positioning ..............7 Step 2 – Fastening ................8 Step 3 – Plumbing connection ............. 10 Step 4 – Electrical connection ............11 Step 5 – Assembly ...............13 Step 6 –... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Safety This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Warnings & Precautions
WARNINGS & PRECAUTIONS 1. For continued safety of this appliance it must be installed, operated and maintained in accordance with the manufacturer’s instructions. 2. This appliance may deliver water at high temperature. Refer to the Plumbing Code of Australia (PCA), local requirements and installation instructions to determine if additional delivery temperature control is required. -
Page 6: Technical Specification
TECHNICAL SPECIFICATION Heat up Heat up Tank Dimensions Filled time time size Rated voltage and power W x D x H weight (Inlet (Inlet (litres) (mm)* (kg) 15°C) 10°C) 220-240V, 50Hz, 1500W (AU/NZ) 16mins 17mins 220-240V, 50Hz, 1400W 300 x 183 x 439 (non-AU/NZ) 220V, 60Hz, 1250W 16mins... -
Page 7: Step 1 - Positioning
Step 1 – Positioning 3L, 5L, 7.5L: ≥ 65mm 15L, 25L, 40L: ≥ 150mm ≥ 20mm Mark corners of the ≥ 100mm appliance on the wall. Observe clearance around the appliance for service access 15L, 25L, 40L: ≥ 150mm Place supplied paper template on the wall. Drill holes as shown. -
Page 8: Step 2 - Fastening
Step 2 – Fastening Remove 4 screws. Remove the cover. Use supplied screws to mount the appliance to the wall. 3 - 7.5 litre models Autoboil: twist the tap 90 degrees to allow the cover to be removed. 15 - 40 litre models 807066 v1.00 03.21 HBP AB Install Instructions... - Page 9 3 - 7.5 litre models Terminal block Escutcheon Tap nut Concealed access Strain relief bush (cable gland) AU/NZ: remove filter guide for installation Autoboil: twist or remove tap in order to remove cover (3L, 5L, 7.5L models). 15 - 40 litre models Terminal block Concealed access...
-
Page 10: Step 3 - Plumbing Connection
Step 3 – Plumbing connection Cold water inlet and vent outlet IMPORTANT: • Cold water pipes must be flushed before connection to the inlet to prevent blockages from affecting operation of the appliance. CLEARANCE ZONE • An isolation valve (not supplied) must be fitted to the water supply. •... -
Page 11: Step 4 - Electrical Connection
Step 4 – Electrical connection All wiring must be performed by a qualified electrician. Refer to local relevant electrical codes and guidelines for installation requirements, cable size and selection to ensure suitability for local installation conditions and your product’s power rating. 220-240V AC, 50Hz Exposed electrical connection for 3L, 5L, 7.5L models... - Page 12 Element Step 4 – Electrical connection L1 L2 L3 L4 Red/Blk Contactor 220-240V AC, 1-phase T1 T2 T3 T4 Single-phase power supply 1(Red) 2(Blu) Overload 1(Red) 2(Blu) 15-25L models: These models have single- phase connection. No bridging is required. 40L models: There are two connection options: Heating Thermostat...
-
Page 13: Step 5 - Assembly
Step 5 – Assembly (Australian 3L, 5L, 7.5L models) Refit filter guide Push filter guide upwards. Rotate clockwise until locked. Refit cover Refit tap (Autoboil models) Refit cover. Fix with screws, Apply thread tape to thread. top and bottom. Turn tap until it touches the Use spanner (supplied) to lock nut and is upright. -
Page 14: Step 6 - Commissioning
Step 6 – Commissioning Warning: This appliance must be earthed Do not turn ON electrical power until instructed. Water must be available from the tap outlet to prevent damage. Water dispensed during commissioning may be boiling. Check earthing Earthing continuity must be tested by a qualified technician <... - Page 15 Step 6 – Commissioning Turn on electrical power Turn the mains electrical power ON. Refer to the screen. Touch the white circle left of the [Tick] to “Continue”. Boiling Calibration will commence. Allow several minutes for the water to boil. Calibrating Completed When completed, as prompted, turn on the mains water supply.
-
Page 16: Step 7 - Tap Operation
Step 7 – Tap operation The Hydroboil is fitted with a two-way, cool-touch tap. Boiling water will be dispensed Tap operation: Autoboil Press lever to dispense boiling Push to lock for continuous flow. water. If lever does not lock, rotate it 180° before dispensing. -
Page 17: Screen Operation
Screen operation 1 Understanding icons and buttons The Hydroboil uses a display and button menu system for setup and operation adjustment. Use the side buttons to navigate, perform selections and modify values. The icon changes according to the button action. A button has no function when no icon is shown. - Page 18 Screen operation 2 Home screen modes There are 3 Home screen modes: • Normal mode. • Sleep mode. • Sleep override mode. 2.1 Normal mode Current water Current Date/Time temperature Fault Indication Navigate to Navigate to Main Menu Fault Menu Show more Show more information...
- Page 19 Screen operation 2.2 Sleep mode Current water Current Date/Time Fault Indication temperature Navigate to Navigate to Main Menu Fault Menu Enter Sleep Show more Override information Mode Filter Indication Trigger Indication Hydroboil will exit sleep mode at the time shown. Hydroboil will exit sleep mode when ambient light returns to normal (bright room).
- Page 20 Screen operation 3 MAIN menu Main menu (from Home Screen) Scroll menu options. Select option. 4 SETTINGS Settings - Date & Time Set the date & time Settings - Temperature Set the Boiling Set Point temperature 807066 v1.00 03.21 HBP AB Install Instructions...
- Page 21 Screen operation Settings - Sleep Modes menu - Sleep Trigger Select the trigger that will enable Sleep Mode - Sleep Action Select either reduced water temperature, or switch off the appliance. - Timer Settings Select when Sleep Mode will be enabled. 807066 v1.00 03.21 HBP AB Install Instructions...
- Page 22 Screen operation Settings - Filter menu Change the settings to show when the water filter is due to be replaced. In Australia: Select either Internal or External filter to continue. - Life/Usage Set the filter life (default 12 months; refer to the filter cartridge) and the actual filter usage.
- Page 23 Screen operation Settings - Install menu - Light Calibration Calibrate the operating ambient light in order to trigger sleep mode when the light dims below “ambient”. - Boiling Calibration Follow the instructions on the screen to calibrate boiling. - Power Cycle This will turn the appliance off, then on.
- Page 24 Screen operation Settings - Info menu - Product Info - Current Faults Refer to “Troubleshooting” to identify fault codes. 807066 v1.00 03.21 HBP AB Install Instructions...
-
Page 25: Maintenance
2-3 days), run water through the outlet for at least 5 minutes before consumption. Use only a Zip Filter in this product to ensure effective filtration and operation. Replacement filter cartridges can be obtained through plumbing suppliers or directly from Zip. Filter replacement instructions are included with the filter cartridge spare part kits. -
Page 26: Troubleshooting
Troubleshooting In the event of a fault or failure, isolate power and water. Do not use the appliance. Contact a Zip authorised service agent for assistance, service, spare parts or enquiries. Symptom Possible cause Solution Water isolating valve turned off. -
Page 27: Cleaning
Cleaning Do not use strong, corrosive or abrasive cleaning materials. Stainless steel surfaces will show scratches if an abrasive cleaning product is used. Wipe clean the outer surfaces with a sponge or a soft cloth using a mild soap and water. End of life disposal In order to help preserve our environment we ask that you dispose of this product correctly. - Page 28 Telephone: (+612) 9796 3100 | Free Call: 1800 947 827 specify.zipwater.co.uk zipwater.com Zip products described in this publication are manufactured under one or more patents and further patent applications are pending. As Zip policy is one of continuous product improvement, changes to specifications may be made without prior notice.
