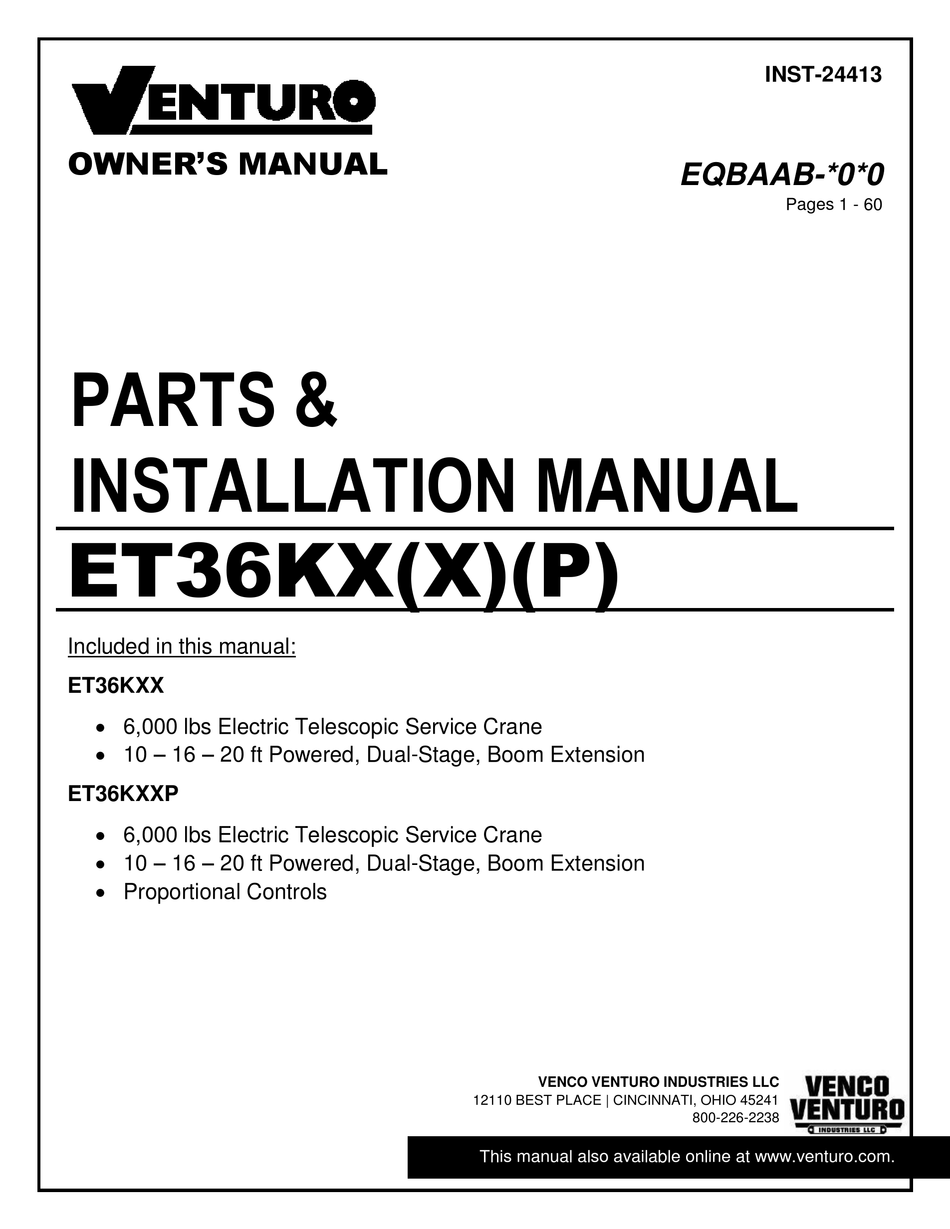

OWNER'S MANUAL

PARTS &

INSTALLATION MANUAL

ET36KX(X)(P)

Included in this manual:

ET36KXX

 6,000 lbs Electric Telescopic Service Crane

 10 – 16 – 20 ft Powered, Dual-Stage, Boom Extension

ET36KXXP

 6,000 lbs Electric Telescopic Service Crane

 10 – 16 – 20 ft Powered, Dual-Stage, Boom Extension

 Proportional Controls

VENCO VENTURO INDUSTRIES LLC

12110 BEST PLACE | CINCINNATI, OHIO 45241

This manual also available online at www.venturo.com.

INST-24413

EQBAAB-*0*0

Pages 1 - 60

800-226-2238

Need help?

Do you have a question about the ET36KXX and is the answer not in the manual?

Questions and answers

Summary of Contents for Venturo ET36KXX

Page 1  6,000 lbs Electric Telescopic Service Crane  10 – 16 – 20 ft Powered, Dual-Stage, Boom Extension  Proportional Controls VENCO VENTURO INDUSTRIES LLC 12110 BEST PLACE | CINCINNATI, OHIO 45241 800-226-2238 This manual also available online at www.venturo.com.
Page 2 21886 REPLACEMENT PARTS DRAWING; 21418 SLEWING RING 24410 DECAL PLACEMENTS 21899 FIELD SERVICE LABEL KIT; ET25/30/36KX 24417 FIELD SERVICE LABEL KIT; ET25/30/36KXP TITLE DATE SECTION TABLE OF CONTENTS 02-11-21C VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24413 ET36KX(P) (EQBAAB-*0*0) 12-08-20B...
Page 8 1 PART LINE FOR LOADS LESS THAN 3000 LBS 2 PART LINE FOR LOADS OF 3000 LBS AND GREATER WEIGHT OF LOAD BLOCK = 34 LBS TITLE DATE SECTION C100 MAXIMUM LOAD CAPACITY 05-03-16B VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 21081 ET36KX, 10'-16'-20' BOOM 04-30-13A...
Page 10 THE OVERLOAD SENSING SYSTEM HAS BEEN INSTALLED AS A SAFETY FEATURE TO PROTECT THE EQUIPMENT AND THE OPERATOR. DO NOT DISCONNECT THIS SYSTEM TITLE DATE SECTION ® SAFETY & HAZARDS C150 01-29-15K VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 850711 ELECTRIC CRANES 12-20-13J...
Page 11 THIS ALARM SYSTEM HAS BEEN INSTALLED AS A SAFETY FEATURE TO PROTECT BOTH THE EQUIPMENT AND THE OPERATOR. DO NOT DISCONNECT THIS SYSTEM INTENTIONALLY LEFT BLANK TITLE DATE SECTION ® SAFETY & HZRDS, CONT. C150 01-29-15 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 850712 ELECTRIC CRANES...
Page 12 NOTE: ENVIRONMENTAL CONDITIONS SUCH AS FOG, SMOKE, OR PRECIPITATION MAY REQUIRE INCREASED CLEARANCES TITLE DATE SECTION ® HAZARD APPS & INFO C150 02-21-14M VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 15394 ET/HT CRANES 12-20-13L...
Page 13 CONTACT WITH THE LOAD, THE CRANE, OR THE VEHICLE IF BOOM OR LOAD LINE SHOULD BECOME QUANTITY: ELECTRICALLY CHARGED. 15393-C PLACEMENT: EACH SIDE & EACH END OF VEHICLE TITLE DATE SECTION C150 SAFETY DECALS 04-29-16E VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 21353 VENTURO CRANES 10-24-13D...
Page 14 ZONE 3 PLACEMENT: In prominent location, so it is easily seen and ZONE 7 ZONE 4 readily identifiable. ZONE 6 ZONE 5 20927 TITLE DATE SECTION ® SAFETY DECALS C150 06-06-14C VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 21384 CRANES 04-02-13B...
Page 15 PART NO.: 19788-1 DECAL: PROPORTIONAL DECAL FUNCTION: To show the crane has proportional PROPORTIONAL CONTROL feature. QUANTITY: PLACEMENT: One on each side of boom. TITLE DATE SECTION C150 09-16-19A MODEL/CAPACITY DECALS VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 21083 02-11-09 ET36KX(P)
Page 16 PART NO.: 19315-2 DECAL: MANUAL OVERRIDE (PROPORTIONAL) FUNCTION: To show operator how to override proportional valve. QUANTITY: PLACEMENT: Right side of Mechanism, near valve stem. TITLE DATE SECTION C150 ADDITIONAL DECALS 09-16-19 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24414 ET25/30/36KX(P)
Page 17 PART NO.: 19788-1 DECAL: PROPORTIONAL DECAL FUNCTION: To show the crane has proportional PROPORTIONAL CONTROL feature. QUANTITY: PLACEMENT: One on each side of boom. TITLE DATE SECTION C150 09-16-19A MODEL/CAPACITY DECALS VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 21083 02-11-09 ET36KX(P)
Page 19 THE RC RATING IS A MEASURE OF THE PERIOD OF TIME THE BATTERY CAN SUPPLY A GIVEN CURRENT WITHOUT RECHARGING. TITLE DATE SECTION ® CABLE & BATTERY C200 07-30-18X VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 711105 ELECTRIC CRANES 09-27-17W...
Page 21 Overview Venturo follows the guidelines of ANSI B30.5 in defining stability. Generally speaking, a truck is considered stable as long as it is not on the verge of tipping - i.e. with the truck level, at least one tire on each corner of the truck must remain in contact with the ground.
Page 22 % of Rated Capacity for each of the 10 regions are provided above. CONDITIONS: STABILIZERS FULLY EXTENDED & DOWN, · ON FIRM LEVEL GROUND. TITLE DATE SECTION ® STABILITY CHART C200 05-11-17F VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 20907 VENTURO CRANES 02-21-14E...
Page 23 SOME WINCHES MAY BE SUPPLIED WITH A HEX NUT IN LIEU OF A WEDGE FOR INSTALLING THE WIRE ROPE. TITLE DATE SECTION ® WIRE ROPE INSTALLTN C200 02-21-14K VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 22245 ET6K & LARGER CRANES 12-26-13J...
Page 26 MINIMUM VOLTAGE TEST ONE OF THE MOST COMMON ELECTRICAL PROBLEMS ENCOUNTERED ON 12 VOLT ELECTRICAL CRANES IS INSUFFICIENT VOLTAGE AT THE MOTOR WHEN DRAWING THE LARGE CURRENT THAT EXISTS AT FULL LOAD EXTEND BOOM CYLINDER AGAINST "UP" STOP (RELIEF VALVE WILL OPEN) VOLTAGE AT MOTOR TERMINAL WHEN OPERATING AGAINST RELIEF VALVE SHOULD BE A MINMUM OF...
Page 28 B O O M DOWN HORN WINCH DOWN For assistance, please feel free to contact Technical Support at 800-226-2238. TITLE DATE SECTION C200 MAN. OVERRIDE INSTR. 03-08-19A ® VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23084 ET NON-PROP CRANES 02-09-17...
Page 29 DOWN LEFT BOOM BOOM HORN WINCH ROTATE 9.3. Go to step 5 For assistance, please feel free to contact Technical Support at 800-226-2238. TITLE DATE SECTION C200 MAN. OVERRIDE INSTR. 09-16-19 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24415 ET25/30/36KXP...
Page 31 ET36KX SHOWN FOR REFERENCE TITLE DATE SECTION C400 RPLCMT PARTS DWG - MECH 08-24-20B VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24392 ET25/30/36KX(P) SERIES 01-07-20A...
Page 32 REPLACEMENT PARTS LIST - ET36KX(P) MECH TITLE DATE SECTION C400 RPLCMT PARTS LIST- MECH 08-24-20B VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24395 ET36KX(P) SERIES CRANES 01-07-20A...
Page 33 19 20 16 17 16 17 18 12 13 14 30 18 TITLE DATE SECTION C400 08-27-19 RPLCMT HW DWG - MECH VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24396 ET25/30/36KX(P) SERIES...
Page 34 REPLACEMENT H/W LIST - ET25/30/36KX(P) MECH TITLE DATE SECTION C400 RPLCMNT HW LIST - MECH 09-03-19 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24397 ET25/30/36KX(P) SERIES...
Page 36 REPLACEMENT PARTS LIST - 28301 BOOM TITLE DATE SECTION C400 RPLCMT PART LIST - 28301 02-08-21B VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24403 ET25/30/36KX SERIES 01-08-20A...
Page 38 REPLACEMENT HARDWARE LIST - 28301 BOOM TITLE DATE SECTION C400 02-08-21B RPLCMNT HW LIST - 28301 BOOM VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24405 01-08-20A ET25/30/36KX SERIES CRANES...
Page 44 Single & 2-Pole Slip-ring Replacement Parts (1 of 2) TITLE DATE SECTION C400 16780 REPLACEMENT PARTS 03-29-19A VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 21292 ET6/8/12/16/18/25/30/36K(X) 04-27-18...
Page 45 ITEM #8, FIBER WASHER, 5/8 I.D. ET20,000 & ET20K(X) CRANES. 'MUST' SIT DIRECTLY ON TOP OF THE INVERTED FLARE NUT ITEM #6. TITLE DATE SECTION ® C400 REPL. PARTS ILLUSTRATION 04-27-18 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 21293 ET6/8/12/16/18/25/30/36K(X)
Page 51 S1 S2...
Page 52 S1 S2...
Page 57 MANUAL OVERRIDE GREASE MANUAL OVERRIDE...
Page 58 APPLICABLE SERIAL NUMBERS: 125000 - CURRENT 21866; FIELD SERVICE LABEL KIT, ET36KX APPLICABLE SERIAL NUMBERS: 130000 - CURRENT APPLICABLE SERIAL NUMBERS: 140000 - CURRENT TITLE DATE SECTION C400 FIELD SERVICE LABEL KIT 08-04-20E VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 21899 ET25/30/36KX 05-22-15D...
Page 59 ET25/30/36KXP FIELD SERVICE LABEL KITS 24440; FIELD SERVICE LABEL KIT, ET25KXP 24441; FIELD SERVICE LABEL KIT, ET30KXP 24442; FIELD SERVICE LABEL KIT, ET36KXP TITLE DATE SECTION C400 FIELD SERVICE LABEL KIT 08-04-20A VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24417 ET25/30/36KXP 09-16-19...
Page 60 1-Year Limited Warranty Policy This limited policy warrants new products of Venturo to be free from defects in material and workmanship for a period of one (1) year from date of original installation. OEM products or accessories purchased by Venturo as part of or offered with our product will carry the OEM manufacturer’s respective warranty.
