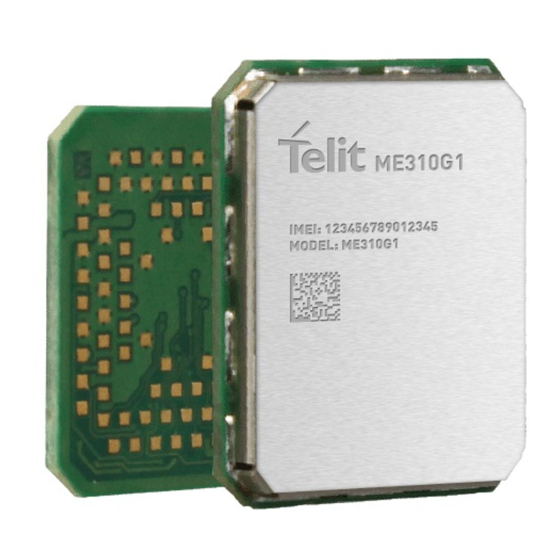

ME310G1
HW Design Guide
1VV0301588 Rev. 12 – 2021-06-14
Telit Technical Documentation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ME310G1-W1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Telit Wireless Solutions ME310G1-W1

Summary of Contents for Telit Wireless Solutions ME310G1-W1

  • Page 1 ME310G1 HW Design Guide 1VV0301588 Rev. 12 – 2021-06-14 Telit Technical Documentation...

  • Page 2: Applicability Table

    ME310G1 Hardware Design Guide APPLICABILITY TABLE PRODUCTS ME310G1-W1 ME310G1-WW ME310G1-WWV ME310G1-W2 ME310G1-W3 1VV0301588 Rev. 12 Page 2 of 96 2021-06-14...

  • Page 3: Table Of Contents

    GENERAL PRODUCT DESCRIPTION ........11 Overview .................. 11 Product Variants and Frequency Bands ........ 11 Target Market ................. 13 Main features ................13 TX Output Power ..............14 ME310G1-W1................14 ME310G1-WW ................. 14 ME310G1-WWV ............... 15 ME310G1-W2................15 ME310G1-W3................15 RX Sensitivity ................16 ME310G1-W1................
  • Page 4 POWER SUPPLY ............... 28 Power Supply Requirements..........28 Power Consumption ............... 29 Idle mode................. 29 ME310G1-W1 Connected Mode ..........30 ME310G1-WW and ME310G1-WWV Connected Mode ... 31 ME310G1-W2 Connected Mode ..........32 ME310G1-W3 Connected Mode ..........32 General Design Rules ............. 33 Electrical Design Guidelines ..........
  • Page 5 ME310G1 Hardware Design Guide Fast shut down by software ........... 44 Communication ports ............. 45 USB 2.0 HS ................45 SPI ................... 45 Serial Ports ................46 5.7.3.1. Asynchronous Serial Port (USIF0) ......... 46 5.7.3.2. Asynchronous Serial Port (USIF1) ......... 48 5.7.3.3.
  • Page 6 APPLICATION PCB DESIGN ..........64 Footprint .................. 64 ME310G1-W1................64 ME310G1-WW, ME310G1-WWV, ME310G1-W2 ME310G1-W3................66 Recommendations for ME310G1-W1 ........68 Recommendations for ME310G1-WW, ME310G1-WWV, ME310G1-W2 and ME310G1-W3 ..........69 PCB pad design ............... 70 Stencil..................71 Solder paste ................71 Solder Reflow ................71 PACKAGING ..............
  • Page 7 ME310G1 Hardware Design Guide ME310G1-W1................77 ME310G1-WW, ME310G1-W2 and ME310G1-W3 ....78 CONFORMITY ASSESSMENT ISSUES ......... 79 Approvals summary ..............79 RED approval ................79 RED Declaration of Conformity ..........79 RED Antennas ................. 79 FCC et ISDE approbation FCC and ISED approval / ....
  • Page 8 ME310G1 Hardware Design Guide Copyrighted Materials ............89 High Risk Materials ..............89 Trademarks................90 3rd Party Rights ..............90 Waiver of Liability ..............90 Safety Recommendations............91 GLOSSARY ............... 92 DOCUMENT HISTORY ............94 1VV0301588 Rev. 12 Page 8 of 96 2021-06-14...

  • Page 9: Introduction

    ME310G1 Hardware Design Guide INTRODUCTION Scope This document introduces the ME310G1 module and presents possible and recommended hardware solutions for the development of a product based on this module. All the features and the solutions described in this document are applicable to all the variants listed in the applicability table.

  • Page 10: Symbol Conventions

    ME310G1 Hardware Design Guide Symbol Conventions Danger: This information MUST be followed or catastrophic equipment failure or personal injury may occur. Warning: Alerts the user on important steps about the module integration. Note/Tip: Provides advice and suggestions that may be useful when integrating the module.

  • Page 11: General Product Description

    VoLTE Tuner Support B1, B2, B3, B4, B5, B1, B2, B3, B4, B5, B8, B12, B13, B18, B8, B12, B13, B18, ME310G1-W1 B19, B20, B25, B26, B19, B20, B25, B26, Worldwide B27, B28, B66, B28, B66, B71, B85, B85, B8_39d*...
  • Page 12 ME310G1 Hardware Design Guide Note: “B86” is not a 3GPP band, it means the following: UL range: 787-788 MHz, DL range: 757-758 MHz that is available only in module where AT#BNDOPTIONS command contains the string B86. i.e. AT#BNDOPTIONS? #BNDOPTIONS: 1,2,3,4,5,8,12,13,18,19,20,25,26,27,28,66,71,85,86 Note: “B8_39d”...

  • Page 13: Target Market

    ME310G1 Hardware Design Guide Target Market ME310G1 can be used for telematics applications where tamper-resistance, confidentiality, integrity, and authenticity of end-user information are required, for example: • Telematics services • Road pricing • Pay-as-you-drive insurance • Stolen vehicles tracking • Internet connectivity Main features Function Features...

  • Page 14: Tx Output Power

    ME310G1 Hardware Design Guide TX Output Power ME310G1-W1 RF power (dBm) Band Mode Class Nominal* B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B27, B28, (LTE) CAT-M1 B66, B85, B86, B8_39d B1, B2, B3, B4, B5, B8, B12, B13, B18,...

  • Page 15: Me310G1-Wwv

    ME310G1 Hardware Design Guide ME310G1-WWV RF power (dBm) Band Mode Class Nominal* 32.5 GPRS 850/900MHz EGPRS 29.5 GPRS 1800/1900MHz EGPRS B1, B2, B3, B4, B5, B8, B12, B13, B18, (LTE) CAT-M1 B19, B20, B25, B26, B27, B28, B66, B85 B1, B2, B3, B4, B5, B8, B12, B13, B18, (LTE) CAT-NB2 B19, B20, B25, B26, B28, B66, B85 (LTE) CAT-NB2...

  • Page 16: Rx Sensitivity

    ME310G1 Hardware Design Guide RX Sensitivity ME310G1-W1 REFsens (dBm) REFsens (dBm)* Band Typical 3GPP Limit CATM1 / Band1 -107.1 -102.7 CAT M1 / Band2 -107.5 -100.3 CAT M1 / Band3 -106.4 -99.3 CAT M1 / Band4 -107.3 -102.3 CAT M1 / Band5 -106.0...

  • Page 17: Me310G1-Ww

    -108.2 CAT NB2 / Band66 -115.3 -108.2 CAT NB2 / Band71 -111.3 CAT NB2 / Band85 -115.7 Table 9: RX Sensitivity ME310G1-W1 * 3GPP TS 36.521-1 Release 15 Minimum performance requirement ME310G1-WW REFsens (dBm) REFsens (dBm)* Band Typical 3GPP Limit CATM1 / Band1 -105.6...

  • Page 18: Me310G1-W2

    ME310G1 Hardware Design Guide REFsens (dBm) REFsens (dBm)* Band Typical 3GPP Limit CAT M1 / Band85 -104.0 CAT NB2 / Band1 -115.7 -108.2 CAT NB2 / Band2 -115.9 -108.2 CAT NB2 / Band3 -115.5 -108.2 CAT NB2 / Band4 -115.1 CAT NB2 / Band5 -115.8 -108.2...

  • Page 19: Me310G1-W3

    ME310G1 Hardware Design Guide REFsens (dBm) REFsens (dBm)* Band Typical 3GPP Limit CAT M1 / Band72 -105.4 -96.6 Table 11: RX Sensitivity ME310G1-W2 * 3GPP TS 36.521-1 Release 15 Minimum performance requirement ME310G1-W3 REFsens (dBm) REFsens (dBm)* Band Typical 3GPP Limit CAT M1 / Band3 -104.2 -99.3...

  • Page 20: Mechanical Specifications

    W3 are: • Length: 18.0 mm • Width: 15.0 mm • Thickness: 2.6 mm Weight The nominal weight of the ME310G1-W1 is 1gr. The nominal weight of the ME310G1-WW, ME310G1-WWV and ME310G1-W2 is 1.5 gr. Temperature Range Temperature range Note...

  • Page 21: Pins Allocation

    ME310G1 Hardware Design Guide PINS ALLOCATION Pin-out Signal Function Type Comment USB HS 2.0 Communication Port differential USB_D+ Data (+) differential USB_D- Data (-) USB_VBUS USB Power Sense Asynchronous Serial Port (USIF0) – Prog. / Data + HW Flow Control Serial data input Internal PU TXD0...
  • Page 22 ME310G1 Hardware Design Guide Signal Function Type Comment External SIM_CLK CMOS 1.8V signal – Clock External SIM_RST CMOS 1.8V signal – Reset External SIM_DAT CMOS 1.8V signal – Data I/O Power supply for Only 1.8V simcard SIM_VCC 1.8V the SIM are supported Presence SIMIN...
  • Page 23 ME310G1 Hardware Design Guide Signal Function Type Comment Digital To Analog PWM signal converter Output RF Section Main Antenna (50 CELL_MAIN ANTENNA ohm) GNSS ANTENNA GNSS Antenna GNSS_PPS GNSS external GNSS_LNA_EN CMOS 1.8V LNA enable GNSS_PPS 1 Pulse per Second CMOS 1.8V Miscellaneous Functions S_LED...
  • Page 24 ME310G1 Hardware Design Guide Signal Function Type Comment Antenna Tuner Section (Only on HW1.0) ATC1 Antenna Tuner Ctrl Only on HW1.0 ATC2 Antenna Tuner Ctrl Only on HW1.0 Antenna Tuner Only on HW1.0 Voltage RF Ground Power RF Ground Power RF Ground Power RF Ground...
  • Page 25 ME310G1 Hardware Design Guide Signal Function Type Comment Thermal Ground Power Power Ground Power Power Ground Power Power Ground Power Power Ground Power Power Ground Power RESERVED RESERVED RESERVED Only in HW 0.0 RESERVED RESERVED Only in HW 0.0 RESERVED RESERVED Only in HW 0.0 RESERVED...
  • Page 26 ME310G1 Hardware Design Guide Warning: C104/RXD1 cannot have any PU or HIGH state during BOOTING UP phase. 1VV0301588 Rev. 12 Page 26 of 96 2021-06-14...

  • Page 27: Lga Pads Layout

    ME310G1 Hardware Design Guide LGA Pads Layout TOP VIEW (HW 1.0) CELL MAIN S_LED DVI_W DVI_R DVI_T GNSS DVI_C ATC1 GNSS_ MIPI_CL 1PPS GNSS_ ATC2 LNA_E MIPI_DA SIM_C SIM_R ON_OF SIM_D CTANK F*/WA SIM_V PWRM FORCE USB_V D_USB_ BOOT USB_D USB_D- VBATT SPI_C...

  • Page 28: Power Supply

    ME310G1 Hardware Design Guide POWER SUPPLY The power supply circuitry and the board layout are a very important part in the full product design and they strongly reflect on the overall performance of the product so the requirements and the guidelines that will follow should be read carefully for a proper design.

  • Page 29: Power Consumption

    ME310G1 Hardware Design Guide Note: The application’s power supply section must be designed with care to avoid an excessive voltage drop during transmission peak current absorptions. If the voltage drops beyond the limits of the Extended Operating Voltage range, an unintentional module power off can occur.

  • Page 30: Me310G1-W1 Connected Mode

    Note: The reported LTE CAT M1 and LTE CAT NB1 idle mode values are an average among all the product variants and bands for each network wireless technology. The support for a specific network wireless technology depends on the product variant configuration. ME310G1-W1 Connected Mode Measure Mode Mode (Typical)

  • Page 31: Me310G1-Ww And Me310G1-Wwv Connected Mode

    ME310G1 Hardware Design Guide ME310G1-WW and ME310G1-WWV Connected Mode Measure Mode (Typical) Description Average Peak Connected mode (mA) (mA) 1 RB, RMC, TBS=5, QPSK, 23dBm, 1100 Band 85, 28, 12 1 RB, RMC, TBS=5, QPSK,23dBm, CATM Band 13, 26, 5, 18, 19, 20, 8 1 RB, RMC, TBS=5, QPSK, 23dBm, Band 3, 2, 25, 4, 1, 66 3.75KHz...

  • Page 32: Me310G1-W2 Connected Mode

    ME310G1 Hardware Design Guide ME310G1-W2 Connected Mode Measure Mode Mode (Typical) Description Average Peak Connected mode (mA) (mA) 1 RB, RMC, TBS=5, QPSK, 21dBm, B1, B3, B8, B20, B28 CATM 1 RB, RMC, TBS=5, QPSK 26dBm, B31, B72 3.75KHz subcarrier spacing, 1 SC, RU 32ms, TBS=0, BPSK, 21dBm, B1, B3, B8, B20, B28 3.75KHz subcarrier spacing, 1 SC, RU 32ms, TBS=0, BPSK, 23dBm, B31, B72...

  • Page 33: General Design Rules

    ME310G1 Hardware Design Guide General Design Rules The main guidelines for the Power Supply Design include three different design steps: • the electrical design • the thermal design • the PCB layout Electrical Design Guidelines The electrical design of the power supply strongly depends on the power source where this power is drained.

  • Page 34: Source Power Supply Design Guidelines

    ME310G1 Hardware Design Guide An example of linear regulator with 5V input is: Figure example of linear regulator with 5V input 4.3.1.2. +12V Source Power Supply Design Guidelines • The desired output for the power supply is 3.8V, so due to the big difference between the input source and the desired output, a linear regulator is not suited and shall not be used.

  • Page 35: 4.3.1.3. Battery Source Power Supply Design Guidelines

    ME310G1 Hardware Design Guide • For Car applications a spike protection diode should be inserted close to the power input, in order to clean the power supply from the spikes. An example of switching regulator with 12V input is in the below schematic: Figure Recommended Circuit 4.3.1.3.

  • Page 36: Thermal Design Guidelines

    ME310G1 Hardware Design Guide Thermal Design Guidelines Worst case as reference values for thermal design of ME310G1 are: • Average current consumption: 700 mA (LTE CAT M1 and NB1 modes) • Average current consumption: 700 mA (GPRS and EDGE modes) •...

  • Page 37: Rtc Supply

    ME310G1 Hardware Design Guide • A dedicated ground for the Switching regulator separated by the common ground plane is suggested. • The placement of the power supply on the board should be done in such a way to guarantee that the high current return paths in the ground plane are not overlapped to any noise sensitive circuitry as the microphone amplifier/buffer or earphone amplifier.
  • Page 38 ME310G1 Hardware Design Guide Item Typical Output voltage 1.35V 1.8V 1.8V Output current Table 20: Operating range characteristics of PWRMON signal Note: PWRMON during PSM period is LOW ( PSM has to be previously enabled by AT+CPSMS command) Note: The Output Current MUST never be exceeded; care must be taken when designing the application section to avoid an excessive current consumption.

  • Page 39: Digital Section

    ME310G1 Hardware Design Guide DIGITAL SECTION ME310G1 has four main operation states: • OFF state: Vbatt is applied and only RTC is running. The Baseband is switched OFF and the only possible change is the ON state. • ON state: the baseband is fully switched on and ME310G1 is ready to accept AT commands.

  • Page 40: Power On

    ME310G1 Hardware Design Guide Power On The following flow chart shows the proper “Modem Turn ON” procedure. “Modem ON Proc” START VBATT>VBATT PWRMON=ON ? ON_OFF* = LOW Delay = 5 sec ON_OFF*= HIGH PWRMON=ON ? Delay = 1 sec GO TO “Start AT Commands””...

  • Page 41: Power Off

    ME310G1 Hardware Design Guide In some use cases ON_OFF* can be tied fix LOW taking in account two limitations: 1. PSM wake-up asynchronous capability will be lost. 2. To perform an unconditional shutdown it is necessary to send AT#SYSHALT command and then cut Vbatt. Power Off The proper procedure to power-off the module is to use the AT#SHDN command.

  • Page 42: Unconditional Shutdown

    ME310G1 Hardware Design Guide Unconditional shutdown The following flow chart shows the proper procedure for unconditional shutdown of ME310G1 except in PSM mode. When the procedure is completed the ME310G1 is reset and it stops any operation. After the release of the line, the ME310G1 is unconditionally shut down, without performing any detach operation from the network in which it is registered.

  • Page 43: Wake Up From Deep Sleep Mode

    ME310G1 Hardware Design Guide Warning: Unconditional Hardware SHUTDOWN by toggling VBATT Power, must not be used during the normal shutdown operation of the device since it does not detach the device from the network and can damage the memory content. It shall be kept as an emergency exit procedure.

  • Page 44: Fast Shut Down By Hardware

    ME310G1 Hardware Design Guide Fast shut down by hardware The Fast Power Down can be triggered by configuration of any GPIO. HI level to LOW level transition of GPIO triggers fast power down procedure. Example circuit: Note: Consider voltage drop under max current conditions when defining the voltage detector thereshold in order to avoid unwanted shutdown.

  • Page 45: Communication Ports

    ME310G1 Hardware Design Guide Communication ports USB 2.0 HS The ME310G1 includes one integrated universal serial bus (USB 2.0 HS) transceiver. The following table lists the available signals: Signal Function NOTE USB_D+ USB differential Data (+) USB_D- USB differential Data (-) VUSB Power sense for the internal USB transceiver.

  • Page 46: Serial Ports

    ME310G1 Hardware Design Guide Signal Function Type NOTE SPI_CS SPI Chip Select CMOS 1.8V Table 26: Available signals Note: The SPI interface is supported through the Telit AppZone APIs. Serial Ports The ME310G1 module is provided by 3 Asynchronous serial ports: •...
  • Page 47 ME310G1 Hardware Design Guide RS232 Pin Signal Name Usage Input to the ME310G1 Data Terminal that controls the DTE Ready READY condition A3, A7, A9, A13, A17, B4, B6, B10, B12, B14, B16, C19, D18, F8, F12, F18, G19, Ground Ground H6, H14, J19, K18, M18, N19, P6, P14, T8, T12, U1, V2, W19, Y2, Y4...

  • Page 48: Asynchronous Serial Port (Usif1)

    ME310G1 Hardware Design Guide 5.7.3.2. Asynchronous Serial Port (USIF1) The serial port 1 on the ME310G1 is a +1.8V UART with 5 RS232 signals. It differs from the PC-RS232 in the signal polarity (RS232 is reversed) and levels. Warning: C104/RXD1 cannot have any PU or HIGH state during BOOTING UP phase.

  • Page 49: General Purpose I/O

    ME310G1 Hardware Design Guide General purpose I/O The ME310G1 module is provided by a set of Configurable Digital Input / Output pins (CMOS 1.8V). Input pads can only be read; they report the digital value (high or low) present on the pad at the read time of. The Output pads can only be written or queried and set the value of the pad output.

  • Page 50: External Sim Holder

    ME310G1 Hardware Design Guide External SIM Holder Please refer to the related User Guide (SIM Holder Design Guides, 80000NT10001a). Note: There is no dedicated signal (SIMIN) for “Presence SIM” in the ME310G1 pinout. This feature can performed by connecting GPIO_01 (Pad V11) or of GPIO_02 (Pad V13) or of GPIO_03 (Pad D7) or of GPIO_04 (Pad D9) to the switch embedded in the sim-holder.

  • Page 51: Using Adc Converter

    ME310G1 Hardware Design Guide Item Typical Unit Input Voltage range Volt AD conversion bits Table 31 ADC Characteristics Using ADC Converter Available in a next document revision. DAC Converter The ME310G1 provides a Digital to Analog Converter. The signal (named DAC) is available on pin R16 of the ME310G1.

  • Page 52: Antenna Tuner

    ME310G1 Hardware Design Guide Antenna Tuner The ME310G1 provides a feature to enable an external antenna tuning solution that require to dynamically tune the antenna on multiple frequencies. Refer to AT command AT#ATUNERSEL (AT Commands Reference Guide-Telit code 80617ST10991A) to select GPIO or MIPI interfaces on ATC1/ATC2 pins. GPIO ATC1 ATC2...

  • Page 53: Rf Section

    81 MHz in LTE Band 71 15 MHz in LTE Band 72 48 MHz in LTE Band 85 Impedance 50 ohm ME310G1-W1: > 24dBm Average power Input power ME310G1-WW: > 33dBm Average power ME310G1-W2: > 26dBm Average power ≤ 10:1 (limit to avoid permanent damage) VSWR absolute max ≤...

  • Page 54: Pcb Design Guidelines

    ME310G1 Hardware Design Guide PCB Design guidelines When using the ME310G1, since there's no antenna connector on the module, the antenna must be connected to the ME310G1 antenna pad by means of a transmission line implemented on the PCB. This transmission line shall fulfil the following requirements: Item Value Characteristic Impedance...
  • Page 55 ME310G1 Hardware Design Guide • if EM noisy devices (such as fast switching ICs, LCD and so on) are present on the PCB hosting the ME310G1, take care of the shielding of the antenna line by burying it in an inner layer of PCB and surrounding it with the Ground planes, or shield it with a metal frame cover;...

  • Page 56: Audio Section

    ME310G1 Hardware Design Guide AUDIO SECTION The Telit digital audio interface (DVI) of the ME310G1 Module is based on the I S serial bus interface standard. The audio port can be connected to the end device through the digital interface, or through one of the several compliant codecs (in case an analog audio is needed).

  • Page 57: Gnss Section

    ME310G1 Hardware Design Guide GNSS SECTION The ME310G1 module includes a state-of-the-art receiver capable of simultaneously searching and tracking satellite signals from multiple satellite constellations. This multi- GNSS receiver uses the entire spectrum of GNSS systems available: GPS, GLONASS, BeiDou, Galileo, and QZSS. GNSS Signals Pin-out Signal Function...

  • Page 58: Hardware-Based Solution For Gnss And Lte Coexistence

    ME310G1 Hardware Design Guide • Place EM noisy devices as far as possible from antenna line. • Keep the antenna line away from power supply lines. • Keep the antenna line away from GSM RF lines. • If there are noisy EM devices around the PCB hosting the module, such as fast switching ICs, take care of the shielding of the antenna line by burying it inside the layers of the PCB and surrounding it with the Ground planes, or shielding it with a metal frame cover.

  • Page 59: Gnss Antenna Requirements

    ME310G1 Hardware Design Guide GNSS Antenna Requirements GNSS active antenna must be used or integrated in the application. GNSS Antenna specification Item Value Frequency range 1559.0 ~ 1610.0 MHz Gain 15 ~ 30dB Impedance 50 ohm Noise Figure of LNA <...
  • Page 60 ME310G1 Hardware Design Guide The electrical characteristics of the GPS_LNA_EN signal are: Level Output High Level 1.6V 1.9V Output Low Level 0.3V Table 38: GPS_LNA_EN signal characteristics Example of external antenna bias circuitry: Figure 10: Antenna bias circuitry example Pay attention to the maximum bias current in case of unwanted short circuit on the antenna cable since the decoupling inductor can be damaged.

  • Page 61: Gnss Characteristics

    ME310G1 Hardware Design Guide GNSS Characteristics The table below specifies the GNSS characteristics and expected performance. Typical Parameters Notes Measurement Tracking Sensitivity -159 dBm Navigation Sensitivity -155 dBm Cold Start -144 dBm It will be available in next revision TTFF Warm <30s GNSS Simulator test @-130dBm...

  • Page 62: Mechanical Design

    ME310G1 Hardware Design Guide MECHANICAL DESIGN Drawing ME310G1-W1 Figure Mechanical Drawing ME310G1-W1 Note: Dimensions in mm. General Tolerance ±0.1, Angular Tolerance ±1°, The tolerance is not cumulative. 1VV0301588 Rev. 12 Page 62 of 96 2021-06-14...

  • Page 63: Me310G1-Ww, Me310G1-Wwv, Me310G1-W2 Me310G1-W3

    ME310G1 Hardware Design Guide ME310G1-WW, ME310G1-WWV, ME310G1-W2 and ME310G1- Figure 12: Mechanical Drawing ME310G1-WW, ME310G1-WWV, ME310G1-W2 and ME310G1-W3 1VV0301588 Rev. 12 Page 63 of 96 2021-06-14...

  • Page 64: Application Pcb Design

    APPLICATION PCB DESIGN The ME310G1 modules have been designed in order to be compliant with a standard lead- free SMT process. Footprint ME310G1-W1 COPPER PATTERN (top view) Figure 13: Copper Pattern (top view) 1VV0301588 Rev. 12 Page 64 of 96...
  • Page 65 ME310G1 Hardware Design Guide SOLDER RESIST PATTERN (top view) Figure 14: Solder resist pattern (top view) 1VV0301588 Rev. 12 Page 65 of 96 2021-06-14...

  • Page 66: Me310G1-Ww, Me310G1-Wwv, Me310G1-W2 Me310G1-W3

    ME310G1 Hardware Design Guide ME310G1-WW, ME310G1-WWV, ME310G1-W2 and ME310G1- COPPER PATTERN (top view) Figure 15: Example Figure 1VV0301588 Rev. 12 Page 66 of 96 2021-06-14...
  • Page 67 ME310G1 Hardware Design Guide SOLDER RESIST PATTERN (top view) Figure 16: Example Figure 1VV0301588 Rev. 12 Page 67 of 96 2021-06-14...

  • Page 68: Recommendations For Me310G1-W1

    ME310G1 Hardware Design Guide Recommendations for ME310G1-W1 In order to easily rework the ME310G1-W1, it is recommended to consider on the application a 2 mm placement inhibit area around the module. It is also suggested, as a common rule for an SMT component, to avoid having a mechanical part of the application in direct contact with the module.

  • Page 69: Recommendations For Me310G1-Ww, Me310G1-Wwv, Me310G1-W2 And Me310G1-W3

    ME310G1 Hardware Design Guide Recommendations ME310G1-WW, ME310G1-WWV, ME310G1-W2 and ME310G1-W3 In order to easily rework the ME310G1-WW, ME310G1-WWV, ME310G1-W2 and ME310G1- W3 it is recommended to consider the application placement inhibit area around the module, as specified in the below figure. It is also suggested, as common rule for an SMT component, to avoid having a mechanical part of the application in direct contact with the module.

  • Page 70: Pcb Pad Design

    ME310G1 Hardware Design Guide PCB pad design Non solder mask defined (NSMD) type is recommended for the solder pads on the PCB. Copper Solder Mask NSMD (Soler Mask Defined) (Non Solder Mask Defined) Figure 19: PCB solder pad recommendations The recommendation for the PCB pads dimensions are 1:1 with module pads. It is not recommended to place via or micro-via not covered by solder resist in an area of 0.3 mm around the pads unless it carries the same signal of the pad itself Holes in pad are allowed only for blind holes and not for through holes.

  • Page 71: Stencil

    ME310G1 Hardware Design Guide Stencil The layout of the stencil apertures can be the same as the recommended footprint (1:1), we suggest a thickness of stencil foil ≥ 120 µm. Solder paste Item Lead Free Solder Paste Sn/Ag/Cu Table 41: Solder paste We recommend using only “no clean”...
  • Page 72 ME310G1 Hardware Design Guide Profile Feature Pb-Free Assembly Average ramp-up rate (T to T 3°C/second max Preheat 150°C – Temperature Min (Tsmin) 200°C – Temperature Max (Tsmax) 60-180 seconds – Time (min to max) (ts) Tsmax to TL 3°C/second max –...

  • Page 73: Packaging

    ME310G1 Hardware Design Guide PACKAGING Tray ME310G1-W1 Figure 21: ME310G1-W1 tray packaging 1VV0301588 Rev. 12 Page 73 of 96 2021-06-14...
  • Page 74 ME310G1 Hardware Design Guide Figure 22: ME310G1-W1 tray 1VV0301588 Rev. 12 Page 74 of 96 2021-06-14...

  • Page 75: Me310G1-Ww, Me310G1-W2 And Me310G1-W3

    ME310G1 Hardware Design Guide ME310G1-WW, ME310G1-W2 and ME310G1-W3 Figure 23: ME310G1-WW tray packaging 1VV0301588 Rev. 12 Page 75 of 96 2021-06-14...
  • Page 76 ME310G1 Hardware Design Guide Figure 24: ME310G1-WW tray 1VV0301588 Rev. 12 Page 76 of 96 2021-06-14...

  • Page 77: Reel

    ME310G1 Hardware Design Guide Reel ME310G1-W1 1VV0301588 Rev. 12 Page 77 of 96 2021-06-14...

  • Page 78: Me310G1-Ww, Me310G1-W2 And Me310G1-W3

    ME310G1 Hardware Design Guide ME310G1-WW, ME310G1-W2 and ME310G1-W3 1VV0301588 Rev. 12 Page 78 of 96 2021-06-14...

  • Page 79: Conformity Assessment Issues

    RED approval RED Declaration of Conformity Hereby, Telit Communications S.p.A declares that the ME310G1-W1, ME310G1-WW, ME310G1-WWV and ME310G1-W2 Modules are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet http://www.telit.com/red...

  • Page 80: Fcc And Ised Approval / Fcc Et Isde Approbation

    ME310G1 Hardware Design Guide Table 44: RED Antenna Type Max Gain for RED (dBi) Band ME310G1-W1 ME310G1-WW ME310G1-WWV ME310G1-W2 GSM 900 8.48 DCS 1800 14.36 GPRS/EGPRS 5.97 5.97 GPRS/EGPRS 10.34 9.34 1800 FDD 1 14.84 11.84 11.84 14.3 FDD 3 14.33...

  • Page 81: Applicable Fcc And Ised Rules / Liste Des Règles Fcc Et Isde Applicables

    Applicable FCC and ISED rules / applicables Model Applicable ISED Rules Applicable FCC Rules Modèle Règles ISDE applicables ME310G1-W1 RSS: 132 Issue3, 133 Issue 6, 130 Issue 2, 47 CFR ME310G1-WW 139 Issue 3; Part 2, 22, 24, 27, 90 RSS-Gen Issue 5...

  • Page 82: Fcc/Ised Antennas / Fcc/Isde Antennes

    ME310G1 Hardware Design Guide Le présent appareil est conforme à l'exposition aux radiations FCC / ISED définies pour un environnement non contrôlé et répond aux directives d'exposition de la fréquence de la FCC radiofréquence (RF) et RSS ‐ 102 de la fréquence radio (RF) ISED règles d'exposition.
  • Page 83 ME310G1 Hardware Design Guide Model Antenna Type ME310G1-W1 Omnidirectional ME310G1-WW Antenna Gain 2.14 dBi ME310G1-WWV Table 47 FCC Antenna Type Max Gain for FCC (dBi) Band ME310G1-W1 ME310G1-WW ME310G1-WWV GSM 850 GSM 1900 GPRS/EGPRS 850 GPRS/EGPRS 1900 FDD 2 11.0...

  • Page 84: Fcc Label And Compliance Information

    The external label will read as follows: “Contains Transmitter Module FCC ID: RI7ME310G1W1” or “Contains FCC ID: RI7ME310G1W1” for ME310G1-W1 and : “Contains Transmitter Module FCC ID: RI7ME310G1WW” or “Contains FCC ID: RI7ME310G1WW” for...

  • Page 85: Ised Label And Compliance Information/Étiquette Et

    ME310G1 Hardware Design Guide Model FCC ID ME310G1-W1 RI7ME310G1W1 ME310G1-WW RI7ME310G1WW ME310G1-WWV Table 51: FCC ID Étiquette ISED label compliance information/ informations de conformité ISDE The host product shall be properly labelled to identify the modules within the host product.

  • Page 86: Information On Test Modes And Additional Testing Requirements / Informations Sur Les Modes De Test Et Les Exigences De Test Supplémentaires

    ME310G1 Hardware Design Guide Information test modes additional testing requirements / Informations sur les modes de test et les exigences de test supplémentaires The module has been evaluated in mobile stand-alone conditions. For different operational conditions other than a stand-alone modular transmitter in a host (multiple, simultaneously transmitting modules or other transmitters in a host), additional testing may be required (collocation, retesting…) If this module is intended for use in a portable device, the user is responsible for separate...

  • Page 87: Anatel Regulatory Notices

    ME310G1 Hardware Design Guide ANATEL Regulatory Notices "Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados" "This equipment is not entitled to protection against harmful interference and must not cause interference in duly authorized systems" ME910G1-WW, ME310G1-WW, ML865G1-WW Homologation #: 08566-20-02618 NCC Regulatory Notices According to NCC Taiwan requirements, the module and the packaging shall be identified...

  • Page 88: Product And Safety Information

    ME310G1 Hardware Design Guide PRODUCT AND SAFETY INFORMATION Copyrights and Other Notices SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Although reasonable efforts have been made to ensure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from the use of the information contained herein.

  • Page 89: Usage And Disclosure Restrictions

    ME310G1 Hardware Design Guide including – but not limited to - the exclusive right to copy or reproduce in any form the copyrighted products. Accordingly, any copyrighted computer programs contained in Telit’s products described in this instruction manual shall not be copied (reverse engineered) or reproduced in any manner without the express written permission of the copyright owner, being Telit or the 3rd Party software supplier.

  • Page 90: Trademarks

    ME310G1 Hardware Design Guide Trademarks TELIT and the Stylized T-Logo are registered in the Trademark Office. All other product or service names are property of their respective owners. 3rd Party Rights The software may include 3rd Party’s software Rights. In this case the user agrees to comply with all terms and conditions imposed in respect of such separate software rights.

  • Page 91: Safety Recommendations

    ME310G1 Hardware Design Guide Safety Recommendations Make sure the use of this product is allowed in your country and in the environment required. The use of this product may be dangerous and has to be avoided in areas where: • it can interfere with other electronic devices, particularly in environments such as hospitals, airports, aircrafts, etc.

  • Page 92: Glossary

    ME310G1 Hardware Design Guide GLOSSARY Analog – Digital Converter BPSK Modulation used for in OFDM symbols Clock CMOS Complementary Metal – Oxide Semiconductor Chip Select Digital – Analog Converter Data Terminal Equipment Digital Voice Interface Electromagnetic Electromagnetic Compatibility Electromagnetic Interference Equivalent Series Resistance Frequency Division Duplexing GPIO...
  • Page 93 ME310G1 Hardware Design Guide Resource Block; the smallest unit of resources that can be allocated to a user Radio Frequency Reference Measurement Channel; it refers to a 3GPP standardized setting for the channel. For more details, refer to 3GPP TS 36.521-1 Real Time Clock Resource Unit (NB IoT Only);...

  • Page 94: Document History

    ME310G1 Hardware Design Guide DOCUMENT HISTORY Revision Date Changes 2021-06-08 Added ME310G1-W3 for Korea market Added Section 5.14 for Antenna Tuner solution 2021-04-28 Section12.5, added NCC Regulatory Notices Section 8.4, measurements update Section 2.2 and 2.5 added B86 Section 12.3 added B86 FCC antenna info Added B8_39d (US 900Mhz band) to W1 and WW products 2021-01-12 Reviewed template design and styles...
  • Page 95 ME310G1 Hardware Design Guide Revision Date Changes Added DTR and RING Removed B14 Update ME310G1-WW inhibit area reccomandation Extended Voltange Range lower limit change 2019-08-13 Added ME310G1-WW Update of Temperature range table N16 pin update (ON_OFF*/WAKE* ) ON/OFF procedure updated 2019-06-13 Band list update, pinout update Added SIMIN, USB_VBUS, CTANK, PWRMON, ROM_BOOT pins description...
