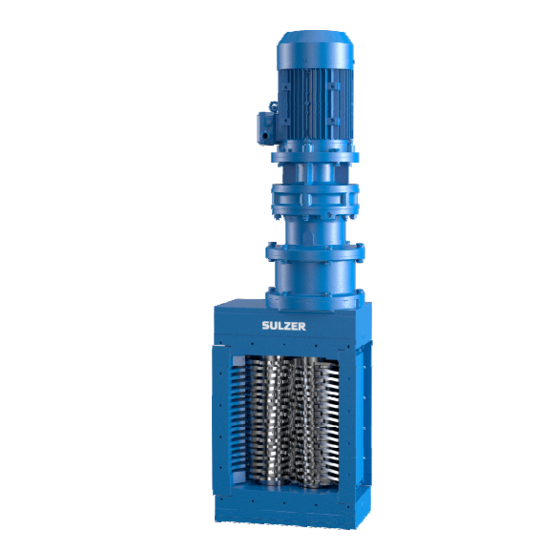

Summary of Contents for Sulzer Muffin Monster Channel 40002 Series

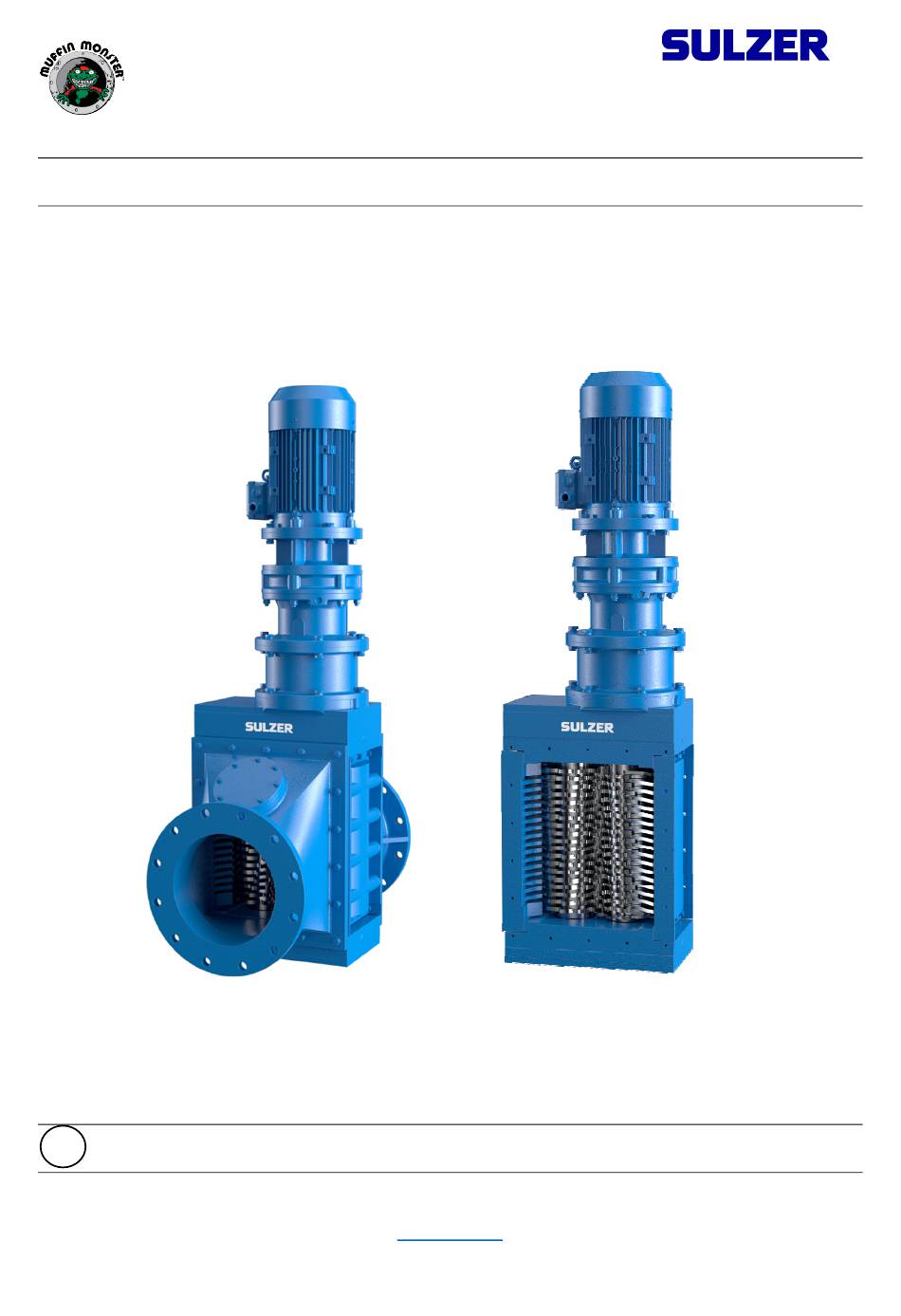

- Page 1 40002 Inline and Channel Series Installation and Operating Instructions www.sulzer.com 40002_Inline_and_Channel_Series_EN_20201208_V01.docx...
- Page 2 RU: Ф.И.О и адрес лица, уполномоченного составлять техническую документацию по требованию органов власти: HR: Ime i adresa ovlaštene osobe za sastavljanje tehničke dokumentacije nadležnoj instituciji u slučaju zahtjeva: Frank Ennenbach, Director Product Safety and Regulations Sulzer Management AG, Neuwiesenstrasse 15, 8401 Winterthur, Switzerland...
- Page 3 EN: We declare under our sole responsibility that the product to which this manual and declaration relates are in conformity with the following standards or other normative documents. DE: Wir erklären in alleiniger Verantwortung, dass das Produkt, auf das sich dieses Handbuch und diese Erklärung beziehen, den folgenden Normen oder anderen normativen Dokumenten entspricht.
- Page 4 EN: As defined by ATEX Directive 2014/34/EU, Machinery Directive 2006/42/EC, EMC-Directive 2004/108/EC, Low Voltage Directive 2014/35/EU, Outdoor Noise Directive 2000/14/EC amended by 2005/88/EC. DE: Im Sinne der ATEX-Richtlinie 2014/34/EU Maschinenrichtlinie 2006/42/EG, EMV-Richtlinie 2004/108/EG, Niederspannungsrichtlinie 2014/35/EU, Lärmrichtlinie 2000/14/EG geändert durch 2005/88/EG. FR: Tel que défini par la directive ATEX 2014/34/EU, Directive sur les machines 2006/42/CE, EMC-Directive 2004/108/CE, Directive basse tension 2014/35/EU, Directive sur le bruit exterieur 2000/14/CE amendé...
-
Page 5: Table Of Contents
Safety recommendations ........................6 Noise levels ............................7 Lubrication ............................7 Handling ............................7 Use of items not approved or manufactured by Sulzer ..............7 Inspection / Storage .......................... 7 Installation ............................9 Earth bonding [explosion-proof grinders only] ................. 10 Electrical installation ........................ -
Page 6: Atex Warning Statements (Refer To Nameplate To Check If Applicable)
ATEX nameplate or is supplied with a certificate of conformity. If there is any doubt as to the suitability of the equipment, please contact Sulzer before commencing with installation and commissioning. -
Page 7: Nameplate Details
Installation and Operating Instructions 40002 Inline and Channel Series Nameplate details Non ATEX Muffin Monster Gas & Dust Channel Monster Gas Only Equipment Group - Surface ATEX Category – High Protection Gas/Dust Explosion Proof Mechanical Equipment, assigned protection group per EN80079-36 IIB/IIIC Gas/Dust Group Temperature Class Gb/Dc Equipment Protection Level (Gas-1, Dust-22) -
Page 8: Safety And Hazard Warnings
Installation and Operating Instructions 40002 Inline and Channel Series Safety and hazard warnings Presence of dangerous voltage. Non-compliance may result in personal injury. Lock out – Tag out notification. Electrical hazard – non-compliance may result in personal injury. Keep clear of rotating components. Auto-restart of rotating components may occur after power loss if the main isolator is not off. -
Page 9: General Information
Installation and Operating Instructions 40002 Inline and Channel Series General information The grinder reduces solids in sewage. A separate control panel provides grinder controls. Model Cutter stack height (mm) 40002-0018/18B 450 mm 40002-0024/24B 600 mm 40002-0032/32B 800 mm Model Weight (kg)* Model Weight (kg)* 40002-0018... -
Page 10: Limitation Of Use
Installation and Operating Instructions 40002 Inline and Channel Series Limitation of use Limits of the machine Description Twin-shafted grinder with cutters and spacers enclosed in a cast iron housing meeting various standards, speed reducer, electric motor and motor controller Intended use Particle size reduction of municipal / industrial sewage waste Maximum flow rate 40002-1812 inline –... -
Page 11: Torque Settings
Then handling harmful or objectional materials, adequate ventilation must be provided in order to disperse dangerous concentrations of vapours. It is recommended that where possible, Sulzer grinders should be installed with provision for adequate lighting, thus ensure that effective maintenance can be carried out in satisfactory conditions. -
Page 12: Noise Levels
The use of replacement items that are not approved by or manufactured by Sulzer may affect the safe operation of the grinder and it may therefore become a safety hazard to both operators and other equipment. - Page 13 Prior to installation/commissioning: Check external hardware as gasketed areas may have a tendency to loosen fasteners. Retighten if loose (refer to Torque settings). Check paint for any slight damage and touch up if necessary. Standard Sulzer colour (RAL 5002). 40002_Inline_and_Channel_Series_EN_20201208_V01.docx...
-
Page 14: Installation
Installation and Operating Instructions 40002 Inline and Channel Series Installation Electrical, mechanical and maintenance work should only be performed by suitably qualified and competent persons and must be in accordance with relevant electrical and mechanical regulations. Use all lifting eyes Attach 3-phase motor power Fill any gaps between the frame... -
Page 15: Earth Bonding [Explosion-Proof Grinders Only]
Installation and Operating Instructions 40002 Inline and Channel Series Earth bonding [explosion-proof grinders only] The grinder and associated motor are equipped with threaded studs for installations requiring single point earth bonding. Use a cable meeting local wiring requirements and attach it to the two earth bonding lugs located on the motor housing and grinder top cover. -
Page 16: Electrical Installation
Prior to operating the grinder, if any warning or control devices are fitted, these must be set in accordance with their specific instructions. Sulzer is not liable if local or international regulations are not followed or for damage caused by wiring errors or improper shielding. Use lifting equipment rated for the weight of the grinder minimum attached to all the grinder top cover lifting rings as shown to lift the grinder. -
Page 17: Dismantling Advice
Installation and Operating Instructions 40002 Inline and Channel Series Check for proper motor or shaft rotation. Disconnect power and interchange any two motor leads if reversed. Gradually apply flow. Verify reduction of solids. Motor Where applicable: Shafts 1. Check all installation hardware once the machine is installed in its correct operating position. -
Page 18: Cleaning / Inspection
Shafts should be clean and any burrs filed off for easier stacking. Inspect shafts for excessive wear of hexagonal portion. Contact the Sulzer service department if any of the above requires replacement. Re-assembly advice 1. Lubricate gears on re-assembly with the specified lubricant. -
Page 19: Maintenance
Installation and Operating Instructions 40002 Inline and Channel Series Maintenance For service or parts please contact your Sulzer representative. DO NOT attempt service other than that described in this section. Remove and lock out supply power. INSPECTION After first 3 months, then every 6 months or if solids not processed. -
Page 20: Lubrication Table
Installation and Operating Instructions 40002 Inline and Channel Series Lubrication table Manufacturer Lubricant Gear grease (do not mix) 500 grams Ormskirk Total Multis Complex EP2* O-Ring grease Ironsides Lubricant Ltd Silicon valve grease*0250/0077 Rust inhibitor Solent SOL-732-0620K spray* General and protectant WD-40 Company WD-40 aerosol lubricant * O.E.M. - Page 21 JWC Environmental ∙ Unit 15, Daneside Business Park River Dane Road ∙ Congleton, Cheshire CW12 1UN United Kingdom ∙ www.sulzer.com 40002_Inline_and_Channel_Series_EN_20201208_V01.docx...
