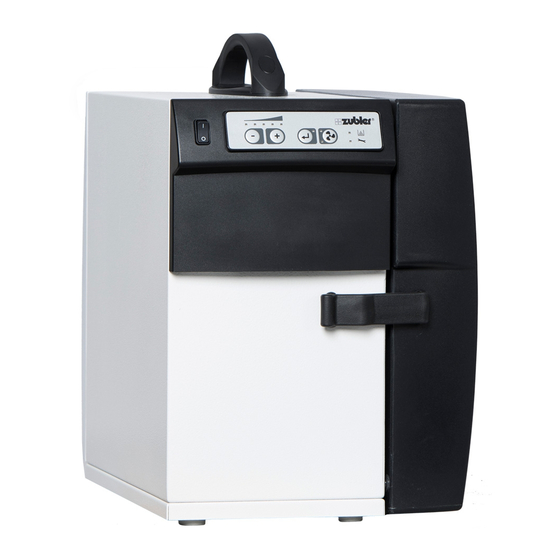

Zubler Z1-M Operating Manual

Zubler Z1-M Operating Manual

Single suction systems

Advertisement

Quick Links

Z1- M
Single suction systems
EN 09-2019
www.zubler.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z1-M and is the answer not in the manual?

Questions and answers

Summary of Contents for Zubler Z1-M

  • Page 1 Z1- M Single suction systems EN 09-2019 www.zubler.de...
  • Page 2: Table Of Contents

    1.1 Scope of supply and accessories 1.2 Installation of the extraction system 1.2.1 Suction line 1.2.2 Exhaust 1.2.3 exhaust air to the outside 1.2.4 Setting up Z1-M (with handle) 1.2.5 Z1-M (with suspension) 1.2.6 Mains connection 1.3 Connection of working tools 1.3.1 Appliances without interface 1.3.2 Appliances with switching output...
  • Page 3 7. Disposal instructions page Advanced settings are provided by the Zubler Sucti- on-Technology APP , which is available for Android tablets or phones. Therefore follow the users manual of the Zubler Suc- tion-Technology APP, which is downloadable from www.zubler.de.
  • Page 4: Declaration Of Conformity

    Introduction Dear customer, we are pleased, that you have decided for a Zubler extraction system and hope it will enhance your work. The continuous development of our tech- nology is based on the co-operation with experienced dental technicians. The focus lies on the aim to optimize the extraction technology in the fields of performance, noise and reliability.
  • Page 5: Intended Purpose Of Use

    0.2 Intended purpose of use This extraction system is designed exclusively for dry dusts! Its use for the extraction of other types of dust or gases must be clarified with the manufacturer before putting into operation. Work must be stopped immediately and the system switched off in the event of the appearance of visible clouds of dust or noticeably insufficient suction power.
  • Page 6: Installation Of The Appliance

    Installation of the appliance 1.1 Scope of supply and accessories Z1 - M suction unit mobile Power cable cable C13/C14 (ECOonly) 1.8m hose 38 mm elbow adaptor 50/40 mm Special Accessories Item Number Adaptor C14 / CEE 012-00701 H14-Filter H-Typ 556-0052 Activated carbon filter C-Typ 556-0051...
  • Page 7: Suction Line

    1.2 Installation of the Z1 - M 1.2.1 Suction line Provide a sufficiently stable and leveled surface. Ensure that the housing does not touch the furniture to avoid noise production by resonances. Plug in the muffle of the enclosed suction hose to the intake nozzle (2) and the other side firmly to your intake system.
  • Page 8: Setting Up Z1-M (With Handle)

    1.2.4 Setting up Z1-M (with handle) Place the exhaust system on a flat, smooth surface in an easily accessible location near the intake system. 1.2.5 Z1-M (with suspension) Attach the hanging plate 21 in an easily accessible place near the aspiration system with 6x SPAX 5x20mm or M5.
  • Page 9: Mains Connection

    ZUBLER Gerätebau GmbH Buchbrunnenweg 26 D-89081 Ulm Tel. +49(0)731 1452-0 / www.zubler.de Suction unit Z1-M Spannung 230V Gesamtleistung max. 2000W Made in Absaugung max. 700W Automatiksteckdose 1200W Germany Z1 ECO 00-11111-22 Fig. 7: 1.2.6 Mains connection Before connecting the unit to the...
  • Page 10: Appliances Without Interface

    Instead of C13 low temperature power outlet 8, use the data interface 4. PIN assignment Connector 15 Some handpiece controls, e.g. The Zubler K50, Kavo K-Control or Schick Cabel assignment plan Qube can also be coupled with the grey...
  • Page 11: Intake System

    Basic system requirements include optimal particle flow, minimal noise production and ergonomic posture promotion. The following criteria promote these basic requirements and are specifically adapted to Zubler suction systems. Suction funnel R1200, Rectangular pipe R1000, R1300 Rectangular silencer R1100 R1200 Fig. 12...
  • Page 12: Control Unit

    Functions 2.1 Control unit Fig. 13 2.2 Commissioning The extraction system must be installed and connected as described in section 1. Switch on the main switch 29. L1 LED Power level display One ore more LEDs of the suction L2 LED Bluetoothanzeige level L1 are flashing.
  • Page 13: Automatic Operation

    2.3 Setting up automatic operation: If a dust producing appliance is connected to the extraction system, the sensitivity must be adjusted for an automatic start of the extractor. The following steps are necessary in order to teach the appliance: The appliance (max. 6A, 120V:600W, 240V:1200W) must be connected to the socket of the extraction system.
  • Page 14: Selecting And Saving Suction Levels

    While in “Turbo mode” the LED for suction level 5 is flashing. Once the time is elapsed, the suction will fall back to the saved suction level 1-4. Further adjustments can be made with the Zubler Suction-Technology APP (Android only).
  • Page 15: Current Suction Power

    In the advanced settings (see section 3) it is possible to set this so that the filter warning is given as soon as the suction power decreases to the next lower suction level. Further adjustments can be made with the Zubler Suction-Technology APP.
  • Page 16: Fine Tuning Of The Automatic Operation

    2 sec by repeating the procedure. Further adjustments can be made with the Zubler Suction-Technology APP (Android only). 2.7 Fine tuning of the automatic operation (ECO only) If the automatic sensitivity matching of the dust producer to the extraction system has not yet led to an ideal result after section 1, the switch-on threshold of the extraction can still be manually readjusted.
  • Page 17: Switching The Extraction System Off

    the switch-on sensitivity of the T2 (+) button (extraction starts later / less easily; this is a solution if the extraction system occasionally starts up on its own or already runs in standby). press the Enter button T3 to save the new value press the fan button T4 to abort the procedure without saving...
  • Page 18 Maintenance 3.1 Filter bag replacement Removal of the filter basket switch the system off at the main switch 29 (fig. 9) and also switch your working appliance off at the associated main switch to prevent inadvertent start-up. open closure 1 by lifting it rotate closure 1 by 180°.
  • Page 19 3.2 Replacement of the main filter If the red LED display L4 „Filter“ lights up despite replacing the filter bag, or if the replacement intervals become noticeably shorter, the reason is usually that the fine filter is clogged with dust. To replace the fine filter cartridge, proceed in the following order: open the filter door 3 as described in section 4.1.
  • Page 20: Motor

    3.3 Motor Due to our innovative motor control, the wear of the motor and the carbon brushes is reduced significantly. Resulting in a maintenance-free runtime of 1500h (ECO) and 1000h (CAM). Moreover the carbon brushes can be changed more often, enabling a total motor lifetime of several thousands of working hours.
  • Page 21: Carbon Brush Replacement

    3.3.2 Carbon brush replacement When the brushing time (1500h) has elapsed, the extraction system switches off and the service LED (L5) flashes quickly. Pressing the fan button (T4) for 3s will skip the error and continue working for another 100h if no new brushes are available.
  • Page 22: Spare Parts

    Filter bags 3pcs. 556-0035 Fine filter M-type 556-019 Activated carbon filter Z1-M C-type 556-0041 Activated carbon refill pack Z1-M 556-0042 Replacement carbon brushes (1 pair) 220 – 240 V 896-1101 100 – 120 V 896-1102 Motor module 220 – 240 V 896-1301 100 –...
  • Page 23 4. Error Codes Error indication Cause Remedy LED L4 (Filter condition) - Filterbag filled - Replace filterbag, fine - Fine filter or diffusor clog- filter, diffusor - Check intake system, - Intake system, suction suction hose and exhaust hose or exhaust clogged for obstackles - Resistance of intake sys- - Use intake system with...
  • Page 24 Error indication Cause Remedy Working tool is not working, - Suction unit is switched - Check if the suction unit has no power OFF or not ready is switched ON with main - Fuse(s) 7 is (are) OFF switch 29 - Check if there is a malfunction e.g.
  • Page 25: Technical Data

    5. Technical Data Fig. 27 Dimensions: Width: 300/450mm 7.9” Height: 380mm 26.6” 440/410mm 23.2” Depth: 435mm 23.2” Weight: 19kg 61.7lbs Voltage: AC ±5%, 50-60Hz 230V 110V Power consumption: 2000W 1300 / 1200W Rated power suction: 1300W 600W Fuse: Main fuse: T10A T15A pwr.
  • Page 26: Warranty

    6. Warranty In case of an appropriate usage, according to the operating manual, we, Zubler GmbH, are granting a warranty of 2 years upon all parts of the suction unit, except wear parts. Wear parts are carbon brushes and dust filtering elements as filterbags, filter cartridges.
  • Page 27: Disposal Instructions

    Zubler electrical appliances are appliances for commercial use. These appliances may not be taken to municipal collection points for electrical appliances; instead, they are taken back directly by Zubler. You can find out more about current return options online at: www.zubler.de...
  • Page 28 Zubler Gerätebau GmbH Buchbrunnenweg 26 89081 Ulm-Jungingen Germany...
