Summary of Contents for Alcad BU-268

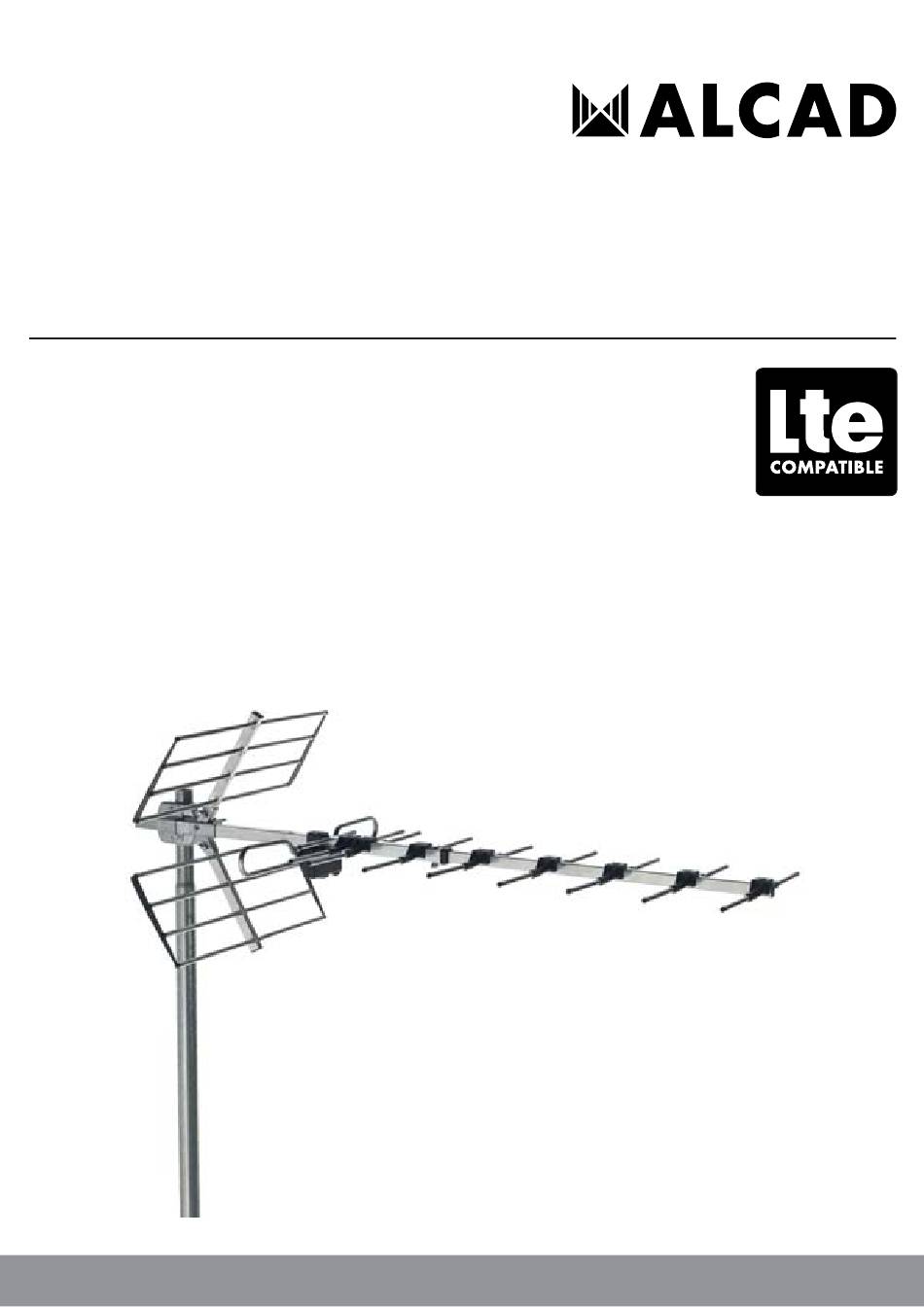

- Page 1 ANTENAS TV BANDA UHF TV ANTENNAS UHF BAND ANTENNES TV BANDE UHF...
- Page 2 CÓDIGO-CODE-CODE 9000101 MODELO-MODEL-MODELE BU-268 Rango de frecuencias 470 -790 Frequency range Gamme de fréquences Canales 21-60 Channels Canaux Ganancia Gain Gain Relación delante/detrás Front/back ratio Rapport avant/arriere Impedancia Impedance Impédance Pérdidas de retorno Return loss ≥10 Pertes de retour Polarización...
- Page 3 CÓMO MONTAR LA ANTENA BU-268 HOW TO MOUNT THE ANTENNA BU-268 COMMENT MONTER L'ANTENNE BU-268 Cómo montar el segundo tramo de antena How to mount the second antenna section Comment monter la deuxième section d'antenne Cómo montar la caja del simetrizador How to mount the matching transformer Comment monter le boîtier du symétriseur...
- Page 4 CÓMO CONECTAR EL CABLE COAXIAL EN LA CAJA DEL SIMETRIZADOR HOW TO CONNECT THE COAXIAL CABLE TO THE MATCHING TRANSFORMER COMMENT RELIER LE CÂBLE COAXIAL DANS LE BOÎTIER DU SYMÉTRISEUR 12 mm 3±1 8±1mm Ø 6,5 - 6,8 mm CM-004 9120039 Ø...
- Page 5 MONTAGE EN HORIZONTAL OU VERTICAL HORIZONTAL VERTICAL AJUSTE DEL ÁNGULO DE ELEVACIÓN ELEVATION ANGLE ADJUSTMENT RÉGLAGE DE L'ANGLE D'ÉLÉVATION 30° CURVA DE GANANCIA Y DIAGRAMAS DE RADIACIÓN GAIN AND RADIATION GRAPHICS COURBE DU GAIN ET DIAGRAMME DE RAYONNEMENT BU-268 21 25...
- Page 6 DECLARATION OF CONFORMITY according to EN ISO/IEC 17050-1:2004 Company Name: ALCAD, S.L. Company Address: Pol. Ind. Arreche-Ugalde, 1 Apdo. 455, 20305 IRÚN (Guipúzcoa), SPAIN declares that the product Model Number(s): BU-268 TV ANTENNAS UHF BAND Product Description: Product Option(s): INCLUDING ALL OPTIONS...
