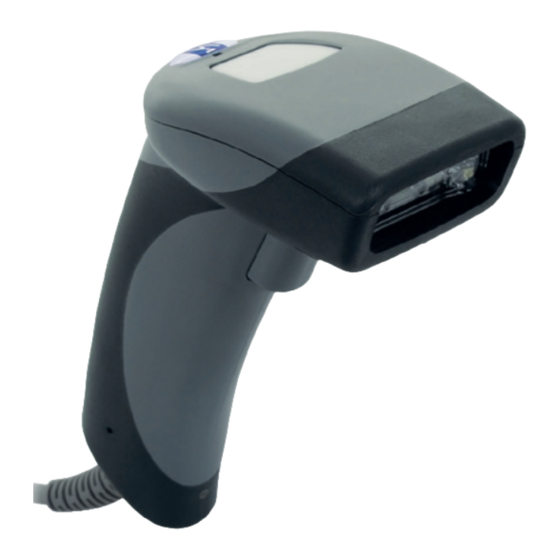

- Page 1 CSMH00x 1D/2D Handheld Scanners Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.1.0 Status: 04.04.2019 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents General ..............................6 Information Concerning these Instructions ..................6 Explanations of Symbols ........................6 Limitation of Liability ..........................7 Copyrights ............................. 7 For Your Safety ............................8 Use for Intended Purpose ........................8 Use for Other than the Intended Purpose..................... 9 Personnel Qualifications ........................ - Page 3 Configuration ............................21 Image capturing ..........................22 Data Matrix Code Generator ....................... 23 Setup using data matrix code .......................24 USB port .............................. 24 RS-232 Interface ..........................25 Communications Mode ........................28 Keyboard Mapping..........................29 Alternative operating systems ......................33 Scanning process ..........................33 Dual scanning area ..........................
- Page 4 9.12.24 UPC/EAN ..........................55 9.12.25 UK Plessey ..........................58 9.12.26 Straight 2 of 5 ........................58 9.12.27 Han Xin ..........................59 9.12.28 Pharmacode .......................... 59 9.12.29 Post Codes ..........................60 9.13 Other commands ..........................62 10. Maintenance Instructions ........................64 11. Proper Disposal .............................64 12.
- Page 5 1D/2D Handheld Scanners...
-
Page 6: General
• Local accident prevention regulations and national work safety regulations must be complied with as well. • The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor. com in the product’s separate download area. -
Page 7: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 8: For Your Safety
2. For Your Safety 2.1 Use for Intended Purpose This hand scanner is used to decode 1D/2D codes. This product can be used in the following industry sectors: • Automotive industry • Food industry • Packaging industry • Pharmaceuticals industry •... -
Page 9: Use For Other Than The Intended Purpose
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 10: Approvals
2.6 Approvals 3. Technical Data Order Number CSHM001 CSHM002 CSHM003 CSHM004 Technical Data Optical data Scanning distance 38...394 mm Resolution 1280×960 pixels Light source Red light Max. permitted ambient light 97,000 lux Electrical data Supply voltage 5 V DC Power consumption <... -
Page 11: Scanning Field / Working Distances
3.1 Scanning field / working distances Test code Minimum distance Maximal distance 0,076 mm (Code 39) 80 mm 102 mm 0,190 mm (Code 39) 33 mm 182 mm 0,267 mm (GS1 DataBar) 20 mm 220 mm 0,330 mm (UPC) 28 mm 280 mm 0,107 mm (DataMatrix) 48 mm... -
Page 12: Accessory Products
3.3 Accessory Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Interface cable ZDNV001 Interface cable ZDNV002 Mains power pack ZNNN001 Mains power pack ZNNN002 Mounting bracket Z0075 Mounting bracket ZSLM001 Gooseneck stand ZSLM002 3.4 Scope of Delivery... -
Page 13: Installation And Electrical Connection
5. Installation and Electrical Connection 5.1 Installation • Protect the product against contamination during installation . • Observe all applicable electrical and mechanical regulations, standards, and safety rules. • Protect the product against mechanical influences. • There must not be any objects underneath the working range . Plug In Plug in Wait 10 seconds... -
Page 14: Electrical Connection
10 cm 10 cm ATTENTION! Risk of property damage in case of improper installation! The product may be damaged. • Comply with installation instructions. CAUTION! Risk of personal injury or property damage during installation! Personal injury and damage to the product may occur. •... -
Page 15: Diagnostics
• Shut down the machine. • Analyze and eliminate the cause of error with the help of the diagnostics information. • If the error cannot be eliminated, please contact wenglor’s support department • Do not operate if malfunctioning indeterminately. • The machine must be shut down if the error cannot be definitively explained or properly eliminated. -
Page 16: Functions Overview
• Interleaved 2 of 5 • MSI Plessey • PDF417 • QR Code • UPC/EAN/JAN Additional types of codes can be activated using either the wenglor eazyScan parametrization software or the parametrization codes in chapter 9 on page Functions Overview... -
Page 17: Installing The Eazyscan Software
7. Installing the eazyScan software 7.1 Installation procedure First verify whether there is a current version of the software available on the website. Go to www.wenglor. com and download the most current version of the software, as needed. If the software on the CD is the latest version, proceed as follows: 1. -
Page 18: General Setup Of The Eazyscan Software
8. General setup of the eazyScan software 8.1 Start screen The following start window appears after the program has been started. Various options are provided by the software. 8.2 Operator interface The depicted layout of the operator interface shows the standard configuartion of the software upon first use. However, the user interface can be adapted to meet your individual needs. -
Page 19: Establishing Connection
8.3 Establishing connection 1. Open the eazyScan software 2. Plug the USB cable or RS-232 jack into your PC 3. If an RS-232 scanner is to be connected, the COM port used must be selected in the software. 4. The scanner will connect automatically. Two beeps will be heard when the scanner was connected correct- ly. -
Page 20: Firmware Updates
8.4 Firmware updates Click on Open file... to look for firmware files on the PC. When a firmware file has been selected, the firmware update process is started by clicking on Download file. General setup of the eazyScan software... -
Page 21: Configuration
8.5 Configuration The scanner configuration can be found under the Configuration tab. All available scanner setup parameters are displayed there. 1D/2D Handheld Scanners... -
Page 22: Image Capturing
8.6 Image capturing 1. Select the image type in which you would like to save the image. You may choose PGM or JPEG. If JPG is selected, you may also choose the image quality. 2. Position the scanner where the barcode is to be read. 3. -
Page 23: Data Matrix Code Generator
8.7 Data Matrix Code Generator Click on the barcode and the data matrix code generator will open. After entering the data into the free field and defining the module size of the code, generate a code by clicking on Create. 1D/2D Handheld Scanners... -
Page 24: Setup Using Data Matrix Code
9. Setup using data matrix code 9.1 USB port The scanner is normally set to USB native mode (HID) In this mode, unformatted, unpacked data is usually sent to the scanner via the USB port. Reset to USB Factory Defaults Scan this barcode to place the reader in USB Downloader Mode. -
Page 25: Rs-232 Interface
USB Virtual COM Common Ports Scan this barcode to place the reader in bi-directional, packetized USB mode with automatic retry on pack- ets. USB Native Two Way Mode 9.2 RS-232 Interface With RS-232 communication, the scanner communicates with the host using a communication program like ESP Terminal. - Page 26 RS232 Interface 2400 Baud Rate RS232 Interface 4800 Baud Rate RS232 Interface 9600 Baud Rate RS232 Interface 19200 Baud Rate RS232 Interface 38400 Baud Rate RS232 Interface 57600 Baud Rate RS232 Interface 115200 Baud Rate Setup using data matrix code...
- Page 27 Parity (RS-232) Parity is an error detection routine in which every character in a data bit is set to 1 or 0 so that the total num- ber of 1 bits in each data field is even or odd. It only needs to be changed when the host settings need to be adjusted.
-
Page 28: Communications Mode
RS232 Interface Flow Control Off RS232 Interface Flow Control - Hardware 9.3 Communications Mode Data is transmitted from the scanner to the host in raw format, without packet framing or check characters. One-way communication is conducted in raw format. No response from the host is expected and data will not be resent. -
Page 29: Keyboard Mapping
9.4 Keyboard Mapping The Keyboard Mapping option provides alternative settings for keyboards that do not have the US English keyboard layout. Note: The universal keyboard layout is somewhat slower than other language-specific options since the keys are assigned using the entire ASCII character set. The advantage of the universal keyboard layout is that every language and keyboard layout can be mapped. - Page 30 Keyboard Support: English (UK) Keyboard Mapping for Windows Keyboard Support: Belgian French Keyboard Mapping for Windows Keyboard Support: French Keyboard Mapping for Apple Keyboard Support: French Keyboard Mapping for Windows Keyboard Support: German Keyboard Mapping for Apple Setup using data matrix code...
- Page 31 Keyboard Support: German Keyboard Mapping for Windows Keyboard Support: German-Swiss Keyboard Mapping for Apple Keyboard Support: Swiss German Keyboard Mapping for Windows Keyboard Support: Italian Keyboard Mapping for Apple Keyboard Support: Spanish Keyboard Mapping for Apple 1D/2D Handheld Scanners...
- Page 32 Keyboard Support: Spanish Keyboard Mapping for Windows Keyboard Support: Japanese Keyboard Mapping for Windows Keyboard Support: Latin American Keyboard Mapping for Window USB HID POS Mode (Terminal ID 131) Translate all Characters to Uppercase Off Setup using data matrix code...
-
Page 33: Alternative Operating Systems
9.5 Alternative operating systems The reader will modify its enumeration and communication scheme to work on Linux, Windows CE, or OS X operating systems. Alternative operating systems (Linux/Mac) off (Standard) Alternative operating systems (linux/Mac) on 9.6 Scanning process When on, reader will constantly flash its LEDs and attempt to decode. Turn on to disable this feature. Contin- ues Read off. - Page 34 1 Second Duplicate Scan Delay 2 Second Duplicate Scan Delay 3 Second Duplicate Scan Delay 5 Second Duplicate Scan Delay 10 Second Duplicate Scan Delay 30 Second Duplicate Scan Delay 1 Hour Duplicate Scan Delay 1 Day Duplicate Scan Delay Setup using data matrix code...
- Page 35 You can activate and deactivate LED alignment assistance using the Targeting parameter. Alignment assis- tance is activated by default. Targeting On (Standard) Targeting On Use Motion Detection to specify that the scanner start a decoding trial as soon as it detects movement in its visual field.
-
Page 36: Dual Scanning Area
Motion Detection On in Stand Trigger out of Stand Motion Detection On In and Out of Stand 9.7 Dual scanning area The scanner can read small 2D codes as well as large 1D codes thanks to its dual scanning area. An image will be captured of every area. -
Page 37: Mirroring
Scan this barcode to read from the wide optical field only Scan this barcode to read from the high density optical field only Scan this barcode to read from both optical fields. 9.8 Mirroring The scanner can decode mirrored symbols with the Mirroring function. When Mirroring is active, all other decoding functions are turned off. -
Page 38: Preamble And Postamble
9.9 Preamble and postamble attached at the beginning of a decoded data string. The characters are displayed in the order that they are activated (from left to right). If you, for example, enter a comma and then a space, then decode a barcode with the “ABC”... - Page 39 Suffix Space Suffix Tab (USB Keyboard Mode Only) Suffix Enter (USB Keyboard Mode Only) Suffix Carriage Return (RS232 Mode Only) Suffix Line Feed (RS232 Mode Only) Suffix Carriage Return Line Feed (RS232 Mode Only) Suffix Tab (RS232 Mode Only) Erase Prefix & Suffix Data (Standard) 1D/2D Handheld Scanners...
-
Page 40: Text Command
Turn on Timestamp Prefix Turn off Timestamp Prefix 9.10 Text Command Use Text Command to determine whether a text command from the host is to be received. Reader Text Commands Off (Standard) Reader Text Commands On 9.11 Beeper / Vibrator Press the configuration symbols below in order to activate or deactivate the beeper and vibrator functions. - Page 41 Beep On Vibrate Off Beep Off Vibrate Off Beep Volume 0 % Beep Volume 33 % Beep Volume 67 % Beep Volume 100% 1D/2D Handheld Scanners...
-
Page 42: Code Settings
9.12 Code settings 9.12.1 Aztec Code Aztec On (Standard) Aztec Off Aztec Inverse On Aztec Inverse & Normal On 9.12.2 Codabar Codabar On (Standard) Codabar Off Codablock F Off Setup using data matrix code... -
Page 43: Code 11
Codablock F On Keep Codabar Start and Stop Delimiters – Default Remove Codabar Start and Stop Delimiters 9.12.3 Code 11 Code 11 Off (Standard) Code 11 On Code 11 Checksum Stripped from Result On Enable Code 11 Decoding with one checksum digit checked, and remove checksum from output 1D/2D Handheld Scanners... -
Page 44: Code 32 (Italian Pharmacode)
9.12.4 Code 32 (Italian Pharmacode) Code 32 (Italian Pharmacode) Off (Standard) Code 32 (Italian Pharmacode) On 9.12.5 Code 39 Code 39 On (Standard) Code 39 Off Code 39 Checksum Off Code 39 Checksum On Code 39 Checksum Stripped from Result On Code 39 Extended Full ASCII Off Setup using data matrix code... -
Page 45: Code 49
Code 39 Extended Full ASCII In 9.12.6 Code 49 Enable Code 49 Disable Code 49 9.12.7 Trioptic Barcode Trioptic Off (Standard) Trioptic On Trioptic - Disable Reverse Order option (Bit 3) Trioptic - Enable Reverse Order option (Bit 3) 1D/2D Handheld Scanners... -
Page 46: Code 93
9.12.8 Code 93 Code 93 On Code 93 Off 9.12.9 Code 128 Code 128 On (Standard) Code 128 off Setup using data matrix code... -
Page 47: Composite Barcode
9.12.10 Composite Barcode Composite off (Standard) Composite on 9.12.11 Data Matrix Data Matrix Rectangular & Rectangular Extended Off Data Matrix Rectangular On & Rectangular Extended Off (Standard) Data Matrix Inverse Off Data Matrix Inverse On (Standard) Data Matrix Rectangular On & Rectangular Extended On 1D/2D Handheld Scanners... -
Page 48: Grid Matrix
9.12.12 Grid Matrix Enable Grid Matrix Symbology Disable Grid Matrix Symbology – Default Enable Grid Matrix & Grid Matrix Inverse Decoding Enable Grid Matrix & Grid Matrix Mirror Decoding Enable Grid Matrix, Grid Matrix Inverse & Grid Matrix Mirror Decoding Setup using data matrix code... -
Page 49: Gocode
9.12.13 GoCode Enable GoCode & GoCode Inverse Decoding Enable GoCode & GoCode Mirror Decoding Enable GoCode, GoCode Inverse & GoCode Mirror Decoding 9.12.14 GS1 Databar All GS1 DataBar On (Standard) All GS1 DataBar Off GS1 DataBar Limited On GS1 DataBar Omnidirectional and GS1 DataBar Truncated On 1D/2D Handheld Scanners... - Page 50 GS1 DataBar Stacked and GS1 DataBar Stacked Omnidirectional On GS1 DataBar Expanded On GS1 DataBar Stacked and GS1 DataBar Stacked Omnidirectional Off GS1 DataBar Limited Off GS1 DataBar Omnidirectional and GS1 DataBar Truncated Off GS1 DataBar Expanded Stacked Off GS1 DataBar Expanded Stacked On GS1 DataBar Expanded Off Setup using data matrix code...
-
Page 51: Interleaved 2 Of 5
9.12.15 Interleaved 2 of 5 Interleaved 2 of 5 On (Standard) Interleaved 2 of 5 Off Int 2 of 5 Checksum Off (Standard) Int 2 of 5 Checksum On Int 2 of 5 Checksum Stripped from Result On 9.12.16 Maxicode Maxicode Off (Standard) Maxicode on 1D/2D Handheld Scanners... -
Page 52: Matrix 2 Of 5
9.12.17 Matrix 2 of 5 Matrix Code 2 of 5 Off (Standard) Matrix Code 2 of 5 On 9.12.18 PDF417 PDF417 On (Standard) PDF417 Off Micro PDF417 Off (Standard) Micro PDF417 On Setup using data matrix code... -
Page 53: Msi Plessey
9.12.19 MSI Plessey MSI Plessey On MSI Plessey Off (Standard) 9.12.20 Hong Kong 2 of 5 Hong Kong 2 of 5 Off (Standard) Hong Kong 2 of 5 On 9.12.21 NEC 2 of 5 NEC 2 of 5 on NEC 2 of 5 off 1D/2D Handheld Scanners... -
Page 54: Qr Code
9.12.22 QR Code Standard QR Code On (Standard) All QR Code on All QR Code Off 9.12.23 Telepen Telepen On Telepen Off (Standard) Output Telepen as Numeric Output Telepen as ASCII Setup using data matrix code... -
Page 55: Upc/Ean
9.12.24 UPC/EAN UPC On Scanner reads UPC-A, UPC-E, EAN-13 and EAN-8 UPC Off UPC E Expansion Off (Standard) Scanner expands UPC-E bar codes into UPC-A barcodes UPC E Expansion On Scanner expands UPC-E bar codes into UPC-A barcodes UPC Supplemental Off (Standard) Reader will scan the two or five digit supplemental barcode that accompanies some UPC/EAN barcodes UPC Supplemental On Reader will scan the two or five digit supplemental barcode that accompanies some UPC/EAN barcodes... - Page 56 Do Not Transmit UPC-A Check Digit Transmit UPC-A Number System Do Not Transmit UPC-A Number System Transmit UPC-E Check Digit Do Not Transmit UPC-E Check Digit Transmit UPC-E Number System Do Not Transmit UPC-E Number System Transmit EAN-13 Check Digit Setup using data matrix code...
- Page 57 Do Not Transmit EAN-13 Check Digit Transmit EAN-8 Check Digit Do Not Transmit EAN-8 Check Digit Do Not Convert EAN-8 to EAN-13 Convert EAN-8 to EAN-13 Do Not Convert UPC-A to EAN-13 Convert UPC-A to EAN-13 Do Not Convert Bookland EAN-13 to ISBN 1D/2D Handheld Scanners...
-
Page 58: Plessey
Convert Bookland EAN-13 to ISBN Do Not Convert Bookland EAN-13 to ISSN Convert Bookland EAN-13 to ISSN 9.12.25 UK Plessey UK Plessey Off (Standard) UK Plessey ON 9.12.26 Straight 2 of 5 Straight 2 of 5 Off (Standard) Straight 2 of 5 On Setup using data matrix code... -
Page 59: Han Xin
9.12.27 Han Xin an Xin On Han Xin Off (Standard) 9.12.28 Pharmacode Pharmacode Off (Standard) Pharmacode On Pharmacode Reverse Barcode Decoding (Right to Left) Pharmacode Normal Barcode Decoding (Left to Right) 1D/2D Handheld Scanners... -
Page 60: Post Codes
9.12.29 Post Codes USPS Postnet On USPS Postnet Off (Standard) USPS Planet On USPS Planet Off (Standard) USPS Intelligent Mail/IMB/ 4-State CB On USPS Intelligent Mail/IMB/ 4-State CB Off (Standard) Australian Post On Australian Post Off (Standard) Setup using data matrix code... - Page 61 KIX (Dutch Post) Code On KIX (Dutch Post) Code Off (Standard) Japan Post On Japan Post Off (Standard) UK Royal Mail On UK Royal Mail Off(Standard) Korean Post On Korean Post Off (Standard) 1D/2D Handheld Scanners...
-
Page 62: Other Commands
Universal Postal Union ID-Tag On Univeral Postal Union ID-Tag Off (Standard) 9.13 Other commands Clear All Stored Data and Images Clear all JavaScript Rules Reader ID and Firmware Version Save settings Save All Reader Settings Cell Phone Reading Enhancement Off (Standard) Cell Phone Reading Enhancement On Setup using data matrix code... - Page 63 Scan this barcode to translate all alphabetic data to upper case Convert Barcode Data to Lowercase Control Character Input - Language Default - Default Control Character Input - Ctrl + Character Control Character Input - Alt + Keypad Control Character Input -Alt + Leading Zero Output Good Read on RTS line Off Output Good Read on RTS line - Active Low 1D/2D Handheld Scanners...
-
Page 64: Maintenance Instructions
• Do not clean the sensor with solvents or cleansers which could damage the product • The product must be protected against contamination during initial start-up 11. Proper Disposal wenglor sensoric GmbH does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal. Maintenance Instructions... -
Page 65: Appendix
12. Appendix 12.1 List of Changes to Operating Instructions Version Date Description/change Associated software version 12.09.2017 1.0.0 Initial version of the operating instructions 1.1.0 04.04.2019 5.2 on page 14 12.2 Check list for initial start-up • This checklist is intended to provide assistance during initial start-up. •... -
Page 66: Eu Declaration Of Conformity
12.3 EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in download area. Appendix... - Page 67 1D/2D Handheld Scanners...
