Summary of Contents for Wenglor CSLH003

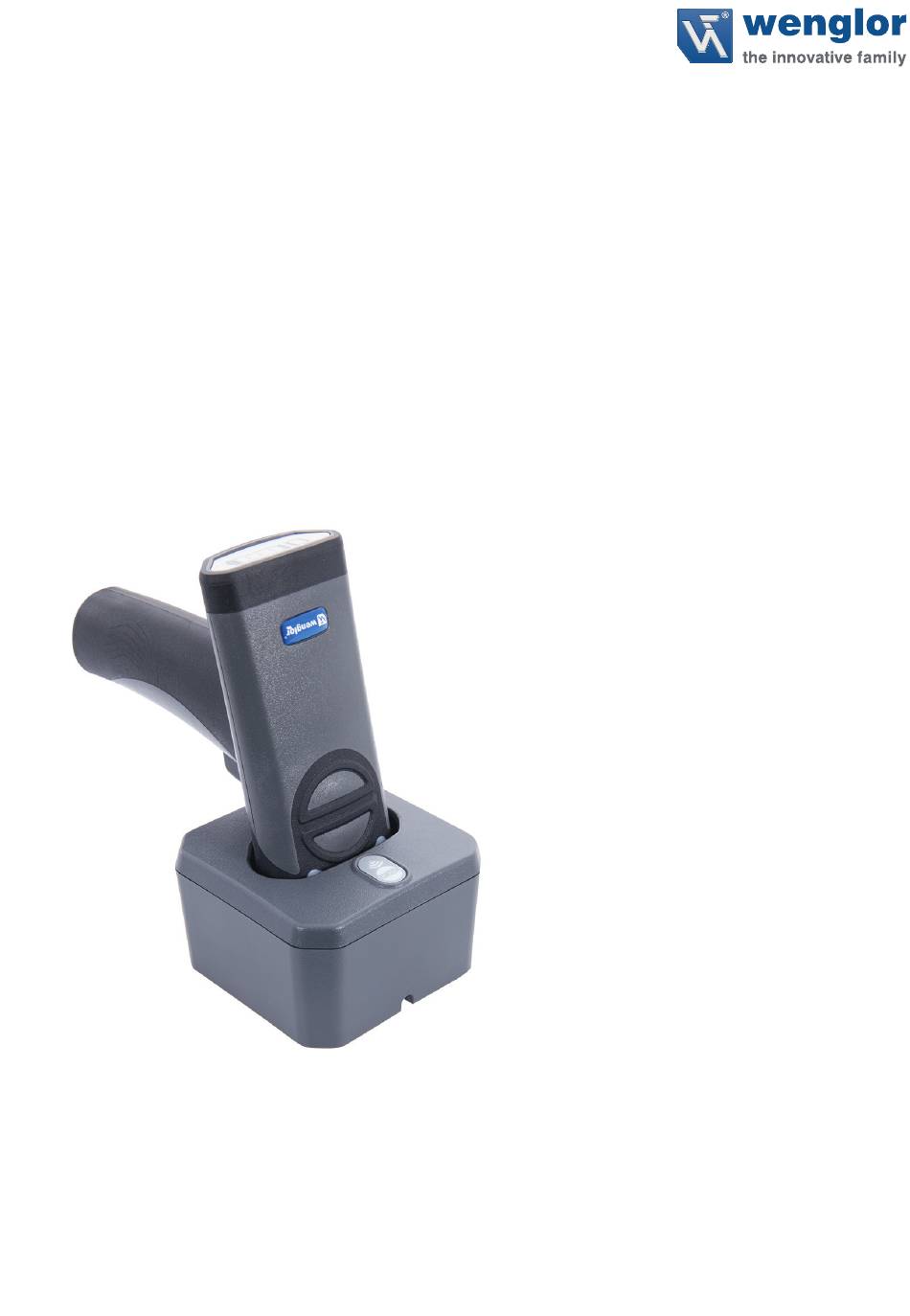

- Page 1 CSLH003 1D/2D Handheld Scanner, Bluetooth Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.0.0 Status: 10.06.2020 www.wenglor.com...
-
Page 2: Table Of Contents
Useful Configuration Codes ........................11 Scanning the Reset Bluetooth Reader to Factory Defaults Barcode ..........11 Scanning the Reboot Reader barcode ....................11 Bluetooth HID Keyboard barcode....................... 12 CSLH003 Readers and Accessories .....................12 Readers ............................... 12 Charging Stations ..........................12 Accessories ............................12 Supporting Documents and Resources ....................13... - Page 3 Charging ZNNG047 Battery ........................ 19 Pairing CSLH003 with a Bluetooth Device..................20 8.9.1 Pairing with a Bluetooth Inductive Charging Station ............20 8.9.2 Pairing with a Host ........................ 20 8.9.3 Locking Device Links ......................20 CSLH003 Operations ..........................21 Handheld Scanning ..........................21 Targeting .............................
- Page 4 16.2 Bluetooth Charger Information ......................33 16.3 Battery Information ..........................34 17. Maintenance and Troubleshooting .......................35 17.1 Approved disinfectants for the CSLH003 readers ................35 17.2 Routine cleaning and disinfection....................... 36 17.3 Troubleshooting Guide ........................36 18. Contact wenglor for support .........................38 19.
-
Page 5: Statement Of Agency Compliance
1. Statement of Agency Compliance NOTE! This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 6: General
• Local accident prevention regulations and national work safety regulations must be complied with as well. • The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor. com in the product’s separate download area. -
Page 7: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 8: For Your Safety
3. For Your Safety 3.1 Use for Intended Purpose This hand scanner is used to decode 1D/2D codes. This product can be used in the following industry sectors: • Automotive industry • Food industry • Packaging industry • Pharmaceuticals industry •... -
Page 9: Use For Other Than The Intended Purpose
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 10: Approvals
3.6 Approvals For Your Safety... -
Page 11: Introduction

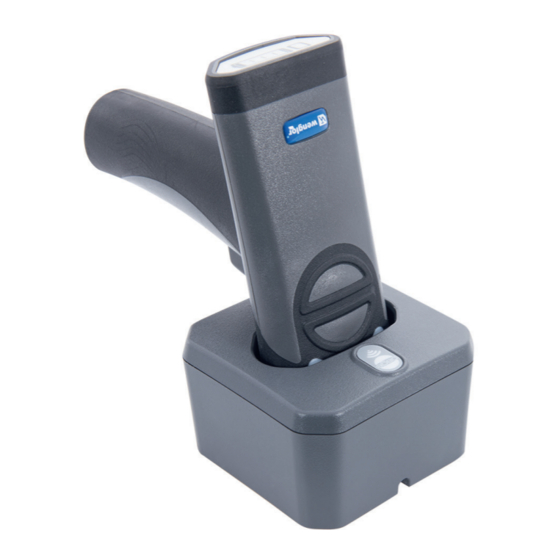

4. Introduction wenglor’s CSLH003 is an advanced wireless 2D barcode reader. It features inductive charging, the latest Bluetooth Low Energy standards, and a lightweight and ergonomic design in combination with superior barcode scanning performance. 5. Useful Configuration Codes 5.1 Scanning the Reset Bluetooth Reader to Factory Defaults Barcode Scanning the Reset Bluetooth Reader to Factory Defaults barcode below (M20390) will erase all custom configurations and reset the device to default settings. -
Page 12: Bluetooth Hid Keyboard Barcode
5.3 Bluetooth HID Keyboard barcode The CSLH003 supports direct connection as a Bluetooth Keyboard device with third party hosts that support Bluetooth Low Energy (such as PCs, mobile phones and tablets). Scan the Bluetooth HID Keyboard bar- code below (M20381) to set the reader as a Bluetooth Keyboard device, then connect using host’s device manager (on PC) or Bluetooth settings (on... -
Page 13: Supporting Documents And Resources
The following tools and resources are also available: • eazyScan2, is a PC software tool to configure, update, customize and manage wenglor Readers. It is available to download from the CSLH003 product page on the wenglor website. 1D/2D Handheld Scanners... -
Page 14: Unpacking And Installation
8. Unpacking and Installation NOTE! CSLH003 readers can only be charged by the ZNNG048 charging station from wenglor. The CSLH003 is not compatible with any other chargers. 8.1 Features Top Rear Button Top Front Button Battery Status Button Data LED... -
Page 15: Charging Station Features
8.2 Charging Station Features Page Button Wireless LED Threaded Mounting Inserts (M3×0.5) Micro-USB Quick Connect Code Connector Cable Routing Groove Figure 3 ZNNG048 Bluetooth Charging Station Feature 1D/2D Handheld Scanners... -
Page 16: Desktop Base Features
8.4 Unpacking Open the box that contains the product, remove the reader and included accessories. Inspect for damage. If the product is damaged, please do not proceed to installation. Contact wenglor Support (see section “18 Contact wenglor for support” on page 38 for information). -
Page 17: Insert And Remove Battery
8.5 Insert and Remove Battery Only the ZNNG047 battery is compatible with the CSLH003 readers. The battery is keyed so it can only be inserted one way. Insert a ZNNG047 battery into the cavity of the reader until it clicks. Hold any button on the reader (except the Power Gauge button on the battery) for half a second and the reader will start its booting sequence. -
Page 18: Desktop Mount
8.7 Desktop Mount The Desktop Mount provides extra charger stability when the charger is free standing on a counter or desk. Place the charging station into a desktop base (Figure 8). The charging station can be secured onto the base using two pan head screws supplied with the desktop base. -
Page 19: Charging Znng047 Battery
8.8 Charging ZNNG047 Battery It is recommended to fully charge the battery before deploying the reader for the first time, even though a new battery has a residual amount of battery power. To ensure adequate battery power to last through a shift, always place the reader back into a charger between activities. -
Page 20: Pairing Cslh003 With A Bluetooth Device
8.9.2 Pairing with a Host The CSLH003 reader can be paired with a third party host such as a mobile phone, tablet or a PC that supports Bluetooth Low Energy as a Bluetooth HID keyboard device. Scan the barcode below (M20381) to set the reader to Bluetooth HID keyboard mode. -
Page 21: Cslh003 Operations
9.1 Handheld Scanning Target the CSLH003 reader at a barcode at a distance about 10 cm (4”) (Figure 10). If you Pull the trigger to read the barcode until the barcode is successfully read; alternatively, press one of the buttons on the top of the device. -
Page 22: Presentation Scanning
9.3 Presentation Scanning The CSLH003 supports presentation scanning in the charging station. This enables scanning without press- ing a scan button or pulling the trigger. If this feature is enabled and the reader is placed into a wall mounted or cart mounted charging station, the reader enters presentation scanning mode. -
Page 23: Battery Use
9.4 Battery Use The ZNNG0047 battery has a Li-ion cell with advanced features to allow effective use and management of its life. Usually, a new battery is only charged partially and should be fully charged before initial use. The battery has a built-in power gauge status indicator that turns on when the power gauge button on the battery is pressed, when the trigger is pulled or when one of the scan buttons is pressed. -
Page 24: Paging Reader
Paging LED on the charging station will flash 3 times quickly. 9.6 Reader Power Modes The CSLH003 readers support 3 power modes. • Operating Mode – The reader attempts to decode barcodes either by a trigger pull (or button press) or in presentation mode if enabled. -
Page 25: User Feedback Indicators
10. User Feedback Indicators The CSLH003 readers have built-in audio, visual and haptic indicators to provide status information to the user. Default indicator patterns are described below. These patterns can be customized for different use environments. For example, when used in a room where the patient is resting, it is desirable to turn off the beeper. -
Page 26: Znng047 Battery
10.2 ZNNG047 Battery Status Visual Power gauge button pushed LEDs turn on for 4 seconds Scanner trigger is pulled or button is pushed LEDs turn on for 4 seconds Charging LEDs alternate on for 4 seconds and off for 1 second Fully charged while remaining in charger LEDs stay solid on 10.3 ZNNG048 Bluetooth Charging Station... -
Page 27: Configuring The Cslh003
11.1 Use eazyScan2 eazyScan2 is a software tool to manage wenglor devices. It is available from the CSLH003 product page of wenglor’s website. Users can use it to: •... -
Page 28: Bluetooth Radio Communications
12.1 Bluetooth Radio Power The CSLH003 readers use Class 2 Bluetooth Radio. Its power output level in the reader is set to 0 dBm by default but can be configured to lower or higher maximum levels. The default power output level of the Blue- tooth radio on the ZNNG048 charger is -8 dBm and also can be adjusted. -
Page 29: Programming Reader Buttons
14. Programming Reader Buttons The buttons on the readers can be programmed to change reader settings. For example, switch between “Day” and “Night” modes, or between “Regular” and “Continuous” scanning modes. Contact wenglor Sup- port for details. 15. CSLH003 Specifications 15.1 Typical Reading Ranges... -
Page 30: Supported Symbologies
Symbologies that can be decoded by the CSLH003 are listed below. Common ones are turned on by default, but all can be turned on or off. To turn symbologies on or off, scan the symbology barcodes in the CSLH003 Configuration Guide located on wenglor website at or use eazyScan2 software. -
Page 31: Product Dimensions
15.3 Product Dimensions Figure 12 CSLH003 Reader Dimension Figure 13 ZNNG048 Charging Station Dimensions 1D/2D Handheld Scanners... -
Page 32: Cslh003 Device Information
16. CSLH003 Device Information 16.1 Reader Information For device management and obtaining support from wenglor, reader information will be needed. To find out the reader model number, serial number, firmware version and optional licenses, run eazyScan2 software, connect the reader to the PC via the Bluetooth charger ZNNG048. Once eazyScan2 indicates the reader is connected, go to the Advanced tab. -
Page 33: Bluetooth Charger Information
16.2 Bluetooth Charger Information Scan the barcode below (M20408) to obtain Bluetooth charger information. Following data will be displayed: Charger model number Charger bluetooth mac address Charger firmware version number Charger custom date (if embedded by user) CHARGER CUSTOM DATE (IF EMBEDDED BY USER) Above information can also be output to a text application such as Notepad. -
Page 34: Battery Information
Battery Health (%residual capacity vs. a new cell) Above information can also be output to a text application such as Notepad. NOTE! wenglor will periodically release new firmware for readers. For information on latest firm- ware visit our website at www.wenglor.com/product/CSLH003. CSLH003 Device Information... -
Page 35: Maintenance And Troubleshooting
• Dispatch® Wipes NOTE! mixed disinfectants have not been tested or approved to use with any wenglor devices and may result in damage and void the warranty. Please avoid using mixed disinfectants or alternating use of different disinfectants, even of approved disinfectants. -
Page 36: Routine Cleaning And Disinfection
17.2 Routine cleaning and disinfection To maintain the highest performance of wenglor products, please follow the steps described below for routine maintenance and cleaning. Failure to follow proper cleaning procedures or using unapproved cleaners may result in the product warranty being voided. - Page 37 The reader beeps three Reader failed to connect to Make sure the charger is powered up (Wireless times a Bluetooth charger logo on the charger is lit or blinking) and scan the QuickConnect Code again. Decodes but fails to transfer Make sure scanner is connected to charger data base by scanning the Quickconnect code.
-
Page 38: Contact Wenglor For Support
18. Contact wenglor for support If any problem is encountered when using a wenglor device, contact your facility’s technical support first. If they determine the problem lies with the wenglor device, they should contact the wenglor Support depart- ment at support@wenglor.com To obtain support, please provide following information: •... - Page 39 1D/2D Handheld Scanners...
