Bernard W-Gun Series Operation Manual

Operations Manual
W-Gun Series MIG Guns
™
600 Amp W-Gun shown with one
piece HD straight handle with
rubber overmold.
Bernard
A Division of Miller Electric Mfg. LLC
449 West Corning Road
Beecher, Illinois 60401 USA
See Tregaskiss.com
for detailed specs and
replacement parts information.
Phone: 1-855-MIGWELD (644-9353)
+1-519-737-3030
Fax: 708-946-6726
For more information, visit us at Tregaskiss.com

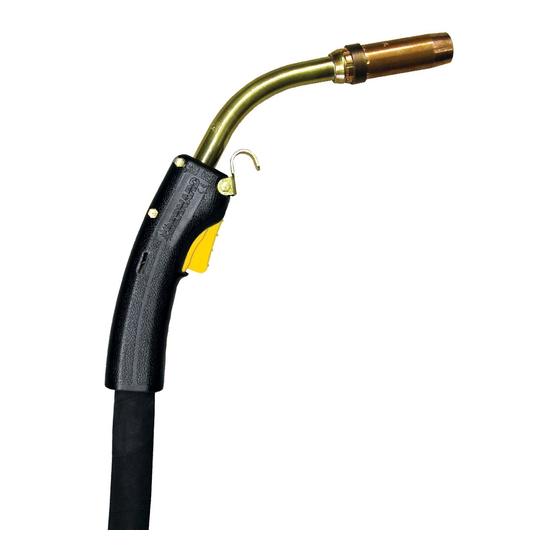

600 Amp W-Gun shown
with curved handle and
hang up hook.
(US & Canada)
(International)
Issued May 2021 • Index No. WCMAN-1.4
All Guns are Not Created Equal.
A MIG gun should be durable, easy to
use and customized to your specific
application. Our MIG guns put you in
control: you choose the options you need
and we'll build a gun to last. We even
ship most of our guns within 24 hours.
Flexible cable assembly with reinforced syn-
thetic rubber hoses prevents water leakage and
provides increased water flow and reduced gas
leakage.
Newly designed back end and water block with
interchangeable direct plugs and trigger leads
connect to wire feeders and machines from major
manufacturers and allow for simple maintenance.
Multiple handle and trigger options to increase
operator comfort.
Heavy duty water-cooled necks are offered in
multiple length and bend configurations to allow
for optimal weld accessibility and improved
operator comfort.
Contact tip options include Centerfire
and Quik Tip
and are available in wire sizes from
TM
.023" (0.6 mm) to 3/32" (2.4 mm).
, Elliptical
TM
