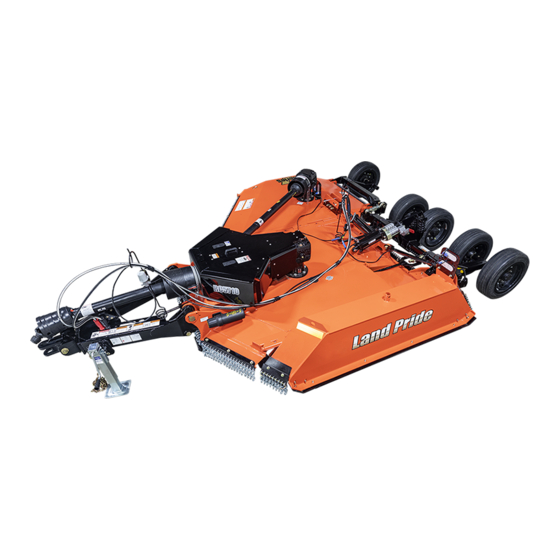

Land Pride RC5710 Operator's Manual

Rotary cutters
Hide thumbs

Advertisement

Quick Links

Download this manual
Rotary Cutters
RC(M)5710 & RC(M)L5710
74079
RC(M)L5710 Rotary Cutter
Table of Contents
74035
RC(M)5710 Rotary Cutter
!
Operator's Manual
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
331-433M
Printed 6/3/20

Advertisement

loading
Need help?

Need help?

Do you have a question about the RC5710 and is the answer not in the manual?

Questions and answers

Related Manuals for Land Pride RC5710

Summary of Contents for Land Pride RC5710

  • Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Land Pride dealer. Printed 6/3/20...
  • Page 2 Machine Identification Record your machine details in the log below. If you replace this manual, be sure to transfer this information to the new manual. If you, or the dealer, have added Options not originally ordered with the machine, or removed Options that were originally ordered, the weights and measurements are no longer accurate for your machine.
  • Page 3 Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
  • Page 4 Parts Manual for this equipment. for Land Pride products. Download the appropriate App on your Refer to Parts Manual QR smart phone, open the App, point your Locator on this page for phone on the QR code and take a picture.
  • Page 5  Important Safety Information Important Safety Information These are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look For The Safety Alert Symbol Careful operation is you best The SAFETY ALERT SYMBOL indicates there is a insurance against an accident.
  • Page 6  Replace parts on this implement correct tools and equipment. follow all shutdown procedures with genuine Land Pride parts only.  Always properly match the wheel before leaving the operator’s seat to Do not alter this implement in a way size to the properly sized tire.
  • Page 7 Use Safety Use Seat Belt and ROPS Keep Riders Off Lights and Devices Machinery  Land Pride recommends the use of a CAB or roll-over-protective-  Slow moving tractors, and tractor  Never carry riders or use structures (ROPS) and seat belt self-propelled equipment can to lift or transport individuals.
  • Page 8 Important Safety Information These are common practices that may or may not be applicable to the products described in this manual. Avoid crystalline Silica  Be aware of and follow OSHA  If possible, change into disposable (or other local, State, or Federal) or washable work clothes at the (quartz) Dust guidelines for exposure to airborne...
  • Page 9 Important Safety Information This page left blank intentionally. 6/3/20...
  • Page 10 2. Refer to this section for proper label placement. Replace all damaged or missing labels. Order new labels from your Peel backing from label and press label firmly onto the nearest Land Pride dealer. To find your nearest dealer, surface. visit our dealer locator at www.landpride.com.
  • Page 11 Table of Contents Important Safety Information 74103 73839 818-552C DANGER: Rotating Driveline - Keep Away 3 Places: Located on top of the sliding shield, main driveline, and wing driveline. 74046 858-148C Warning: Pinch Point Hazard 1 Place: Located on the back of the weight box. 6/3/20 RC(M)5710 &...
  • Page 12 Table of Contents Important Safety Information 73843 818-142C DANGER: Rotating Driveline - Keep Away 1 Place: Located on top of the wing gearbox shield. 74103 818-130C CAUTION: Use 540 rpm Power Take-off RC Series cutters only. 1 Place: Located on top of the sliding shield. 818-240C CAUTION: Use 1000 rpm Power Take-off RCM Series cutters only.
  • Page 13 Table of Contents Important Safety Information 73850 858-951C WARNING: Crushing Hazard 1 Place: Located on top of the center axle. 73850 858-950C WARNING: Pinching and Crushing Hazard 1 Place: Located on top of the center axle. 73862 844-073C Danger: Missing Guard Hazard 1 Place: Located behind the removable wing side skirt.
  • Page 14 Table of Contents Important Safety Information 73850 818-230C 1 11/16" x 2 13/16" Red Reflector 3 Places: Located on the back side of all axle spindles. 73861 838-614C 2" x 9" Red Reflector 1 Place: Located on the back side of the wing axles. 74046 838-614C 2"...
  • Page 15 Table of Contents Important Safety Information 73843 818-229C 1 3/4" x 2 3/4" Amber Reflector 1 Place: Located on the front of the wing side skirt. 74041 838-615C 2" x 9" Amber Reflector 1 Place: Located on the front of the weight box. 73858 838-615C 2"...
  • Page 16 Table of Contents Important Safety Information 858-949C Danger/Warning: Safety Combo 2 Places: Located on the wing deck front and weight box side panel. 73843 74041 RC(M)5710 & RC(M)L5710 Rotary Cutters 331-433M 6/3/20...
  • Page 17 Table of Contents Important Safety Information 73839 858-954C Danger/Warning: Hitch Safety Combo 1 Place: Located on top of the hitch A-frame. 6/3/20 RC(M)5710 & RC(M)L5710 Rotary Cutters 331-433M...
  • Page 18 Introduction Introduction Terminology Land Pride welcomes you to the growing family of new product owners. This Rotary Cutter has been designed “Right” or “Left” as used in this manual is determined by with care and built by skilled workers using quality facing forward in the direction the machine will operate materials.
  • Page 19 RC5710 & RCL5710 ....540 rpm 540 rpm & 1 3/8", 1000 rpm power take-off speed: RCM5710 &...
  • Page 20 Table of Contents Section 1: Assembly & Set-up Torque Requirements Assembly Checklist See “Torque Values Chart for Common Bolt Sizes” on Check Ref.  page 75 to determine correct torque values when Have a hoist, fork lift, or loader with properly sized chains and tightening hardware.
  • Page 21 Section 1: Assembly & Set-up Hitch Options 73867 Shown below are five different hitch options available for your Rotary Cutter. Visit your nearest Land Pride dealer to inquire about or purchase a new hitch option. Constant Level Clevis Hitch Refer to Figure 1-2:...
  • Page 22 Table of Contents Section 1: Assembly & Set-up 70497 74044 73872 Cylinder Stroke Control Disengagement Figure 1-7 Hitch Assembly NOTE: The center deck lift cylinder hose (#3) will need to be connected to a tractor before the cutter hitch can be rotated down for assembly. Hitch and Jack Assembly Refer to Figure 1-7: Figure 1-8...
  • Page 23 Table of Contents Section 1: Assembly & Set-up 73881 Attach Spring Hose Loop and 7-Pin Connector Holder Figure 1-9 Attach Spring Hose Loop Refer to Figure 1-9: NOTE: For shipping purposes, the spring hose loop is banded to the park jack on the hitch frame. NOTE: Mount spring hose loop to hole (A) if tractor controls are located on the right side or to hole (B) if tractor controls are located on the left side.
  • Page 24 Table of Contents Section 1: Assembly & Set-up 37298 73876 Hook-up Swivel Clevis Hitch Figure 1-10 Hook-up Constant Level Clevis Hitch Raise or lower park jack (#3) to align clevis (#9) with tractor drawbar. Drawbar should fit between lower and upper plates of clevis. DANGER 8.
  • Page 25 Table of Contents Section 1: Assembly & Set-up 37298 73879 Hook-up LP Performance Hitch Figure 1-11 Hook-up LP Performance Hitch 6. Start tractor, raise lower 3-point arms fully up, and carefully back tractor within close proximity of clevis (#9). DANGER Shut tractor down before dismounting according to To avoid serious injury or death: “Tractor Shutdown Procedure”...
  • Page 26 Table of Contents Section 1: Assembly & Set-up 37298 73893 Hook-up Bar-Tite Hitch Figure 1-12 Hook-up Bar-Tite Hitch 22265 Attach Bar-Tite Hitch to Tractor Drawbar Refer to Figure 1-13: Insert 1" x 5 1/2" hex bolt (#1) through hitch top plate (#2), hitch bushing (#3), hitch wear plate (#4), tractor drawbar (#5), and washer (#6) as shown.
  • Page 27 Hand Grips with Cylinder Extension Symbol • The red handled hose is connected to the right wing folding cylinder on models RC5710 and RCM5710. • The yellow handled hose is connected to the left wing folding cylinder on models RCL5710 & RCML5710.
  • Page 28 Table of Contents Section 1: Assembly & Set-up 73868 73865 Transport Pin, Locked Position Figure 1-17 Wing Axle - Turnbuckle Figure 1-16 73864 Wing Axle Turnbuckle Set-up Refer to Figure 1-16: NOTE: The cutter is shipped with turnbuckles attached and drawn all the way in as shown in Figure 1-16.
  • Page 29 Table of Contents Section 1: Assembly & Set-up 73863 Fold Lock Lugs Figure 1-19 Fold Lock Lugs Set-up 70546 70546 If the cutter is setup with a Dual-Action Folding Cylinder and folding lock lug (#5) are arranged as shown in Figure 1-20, then the lugs must be flipped around to be like Figure 1-21.
  • Page 30 Table of Contents Section 1: Assembly & Set-up 73900 Remove Main Driveline from Shipping Position Figure 1-22 Driveline Assembly Refer to Figure 1-23 on page 27: 6. Unsnap latches (#9) on both sides of gearbox The main driveline type is constant velocity, with or shield (#10) and remove shield.
  • Page 31 Table of Contents Section 1: Assembly & Set-up 72465 73897 Driveline Assembly Figure 1-23 Driveline Hook-up to Tractor 73901 DANGER To avoid serious injury or death: • Do not engage power take-off while hooking-up or unhooking the driveline, or while someone is standing near the driveline.
  • Page 32 Table of Contents Section 1: Assembly & Set-up Driveline Support Adjustment 74057 Refer to Figure 1-25: Move tractor control lever to extend hydraulic lift cylinder (#1) until pressure against flip spacers (#2) has been eliminated. 2. Without relieving hydraulic pressure, shut tractor down before dismounting according to “Tractor Shutdown Procedure”...
  • Page 33 Table of Contents Section 1: Assembly & Set-up 74045 Purge Wing & Center Deck Cylinders Figure 1-27 Purge Hydraulic System Deck Lift Cylinder Refer to Figure 1-27: DANGER WARNING To prevent serious injury or death: Never remove or install a folding wing cylinder with cylinder To prevent serious injury or death: rod retracted and wing folded-up.
  • Page 34 Table of Contents Section 1: Assembly & Set-up Hook-up LED Lights 73905 Refer to Figure 1-28: The lead wiring harness (#13) is equipped with a 7-pin plug for connecting to the tractor’s 7-pin electrical outlet shown in Figure 1-29. Route lead wire harness (#13) through the front and rear spring hose loops (#2).
  • Page 35 Table of Contents Section 1: Assembly & Set-up Unhook Rotary Cutter 73865 Refer to Figure 1-32: See “Long-Term Storage” on page 62 when storing the cutter for long periods and at end of the season. 2. If power take-off is engaged, reduce tractor engine speed to an idle and then disengage power take-off.
  • Page 36 Table of Contents Section 1: Assembly & Set-up Refer to Figure 1-34: 72469 73879 16. Relocate park jack (#3) from the wing mount to jack mount (#14) as shown. Fully insert detent pin (#8) in jack mount to secure the park jack. 17.
  • Page 37 Table of Contents Section 2: Adjustments Section 2: Adjustments 39093 73910 LP Performance Hitch Hole Size Figure 2-1 LP Performance Hitch Hole Size Refer to Figure 2-1: Park Jack Angle Alignment The LP Performance Hitch is designed to receive a Figure 2-2 1"...
  • Page 38 Table of Contents Section 2: Adjustments Lift Cylinder Base Mount 74067 Refer to Figure 2-3: To get the best range of motion with 21" to 26" tires, mount lift cylinder (#2) in the bottom hole as shown. Mount lift cylinder in top hole (A) when the cutter is supplied with 29"...
  • Page 39 Table of Contents Section 2: Adjustments Level Center & Wing Decks Level Wing Deck These adjustments should be made with your cutter Refer to Figure 2-3 on page 34: hooked to the tractor operating the cutter or to a tractor The wing section will need adjusting if the outer edge of having the same drawbar height.
  • Page 40 Table of Contents Section 2: Adjustments 74044 74057 Flip spacers in closed position Flip spacers in open position Cutting Height Adjustment Figure 2-5 Adjust Cutter Height 5. Using tractor control lever, adjust cutter to the desired cutting height and then travel forward for approximately 20 to 50 feet (6 to 15 meters).
  • Page 41 Table of Contents Section 3: Operating Section 3: Operating • Operator’s Responsibilities Rotary Cutters have the ability to discharge objects at high speeds; therefore, the use of front & rear safety guards is Hazard control and accident prevention are dependent mandatory with this cutter.
  • Page 42 Table of Contents Section 3: Operating • • Always follow “Tractor Shutdown Procedure” provided in Some tractors are able to over speed their rated power this manual before dismounting the tractor. take-off speed of 540 rpm or 1000 rpm. Only operate at the cutter’s designed speed of 540 rpm or 1000 rpm.
  • Page 43 IMPORTANT: Read all “Safety Information” Replace damaged and worn hoses with genuine starting on page 37 before operating the cutter. Land Pride parts. Make sure cutter blades are not locked against each 14. Make repairs to the cutter and tractor before other.
  • Page 44 If needed, a SMV sign can be 2. Raise cutter wing fully up with hydraulics. purchased from your nearest Land Pride dealer. Refer to “Slow Moving Vehicle Sign Accessory” on 3. Without relieving hydraulic pressure, shut tractor page 51.
  • Page 45 73871 rough or hill-like terrain. Blade Carrier Road Side Cutting Land Pride recommends the cutter be equipped with chain guards to stop flying objects when cutting road sides. Refer to “Safety Chain Guards” on page 45. Wing Deck Cutting Blades Used the LED flashing lights on the cutter to make yourself more visible when cutting road sides.
  • Page 46 Table of Contents Section 3: Operating Engage Blades Set Blade Cutting Height Adjust cutter to field cutting height. See “Adjust Cutter IMPORTANT: Cutter blades can lock-up against Height” on page 36. each other during start-up and shut-down, Set Wing Lift Lever to Float Position especially if tractor’s power take-off engagement is “INSTANT ON”...
  • Page 47 Table of Contents Section 3: Operating Remove Blade Carrier Blockage A blade carriers can become blocked with wire and/or trash wrapped around it. Trash compacted around a blade carrier interferes with the blades free swinging DANGER motion and their ability to cut grass, weeds, and/or brush To avoid serious injury or death: efficiently.
  • Page 48 With a little take-off operating speed which will be either 540 or 1000 practice you will be pleased with what your Land Pride rpm depending on your model. If everything is still Folding Rotary Cutter can do.
  • Page 49 Foam-filled placed between the operator and cutter on an open air tractor. tires will not go flat. Land Pride offers two types of safety guards to best suit • Used Aircraft Tires: Available sizes are the 29", 20 ply your application: single row chain guards and double row pneumatic tire or 24"...
  • Page 50 Section 4: Options & Accessories Axle Options and Configurations 73883 Land Pride offers a multitude of axle options to ensure your Rotary Cutter is properly fitted for its intended application. Purchaser must choose one center axle option and one wing axle option.
  • Page 51 Table of Contents Section 4: Options & Accessories Wing Axle Options 73887 HD Single Suspension Wing Axle Refer to Figure 4-6: Not applicable with “Independent Suspension Center Axle” on page 46. Available in right-hand or left-hand, this HD wing axle option is provided with suspension support through the springs incorporated into all compatible center axle options.
  • Page 52 Section 4: Options & Accessories Driveline Options Blade Accessories Land Pride offers four driveline options to best suit your Land Pride offers three different cutting blade options. application. The main driveline for all four options is a They include High Lift Blades, Standard Blades, and Low Cat.
  • Page 53 Section 4: Options & Accessories Dual-Acting Lift Cylinder Accessory 72322 Remove Land Pride offers a Dual-Acting Lift Cylinder accessory to allow the operator to lower the deck with hydraulic power Install instead of gravity. The air vent in the lift cylinder is replaced with a hydraulic fitting and hose.
  • Page 54 Table of Contents Section 4: Options & Accessories 74047 Optional Winch Assembly (RC5710 cutter shown) Figure 4-12 Mechanical Wing Lift Option IMPORTANT: If wing driveline profile is bent or twisted, disconnect that driveline from the wing Refer to Figure 4-12: gearbox before folding the wing up.
  • Page 55 37431 Slow Moving Vehicle Sign Accessory Refer to Figure 4-15: Land Pride offers as an accessory, the slow moving vehicle sign with mounting blade (#1) for tractors not equipped with a removable sign or when the tractor’s sign does not fit Land Pride’s mounting socket (#4). See Figure 4-14 for location of SMV mounting socket.
  • Page 56 Replace worn, damaged, or illegible Replace damaged components as needed. Order only safety labels by obtaining new labels from your Land genuine Land Pride parts from your local Land Pride Pride dealer. dealer. Periodically, shutdown tractor by following the “Tractor Shutdown Procedure”...
  • Page 57 Refer to Figure 5-1 on page 52: 37618 3. Replace wheel rims and tires as needed with genuine Land Pride parts. Do not loosen split rim hardware (#1) until all air pressure in the tire has been removed. Gearbox Driveline Shielding...
  • Page 58 Before each use, check that all driveline shields and drivelines are in place, undamaged and in working order. Replace shields and drivelines as needed. Order only genuine Land Pride parts from your local Land Pride dealer. DANGER To prevent serious injury or death:...
  • Page 59 Assembly that is damaged, worn, bent, or excessively nicked, Refer to Figure 5-7: replace with genuine Land Pride blades only. Refer to If the clutch run-in procedure performed above indicated page 57 when ordering Land Pride replacement blade that one or more friction disks did not slip, then the clutch components.
  • Page 60 Cutter blades must be installed with cutting edge leading in rotation. Cutting edge a. RC5710 and RCM5710 models will have cutting edge of blades leading in a clockwise rotation. See figure 5-9. b. RCL5710 and RCML5710 models will have cutting edge of blades leading in a counter clockwise rotation.
  • Page 61 Table of Contents Section 5: Maintenance & Lubrication 72288 74071 Use 1-11/16" Socket Wrench On Blade Nut (#3) Use 1-11/16" Socket Wrench On Blade Nut (#3) Access Access Hole (A) Hole (A) Forged Blade Bar With Bolt-on Dishpan HD Dishpan Assembly # Part No.
  • Page 62 Always 73931 replace skid shoes at the first sign of wearing thin. Check skid shoes for wear and replace as needed. Order only genuine Land Pride parts from your local Land Pride dealer. Wing Skide Skirt Refer to Figure 5-16: NOTE: Side skirt assembly part numbers include side skirt, skid shoes, decals &...
  • Page 63 Table of Contents Section 5: Maintenance & Lubrication Wing Deck Skid Shoes 73930 Refer to Figure 5-17: Replace wing skid shoes as follows: Remove whiz nuts (#5A), carriage bolts (#4), and hardened skid shoes (#2) from the wing deck. 2. Remove whiz nuts (#5), plow bolts (#3), and wing skid shoes (#1) from the wing deck.
  • Page 64 Overtime, the flip spacers may show signs of wear such as bending or gouging. When the spacers become difficult to close or they open too easily, then it is time to order replacement parts. Order only genuine Land Pride parts from your local Land Pride dealer. Flip Spacers...
  • Page 65 It is recommended that the wing and center axle pivot needed. Order only genuine Land Pride parts from your bushings (#2) be replaced every 1500 hours of operation. local Land Pride dealer.
  • Page 66 4. Repaint parts where paint is worn or scratched to prevent rust. Ask your Land Pride dealer for aerosol touch-up paint. Paint is also available in touch-up bottles with brush, quarts, and gallon sizes by adding TU, QT, or GL to the end of the aerosol part number.
  • Page 67 Table of Contents Section 5: Maintenance & Lubrication Lubrication Points Lubrication Multi-purpose Multi-purpose Multi-purpose Intervals in hours at which Legend spray lube grease lube oil lube lubrication is required 73929 Repack Annually Hours Axle Hub Bearing 1 zerk per wheel Type of Lubrication: Multi-Purpose Grease Grease wheel bearings every 150 hours.
  • Page 68 Table of Contents Section 5: Maintenance & Lubrication 73866 Needed Deck Hinges With The Wing Down 20 zerks (10 zerks per hinge) Type of Lubrication: Multi-purpose Grease Frequency = As needed and when unhooking for longterm storage. Quantity = As required 70479 Hours LP Performance Hitch (Optional)
  • Page 69 Table of Contents Section 5: Maintenance & Lubrication 30215 600 hrs Do Not Overfill Annually Gearbox and Divider Box Lubrication Change oil after first 50 hours, then change it yearly or every 600 hours. IMPORTANT: Do not overfill gearbox and divider box with oil.
  • Page 70 Table of Contents Section 5: Maintenance & Lubrication 70491 Hours Wing Driveline Shield Grease Point Type of Lubrication: Multi-purpose Grease Frequency = Every 8 hours Quantity = 2-3 Pumps 37519 Hours Wing Driveline Profile Tubes Type of Lubrication: Multi-purpose Grease Frequency = Every 8 hours Quantity = Coat Generously 37519...
  • Page 71 Table of Contents Section 5: Maintenance & Lubrication 33994 Hours CV Main Driveline Shield Grease Point Type of Lubrication: Multi-purpose Grease Frequency = Every 8 hours Quantity = 2-3 Pumps 23556 Zerk Located through slot in tube 8-10 pumps Hours CV Main Driveline Profile Tubes With External Grease Point Type of Lubrication: Multi-purpose Grease...
  • Page 72 Table of Contents Section 5: Maintenance & Lubrication 33992 33993 Rotate Driveline Shield to Align Rotate Driveline Shield to Align 3-Holes in Shield With Grease Zerks 2-Holes in Shield With Grease Zerks Lubrication Through Three Holes In Driveline Shield Lubrication Through Two Holes In Driveline Shield Figure 5-24 Figure 5-25 Accessing CV Driveline Joints...
  • Page 73 Table of Contents Section 5: Maintenance & Lubrication This page left blank intentionally. 6/3/20 RC(M)5710 & RC(M)L5710 Rotary Cutters 331-433M...
  • Page 74 Table of Contents Section 6: Specifications & Capacities Section 6: Specifications & Capacities RC(M)5710 & RC(M)L5710 Models Specifications & Capacities Engine horsepower range 60 - 250 hp (44.7 - 186.4 kW) 540 rpm or 1000 rpm Gearbox horsepower 250 hp (186 kW) Divider and 225 hp (168 kW) Center & Wing Gearbox lubrication Gear Lube 80-90W EP Gearbox oil capacity...
  • Page 75 Table of Contents Section 6: Specifications & Capacities RC(M)5710 & RC(M)L5710 Models Specifications & Capacities Continued 21" (53.3 cm) or 26" (66 cm) Laminated tires. 24" (61 cm) Used aircraft, foam filled tires. Wheel options 25.5" (64.8 cm) 20 ply tires, foam filled or pneumatic. 29"...
  • Page 76 Section 7: Features & Benefits RC(M)5710 & RC(M)L5710 Models Features Benefits All Land Pride Rotary Cutters have been designed and tested and meet rigorous Surpassed rugged industry standards voluntary testing procedures according to ISO 4254-13. Factory assembled Arrives for quick and easy set-up. Minimal time wasted setting or prepping the unit.
  • Page 77 Table of Contents Section 7: Features & Benefits RC(M)5710 & RC(M)L5710 Models Features Benefits Laminated tires: Eliminates flats. Wheel options Air-filled tires: Give better cushion while transporting. Foam-filled tires: Give better cushion while transporting and can’t go flat. One person Hook-up. Great for uneven terrain, reduces drawbar wear. Hitch pivots LP Performance Hitch (Optional) freely up and down and pivots about the tractor drawbar up to 12 degrees in both left...
  • Page 78 Table of Contents Section 8: Troubleshooting Section 8: Troubleshooting Troubleshooting Chart Problem Cause Solution Gearbox overfilled Drain oil level with fill hole or to full mark on dipstick. Seals damaged Replace seals. Oil seal leaking Grass or wire wrapped on shaft Clean off wrapped material and check seal areas daily.
  • Page 79 Table of Contents Section 9: Torque Values Chart Section 9: Torque Values Chart Torque Values Chart for Common Bolt Sizes Bolt Head Identification Bolt Head Identification 10.9 Bolt Size Bolt Size (inches) Grade 2 Grade 5 Grade 8 (Metric) Class 5.8 Class 8.8 Class 10.9 in-tpi...
  • Page 80 This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
  • Page 82 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
