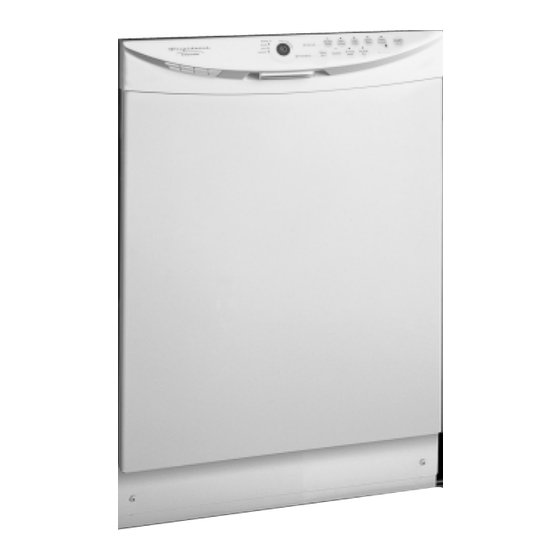

Frigidaire FDB2310LCS0 Use And Care Manual

2000 series
Hide thumbs

Advertisement

Use & Care Manual
2000 Series
Record All Information For
Future Reference
Brand:
Model #:
Serial #:
(see Features page for location)
1-800-944-9044
Questions?
1-866-213-9397
Visit our Web Site at
www.frigidaire.com
READ AND SAVE THESE INSTRUCTIONS
Dishwasher
Purchase Date:
(United States)
(Canada)
Product Registration Card
Please fill in completely, sign and return promptly!
Safety
Instructions .........................
Features ..............................
Sounds ................................
Instructions .......................
Loading Dishes................
and Detergents ..............
Performance ......................
Cleaning .............................
Consumer Services
Warranty & Service .............................. 20
Versión en español
Si desea obtener una copia en español de este Manual del
Usuario, sírvase escribir a la dirección que se incluye a
continuación. Solicite la P/N 154475701, Spanish Use & Care
Manual, Electrolux Home Products North America,
P.O. Box 212378, Augusta, GA 30917.
2
3
4
4-7
8-11
12-13
13
14
...15-17
P/N 154475601 (0306)

Advertisement

loading

  Also See for Frigidaire FDB2310LCS0

  Related Manuals for Frigidaire FDB2310LCS0

  Summary of Contents for Frigidaire FDB2310LCS0

  • Page 1: Table Of Contents

    (see Features page for location) 1-800-944-9044 Questions? (United States) 1-866-213-9397 (Canada) Visit our Web Site at www.frigidaire.com READ AND SAVE THESE INSTRUCTIONS Product Registration Card Please fill in completely, sign and return promptly! Safety Instructions ... Features ... Normal Operating Sounds ...
  • Page 2: Instructions

    • Read all instructions before using your dishwasher. • Use your dishwasher only as instructed in this Use and Care Manual. • This Manual does not cover every possible condition and situation that may occur. Use common sense and caution when installing, operating and maintaining any appliance.
  • Page 3: Features

    Dishwasher Features Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. Each cycle begins with a pre-drain. Next, the dishwasher fills with water covering the filter area. Water is then pumped through the filter and spray arms. Soil particles go down the drain as the water is pumped out and replaced with clean water.
  • Page 4: Normal Operating Sounds

    6. Select desired OPTIONS (See Energy Options). The indicator light above the pad will glow when selected. 7. Run hot water faucet nearest dishwasher until water is hot. Turn water off. 8. To start, press START/CANCEL pad. Note: The dishwasher is programmed to remember your last cycle so you do not have to reset each time.
  • Page 5: Operating Instructions

    Operating Instructions On some models, the Smart Sensor checks the soil level on your dishes in the Pots Pan, Normal and Light Wash (Both Racks) cycles. Depending on soil level, the sensor will determine if additional water fills are needed to clean the dishes or if water fills can be deleted. Cycle time and water usage will vary based on the amount of soil on the dishes.
  • Page 6: Delay Start

    Operating Instructions Options Selections Hi-Temp Wash When HI-TEMP WASH option is selected, the dishwasher heats water in the main wash to approximately 140°F (60°C). This increase in water temperature helps dishwasher detergent remove food grease and soil from dishes more effectively and aids in drying.
  • Page 7: Operating

    When the SANITIZE option is selected, the SANITIZED light will glow when the SANITIZE cycle is finished. If the dishwasher did not properly sanitize the dishes, the light will not come on. This can happen if the cycle is interrupted. The light will remain on until the door is opened.
  • Page 8: Preparing And Loading Dishes

    Unless the dishwasher is to be operated at once, it is best to rinse off these food soils. • Load racks so that large items do not prevent the detergent dispenser from opening.
  • Page 9: Preparing And Loading Dishes

    Open completely for those hard to fit items such as coffee pots, food processors, etc. As you load your dishwasher, you will find many other ways to use this unique feature. (continued) Upper Rack Option LIGHT WASH—UPPER RACK option can be used...
  • Page 10: Loading The Bottom Rack

    Preparing and Loading Dishes Loading the Bottom Rack Features and appearance of racks and silverware basket may vary from your model. The lower rack is best for plates, saucers, bowls, and cookware. Large items should be placed along the edge so they do not block the spray arm rotation.
  • Page 11: Loading Dishes

    • Unlatch door and wait a few seconds until wash action stops before opening. • Add the item and wait a few seconds to allow cold air to slowly expand inside dishwasher. • Close door firmly to latch and resume cycle.
  • Page 12: And Detergents

    As a rule, use 1 teaspoon for each grain above 12. Unlatch the door, open slowly and add detergent to the bottom of the tub. Close the door to latch and the dishwasher will continue through the cycle.
  • Page 13: Dishwasher Dispenser

    Adjustable setting Dispenser Cap (continued) Water Pressure The hot water line to dishwasher must provide water pressure between 20 and 120 psi. Low water pressure may occur when laundry or showers are in operation. Wait until water use is reduced before starting dishwasher.
  • Page 14: Care And Cleaning

    Care of Drain Air Gap If a drain air gap was installed for your built-in dishwasher, check to make sure it is clean so the dishwasher will drain properly. A drain air gap is usually mounted on countertop and can be inspected by removing the cover.
  • Page 15: Solutions To Common Dishwashing Problems

    Before calling for service, review this list. It may save you both time and expense. This list includes common experiences that are not the result of defective workmanship or material in your dishwasher. Food Soils Left on Dishes • Choose another cycle for longer washing time.
  • Page 16: Solutions To Common Dishwashing Problems

    This is normal since each spray arm has its own sound. • It is normal for dishwasher to pause (no sound) when the wash action is switching between the lower and middle spray arms.
  • Page 17: Dishwashing Problems

    To customize your dishwasher to match your cabinets: • You will need a trim kit. • See Step 10 of Installation Instructions that came with your dishwasher for more information. Removing Spots and Film Hard water can cause lime deposit buildup on the interior of the dishwasher.
  • Page 18 Notes...
  • Page 19 Notes...
  • Page 20: Warranty Information

    USA 800•944•9044 Electrolux Home Products, Inc. P.O. Box 212378 Augusta, GA 30917 Your dishwasher is protected by this warranty THROUGH OUR AUTHORIZED SERVICERS, WE WILL: Pay all costs for repairing or replacing any parts of this appliance which prove to be defective in materials or workmanship.
