Modulex MMP-060S Series Installation Manual page 2

Installation Guide Lighting Fixture
Tracklight
MMP-080S/5H/1N/10B/N1/2

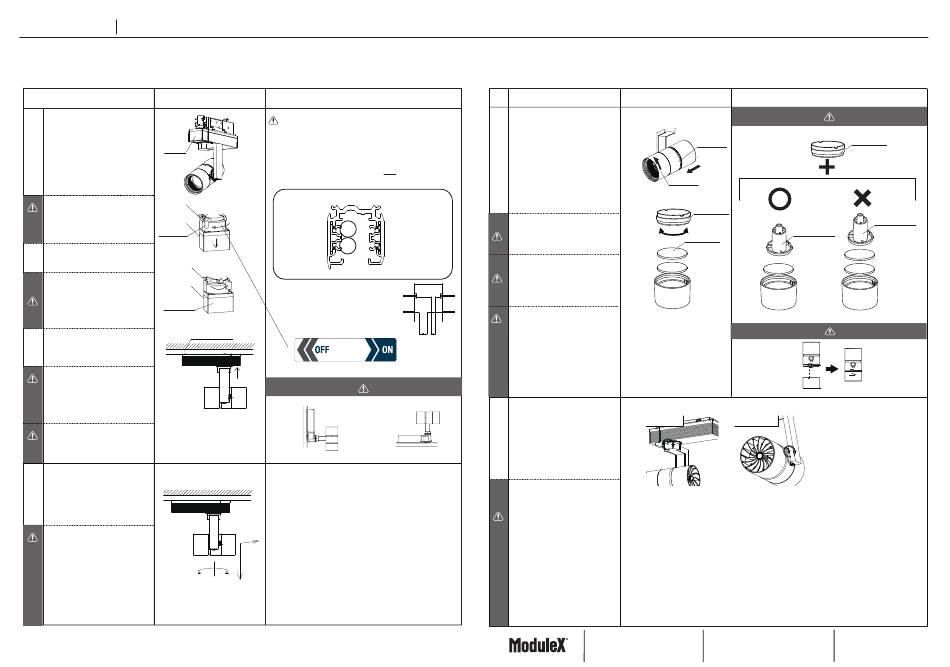

Installation Details Installation Diagram
Attaching luminaire to track
1 Lower the cover of the power
supply box cover
2 Turn the lever to the left
(turn off the power)
3 Insert luminaire into track
Insert the luminaire surely into
the track.
There is a danger of falling
if there is incompleteness.
lever
4 Turn the lever to the right
(turn on the power)
Turn lever securely to the "ON"
position.
Failure to do so may
cause a fall or fire. lever
lighting track
5 Raise the cover of the power supply
box
If you can not raise the cover,
there is a possibility that
the luminaire is not securely fixed.
Please try installing again.
e Do not install on walls and floor.
Adjustment of irradiation direction
Range of movement
Grasp the fixture and adjust
1
the irradiation direction
Do not forcibly move beyond
the movable range
Please adjust the fixture after
turning off the power and
cooling the fixture
Caution
FOR USE WITH NORDIC ALUMINIUM INC, Series TEK TRACK SYSTEM ONLY.
NORDIC ALUMINIUM lighting track is sold separately.
This fixture is compatible with NORDIC ALUMINIUM
2-circuit track only.
The fixture attaches to both the left and right circuit rails
of the track.Please ensure that only ONE power feed is
supplied to the track.
Connect with only N1 and L1 recommended.
2
L1 L2
1
N2
N1
4
The terminals are connected internally
as shown in the right circuit diagram.
5
Lever position indication
e
×wall
10°
90°
380°
Installation Details
Optional parts installation
1 Turn around the body.
2 Pull out the body from the hood.
3 Turn around the option holder,
and put out .
4 Put a filter in hood.
5
Turn around the option holder,
and put in.
×
Please attention that
the sharpener lens is counted
×
two pieces of filter lenses.
Donʼt put in the filters than
f
the rule number of pieces.
Causes of falling and damage.
L1 L2
d Align the markings of the hood
N2
N1
and the body, please turn it
clockwise until it clicks.
Tilting angle setting
Please loose a screw by the
1
hexagonal wrench,and unrock.
Please regulate a point of view
×floor
to a scale.
Please use an attached hexagon
wrench by all means.
Installation Diagram
Body
1
2
Hood
Option
Holder
3
Filter
Pan lock Tilt lock
TOKYO OSAKA
1-20-6 BF1 Ebisuminami,Shibuya-ku, 4-1-21 Kitahama, Chuo-ku, Osaka,
R
Tokyo,150-0022,Japan 532-0011,Japan
Tel : 81-3-5768-3681 Tel : 81-6-7167-2474
To install ModuleX safety
Caution
f
Option
Holder
UP to 2FILTERS
Sharpner
lends
Sharpner
lends
d
FUKUOKA
1-8-30-1 Daimyou,Chuou-ku
Fukuoka,810-0041,Japan
Tel : 81-92-732-4211
