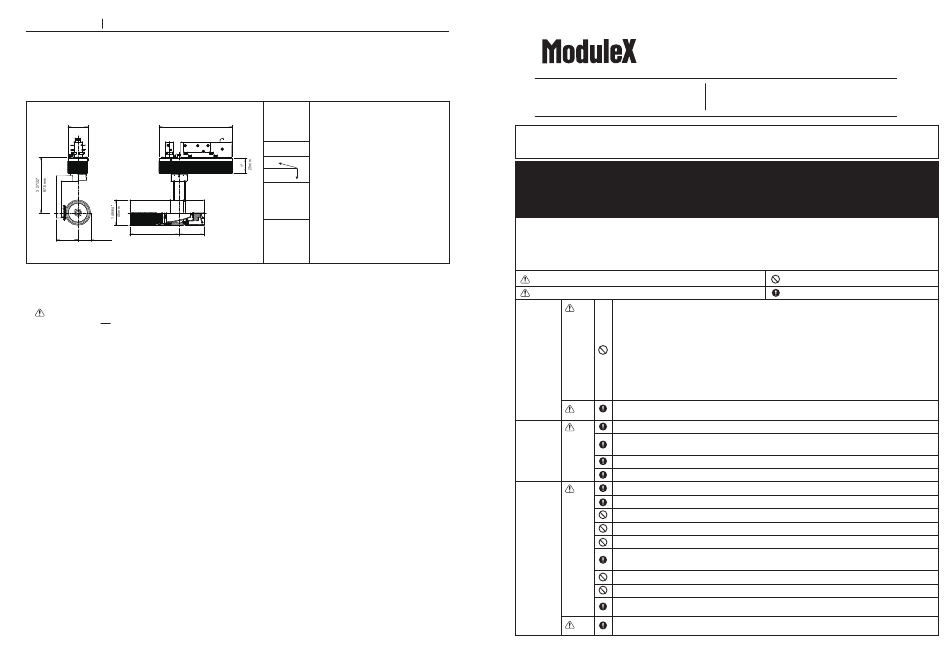

Modulex MMP-060S Series Installation Manual

Installation Guide Lighting Fixture

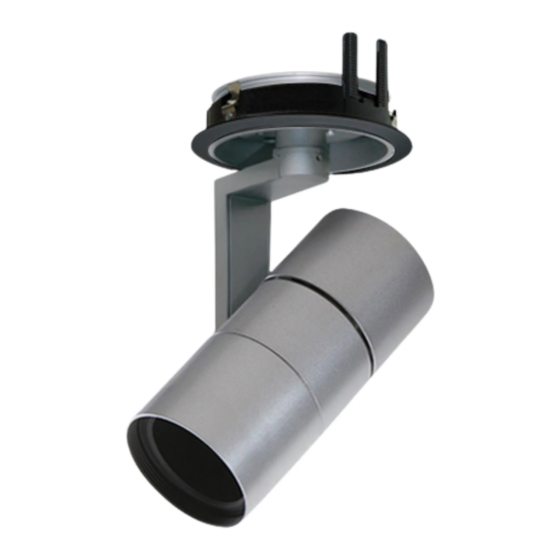

Tracklight
MMP-060S/5H/1E/10A/Z1/2
1 3/8" 5 5/64"
35mm 129mm
3 25/64" 1 23/32"
1 31/64" 57/64"
86.3mm
43.8mm
37.8mm 22.5mm
FOR USE WITH EUTRAC CORP, Series 230 or 233, TRACK SYSTEM ONLY.
EUTRAC lighting track is sold separately, and we do not provide the applicable lighting tracks.
This fixture is compatible with Eutrac 2-circuit track only. The fixture attaches to both the left and right circuit rails of the track.
Please ensure that only ONE power feed is supplied to the track.
Weight
Input voltage
0.87lbs,395g 120V
Input current 0.129A
Input wattage 15.4W
Rotate degrees
10°
Dimmer
DVSTV-XX(sold separately)
90°
Option
Light distribution control filters
Full-Diffuser Lens Filter MLA-060/DF01
Semi-Diffuser Lens Filter MLA-060/DS01
Full-Spread Lens Filter MLA-060/SF01
Semi-Spread Lens Filter MLA-060/SS01
Edge Control Lens Filter MLA-060/EC01
Sharpener Lens MLA-060/SH01
(available only narrow distribution)
Installation Guide
INSTRUCTIONS FOR INSTALLING AND OPERATING MMP-060S SERIES TRACK LED LUMINAIRES.
FOR USE WITH EUTRAC CORP, Series 230 or 233, TRACK SYSTEM ONLY.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
To install the fixture safely《 Read carefully and follow all the instructions in the guide 》
Read and understand these instructions before installing fixture.
This fixture is intended for installtion in accordance with the National Electrical Code and local regulations. To assure full compliance with
local codes and regulations, check with your local electrical inspector before installation. To prevent electrical shock, turn off electricity at
fuse box before proceeding.
Retain these instructions for maintainance reference.
Warning : Failure to install the fixture properly could result in personal injury.
Caution : Failure to install the fixture properly could result in property damage.
Warning
The fixture is for indoor use only in general conditions.
Before
Can not be used following conditions (Causes of falling, electrocution and fire)
installation
●Inclined, uneven surface
●High humidity
●Outside
●On the floor
●Vibrated or shocked areas
●Areas get direct sunlight
Please contact if you are not able to judge whether installation
environment is suitable to the places or not.
Please follow the fixturesʼ indication or specification for the distance of irradiated area.
Caution
(Causes of change in shape, change in color of irradiated objects)
Warning
For electric Only qualified person may work on electric wiring and equipment. (Cause of accidents)
wiring
Use alternating current. Please follow rating plate of fixtures for power supply frequency.
(Cause of electrification・fire) (50Hz ・60 Hz common use for ballasts and incandescent lamp fixtures)
Be sure power supply voltage is within ±6% mentioned in rating plate or the guide. (Causes of short life of lamps・electrification・fire)
Be sure all the wires and codes are not damaged. (Causes of falling・damage)
Warning
Please follow the fixturesʼ instruction or this guide to install the fixture and lamp. (Causes of falling・electrification・fire)
At lighting
fixture
Switch off the power when installing the lamp. (Causes of electrification)
installation
Do not touch the fixture when switch is on or just turn off the switch because of high temperature.
Do not put or cover the fixture by any cloths, papers, or insulators.(Causes of not lighting・fire)
Do not place any metallic or flammable objects. (Cause of electrification・fire・broken fixture)
Make sure to install all the parts of fixtures besides installation and mounting parts will not touch with any
objects both inside and outside of ceiling such as lighting track, etc. (Causes of falling・electrification・fire)
Do not dismount or remodel fixtures. (Cause of electrification・fire・falling・broken fixtures)
Do not operate with wet hands.
If you smell smoke, see smoke, or find anything unusual, please turn the switch off and ask construction
companies to repair. (Cause of electrification・fire)
Make sure the construction will not affect any fire prevention systems such as sprinkler by heat from the fixture.
Caution
(Causes for improper operation)
Lighting Fixture
: Prohibited
: Strict observance
Ceiling which canʼt hold the fixture weight Do not install any luminaire
● ●
assembly closer than 6 in.
●On the wall
from any curtain or similar
●Places affected by wind or air-conditioner machine combustibe material.
●Near fire
●Dusty areas, corrosive gas outbreaks areas
●Ambient temperature under 0℃ and over 35℃
