Modulex MMP-060S/1H/1E/10A/Z1/3 Installation Manual

Installation Guide Lighting Fixture

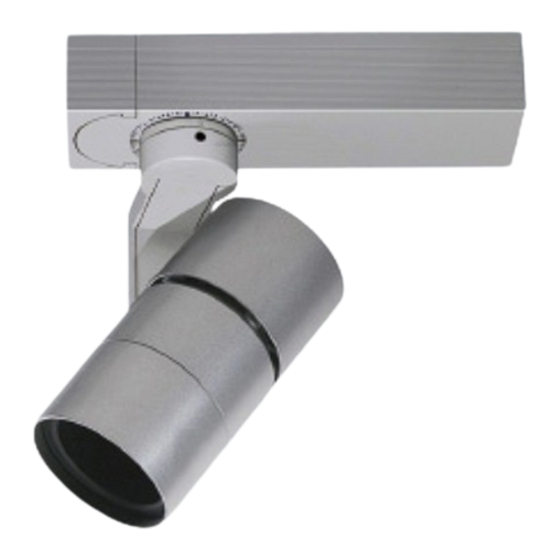

Spotlight
MMP-060S/1H/1E/10A/Z1/3
FOR USE WITH EUTRAC CORP, Series 225, TRACK SYSTEM ONLY.
EUTRAC lighting track is sold separately.
This fixture can be attached to the 3 circuitrails, but only 1 c ircuit can be used for power supply.
Please do not attach the fixture to the 3 circuitrails in which more than 1 circuit are occupied
for power supply. It may cause tripping the circuitbreaker.
Input voltage
220V 50/60Hz
Weight
Input current 0.071A
370g
Input wattage 15.1W
Tool for Pan/Tilt lock is equipped.
Rotate degrees
10°
Dimmer
DVSTV-XX(sold separately)
90°
Option
Light distribution control filters
Full-Diffuser Lens Filter MLA-060/DF01
Semi-Diffuser Lens Filter MLA-060/DS01
Full-Spread Lens Filter MLA-060/SF01
Semi-Spread Lens Filter MLA-060/SS01
Edge Control Lens Filter MLA-060/EC01
Sharpener Lens MLA-060/SH01
(available only narrow distribution)

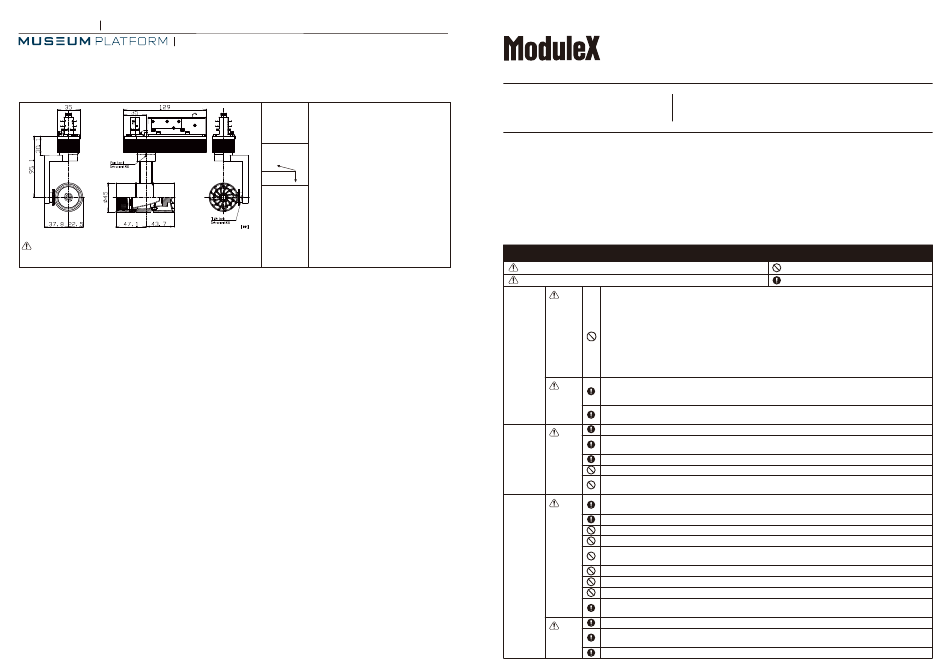

Installation Guide
MMP-060S/1H/1E/10A/Z1/3
To install the fixture safely《 Read carefully and follow all the instructions in the guide 》
Warning : Failure to install the fixture properly could result in persona l injury.
Caution : Failure to install the fixture properly could result in property damage.
Before Warning
The fixture is for indoor use only in general conditions.
installation
Can not be used following conditions (Causes of falling, electrocution and fire)
●On the wall ●Plases affected by wind or air-conditioner mashine
●On the floor ●Inclined, uneven surface
●Outside ●Ambient temperature under 0℃ and over 35℃
●Near fire ●Ceiling which can
●High humidity ●Dusty areas, corrosive gas outbreaks areas
●Areas get direct sunlight ●Vibrated or shocked areas
Please contact if you are not able to judge whether installation
environment is suitable to the places or not.
Even when using it indoors, do not use it in a place where there is a sulfur component around the equipment.
Caution
(Sulfur components may also be contained in some foods, chemicals, papers, rubber products,
and car exhaust gas.)
Please follow the fixturesʼ indication or specification for the distance of irradiated area.
(Causes of change in shape, change in color of irradiated objects)
Only qualified person may work on electric wiring and equipment.(Cause of accidents)
For elec Warning
tricwiring
Be sure power supply voltage is within ±6% mentioned in rating plate or the guide.
(Causes of short life of lamps ・ electrification ・ fire)
Be sure all the wires and codes are not damaged. (Causes of falling ・ damage)
Do not perform live-line construction. There is a risk of electric shock or product failure.
Do not install other electronic devices (devices that use a motor such as a ventilation fan)
in the same circuit as it may lead to equipment failure.
Please follow the fixturesʼ instruction or this guide to installthe fixture and lamp.
At lighting Warning
fixture (Causes of falling ・ electrification ・ fire)
installation
Be sure to turn off the power when installing the fixture or lamp. (Cause of electric shock)
Do not touch the fixture when switch is on or just turn off the switch because of high temperature.
Do not put or cover the fixture by any cloths, papers, or insulators.(Causes of not lighting ・ fire)
Do not put metal or burning objects in the gaps of the equipment.
(Causes of electric shock, fire, and equipment failure)
Do not dismount or remodel fixtures. (Cause of electrification・fire・falling・broken fixtures)
Do not operate with wet hands.
Do not grab and lift wires or cables that are not the product itself. It may be damaged.
If you smell smoke, see smoke, or find anything unusual, please turn the switch off and ask construction
companies to repair. (Cause of electrification ・ fire)
Use protective equipment such as clean gloves when installing and removing equipment. (Cause of injury)
Caution
Install so that the heat of the equipment does not affect the fire protection equipment
such as sprinklers. (Cause of malfunction)
Please note that noise may enter the device if it is lit near a communication device such as a radio.
Lighting Fixture
: Prohibited
: Strict observance
ʼ
t hold the fixture weight
