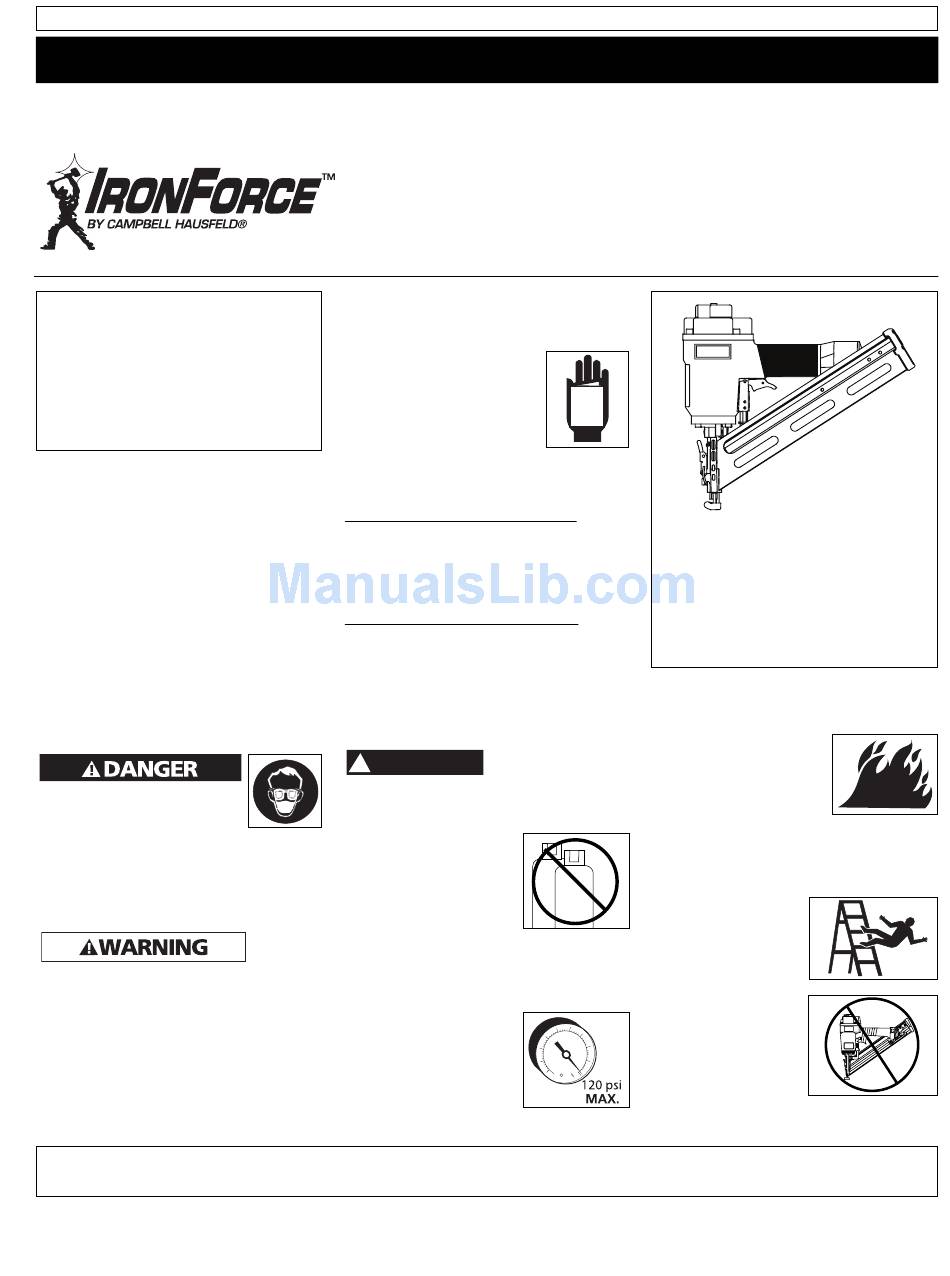

See Warranty on page 7 for important information about commercial use of this product.
Operating Instructions
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury, death
and/or property damage! Retain instructions for future reference.

Table Of Contents

General Safety . . . . . . . . . . . . . . . 1 - 3
Specifications . . . . . . . . . . . . . . . . . . 2
Operational Modes . . . . . . . . . . . . . 4
Operating The Nailer . . . . . . . . . 3 - 5
Troubleshooting . . . . . . . . . . . . . . . 6
Warranty . . . . . . . . . . . . . . . . . . . . . 7

Description

This nailer is designed for decorative
trim, molding, window casings,
furniture trim and picture frame
assembly. Features include: convenient
rear loading magazine which holds up to
100 nails, no-mar tip, adjustable exhaust,
single cycle trigger, quick clear nose, and
an adjustable depth of drive mechanism.
General Safety
Information
CALIFORNIA PROPOSITION 65
You can create dust when
you cut, sand, drill or grind
materials such as wood,
paint, metal, concrete, cement, or
other masonry. This dust often
contains chemicals known to cause
cancer, birth defects, or other
reproductive harm. Wear protective
gear.
Excessive exposure to vibration,
working in awkward positions and
repetitive work motions can cause
injury to hands and arms. Stop using
any tool if discomfort, numbness,
tingling or pain occur and consult a
physician.
Campbell Hausfeld Nailers meet or exceed Industries' Standards as set forth by the American National
Standard Institute/International Staple, Nail and Tool Association in ANSI/ISANTA SNT-101-2002.
© 2008 Campbell Hausfeld/Scott Fetzer
This manual contains safety,
operational and maintenance
information.
Read this manual and
understand all safety
warnings and instructions
before operating the
nailer. Contact your
Campbell Hausfeld
representative if you have any
questions.
OPERATOR'S RESPONSIBILITY:
Before operating the nailer, read and
understand all safety warnings and
labels. Follow the operating
instructions outlined in this manual.
EMPLOYER'S RESPONSIBILITY:
Distribute this instruction manual to all
users before allowing use of the nailer.
Ensure all operators read, understand
and follow all safety warnings, labels
and instructions outlined in this
manual.
DANGER
!
hazardous situation which, if not
avoided, WILL result in death or serious
injury.
• Do not use any type
of flammable gases
or oxygen as a power
source for the nailer.
Use filtered,
lubricated, regulated
compressed air only.
Use of a compressed gas instead of
compressed air may cause the nailer
to explode which will cause death or
serious personal injury.
• Do not exceed
maximum operating
pressure of the nailer
(120 psi). The nailer
will not function
properly. Do not use
a compressed air
source capable of more than 200 PSI.
REMINDER: Keep your dated proof of purchase for warranty purposes!
Attach it to this manual or file it for safekeeping.
For parts, product & service information
visit www.chpower.com
Angle Finish Nailer
MANUAL
Danger indicates
an imminently
O
CO
2
Model IFN35650
Model IFN35650
Locate model and date code on
tool and record below:
Model No. ______________________
Date Code ______________________
Retain these numbers for
future reference.
The nailer could explode which will
cause death or serious personal
injury.
• Never use gasoline
or other flammable
liquids to clean the
nailer. Never use the
nailer in the presence
of flammable liquids
or gases. Vapors could ignite by a
spark and cause an explosion which
will result in death or serious
personal injury.
• Always remain in
a firmly balanced
position when
using or handling
the nailer.
• Do not modify or
disable the Work
Contact Element
(WCE). Do not tie
or tape the WCE
or trigger in a
depressed
position. Death or serious personal
injury could result.
IN725300AV 2/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IronForce IFN35650 and is the answer not in the manual?

Questions and answers

Summary of Contents for Campbell Hausfeld IronForce IFN35650

  • Page 1 REMINDER: Keep your dated proof of purchase for warranty purposes! Campbell Hausfeld Nailers meet or exceed Industries’ Standards as set forth by the American National Standard Institute/International Staple, Nail and Tool Association in ANSI/ISANTA SNT-101-2002. © 2008 Campbell Hausfeld/Scott Fetzer...
  • Page 2: Specifications

    Trigger Specification Decal Adjustable Depth Control Quick Clear Latch Rubber No-Mar Tip Nail Discharge Area Model IFN35650 • Do not operate WARNING or allow anyone else to operate the nailer if any warnings or warning labels are not legible. Warnings or warning labels are located on the nailer magazine and body.
  • Page 3: General Safety

    Quick Plug Quick Quick (Optional) Coupler Plug Quick Coupler (Optional) Hose Model IFN35650 RECOMMENDED HOOKUP The illustration below shows the recommended hookup for the nailer. 1. The air compressor must be able to maintain a minimum of 70 PSI when the nailer is being used.
  • Page 4: Operational Modes

    4. Release the Pusher. ADJUSTING THE NAIL PENETRATION The IFN35650 is equipped with an adjustable depth of drive feature. This allows the user to determine how deep a fastener will be driven into the work surface.
  • Page 5: Operating The Nailer

    Fasteners Information Nails used in the Campbell Hausfeld IFN35650 Angle Finish Nailer will also work in Sears 18329, Porter Cable DA250, Senco SFN2B, SFN1 and SFN40. 4. The door can now be rotated,...
  • Page 6: Troubleshooting

    Check fitting, hose or compressor Replace and lubricate O-Rings Replace O-Rings Tighten screws and fittings Replace gasket Lubricate nailer Replace spring Replace damaged internal parts Replace guide Use only recommended nails Replace with undamaged nails Tighten screws Replace driver Model IFN35650...
  • Page 7: Warranty

    3. WHO RECEIVES THIS WARRANTY (PURCHASER): The original purchaser (other than for purposes of resale) of the Campbell Hausfeld product. 4. WHAT PRODUCTS ARE COVERED BY THIS WARRANTY: Any Campbell Hausfeld nailer, stapler, air tool, spray gun, inflator or air accessory supplied or manufactured by Warrantor.
  • Page 8 Model IFN35650 Operating Instructions Notes www.chpower.com...
  • Page 9 MÉMENTO: Gardez votre preuve datée d'achat à fin de la garantie! Joignez-la à ce manuel ou classez-la dans un dossier pour plus de sécurité. Les Cloueuses Campbell Hausfeld conforment aux/ou dépassent les standards de l’American National Standard/International Staple, Nail and Tool Association in ANSI/ISANTA SNT-101-2002.
  • Page 10 Montage de Buse en poussoir de clous caoutchouc non-gâchable Endroit d’expulsion des clous 10 Fr Modèle IFN35650 • Ne jamais transporter la cloueuse par le tuyau à air. Ne jamais tirer sur le tuyau pour déplacer la cloueuse ou le compresseur.
  • Page 11 (Optionnel) Rapide Rapide Raccord Rapide (Optionnel) Tuyau À 11 Fr Modèle IFN35650 2. Tourner la cloueuse de manière à ce que la prise d’air comprimé soit dirigée vers le haut. Introduire 4 ou 5 gouttes d’huile non-détergente dans la prise d’air comprimé. Ne pas utiliser d’huile détergente, d’additif...
  • Page 12 La cloueuse NE DOIT PAS FONCTIONNER. Si l’éjection d’un clou se produit lorsqu’on relève la cloueuse, ne pas utiliser celle-ci. Il y a risque de blessures. 12 Fr Modèle IFN35650 7. Actionner la gâchette. Appuyer le mécanisme déclenchement par contact (WCE) sur la surface de travail.
  • Page 13 4. Relâcher le poussoir. Patte de Déclenchement RÉGLAGE DE PÉNÉTRATION DES CLOUS Le modèle IFN35650 est muni d’un réglage de pénétration des clous. Ceci permet de déterminer à quel profondeur les clous doivent être enfoncés. 1. Régler la pression de...
  • Page 14 Instructions D’Utilisation L’Information d’Attache Les clous utilisés dans la Cloueuse Pour Finition Campbell Hausfeld IFN35650 conforment également au Sears 18329, au Porter Cable DA250, au Senco SFN2B, SFN1 et SFN40 Guide De Dépannage Cessez l’utilisation de la cloueuse immédiatement en cas des problèmes suivants, car il AVERTISSEMENT résultat risque de blessures graves.
  • Page 15 RESPONSABILITÉS DE L’ACHETEUR AUX TERMES DE CETTE GARANTIE: A. Fournir une preuve d’achat datée et un état d’entretien. Appelez Campbell Hausfeld (800-543-6400) pour obtenir vos options de service sous garantie. Les frais de transport sont la responsabilité de l’acheteur.. Utilisation et entretien du produit avec un soin raisonable, ainsi que le décri(vent)t le(s) manuel(s) d’utilisation.
  • Page 16 Modèle IFN35650 Instructions D’Utilisation Notes 16 Fr...
  • Page 17 RECORDATORIO: ¡Guarde su comprobante de compra con fecha para fines de la garantía! Las clavadoras de Campbell Hausfeld Nailers cumplen o exceden los estándards de la Industria establecidos en los códigos SNT-101-2002 de las organizaciones norteamericanas ANSI/ISANTA .
  • Page 18 Ensamblaje del Impulsor de Puntillas Punta de goma (no deja marcas) Área de descarga 18 Fr Modelo IFN35650 Mantenga las mangueras alejadas del calor, aceite y objetos puntiagudos. Reemplace cualquier manguera que esté dañada, débil o desgastada. Ésto podría ocasionar heridas o daños a la herramienta...
  • Page 19 Lubricador Acoplador rápido (Opcional) Manguera de aire 19 Sp Modelo IFN35650 2. Gire la clavadora de aceite modo que la entrada de aire quede mirando hacia arriba. Agregue de 4 a 5 gotas de aceite no detergente 30W en la entrada de aire.
  • Page 20 Elemento de Contacto de Trabajo contra la superficie de trabajo. La clavadora NO DEBE OPERAR. 20 Sp Modelo IFN35650 8. Presione el Elemento de Contacto de Trabajo contra la superficie de trabajo. Apriete el gatillo. La clavadora DEBE OPERAR.
  • Page 21 4. Suelte el Impulsor. Lengüeta CÓMO AJUSTAR LA PENETRACIÓN DEL CLAVO La IFN35650 viene equipada con un mecanismo clavador de profundidad ajustable. Esto le permite al usuario determinar a qué profundidad se va a clavar en la superficie de trabajo.
  • Page 22 Le recomendamos que use Información de Clavos Los clavos usados con la clavadora para acabado IFN35650 de Campbell Hausfeld también se pueden usar con las clavadoras Sears 18329, Porter Cable DA250, Senco SFN2B, SFN1 y SFN40. Guía de Diagnóstico de Averías Deje de usar la clavadora inmediatamente si alguno de los si guientes problemas ocurre.
  • Page 23 RESPONSABILIDADES DEL COMPRADOR BAJO ESTA GARANTIA: A. Suministrar prueba fechada de compra y la historia de mantenimiento del producto. B. Llame a Campbell Hausfeld (800-543-6400) por sus opciones de servicio incluidas en la garantía. Los costos de flete correrán por cuenta del comprador.
  • Page 24 Modelo IFN35650 Manual de Instrucciones Notas 24 Sp...
