Argyll II™ User/Service Manual
User & Full Service Manual
Herida II
Pressure Relieving / Alternating Air Mattress & Pump
Pump Model: HH/P09 Mattress Model: HH/T04
NB: Please ensure this document is fully read & understood
by the Clinician / Carer / Service Engineer prior to use.
1 |
P a g e
A U G U S T 2 0 1 9
Advertisement
Table of Contents
Related Manuals for Herida Healthcare Argyll II
Summary of Contents for Herida Healthcare Argyll II
- Page 1 Argyll II™ User/Service Manual User & Full Service Manual Herida II Pressure Relieving / Alternating Air Mattress & Pump Pump Model: HH/P09 Mattress Model: HH/T04 NB: Please ensure this document is fully read & understood by the Clinician / Carer / Service Engineer prior to use.
- Page 2 Argyll II™ User/Service Manual P a g e A U G U S T 2 0 1 9...
-
Page 3: Table Of Contents
Argyll II™ User/Service Manual CONTENTS SAFETY………………………………………………………4 INTRODUCTION………………………………………….…5 Product Description Application Contra indications Working Principle OPERATION………………………..………………………..6 Static Mode Alternating Mode Profiled Bed – Clinical Considerations Installation Safety Instructions Pump Operation Mattress & Pump Characteristics MAINTENANCE……………………………………………..10 Cleaning Maintenance & Repair Storage Transportation Other Considerations Parts &... -
Page 4: Safety
& these should only be carried out by suitably trained & authorised personnel. For further advice please call Herida Healthcare on Freephone 0800 193 6030. P a g e... -
Page 5: Introduction

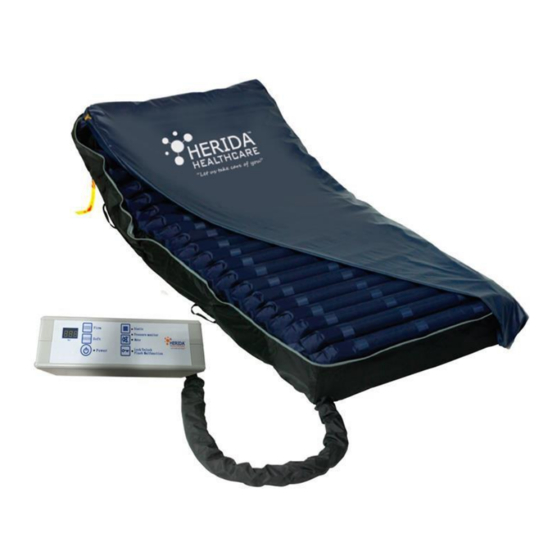

INTRODUCTION Product Description The Argyll II is a high end, specialised dynamic mattress replacement system with a digital pump, targeted towards the assistive treatment for patients who have existing and potentially severe pressure damage. This system is designed for those patients considered to be at very high risk of pressure ulcer development and has a deep cell, consisting of two layers (8-inch / 20cm depth). -
Page 6: Operation
(*see below). Unless the clinical condition dictates, it is not advised to adjust the bed profile beyond 45°. The Argyll II™ will continue to operate beyond this but may cause increased pressure points on the patient. A fist or hand test to ensure patient clearance under the sacral area is a best practice guide (see image 1DA and diagram of profiled mattress 2DA or visit our website (www.heridahealthcare.co.uk) under “Education”... -
Page 7: Installation
Argyll II™ User/Service Manual OPERATION Image 1DA (NB: use hand to check ensure appropriate clearance when profiled as below. Add more pressure on the pump if required in order to achieve this. NB: Weight setting is a guide only and cell pressure must also be taken into consideration for individual patients). -
Page 8: Safety Instructions
Argyll II™ User/Service Manual OPERATION Safety Instructions 1. Ensure that there are no sharp objects, fire or abrasive materials in the vicinity. If the mattress is damaged. Remove the patient & transfer to an alternative mode of pressure relief. 2. If there is an issue with the pump, remove the patient & transfer to another mode of pressure relief. -
Page 9: Mattress & Pump Characteristics
Argyll II™ User/Service Manual OPERATION Air Leakage / Low Pressure Alarm • After working for 50 minutes and the pressure is lower than 15mmHg, the pump will alarm indicating an initialisation failure. • During normal operation, when the pressure is lower than 6mmHg for 6 minutes, the pump will alarm indicating possible air leakage from the mattress. -
Page 10: Maintenance
Maintenance & repair work should only be carried out by an appointed engineer who have been trained by Herida Healthcare Ltd. and only original manufacturers parts should be used. Failure to follow the instructions could result in a void warranty situation. -
Page 11: Storage
Argyll II™ User/Service Manual MAINTENANCE At point of service the following aspects must be maintained to ensure that manufacturer’s warranty remains intact. These can be done in a non-alphabetic way, if all areas are covered: • Ensure the pump unit and mattress / cells are fully decontaminated prior to service and are cleaned in accordance with the schedule provided. -
Page 12: Transportation
Argyll II™ User/Service Manual MAINTENANCE Transportation • Care should be taken when loading, unloading and during transportation & refrain from placing heavy objects on top of the mattresses. • Do not expos to direct sunshine for any period of time when loading and unloading &... -
Page 13: Routine Checks
Argyll II™ User/Service Manual ROUTINE CHECKS Mattress • Remove top cover and inspect for signs of wear or any tears. • Check zips are still operative & function as normal. • Check integrity of all connectors including cells, tubing and CPR toggle. -
Page 14: P09 Pump
Argyll II™ User/Service Manual P09 3-Way Pump 14 | P a g e A U G U S T 2 0 1 9... -
Page 15: Warnings & Symbols
Argyll II™ User/Service Manual WARNINGS & SYMBOLS Warning – Follow guidance at all times as per the instructions within the user manual. BF application symbol – Provides a higher degree of protection against electric shock. Class II electrical appliance – Double insulated. -
Page 16: Trouble Shooting
Argyll II™ User/Service Manual TROUBLE SHOOTING Issue Possible Cause Possible Resolution • The plug is not • Make sure the power is properly connected. correctly connected and the • Power Cut. voltage is normal. • Await re-connection of • The fuse is broken. -
Page 17: Company Information
VAT Registration Number: 233587691 Disclaimer Please be aware that all products should be disposed of in an environmentally friendly & infection control manner in compliance with any local or national requirements. Contact Herida Healthcare Ltd. for responsible WEEE disposal methods. 17 |...
