Ayrshire™ User/Service Manual
User & Full Service Manual

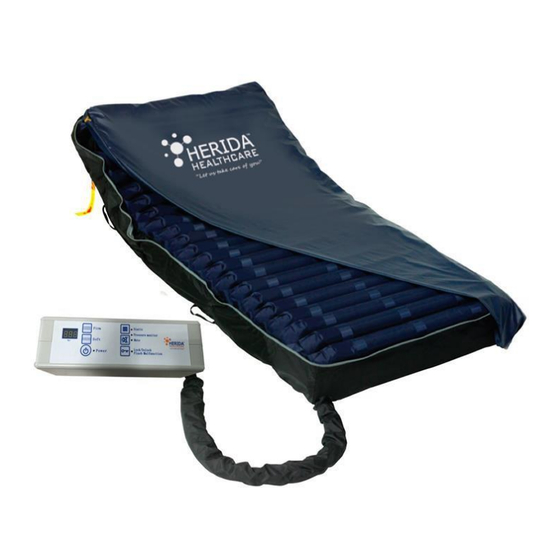

Herida II
Pressure Relieving / Alternating Air Mattress & Pump
Pump Model: HH/P09 Mattress Model: HH/T04
NB: Please ensure this document is fully read & understood
by the Clinician / Carer / Service Engineer prior to use.
1 |
P a g e
J A N U A R Y 2 0 2 0
Advertisement
Table of Contents
Related Manuals for Herida Healthcare Ayrshire
Summary of Contents for Herida Healthcare Ayrshire
- Page 1 Ayrshire™ User/Service Manual User & Full Service Manual Herida II Pressure Relieving / Alternating Air Mattress & Pump Pump Model: HH/P09 Mattress Model: HH/T04 NB: Please ensure this document is fully read & understood by the Clinician / Carer / Service Engineer prior to use.
- Page 2 Ayrshire™ User/Service Manual P a g e J A N U A R Y 2 0 2 0...
-
Page 3: Table Of Contents
Ayrshire™ User/Service Manual CONTENTS SAFETY………………………………………………………4 INTRODUCTION………………………………………….…5 Product Description Application Contra indications Working Principle OPERATION………………………..………………………..6 Static Mode Alternating Mode Profiled Bed – Clinical Considerations Installation Safety Instructions Pump Operation Mattress & Pump Characteristics MAINTENANCE……………………………………………..10 Cleaning Maintenance & Repair Storage Transportation Other Considerations Parts &... -
Page 4: Safety
& these should only be carried out by suitably trained & authorised personnel. For further advice please call Herida Healthcare on Freephone 0800 193 6030. Parts and Accessories：... -
Page 5: Introduction
4 ulcers. The Herida Ayrshire’s ventilated bladder gently cools the skin surface, aiding a micro climate at patient and mattress interface. This... -
Page 6: Operation
(*see below). Unless the clinical condition dictates, it is not advised to adjust the bed profile beyond 45°. The Ayrshire™ will continue to operate beyond this but may cause increased pressure points on the patient. A fist or hand test to ensure patient clearance under the sacral area is a best practice guide (see image 1DA and diagram of profiled mattress 2DA or visit our website (www.heridahealthcare.co.uk) under “Education”... -
Page 7: Installation
Ayrshire™ User/Service Manual OPERATION Image 1DA (NB: use hand to check ensure appropriate clearance when profiled as below. Add more pressure on the pump if required in order to achieve this. NB: Weight setting is a guide only and cell pressure must also be taken into consideration for individual patients). -
Page 8: Safety Instructions
Ayrshire™ User/Service Manual OPERATION Safety Instructions 1. Ensure that there are no sharp objects, fire or abrasive materials in the vicinity. If the mattress is damaged. Remove the patient & transfer to an alternative mode of pressure relief. 2. If there is an issue with the pump, remove the patient & transfer to another mode of pressure relief. -
Page 9: Mattress & Pump Characteristics
Ayrshire™ User/Service Manual OPERATION Air Leakage / Low Pressure Alarm • After working for 50 minutes and the pressure is lower than 15mmHg, the pump will alarm indicating an initialisation failure. • During normal operation, when the pressure is lower than 6mmHg for 6 minutes, the pump will alarm indicating possible air leakage from the mattress. -
Page 10: Maintenance
The service must be conducted by a Herida trained / competent individual that has demonstrable training records. This training must be reviewed regularly. Only Herida Healthcare spare parts can be used to ensure warranty and safe use is achieved throughout. - Page 11 Ayrshire™ User/Service Manual MAINTENANCE - 12 months or as suggested upon patient return At point of service the following aspects must be maintained to ensure that manufacturer’s warranty remains intact. These can be done in a non-alphabetic way, if all areas are covered: •...
-
Page 12: Storage
Ayrshire™ User/Service Manual MAINTENANCE Storage • Good ventilation will be required when storing the product & it should always be kept dry & away from direct sunlight. Temperature should be maintained in the region of 22°C ± 3°C when in use. -
Page 13: Routine Checks
Ayrshire™ User/Service Manual ROUTINE CHECKS Mattress • Remove top cover and inspect for signs of wear or any tears. • Check zips are still operative & function as normal. • Check integrity of all connectors including cells, tubing and CPR toggle. -
Page 14: P09 Pump
Ayrshire™ User/Service Manual P09 Pump 14 | P a g e J A N U A R Y 2 0 2 0... -
Page 15: Warnings & Symbols
Ayrshire™ User/Service Manual WARNINGS & SYMBOLS Warning – Follow guidance at all times as per the instructions within the user manual. BF application symbol – Provides a higher degree of protection against electric shock. Class II electrical appliance – Double insulated. -
Page 16: Trouble Shooting
Ayrshire™ User/Service Manual TROUBLE SHOOTING Issue Possible Cause Possible Resolution • The plug is not • Make sure the power is properly connected. correctly connected and the • Power Cut. voltage is normal. • Await re-connection of • The fuse is broken. -
Page 17: Company Information
VAT Registration Number: 233587691 Disclaimer Please be aware that all products should be disposed of in an environmentally friendly & infection control manner in compliance with any local or national requirements. Contact Herida Healthcare Ltd. for responsible WEEE disposal methods. 17 |...
