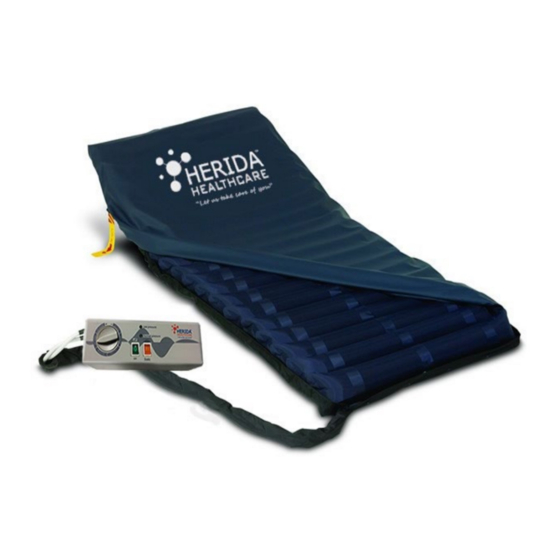

- Page 1 Grampian II ™ Instructions For Use & Service Guide Pressure Relieving / Alternating Air Mattress & Pump Pump Model: HH/P08 Mattress Model: HH/T05 NB: Please ensure this document is fully read & understood by the Clinician / Carer / Service Engineer prior to use. IFU-008-01 v2 P a g e...
- Page 2 Grampian II ™ IFU-008-01 v2 P a g e...
-
Page 3: Table Of Contents
Grampian II ™ CONTENTS SAFETY………………………………………………………4 INTRODUCTION………………………………………….…5 Product Description Application Contra-Indications Working Principle OPERATION………………………..………………………..7 Static Mode Alternating Mode Profiled Bed – Clinical Considerations Installation Safety Instructions Pump Operation Mattress & Pump Characteristics MAINTENANCE……………………………………………..12 Cleaning Maintenance & Repair Storage Transportation Other Considerations Parts &... -
Page 4: Safety
Grampian II ™ SAFETY Before you connect the system pump to a mains socket, read carefully all the installation instructions. This system has been designed to comply with regulatory safety standards including: • EN 60601-1 / Class I Medical Device For your own safety and the safety of the equipment always take the following precautions: •... -
Page 5: Introduction
Grampian II ™ INTRODUCTION Product Description The Grampian II™ is the second-generation mattress overlay system of an economical consideration. It is designed for the prevention and treatment of skin breakdown / pressure ulcer development and targeted for patients deemed at high risk of pressure ulcer development. Its modern construction is made from 18 transverse cells, which are a comfortable 5 inches (115mm) in height. - Page 6 Grampian II ™ INTRODUCTION In addition: • The CPR toggle on the medical device should be activated to achieve rapid deflation before applying manual cardiopulmonary resuscitation (CPR). • This product should not be used if cover is compromised (ripped/torn) or if product has become flattened.
-
Page 7: Working Principle
Grampian II ™ OPERATION Working Principle The dynamic mattress system consists of a manual air pump and an alternating air mattress. The air mattress has three distinct airway chambers: 1. Pillow Chambers – Air tubes 1,2 & 3. These remain static throughout as to avoid head movement, sickness to the user. - Page 8 Grampian II ™ OPERATION Profiled Bed & Mattress - Clinical & Carer Considerations If the bed is in the profiled position, ensure that the pump pressure is increased accordingly to appropriately accommodate (*see below). Unless the clinical condition dictates, it is not advised to adjust the bed profile beyond 45°.
-
Page 9: Installation
Grampian II ™ OPERATION Installation 1. Ensure the mattress to be used fits within the intended bedframe. 2. Remove all packaging & place the pump either at the end of the bed on its hooks or on a flat surface. 3. -
Page 10: Safety Instructions
Grampian II ™ OPERATION Safety Instructions 1. Ensure that there are no sharp objects, fire or abrasive materials in the vicinity. If the mattress is damaged. Remove the patient & transfer to an alternative mode of pressure relief. 2. If there is an issue with the pump, remove the patient & transfer to another mode of pressure relief. -
Page 11: Mattress & Pump Characteristics
Grampian II ™ OPERATION Pump Characteristics Power AC220V / AC110V Pressure Range 30 – 130 mmHg (V1) / 30 – 80 mmHg (V2) Internal Fuse F0.5A 250V Plug Fuse Frequency 50Hz / 60 Hz Power Noise ≤45dB Alternating Time 1 complete cycle is 11 ½ minutes which is 2 x 5 minute periods of alternative cell inflation with a change over time of 1 ½... -
Page 12: Maintenance
Grampian II ™ MAINTENANCE Cleaning Prior to first use, the equipment should be wiped down in accordance with the ‘Standard Cleaning Procedure' (below). Regular cleaning of the mattress is required & failure to follow these instructions may result in a void warranty situation In line with the MHRA Medical Device Alert (MDA/2013/019), Herida Medical advises customers to use the above Standard &... - Page 13 Grampian II ™ MAINTENANCE – 12 months or as suggested upon patient return At point of service the following aspects must be maintained to ensure that manufacturer’s warranty remains intact. These can be done in a non-alphabetic way, if all areas are covered: •...
-
Page 14: Storage
Grampian II ™ MAINTENANCE Transportation Care should be taken when loading, unloading and during transportation & refrain • from placing heavy objects on top of the mattresses. Do not expos to direct sunshine for any period of time when loading and unloading & •... -
Page 15: Routine Checks
Grampian II ™ ROUTINE CHECKS Mattress • Remove top cover and inspect for signs of wear or any tears. • Check zips are still operative & function as normal. • Check integrity of all connectors including cells, tubing and CPR toggle. •... -
Page 16: Warnings & Symbols
Grampian II ™ WARNINGS & SYMBOLS Warning – Follow guidance at all times as per the instructions within the user manual. BF application symbol – Provides a higher degree of protection against electric shock. Class II electrical appliance – Double insulated. Dispose of electrical equipment correctly (WEEE). -
Page 17: Trouble Shooting
Grampian II ™ TROUBLE SHOOTING Issue Possible Cause Possible Resolution • The plug is not • Make sure the power is properly connected. correctly connected and the • Power Cut. voltage is normal. • Await re-connection of • The fuse is broken. power / look at generator. -
Page 18: Notes
Grampian II ™ Notes 18 | IFU-008-01 v2 P a g e... - Page 19 Grampian II ™ 19 | IFU-008-01 v2 P a g e...
-
Page 20: Company Information
Grampian II ™ COMPANY INFORMATION Herida Medical Ltd. Herida House Unit 2, Leeds 27 Industrial Estate Bruntcliffe Avenue, Morley Leeds, LS27 0LL Company Number: 9918019 VAT Registration Number: 233587691 Freephone: +44 800 193 6030 Email: sales@heridamedical.co.uk Web: www.heridamedical.co.uk Scan for further information. Warranty Information This warranty excludes equipment damage or failure through acts of god, an incidence of excess voltage or current, shipping, tampering, improper maintenance, carelessness, accidental damage, negligence or misuse, or products...
