INSTALLATION

Mounting the device
You may fasten the device to a wall or ceiling via the bracket. Always choose screws and plugs which are
suitable for use in your wall/ceiling and have enough holding power. Fasten the device in such way that it will
not fall down. To align the device, release the fixation screws at the mounting bracket, adjust the desired
inclination angle and tighten the fixation screws.

POWER SUPPLY

Connect the device via the mains cable to a grounded mains socket. Thus the unit is switched on. To switch
off the unit, disconnect the power plug.
Make sure that the outlet is in a dry area.
Notes: Do not connect the unit to the mains voltage via a dimmer. For a more convenient operation, use a
mains outlet which is switchable.

OPERATION

After connecting the device to the mains it is ready for operation. The operating modes can be selected by
means of the EUROLITE IR-37 remote control. All settings remain stored even if the device is disconnected
from the mains.

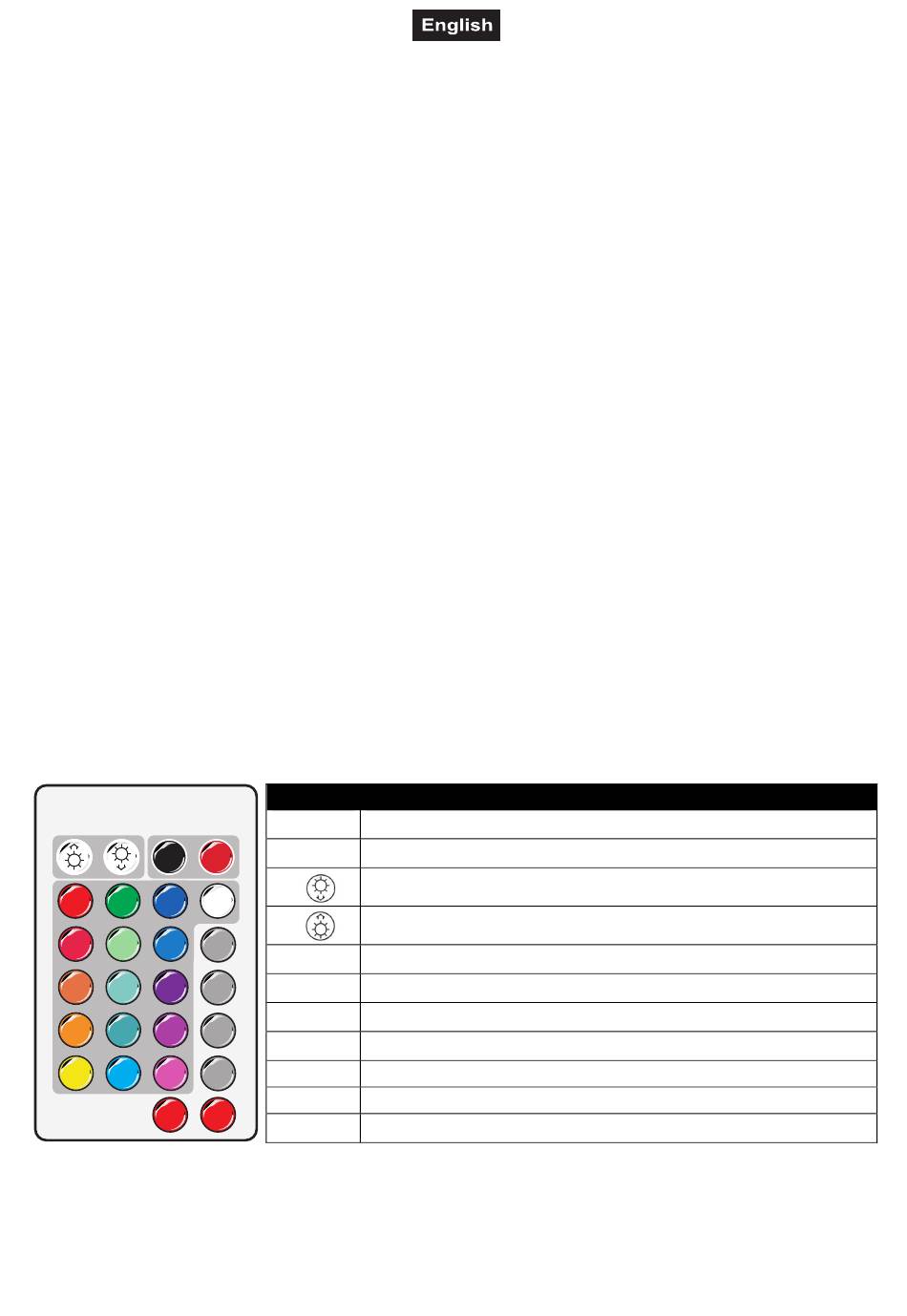

Remote control IR-37

When actuating a button, always direct the remote control towards the sensor. There must be no obstacles
between remote control and the sensor.
OFF ON
R G B W
FLASH
STROBE
FADE
SMOOTH
S+ S-
Button Function
ON LEDs on
OFF LEDs off
- Brightness (decreasing) in 8 steps with static colors
- Brightness (increasing) in 8 steps with static colors
COLORS Constant lighting of all LEDs in one color (15 colors + white)
FLASH Color change: 6 colors, internal program
STROBE Flashing color change: 6 colors, internal program
FADE Color fade in and out: 6 colors, internal program
SMOOTH Color fade: 6 colors, internal program
S+ - Speed (increasing) in 5 steps for the internal programs
S- - Speed (decreasing) in 5 steps for the internal programs
13/16 00128689, Version 1.0
