Coin-Cell Battery; Removing The Coin-Cell Battery - Dell Inspiron 7400 Service Manual

6. Close the right-display hinge and align the screw holes on the right-display hinge with the screw holes on the palm-rest and
keyboard assembly.
7. Replace the two screws (M2x4) that secure the right-display hinge to the palm-rest and keyboard assembly.
8. Place the Mylar that covers the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in

Coin-cell battery

Removing the coin-cell battery

Prerequisites
1. Follow the procedure in
2. Remove the base cover.
3. Remove the 4-cell battery
About this task

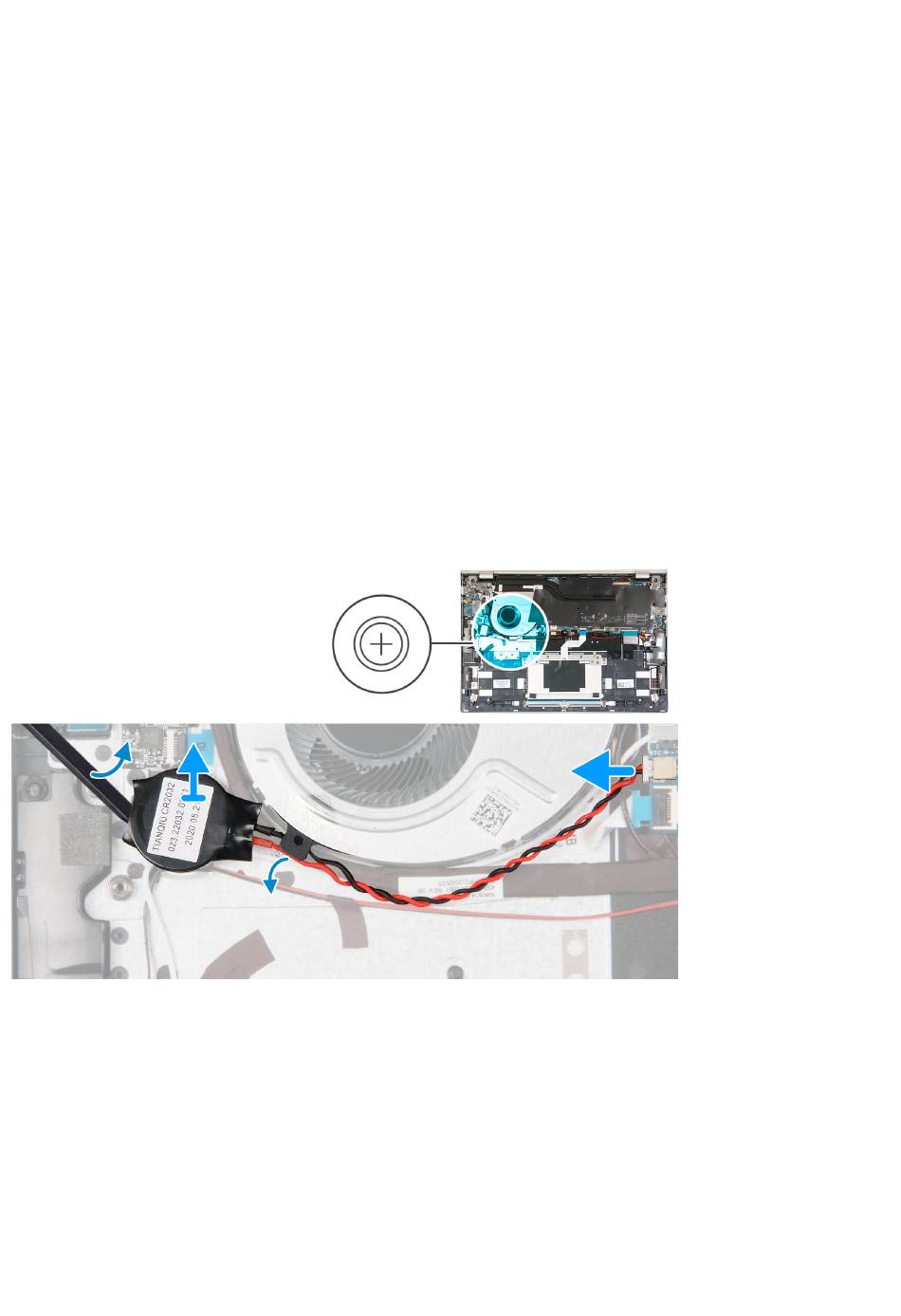

The following images indicate the location of the coin-cell battery and provides a visual representation of the removal procedure.
Steps
1. Disconnec the coin-cell battery cable from the system board.
2. Remove the coin-cell battery cable from the routing guide on the fan.
3. Using a plastic scribe, pry the coin-cell battery from the the palm-rest and keyboard assembly.
4. Lift the coin-cellbattery and its cable from the palm-rest and keyboard assembly
42 Removing and installing components
After working inside your
Before working inside your
or the 6-cell battery, whichever applicable.
computer.
computer.
